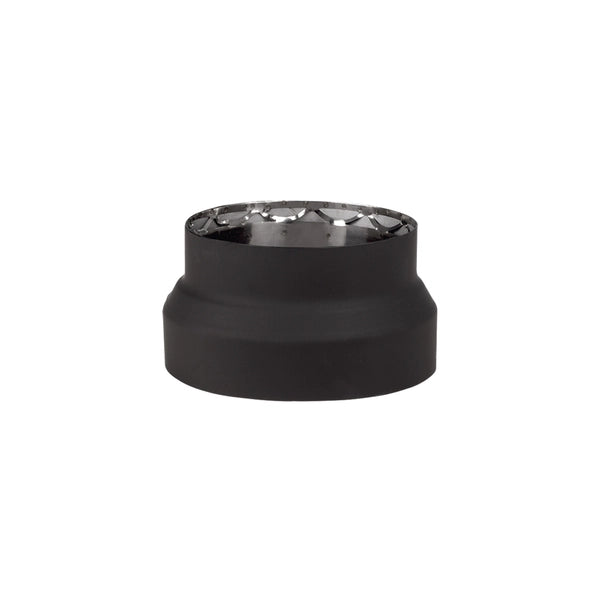

VORTEX DOUBLE WALL 8" TO 6" REDUCER VOD0251

The female portion (smallest diameter at 6 inches) should point in the direction of airflow. For most installations, this means the 6-inch female end connects to the smaller pipe continuing up toward the chimney or flue, while the 8-inch male end connects to the larger diameter pipe coming from the stove or appliance. Always follow manufacturer installation instructions and local building codes.

The Vortex Double Wall Reducer requires a minimum clearance of 6 inches to combustible side walls and ceilings. This represents a significant reduction from single wall pipe requirements. If the assembled pipe section has no adjustable length, clearances may be further reduced to 5 inches. The double wall construction with thermal weave technology keeps outer surfaces cooler, allowing for these reduced clearances while maintaining safety.

This Vortex reducer is designed to work seamlessly with Vortex double wall stove pipe systems. While it may be physically compatible with other brands, it's recommended to use matching components from the same manufacturer to ensure proper fit, performance, and warranty coverage. Mixing brands may affect clearance requirements and compliance with safety standards.

The Vortex VOD0251 reducer meets or exceeds multiple industry safety standards including NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances), CSA B365 (Installation Code for Solid-Fuel-Burning Appliances and Equipment), UL 103 HT (Factory-Built Chimneys for Residential Type and Building Heating Appliances), and ULCS629. These certifications ensure the product meets rigorous safety and performance requirements.

The exclusive thermal weave construction in the stainless-steel inner wall creates an engineered airflow pattern that distributes heat more evenly throughout the venting system. This promotes more efficient draft, reduces hot spots, and most importantly, keeps the outer wall temperatures significantly lower than standard double wall pipe. The result is safer operation, reduced clearance requirements, and improved overall system efficiency.

Regular inspection and cleaning are essential for safe operation. At least once per year (or more frequently with heavy use), inspect the reducer for creosote buildup, corrosion, or damage. Clean any creosote deposits using appropriate chimney cleaning tools and methods. Check all connections to ensure they remain secure. The powder coat finish should be inspected for any deterioration that might indicate corrosion underneath. Always perform maintenance when the system is completely cool.

Yes, the Vortex VOD0251 reducer is suitable for use with wood-burning stoves, pellet stoves, and fireplace inserts, provided your system uses double wall stove pipe. However, you must ensure that the reducer's temperature rating and clearance specifications are appropriate for your specific appliance. Always consult your stove manufacturer's venting requirements and follow local building codes for proper installation.

The Vortex VOD0251 reducer is sold as a single component unit with the laser-welded construction already assembled. The powder-coated reducer includes both the 8-inch inlet and 6-inch outlet ends ready for installation. Self-tapping screws for securing connections are typically included with other Vortex pipe components but may need to be purchased separately. Check with your retailer for specific package contents and consult installation manuals for complete installation requirements.
