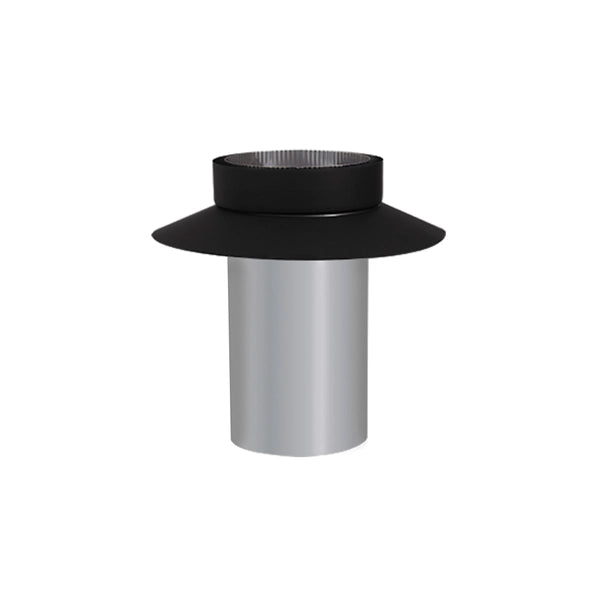

6" VORTEX DOUBLE WALL MASONRY ADAPTER VOD0230

The VOD0230 Vortex Double Wall Masonry Adapter is designed to connect double wall stove pipe to existing masonry chimneys or relined masonry chimneys with stainless steel liner. The masonry chimney must be in good condition and built according to NFPA 211 (USA) or CSA B365 (Canada) standards. The adapter should extend through the chimney wall and insert at least 2 inches into the chimney liner or tee take-off, secured with at least 3 self-tapping screws. The collar must fit flush to the masonry wall, and any gaps should be sealed with high-temperature silicone caulking to prevent heat or combustion products from escaping.

The Vortex Double Wall Masonry Adapter requires a minimum clearance of 6 inches from combustible side walls and combustible ceilings. This is a significant advantage over single wall stove pipe, which requires 18 inches of clearance. The reduced clearance requirement is achieved through the double wall construction with thermal weave technology, which provides superior insulation and maintains lower outer wall temperatures. In some cases, if the assembled pipe section has no adjustable length, clearances may be reduced to 5 inches, but always follow the appliance manufacturer's clearance requirements if they specify larger distances.

Installation involves several key steps: First, create an appropriately sized opening in the masonry wall (14.16" diameter for the collar). Insert the masonry adapter through the wall opening so it extends at least 2 inches into the masonry chimney liner or tee take-off. Ensure the adapter collar fits flush against the exterior masonry wall. Attach the collar to the masonry wall using screws and masonry anchors (not supplied). Secure the connection with at least 3 #8 x 1/2" self-drilling or self-tapping screws. Seal the joint between the collar and masonry wall with high-temperature silicone caulking. Connect the double wall stove pipe to the adapter's outer end, again securing with at least 3 screws. Always consult the complete installation manual for detailed instructions and safety requirements.

No, the VOD0230 Vortex Double Wall Masonry Adapter should only be used with Vortex Double Wall Stove Pipe components and other listed Vortex system components. Mixing components from different manufacturers is not recommended and will void the manufacturer's warranty. Using incompatible components can also affect the UL listing status and may compromise the safety and performance of your venting system. All Vortex components are specifically designed to work together with matching dimensions, connection methods, and laser-welded construction for optimal safety and performance. Always use complete Vortex system components for your entire installation.

Regular inspection and cleaning of the masonry adapter and entire venting system is essential for safe operation. The adapter and connected stove pipe should be inspected at least annually and cleaned as needed to remove creosote and soot buildup. Use a plastic, wood, or flexible steel brush for cleaning - never use chemical chimney cleaners as they may be highly corrosive and can damage the system. During cleaning, ensure all connections remain secure and check for any signs of corrosion, damage, or gaps that could allow heat or combustion products to escape. If a chimney fire occurs, have the entire system inspected by a professional chimney sweep and/or fire department inspector before using the appliance again.

The Vortex Double Wall Masonry Adapter VOD0230 complies with multiple rigorous safety standards including NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances), CSA B365 (Installation Code for Solid-Fuel-Burning Appliances and Equipment), UL 103 HT (Standard for Factory-Built Chimneys for Residential Type and Building Heating Appliances), and ULCS629 (Standard for Stove Pipe). These certifications ensure the product meets the highest safety requirements for solid fuel venting applications and has been tested for performance, durability, and safe operation when properly installed according to manufacturer instructions.

The Vortex Double Wall Masonry Adapter comes with the manufacturer's warranty that applies to the original purchaser and is non-transferable. The warranty covers replacement of defective double wall stove pipe components when used in residential installations, provided the product has been properly installed according to instructions. The warranty is void if the product is used in applications other than its intended purpose. This warranty covers only manufacturing defects in materials when properly installed, maintained, and used. For warranty claims, you must contact the manufacturer with your proof of purchase and detailed information about the defect. Supporting documentation or digital pictures may be required, and a return authorization number must be obtained before shipping any components. Transportation costs for replacement parts are typically covered FOB from the manufacturer's location.

No, the VOD0230 Vortex Double Wall Masonry Adapter is specifically designed for solid fuel applications, primarily wood-burning stoves. It should only be used with appliances that burn solid fuels and are designed to connect to the Vortex Double Wall Stove Pipe system. The adapter complies with standards for solid fuel-burning appliances (NFPA 211, CSA B365) and is not rated or certified for use with pellet stoves, gas appliances, or oil-burning equipment. Each type of fuel requires specific venting components designed and certified for that particular application. Using this adapter with non-solid fuel appliances could be dangerous and would violate safety standards and void all warranties. Always match venting components to your specific appliance type and fuel source.
