Vortex 4" Pellet Vent Basement Kit Features
- Revolutionary Leak-Free Gasket System: Innovative gasket technology prevents leaks without requiring silicone sealant, ensuring a secure and maintenance-free connection between all venting components.
- Premium Dual-Wall Construction: Features a durable outer wall made from corrosion-resistant galvalume steel combined with a high-grade stainless steel inner wall for maximum durability and longevity in demanding basement installations.
- Smooth-Weld Technology: Advanced welding process creates virtually invisible seams for a professional, clean appearance and improved structural integrity throughout the venting system.
- Precision Formed Ends: Each component features precision-formed ends that ensure perfect fit and alignment during installation, reducing installation time and eliminating gaps.
- Complete Basement Installation Kit: Comprehensive package includes all necessary components for a complete basement pellet stove venting system - no additional parts needed for standard installations up to 75 inches in total length.
- Screwless Quick-Connect Design: Tool-free assembly system allows for fast, secure connections between pipe sections, making installation and future maintenance significantly easier.
- Safety Certified Construction: Complies with NFPA 211, CSA B365, UL 641, CAN/ULC S609, and ULC/ORD C441 standards, ensuring safe operation and meeting all building code requirements.
- Minimal Clearance Requirements: Only 1 inch clearance to combustible materials required, providing installation flexibility in tight basement spaces while maintaining safety.
Vortex 4" Pellet Vent Basement Kit Specs
| Model Number | VOPKB04 |
| Pipe Diameter | 4 inches (100mm) |
| Application | Basement Installation Kit |
| Outer Wall Material | Galvalume Steel |
| Inner Wall Material | Stainless Steel |
| Construction Type | Dual-Wall |
| Clearance to Combustibles | 1 inch |
| Total Maximum Length | Up to 75 inches |
| Stove Connectors Included | 1x 4" connector, 1x 3" to 4" increaser |
| Pipe Lengths Included | 1x 12"L, 1x 18"L, 1x 24"L, 2x 36"L |
| Adjustable Section | 1x 9" slip connector (adjustable) |
| Elbows | 2x 90° elbows |
| Tees Included | 2x tees with caps |
| Wall Components | 1x wall pass-thru, 2x wall supports |
| Cap Type | 1x jet cap |
| Connection System | Screwless, tool-free quick-connect |
| Gasket System | Revolutionary leak-free design (no silicone required) |
| Safety Certifications | NFPA 211, CSA B365, UL 641, CAN/ULC S609, ULC/ORD C441 |
| Compatible Brands | Drolet, Osburn, Englander pellet stoves |
| Color | Stainless Steel |
| UPC Code | 773388080826 |
| Assembly Required | Yes (screwless quick-connect) |
Vortex 4" Pellet Vent Basement Kit FAQ
What comes included in the VOPKB04 basement kit?

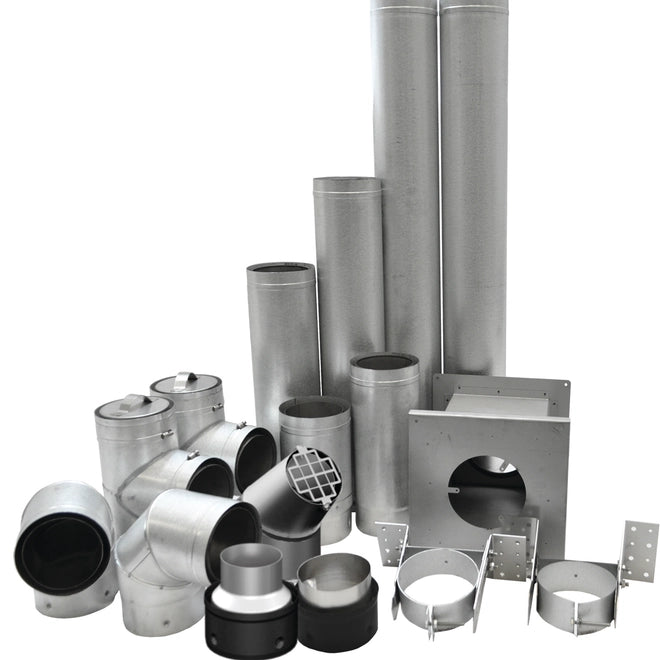

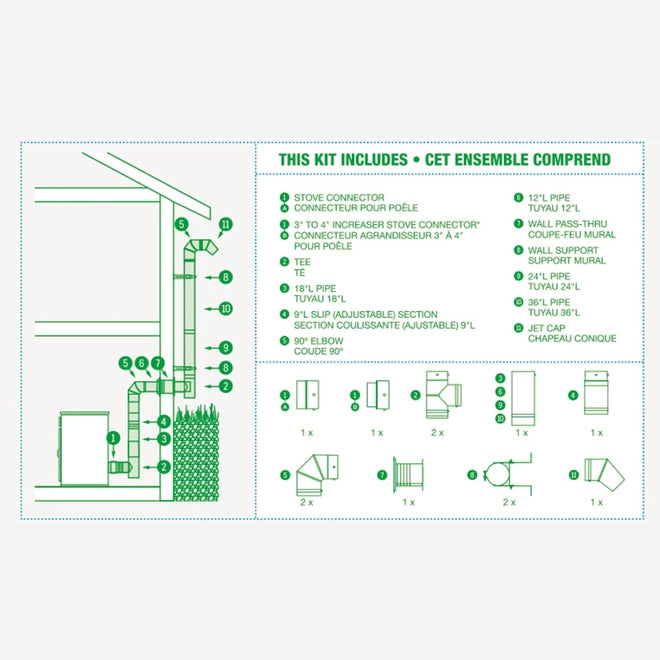

The kit includes one 4" stove connector, one 3" to 4" increaser adapter, pipe lengths (12", 18", 24", and two 36" sections), one 9" adjustable slip connector, two 90° elbows, two tees with caps, one wall pass-thru, two wall supports, and one jet cap - everything needed for a complete basement pellet stove venting installation.
Do I need silicone sealant to install this venting system?
No, the Vortex pellet vent features a revolutionary gasket system that prevents leaks without requiring any silicone sealant. The system creates a secure, maintenance-free seal through its innovative design, making installation cleaner and easier.
What clearance is required to combustible materials?
The VOPKB04 requires only 1 inch of clearance to combustible materials, making it ideal for basement installations where space may be limited. This minimal clearance requirement is maintained while still meeting all safety standards.
Is the Vortex system compatible with my pellet stove brand?
The VOPKB04 is compatible with Drolet, Osburn, and Englander brand pellet stoves. It includes both a 4" stove connector and a 3" to 4" increaser adapter to accommodate different stove outlet sizes. Always verify your specific stove model's requirements before purchasing.
How difficult is the installation process?
Installation is simplified through the screwless quick-connect design that allows for tool-free assembly between pipe sections. The precision-formed ends ensure proper alignment, and the system can be assembled by most homeowners with basic DIY skills. Professional installation is recommended for optimal safety and performance.
What safety certifications does this venting system have?
The Vortex pellet vent system is certified to meet NFPA 211, CSA B365, UL 641, CAN/ULC S609, and ULC/ORD C441 standards, ensuring it complies with all major North American building codes and safety requirements for pellet stove venting.
Can this kit be used for installations other than basements?
While this kit is specifically designed and optimized for basement installations, the components can be used in other applications. However, different installation scenarios may require additional components not included in this basement-specific kit.
What is the maximum total length this kit can achieve?
When fully assembled with all included components, the VOPKB04 can achieve up to 75 inches in total venting length. The adjustable 9" slip connector provides flexibility for fine-tuning the exact length needed for your installation.
4" VORTEX PELLET VENT BASEMENT KIT Manual:
