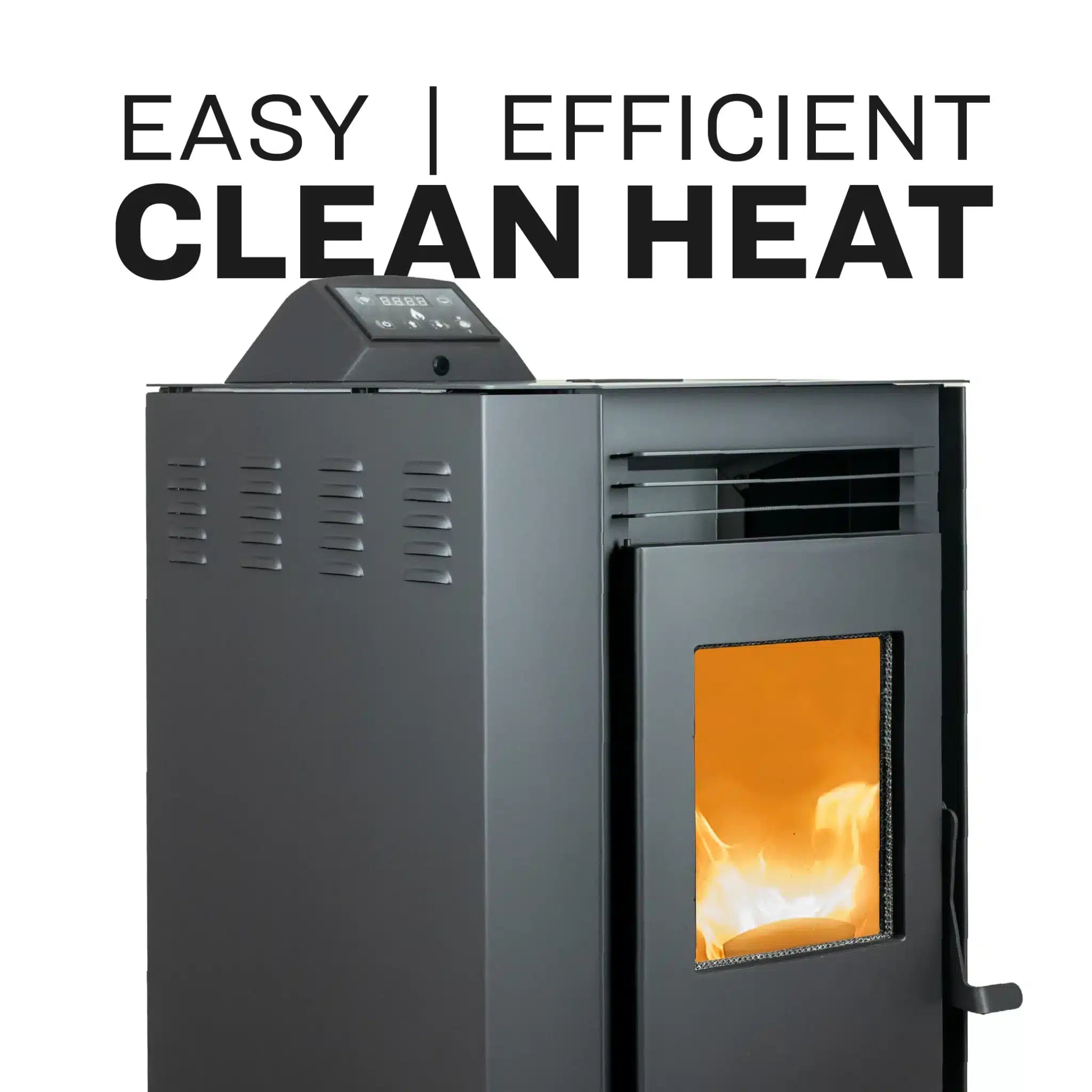

US Stove US5513-W Pellet Stove Features
- Powerful 25,000 BTU Heat Output: Delivers up to 25,000 BTUs of clean, consistent warmth, efficiently heating spaces up to 1,800 square feet—ideal for living rooms, cabins, workshops, and supplemental whole-home heating.

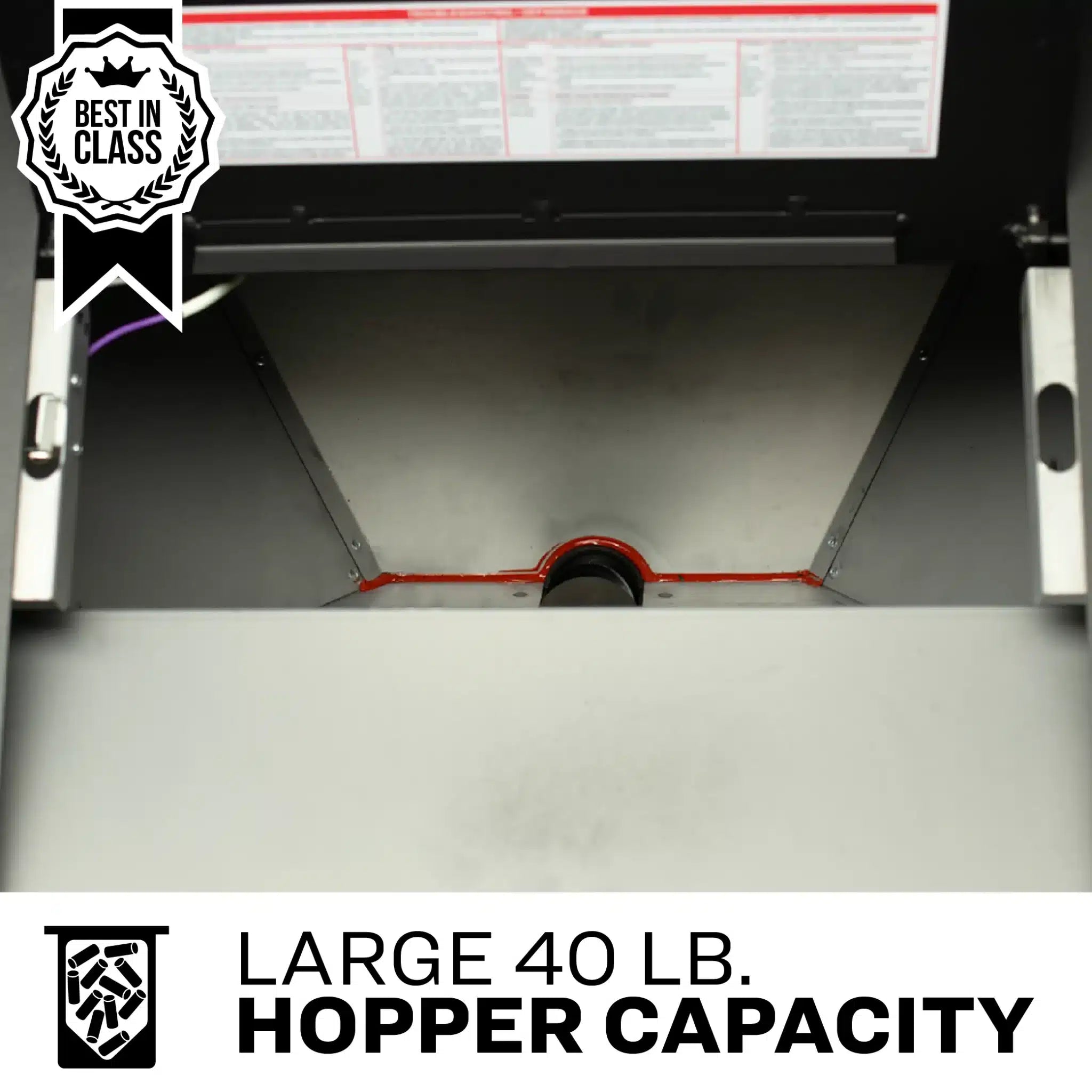

- Generous 40 lb. Pellet Hopper: A largest-in-class 40-pound hopper capacity provides up to 30 hours of continuous burn on the lowest setting, meaning fewer refills and uninterrupted overnight warmth.

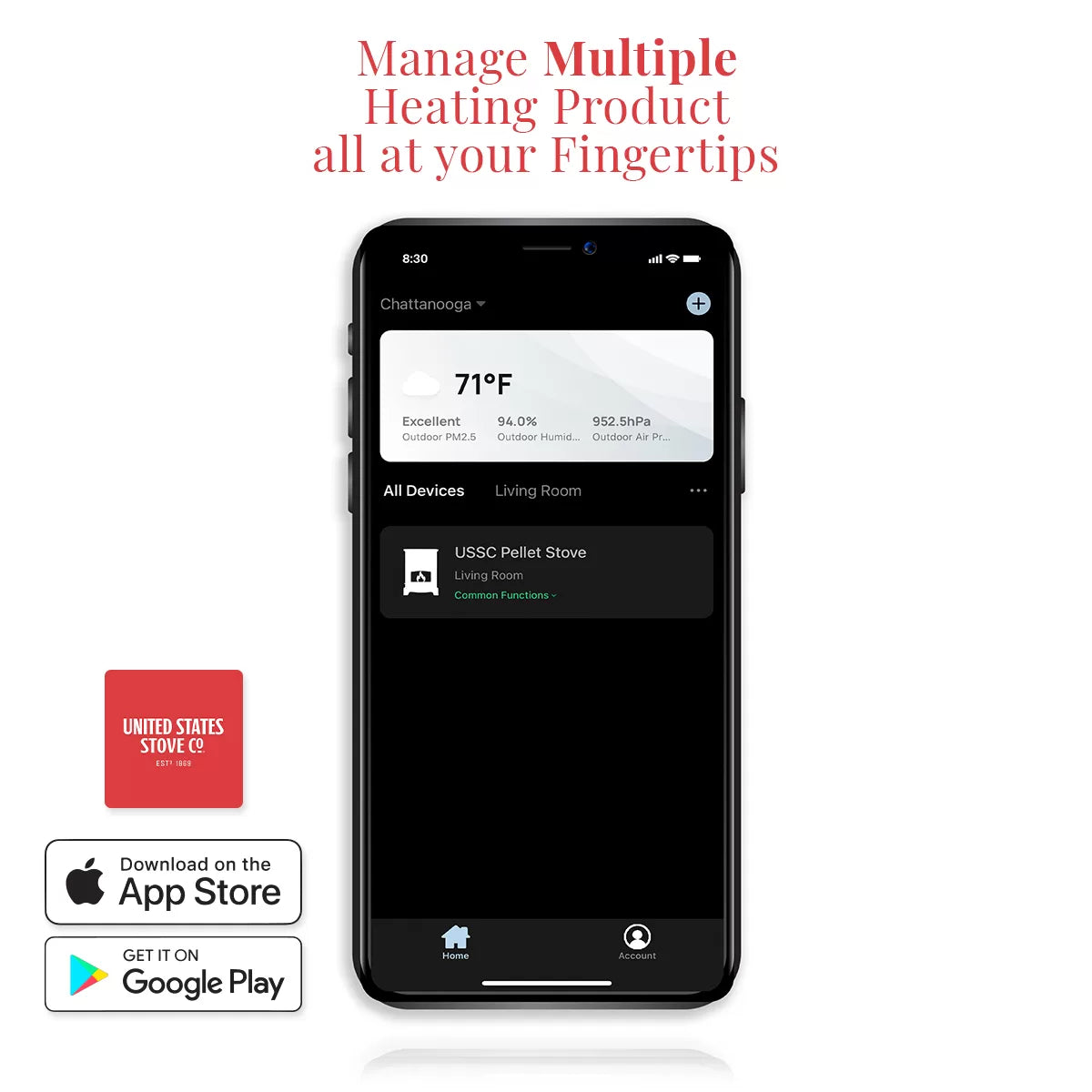

- Smart Stove Wi-Fi & Bluetooth Control: Pair the stove with the US Stove app to adjust heat settings, monitor performance, and operate the stove remotely from your smartphone using built-in Wi-Fi and Bluetooth connectivity.

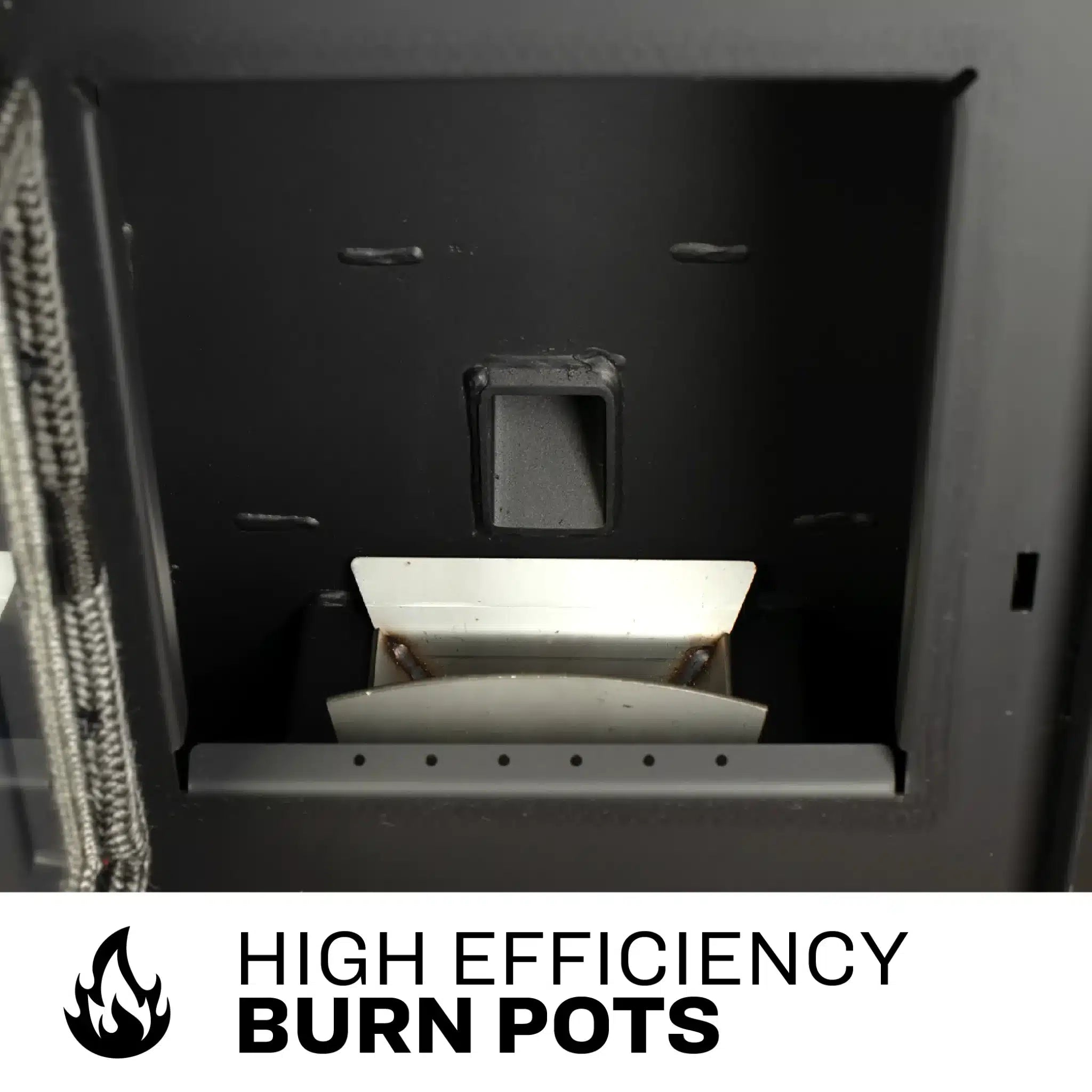

- AURORA Diverse Airflow Burner System: Exclusive AURORA high-efficiency combustion technology improves airflow, boosts heat output, and produces a beautiful, lively flame pattern for added ambiance.
- High Heating Efficiency Over 75%: Exceeds 75% efficiency rating and qualifies for the 30% IRS Sec. 25(C) Residential Energy Tax Credit, helping offset purchase cost while lowering heating bills.
- Compact Small Footprint Design: Slim freestanding cabinet fits easily into tight rooms, mobile homes, cabins, and supplemental heating zones where larger stoves won't fit.
- Mobile Home Approved: USA-certified for mobile home installation when paired with the optional 69FAK Fresh Air Kit, expanding installation flexibility for manufactured housing.
- Upgraded Ceramic Glass Window: Heat-resistant ceramic glass viewing window stands up to high temperatures and offers an unobstructed view of the dancing pellet flame.
- Automatic Pellet Ignition: Push-button auto-ignition eliminates messy lighter fluid or kindling—simply load pellets, set your temperature, and let the stove start itself.
- Built-In Variable Speed Convection Blower: Integrated multi-speed blower circulates heated air throughout the room evenly and quickly for fast, comfortable warm-up times.
- Eco-Friendly Carbon-Neutral Fuel: Wood pellets are a renewable, carbon-neutral green energy source—one of the most environmentally responsible solid fuels available today.
- EPA, CSA, ETL & UL Certified: Fully tested and certified to North American safety and emissions standards, providing peace of mind for residential installations.
US Stove US5513-W Pellet Stove Specs
| Model Number | US5513-W |
| Heating Area | Up to 1,800 sq. ft. |
| Maximum Heat Output | Up to 25,000 BTU |
| Hopper Capacity | 40 lbs. |
| Burn Time (Lowest Setting) | Up to 30 hours |
| Efficiency Rating | Exceeds 75% |
| Fuel Type | PFI Certified Premium Hardwood Wood Pellets |
| Stove Type | Freestanding |
| Combustion Type | Non-Catalytic |
| Vented or Vent-Free | Vented |
| Vent Type | Pellet Vent |
| Vent Diameter | 3 in. |
| Vent Location | Rear |
| Auto-Ignition | Yes |
| Built-In Variable Speed Blower | Yes |
| Smart Controls | Wi-Fi + Bluetooth via US Stove App |

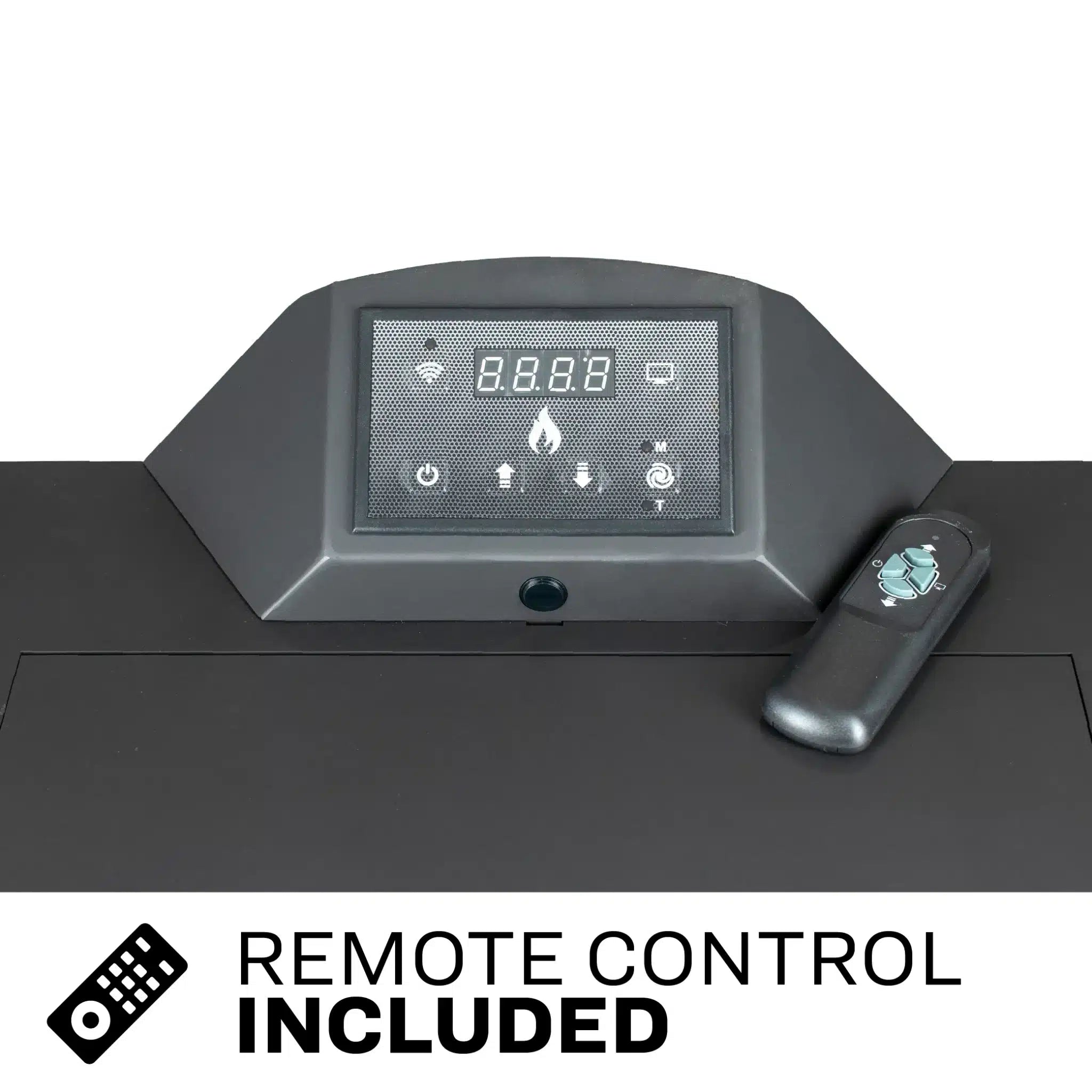

| Remote Control | Included |
| Air Wash System | Yes |
| Temperature Gauge | Yes |
| Glass Type | Upgraded Ceramic Glass |
| Ash Drawer | No |
| Cooktop | No |
| EPA Approved | Yes |
| CSA Certified | Yes |
| ETL Listed | Yes |
| UL Listed | Yes |
| Mobile Home Approved | Yes (with optional 69FAK Fresh Air Kit) |
| Outside Air Kit Compatible | Yes |
| Pedestal Base Included | No |
| Package Contents | Stove and Remote Control |
| Dimensions (W × D × H) | 22 × 25 × 33 in. |
| Weight | 170 lbs. |
| Warranty | 5-year limited firebox; 1-year all other parts; 1-year electrical parts |
US Stove US5513-W Pellet Stove FAQ
What type of pellets should I use in the US5513-W?
US Stove recommends using only PFI certified premium hardwood pellets. The stove is specifically designed and tested for wood pellets only—burning corn, coffee pellets, or other alternative fuels is not permitted and may damage the stove or void the warranty.
Is the US5513-W approved for mobile home installation?
Yes, the US5513-W is mobile home approved in the USA when installed with the optional 69FAK Fresh Air Kit. A fresh air kit is also recommended for newer tightly-sealed homes or homes with limited makeup air to ensure proper combustion.

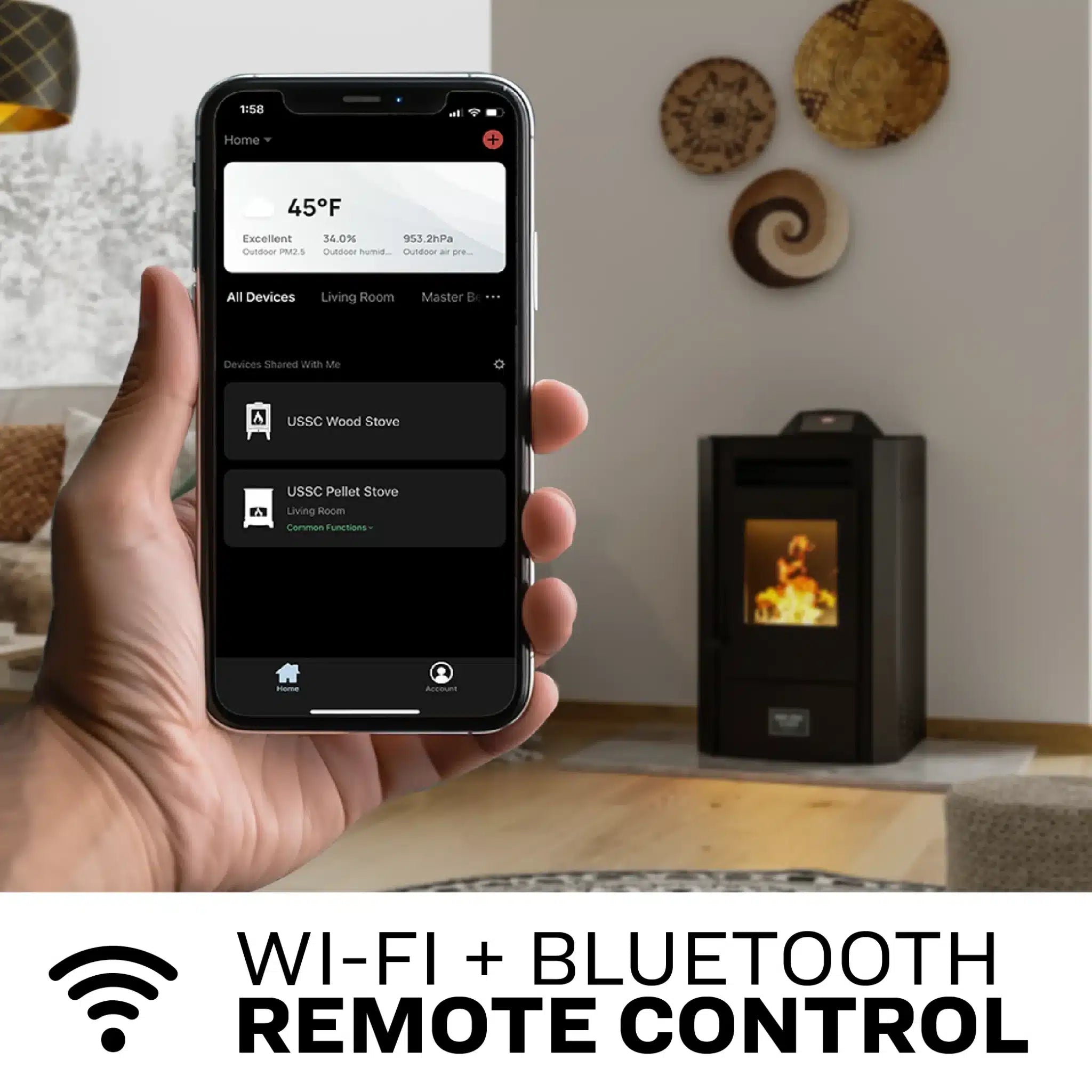

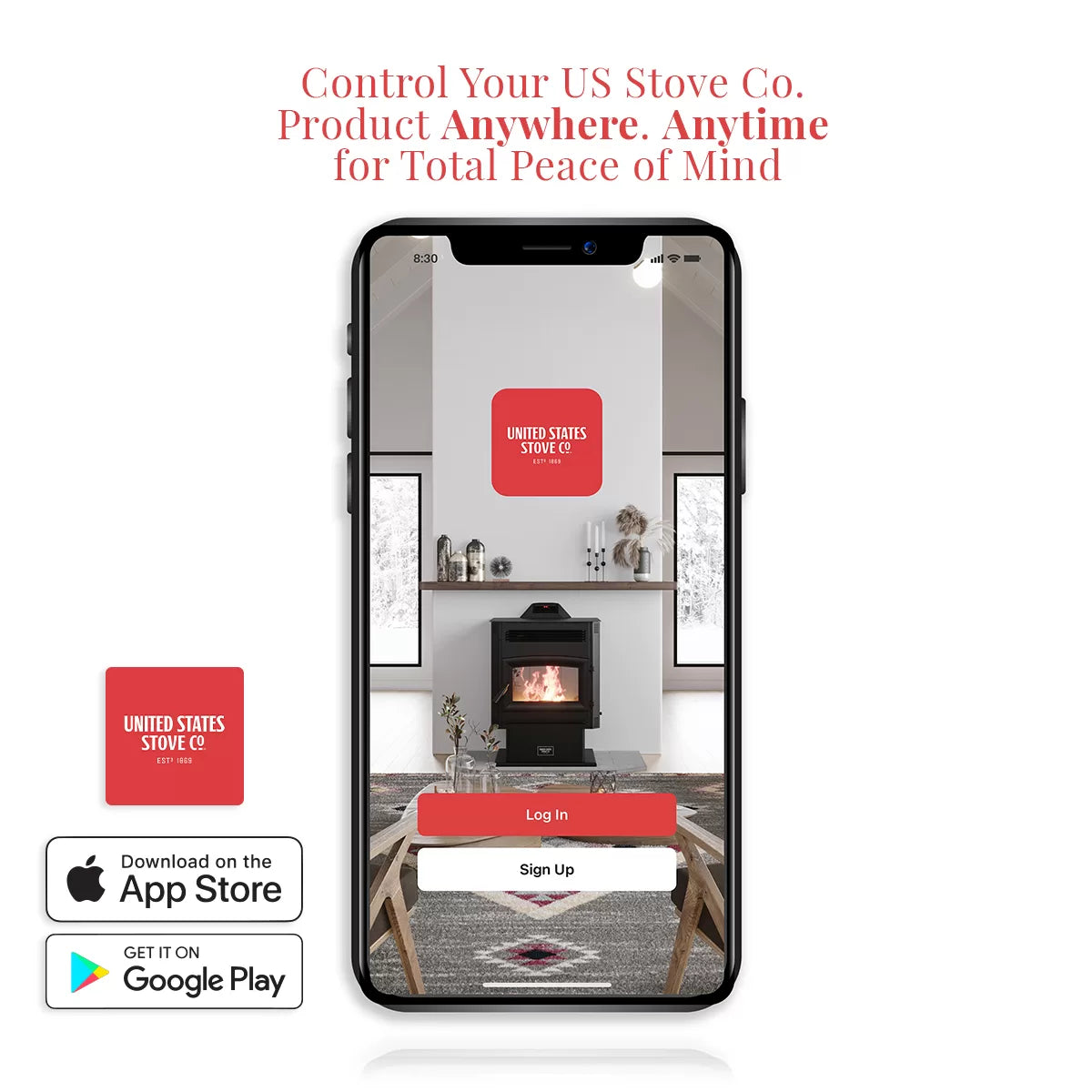

How does the Wi-Fi smart control feature work?

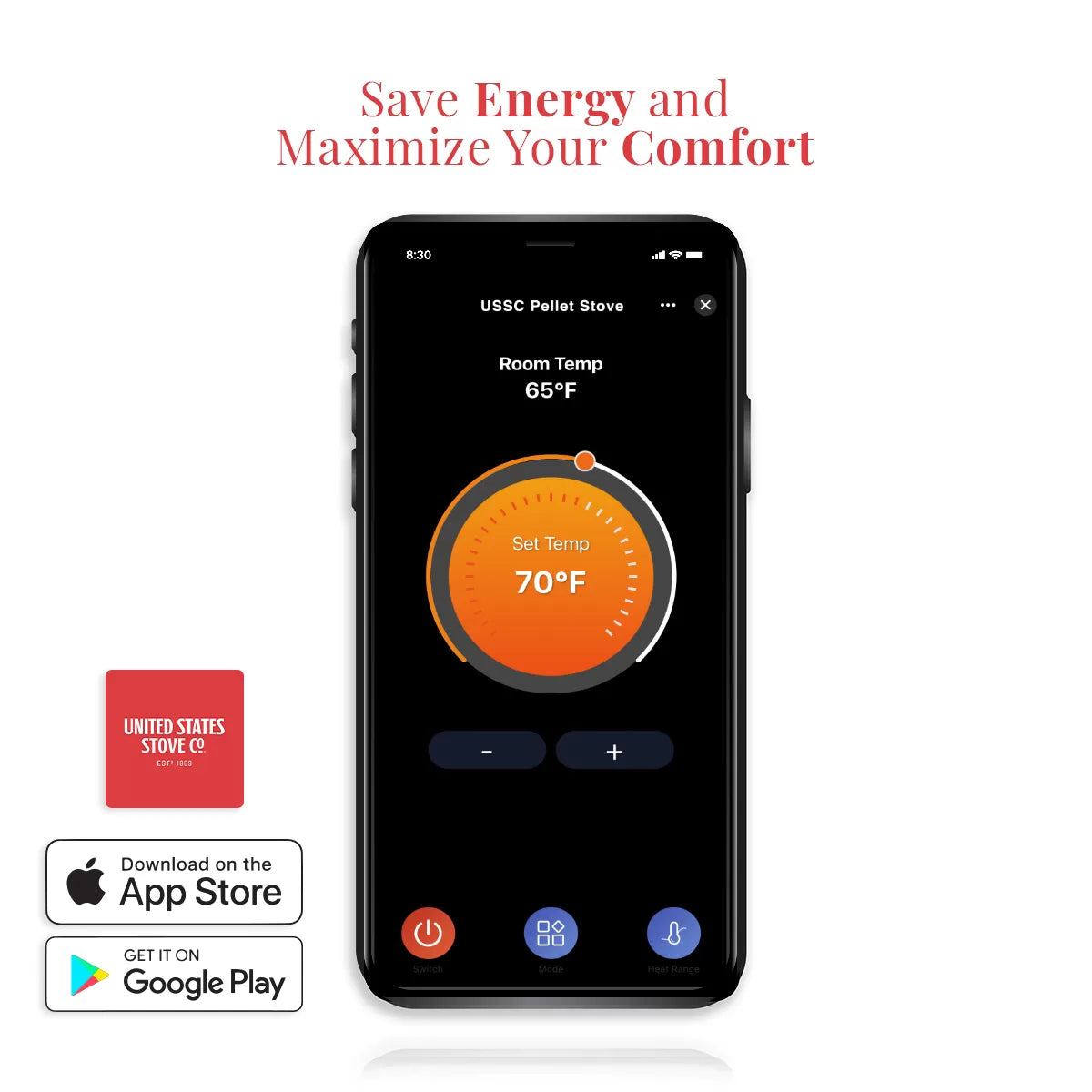

The US5513-W connects to your home Wi-Fi network and pairs with the free US Stove mobile app via Bluetooth and Wi-Fi. From the app, you can power the stove on or off, adjust heat settings, monitor hopper fuel levels, and control the stove remotely from anywhere with an internet connection.
Can I use a wall thermostat with this pellet stove?
Yes, but it must be a hardwired thermostat. The control board does not accept wireless or smart thermostats. The thermostat operates in High/Low mode rather than On/Off—meaning the stove runs at heat range 1 when the setpoint is met and ramps up to your selected setting when heat is called for.

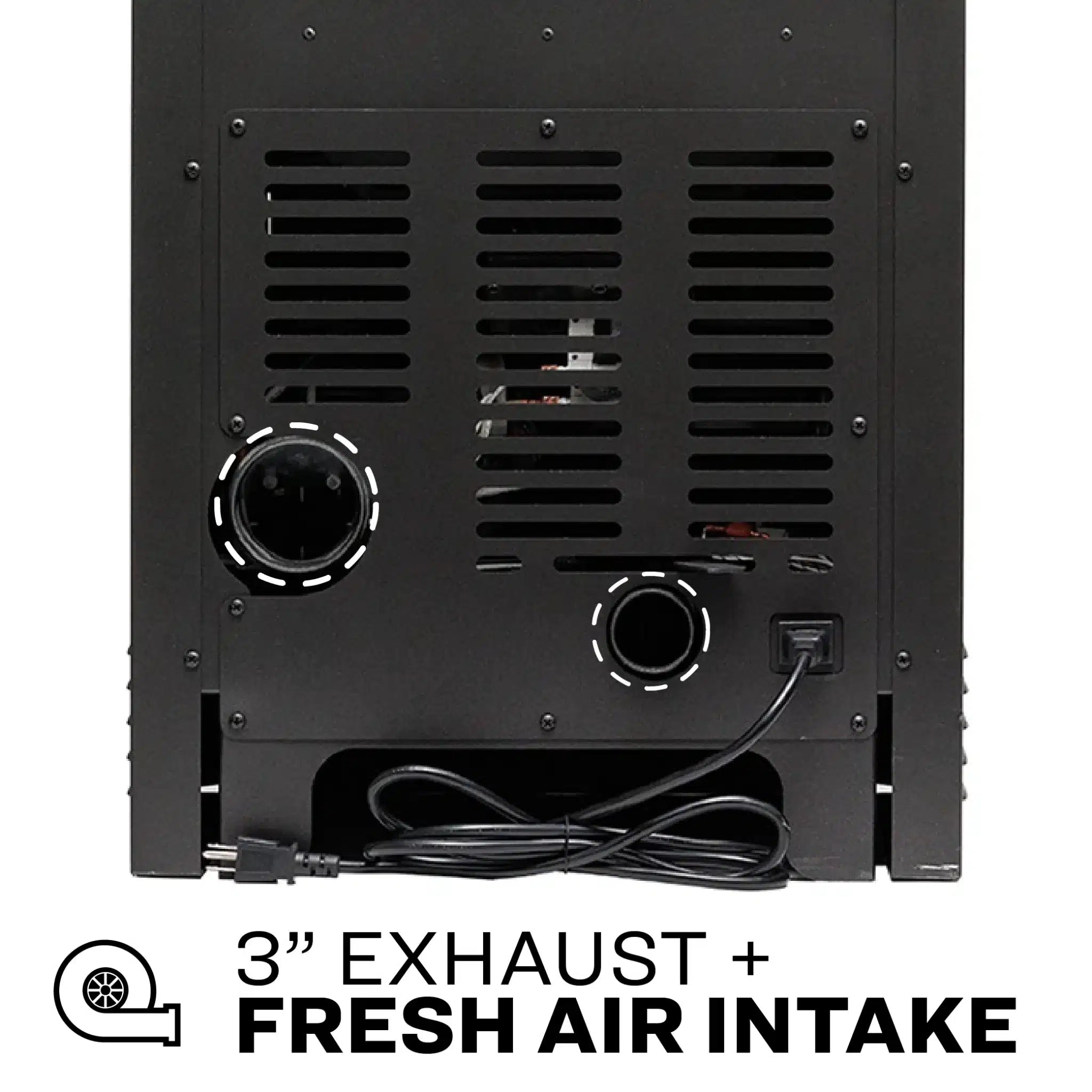

What venting is required for installation?
The US5513-W requires 3-inch pellet vent pipe and is configured for rear venting. It can also be exhausted vertically through the ceiling—refer to the owner's manual for full installation requirements, clearances, and venting configurations. Professional installation by an NFI Certified Installer is recommended.
How often does the stove need to be cleaned?
The burn pot should be emptied and inspected before each ignition and checked daily during continuous use. Regular cleaning of the burn pot, ash traps, and vent pipe ensures optimal performance, proper vacuum, and trouble-free auger operation throughout the heating season.
What warranty coverage is included?
The US5513-W carries a 5-year limited warranty on the firebox, a 1-year warranty on all other non-electrical parts, and a 1-year warranty on electrical components. Warranty registration is recommended through the US Stove Company website.
What backup power can I use during a power outage?
US Stove recommends a minimum 1,000-watt pure sine wave inverter battery backup for short-term outage coverage. If using a generator, a 1,000-watt inverter generator is recommended to safely power the stove's electronic controls, auger motor, and blowers without damaging the control board.
