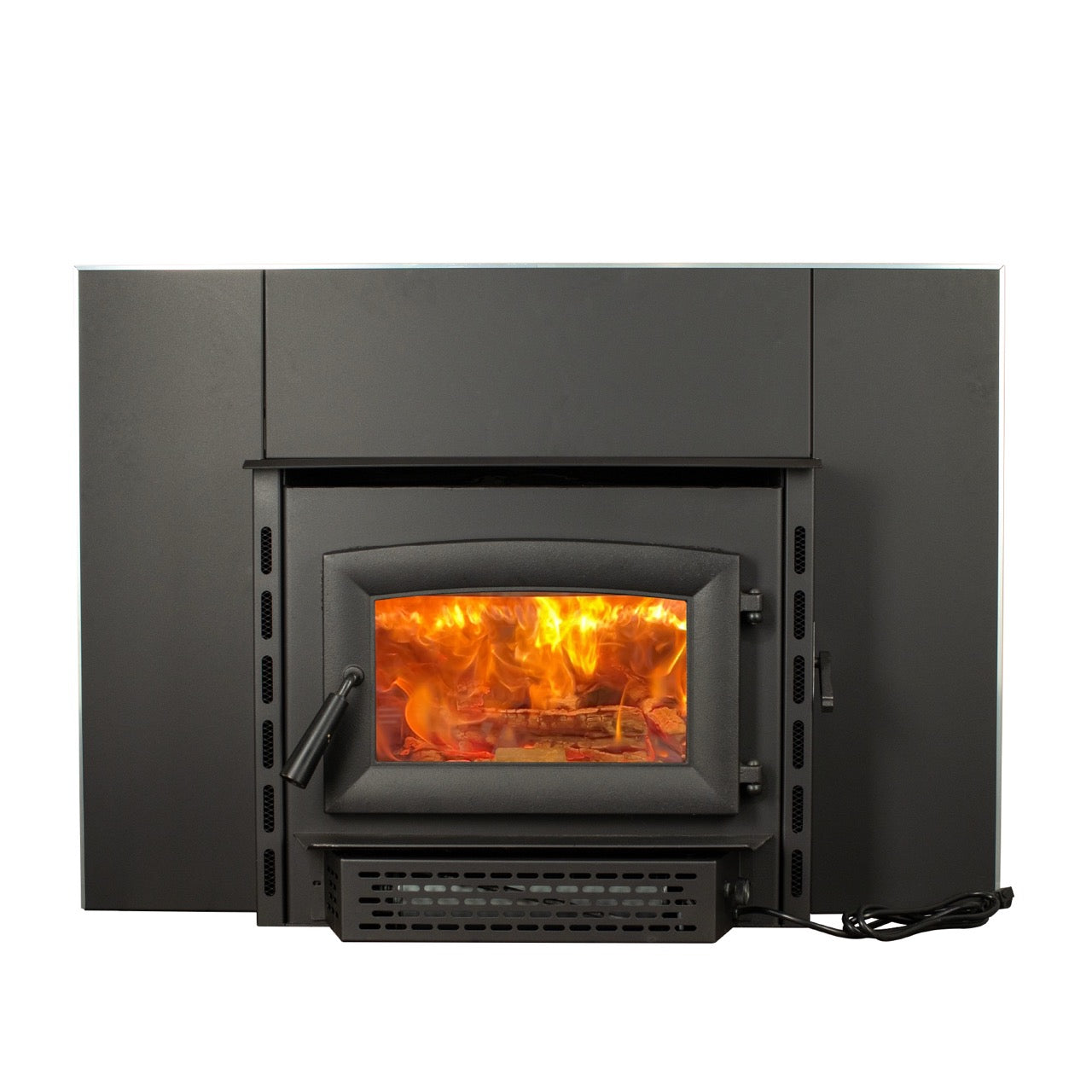

US Stove US1800E 1,200 Sq. Ft. Wood Stove Insert Features

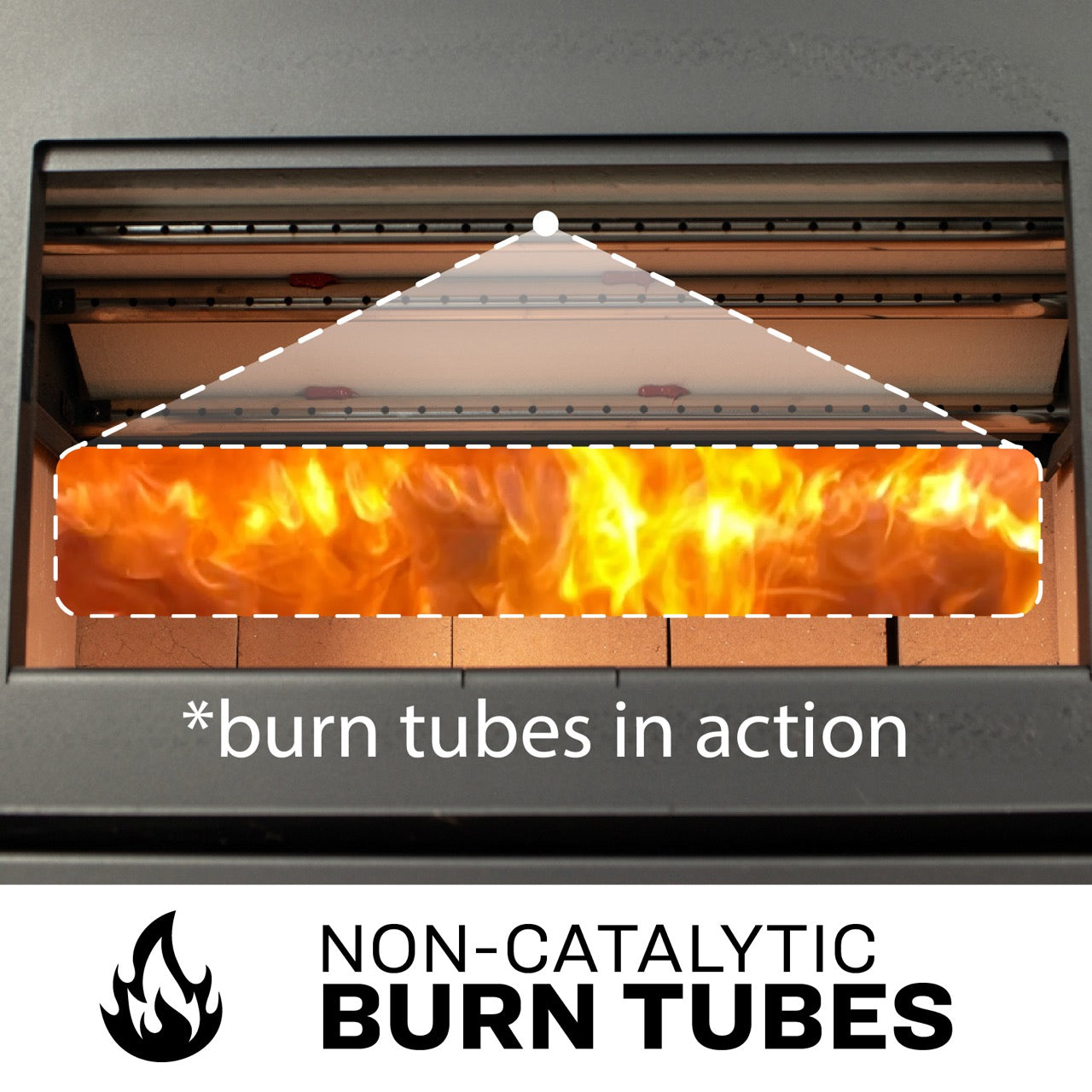

- EPA-Certified Clean Burn: Engineered with a non-catalytic secondary burn system that meets stringent EPA certification guidelines, delivering cleaner combustion, lower emissions, and more complete heat extraction from every load of wood.
- Powerful Whole-Room Heating: Produces up to 69,000 BTUs and heats spaces up to 1,200 square feet, transforming an inefficient open fireplace into a serious supplemental heat source for the home.

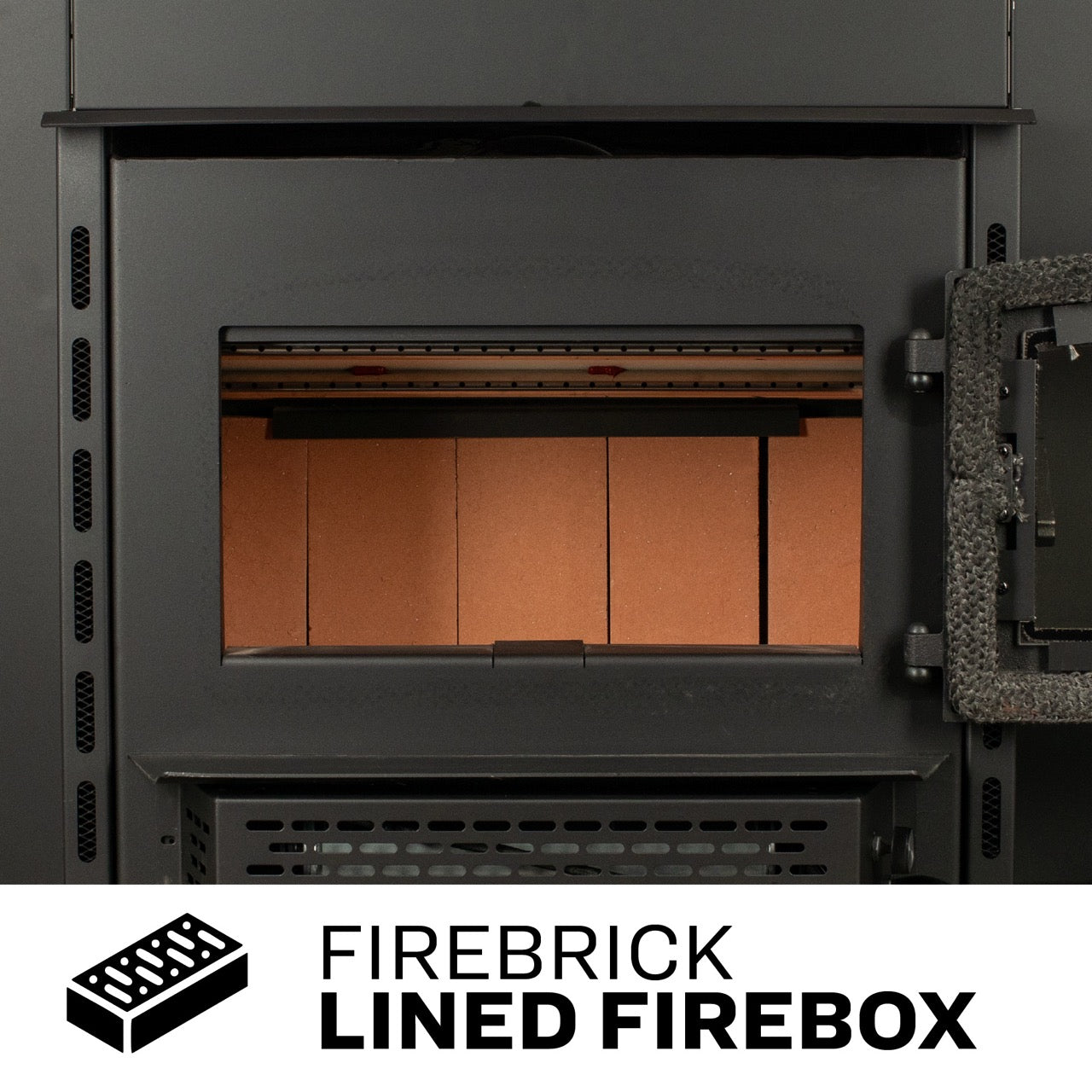

- Airtight Plate Steel Construction: Built from heavy 10-gauge reinforced plate steel with a full firebrick lining for superior heat retention, durability, and long-term resistance to warping under sustained high temperatures.

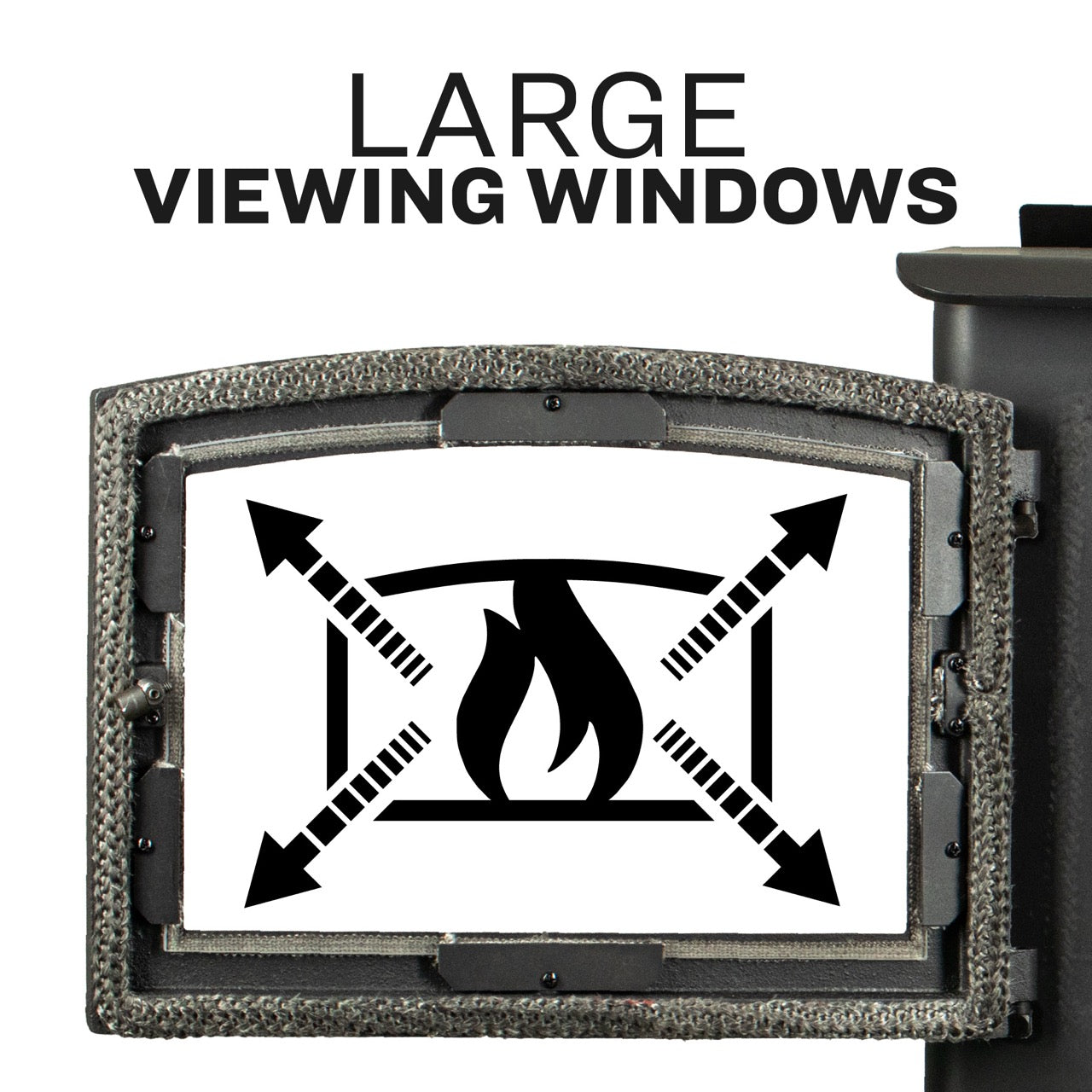

- Cast Iron Door with Panoramic View: A heavy cast iron feed door frames a large 16.5" x 9" air-washed ceramic glass window, giving you a clear, mesmerizing view of the fire while the air wash system helps keep the glass cleaner longer.

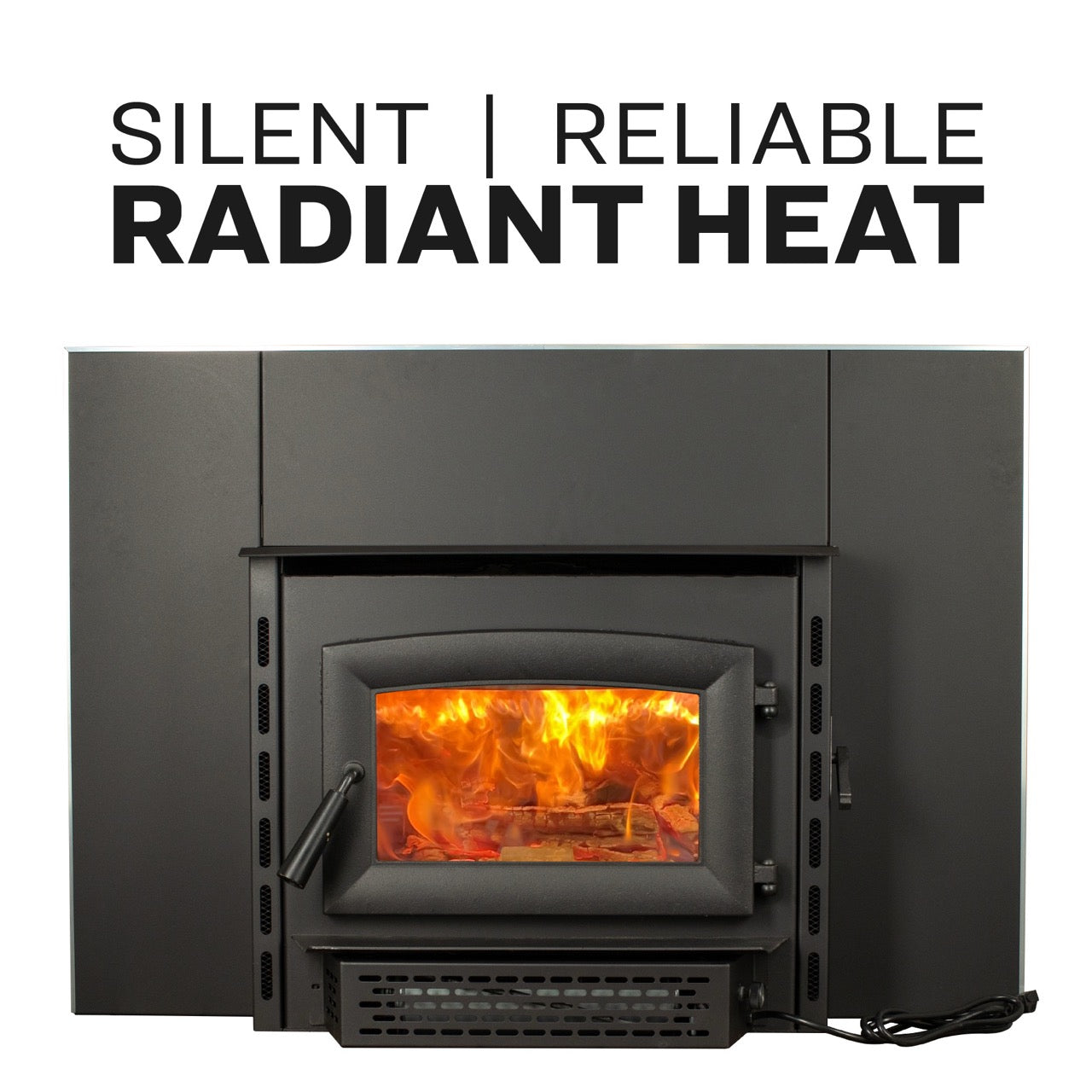

- No Electricity Required to Operate: Designed to radiate heat without power, so it keeps working during winter storms and outages — making it a dependable backup heat source when you need it most.

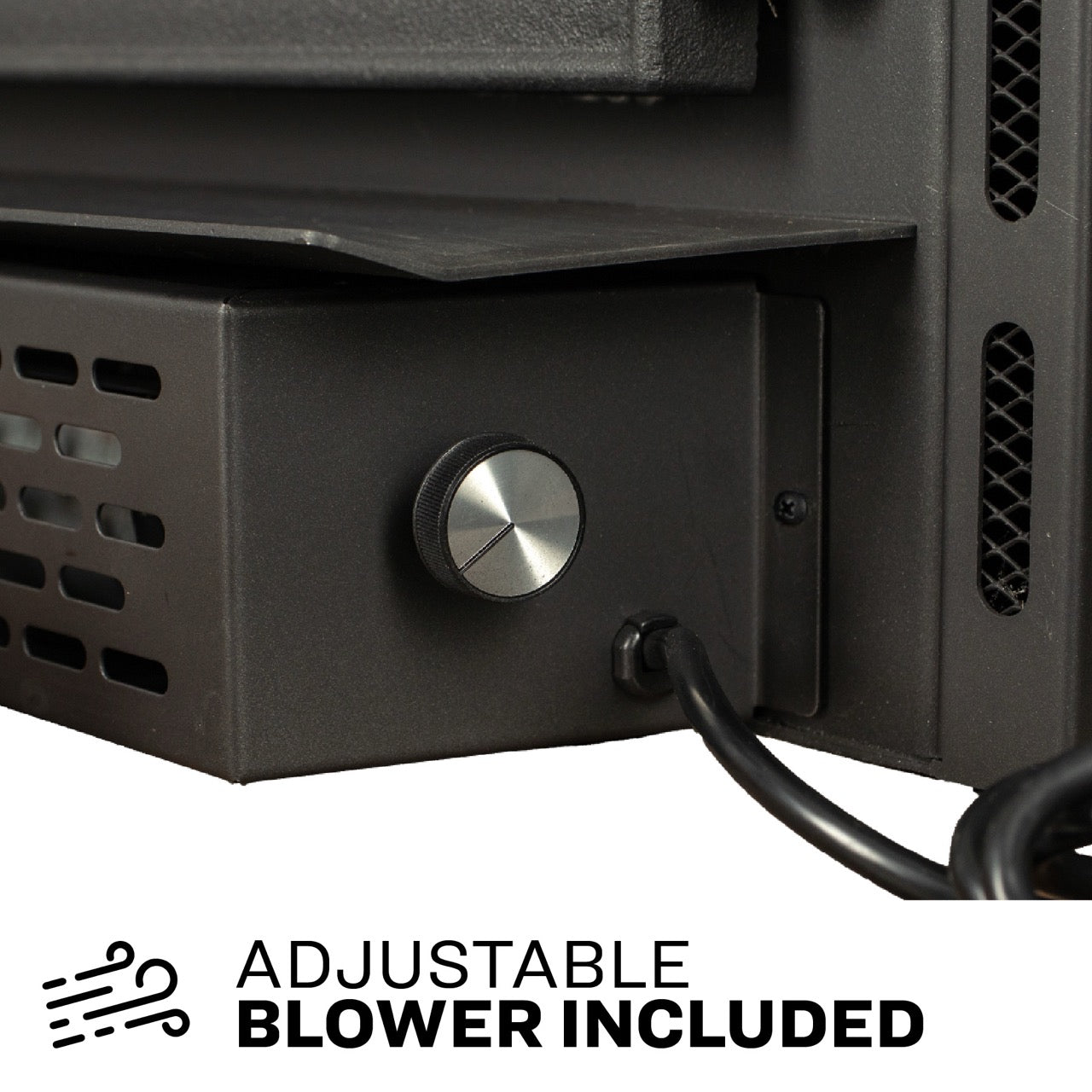

- Included High-Speed Blower: Comes standard with an adjustable high-speed 100 CFM blower that actively pushes warm air into the living space for faster, more even heat distribution.

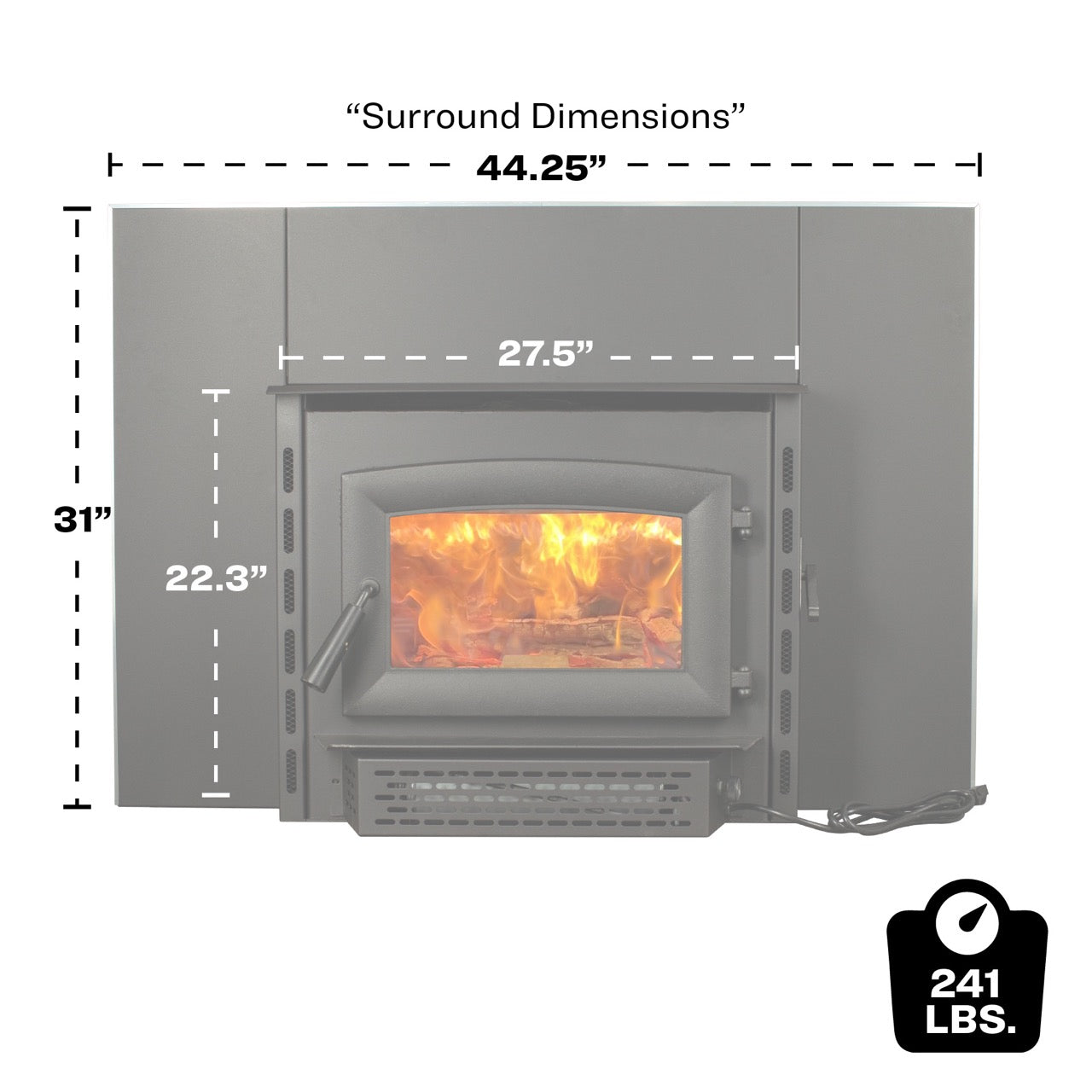

- Complete Hearth Surround Included: Ships with a large 31" x 44" hearth surround that fully encloses the existing fireplace opening for a finished, integrated appearance with no extra purchase required.
- Tool-Free Installation Assist: A spring-loaded automatic adjustment mechanism simplifies fitting the insert into the existing fireplace, streamlining what is normally a complex installation.

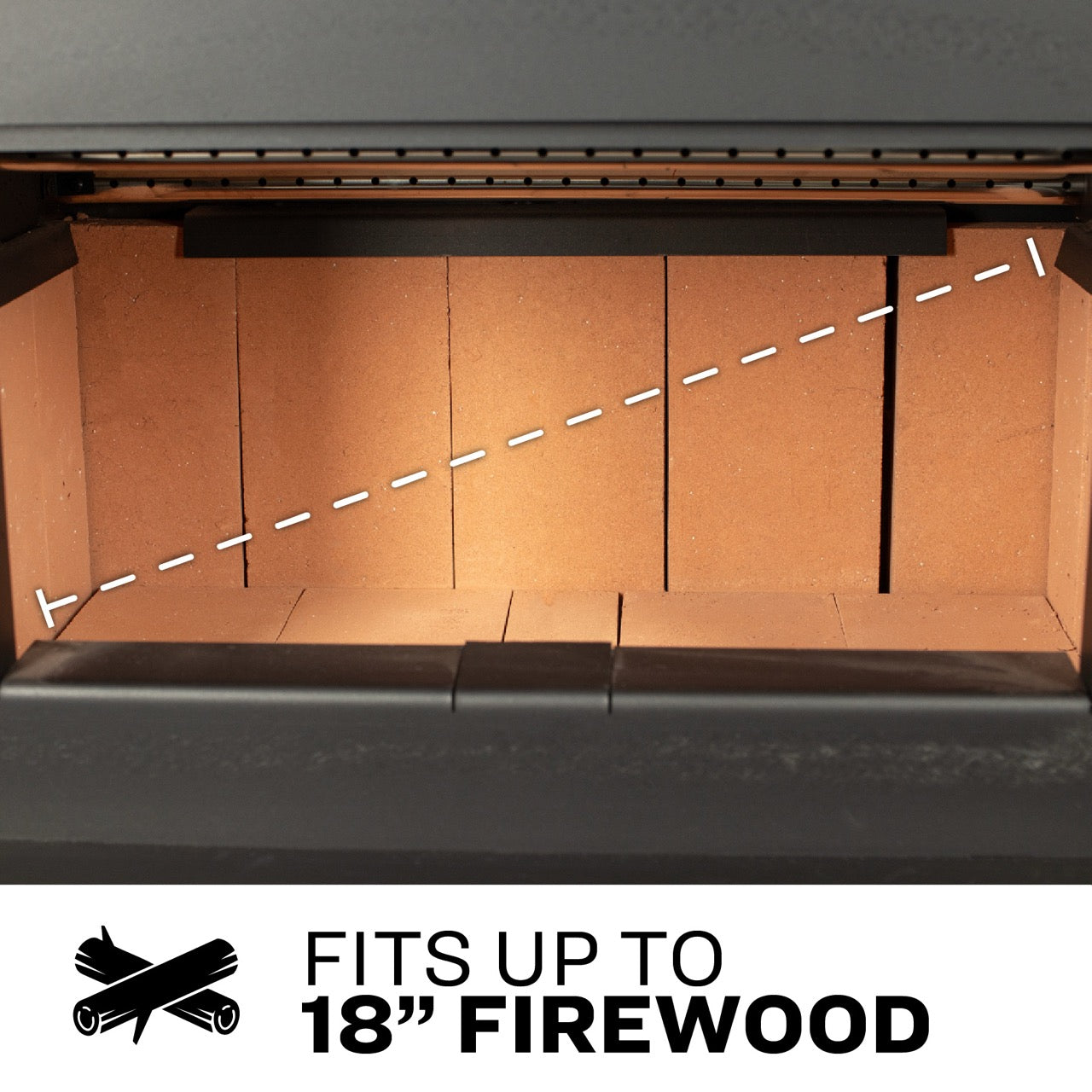

- Generous Log Capacity: Accepts logs up to 18 inches in length, reducing how often you need to cut wood and allowing for longer, more convenient burn cycles.
- Direct Upgrade Replacement: Serves as a direct replacement for the Vogelzang TR004 Colonial fireplace insert and the US Stove Company 2200IE insert, simplifying upgrades for existing owners.
- UL Listed for Safety: UL listed for verified compliance with recognized safety standards, providing added peace of mind for residential installation.
US Stove US1800E 1,200 Sq. Ft. Wood Stove Insert Specs
| Model Number | US1800E |
| Stove Type | Fireplace Insert |
| Fuel Type | Wood |
| Maximum Heating Area | Up to 1,200 sq. ft. |
| Maximum BTU Output | Up to 69,000 BTUs |
| Efficiency | 65.5% |
| Combustion Type | Non-Catalytic Secondary Burn |
| EPA Approved | Yes |
| UL Listed | Yes |
| Material | Heavy 10-Gauge Reinforced Plate Steel |
| Brick-Lined Firebox | Yes |

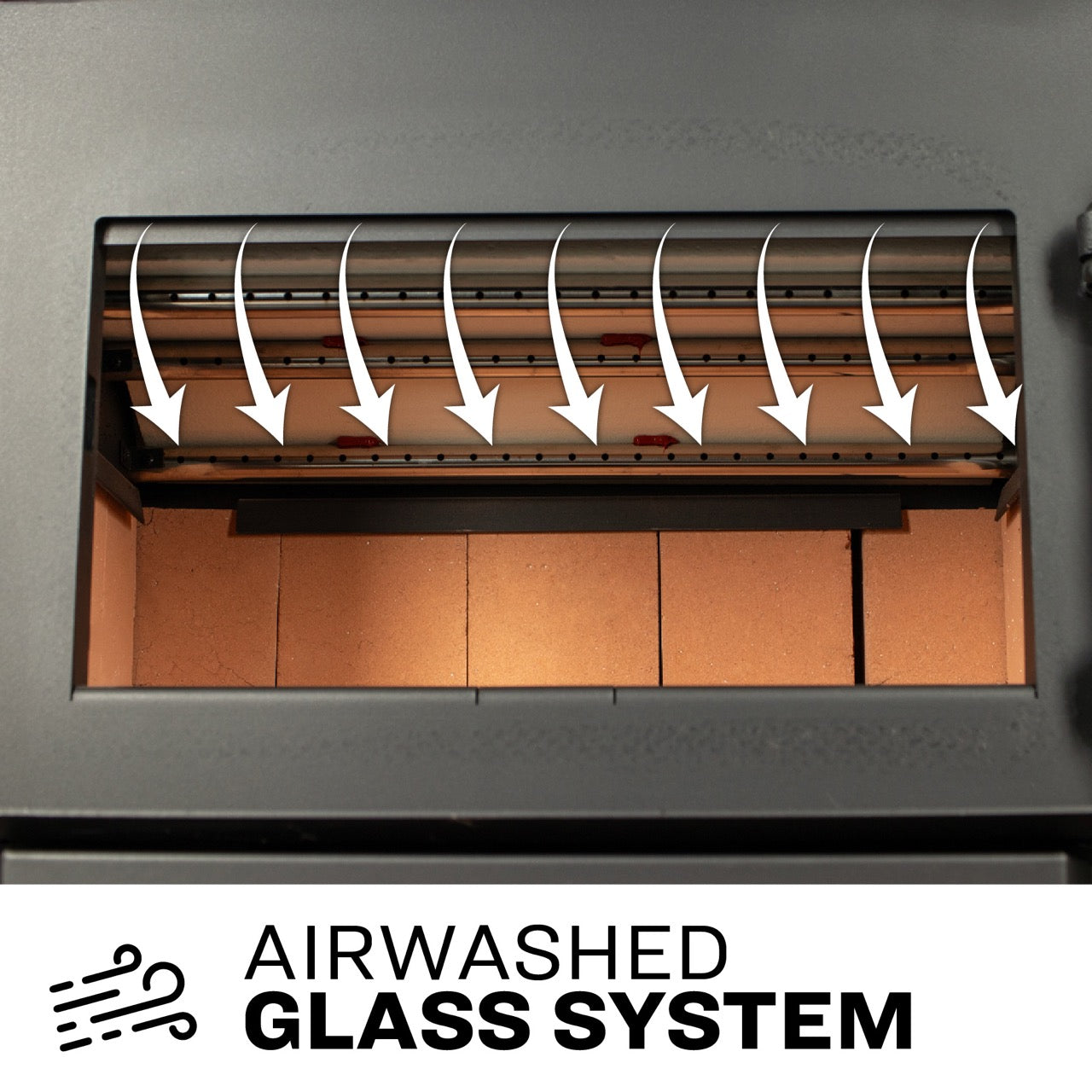

| Air Wash System | Yes |
| Glass Window Size | 16.5" x 9" Ceramic Glass |
| Door Material | Cast Iron |
| Blower Included | Yes – Adjustable High-Speed 100 CFM |
| Ignition System | Manual |
| Electricity Required | No (blower requires power) |
| Hearth Surround | 31" x 44" (Included) |
| Maximum Log Length | 18 in. |
| Overall Dimensions | 24" × 35" × 28" (W × D × H, packaged) |
| Width | 27.53 in. |
| Height | 22.33 in. |
| Depth | 20.2 in. |
| Firebox Width | 20.25 in. |
| Firebox Height | 9.87 in. |
| Firebox Depth | 10.13 in. |
| Vent Diameter | 6 in. |
| Vent Location | Rear |
| Venting Required | Yes |
| Weight | 282 lbs |
| Color / Finish | Metallic Black |
| Package Contents | Insert, Blower, Owner's Manual, Warranty Sheet |
| Warranty | Limited Lifetime Firebox; 1 Year All Other Parts; 1 Year Electrical Parts |
US Stove US1800E 1,200 Sq. Ft. Wood Stove Insert FAQ

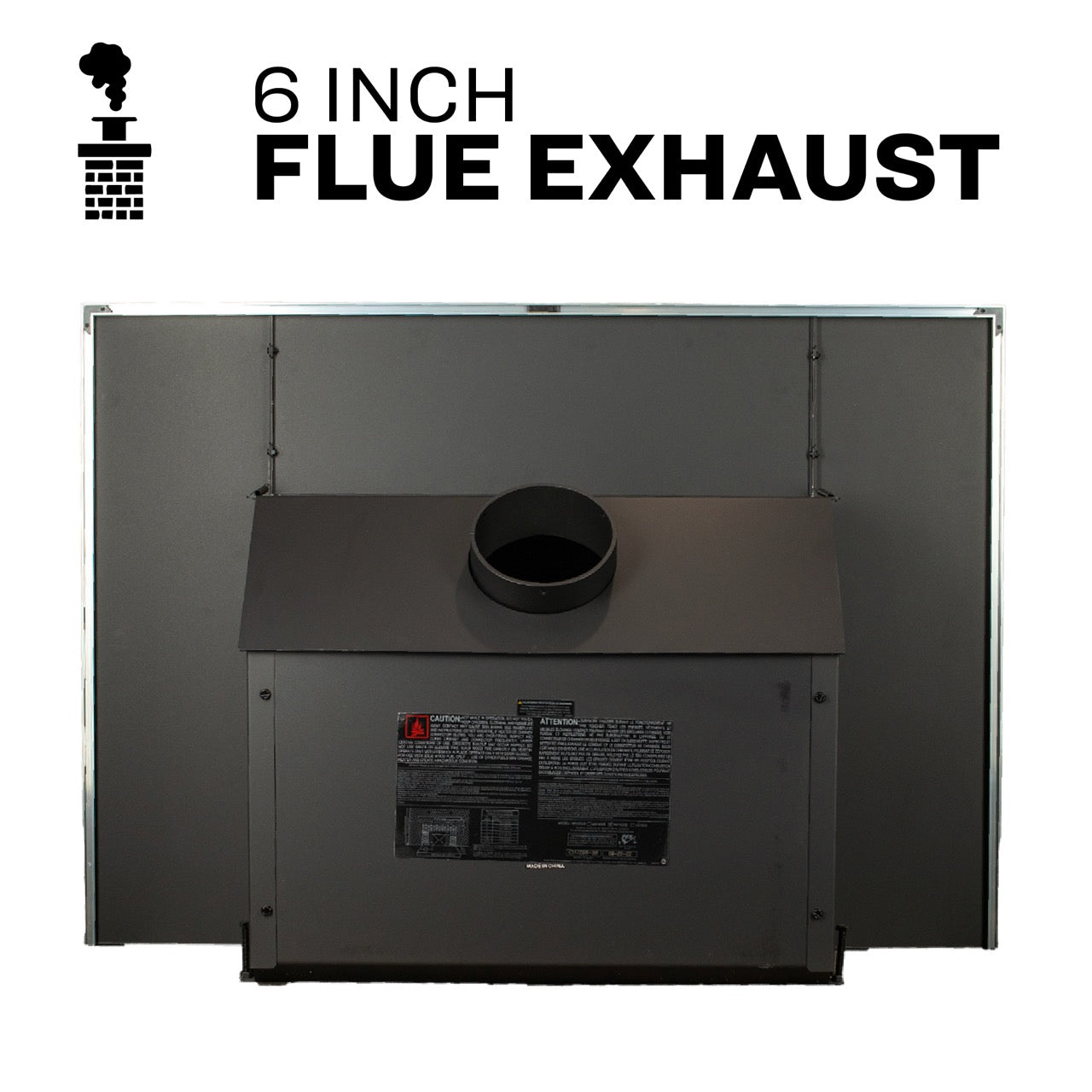

What size flue pipe does the US1800E require?
The flue collar is designed to accept 6" flue pipe, and venting is required for installation. The vent is located at the rear of the insert, and the flue location cannot be converted from rear to top or vice versa.
Why is the advertised BTU different from the BTU output listed in the manual?
The BTU output in the owner's manual is calculated under specific test conditions during EPA certification, which do not reflect normal everyday usage. The advertised BTU rating is based on the maximum BTU input achievable in that particular stove.
Does the US1800E require electricity to work?
No. The insert is designed to radiate heat without power, making it a reliable backup heat source during outages. However, the included high-speed blower does require electricity to operate. The stove can be burned safely without the blower if desired.
What is included in the box?
The package includes the insert, the blower, the owner's manual, and the warranty sheet. It also comes with a large 31" x 44" hearth surround to fully enclose the existing fireplace opening.
Can I add a flue damper to the chimney pipe?
With an EPA-certified stove, a manual solid flue damper cannot be used. If you want more control over the fire for a slower burn, the manufacturer recommends a Barometric Draft Regulator instead.
Why won't my wood stay lit unless the door is open?
Draft is the biggest factor in stove performance, and your chimney drives that draft. A chimney that is too short, made with the wrong material, or improperly installed can cause poor performance. Wood quality also matters — wood should be properly seasoned with a moisture content between 15% and 20%, split before measuring for an accurate reading.
Do I need a fresh air kit?
A fresh air kit is required if the stove is mobile-home approved and being installed in a mobile home. Otherwise it is optional, though it may be necessary in very airtight homes or in cases of negative indoor pressure, and it can help improve overall draft.
What does the warranty cover?
The US1800E carries a Limited Lifetime warranty on the firebox, with a 1-year warranty on all other parts and a 1-year warranty on electrical parts. Refer to the manufacturer's manual for full warranty details.
