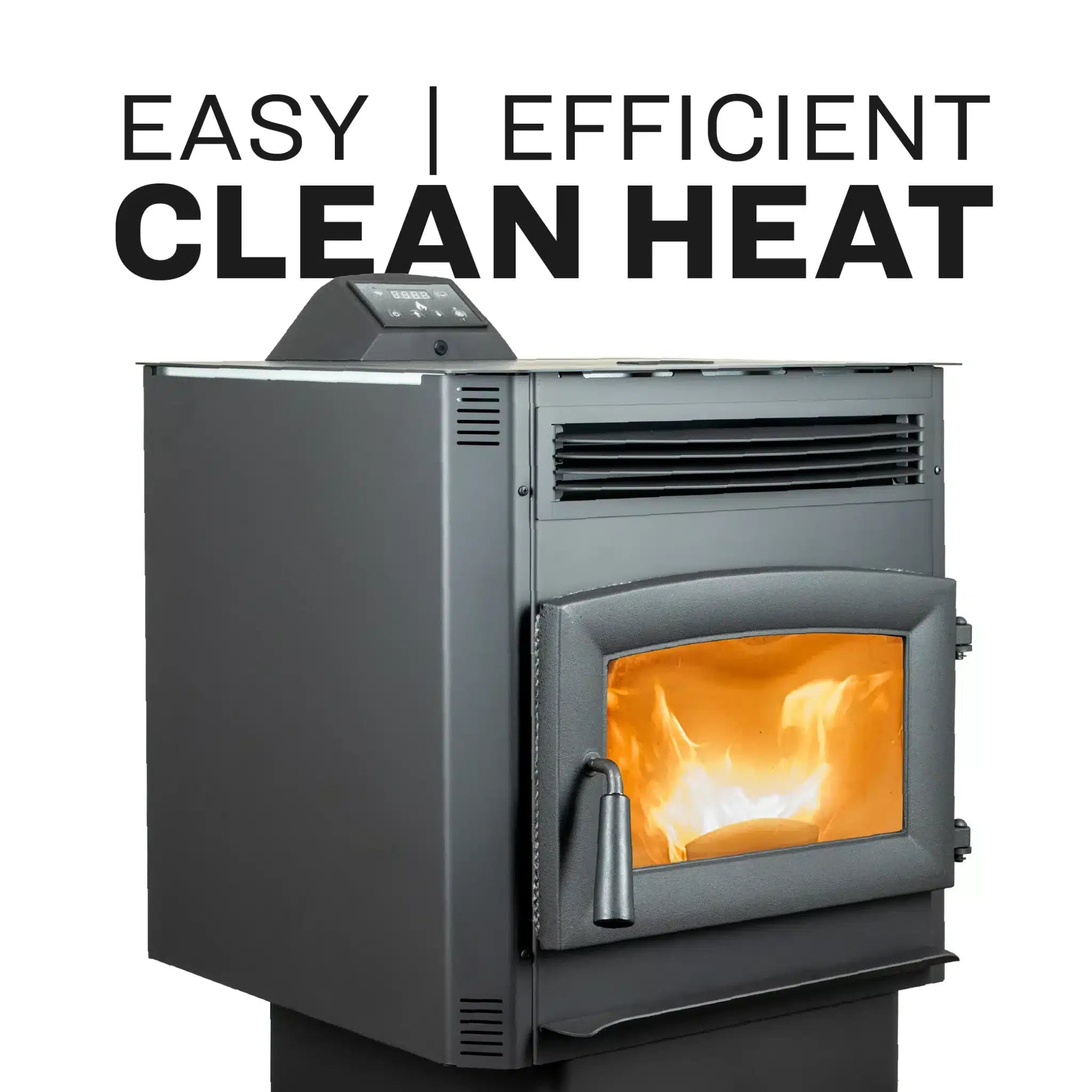

US Stove US5517-W Pellet Stove Features
- Powerful 30,000 BTU Heat Output: Delivers reliable, consistent warmth capable of heating living spaces up to 2,200 square feet, making it an ideal primary or supplemental heat source for medium-to-large homes.

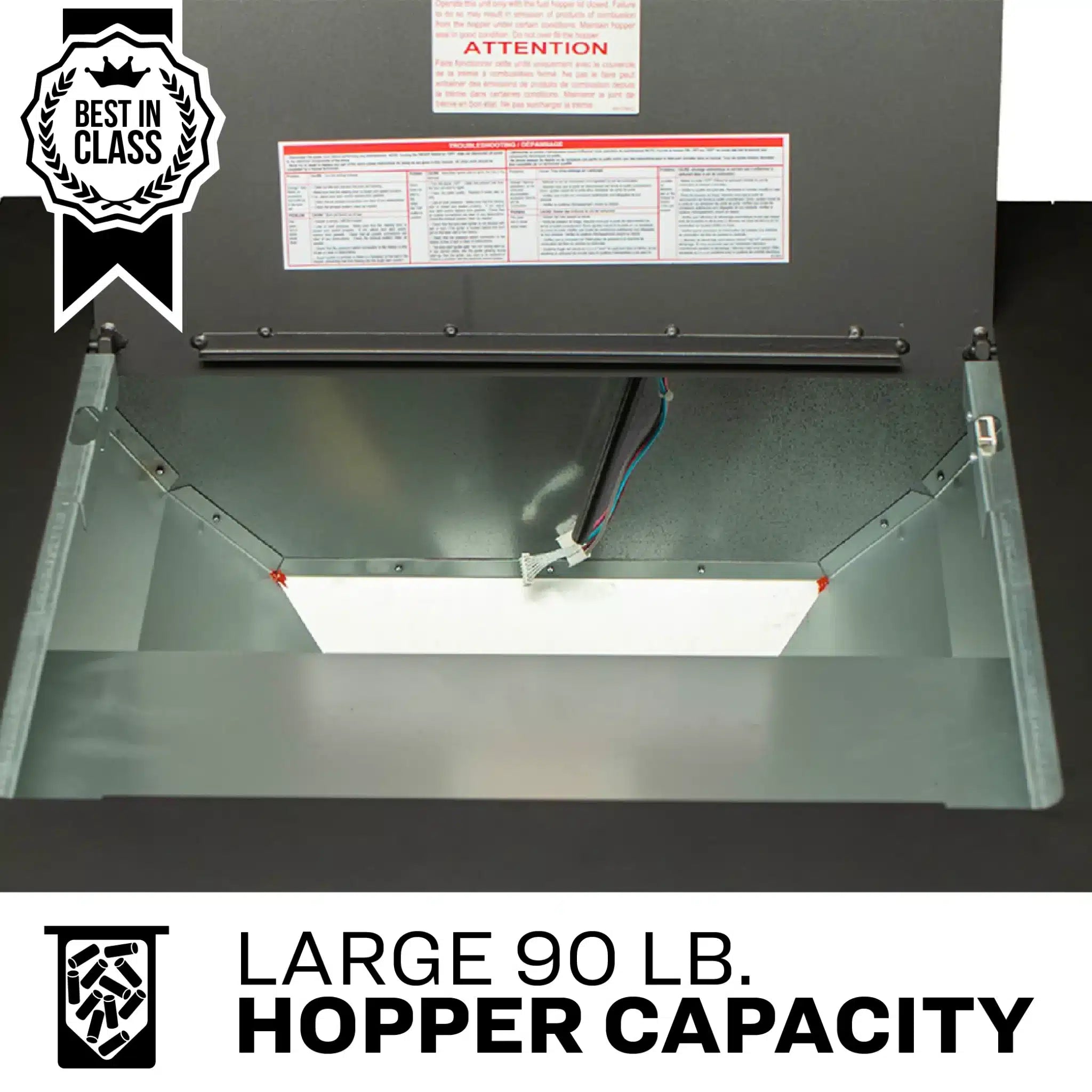

- Extended 90 lb. Hopper Capacity: Features a 50% larger pellet hopper than standard models, providing up to 47 hours of continuous burn time on the lowest setting and significantly reducing how often you need to refill.

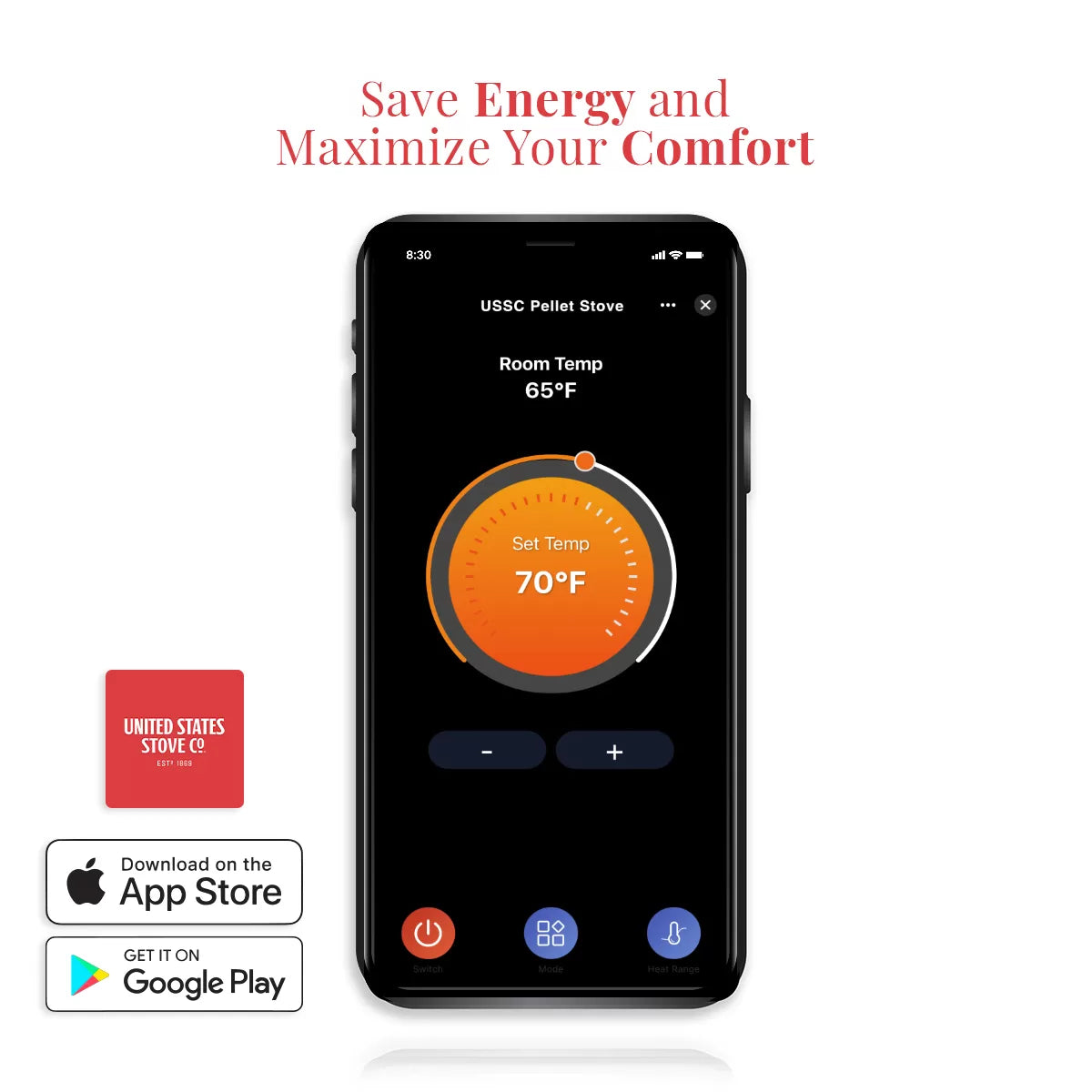

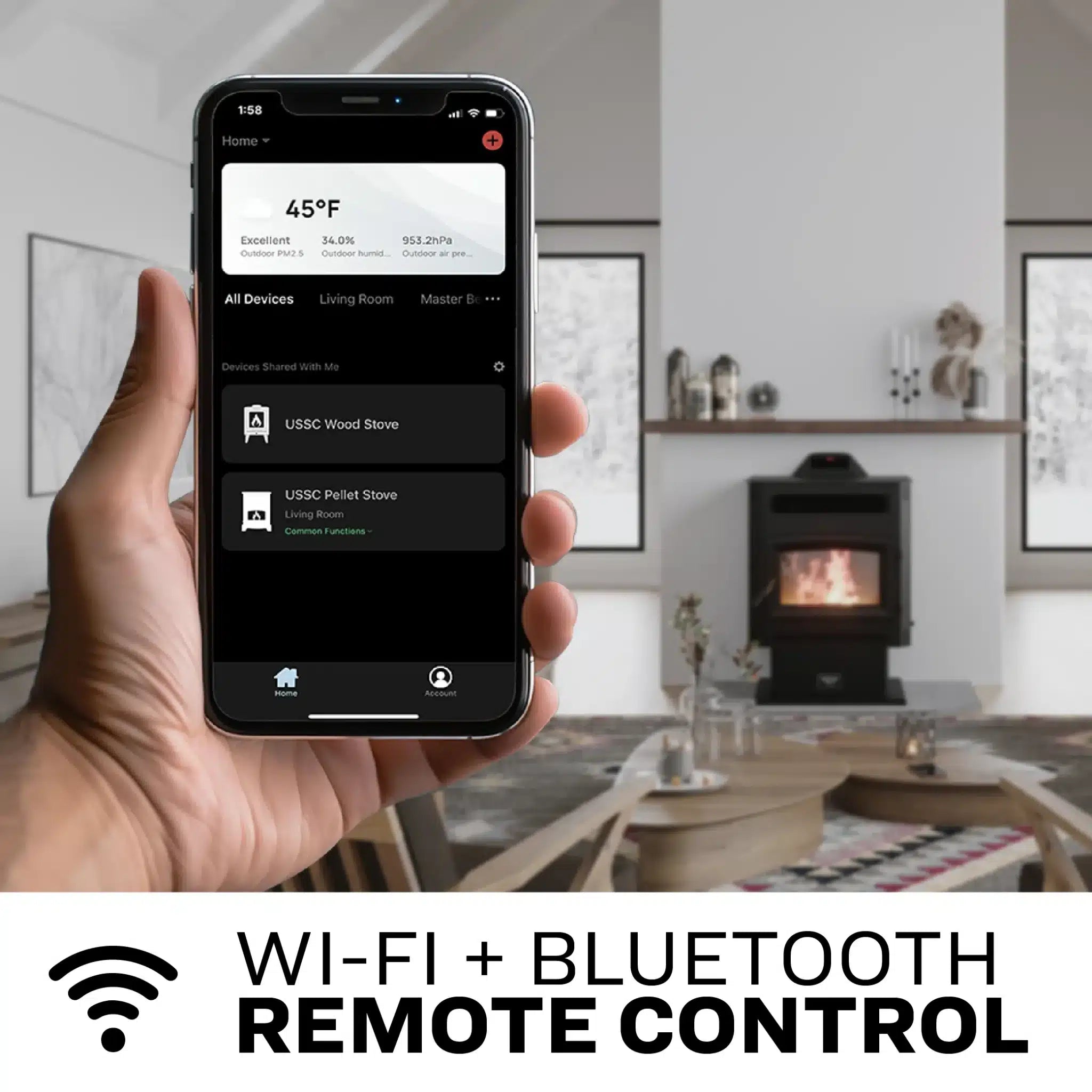

- Smart Stove Wi-Fi Technology: Control your stove from anywhere using the dedicated US Stove mobile app via Wi-Fi and Bluetooth connectivity, allowing remote temperature adjustments, scheduling, and monitoring from your smartphone.
- AURORA Diverse Airflow Burner System: Exclusive high-efficiency combustion technology produces a beautiful, dancing flame pattern while dramatically increasing airflow and heat output for superior performance.

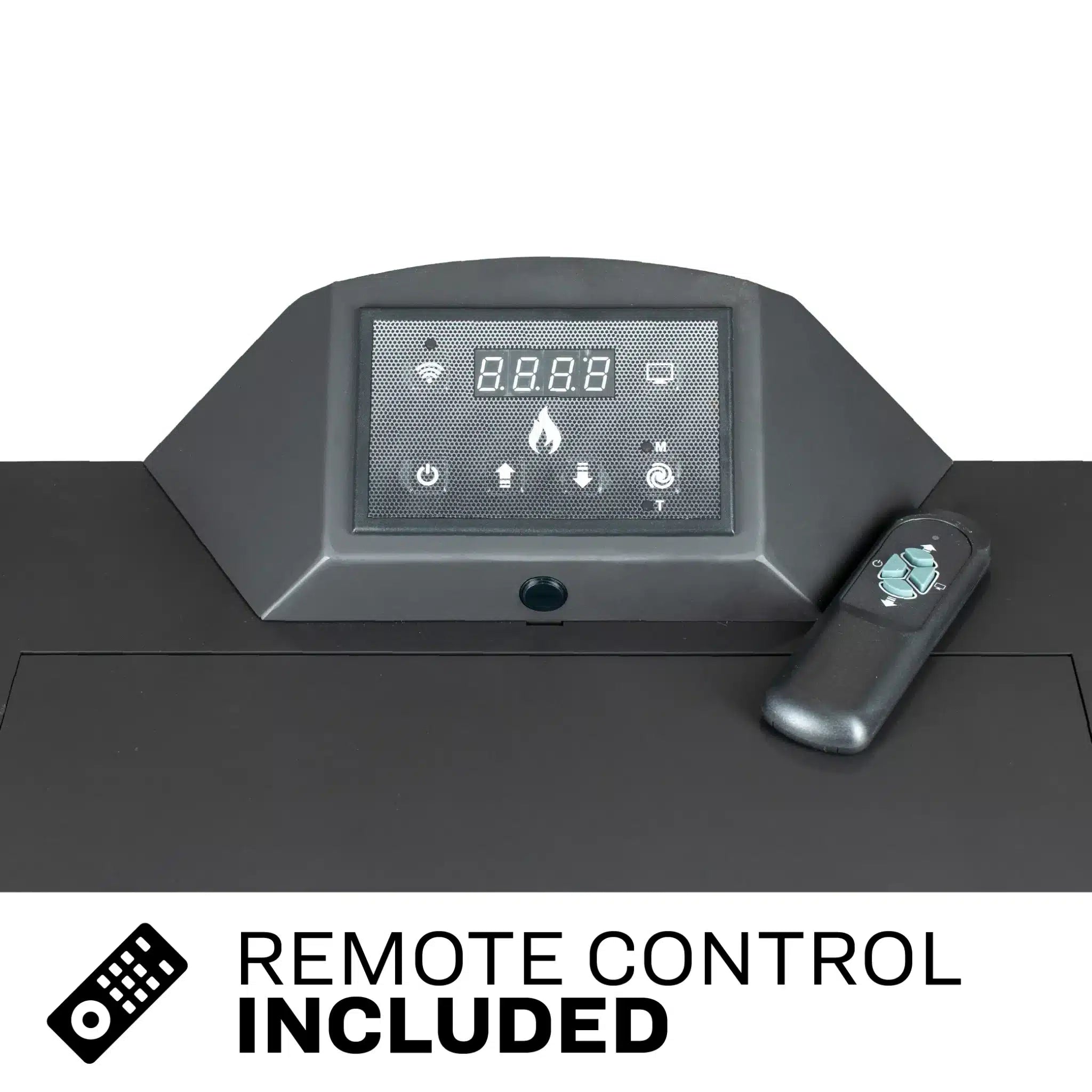

- Top-Mounted Digital Touchpad Controls: Intuitive, easy-to-reach digital control panel positioned on top of the stove for convenient operation without bending or reaching behind the unit.
- Mobile Home Approved: USA mobile home certified with optional Fresh Air Kit (Model 69FAK) available, expanding installation flexibility for manufactured housing applications.
- Upgraded Ceramic Glass Viewing Window: Premium ceramic glass offers a clear, large view of the flames while withstanding extreme temperatures for long-lasting durability and ambiance.
- Automatic Ignition System: Built-in auto-ignition eliminates the hassle of manual lighting—simply set your desired temperature and the stove starts itself.
- Built-In Blower & Air Wash System: Integrated blower circulates warm air efficiently throughout your space, while the air wash system keeps the ceramic glass cleaner for an unobstructed view of the flame.
- EPA, ETL, CSA & UL Certified: Meets stringent safety and environmental standards across North America, ensuring clean-burning, efficient, and safe operation.
- Carbon-Neutral Green Heating: Burns PFI-certified premium hardwood pellets—an environmentally friendly, renewable fuel source that produces minimal emissions.

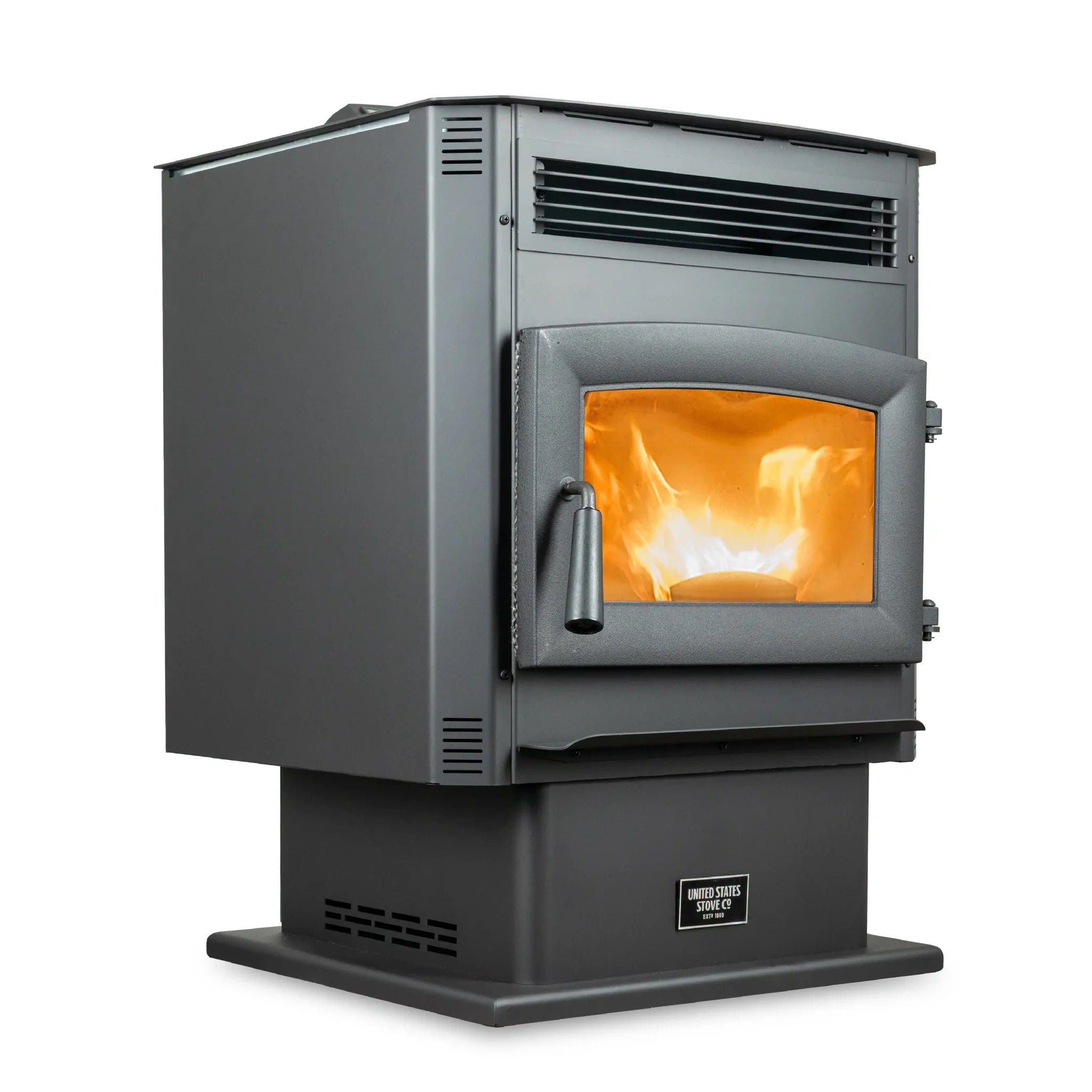

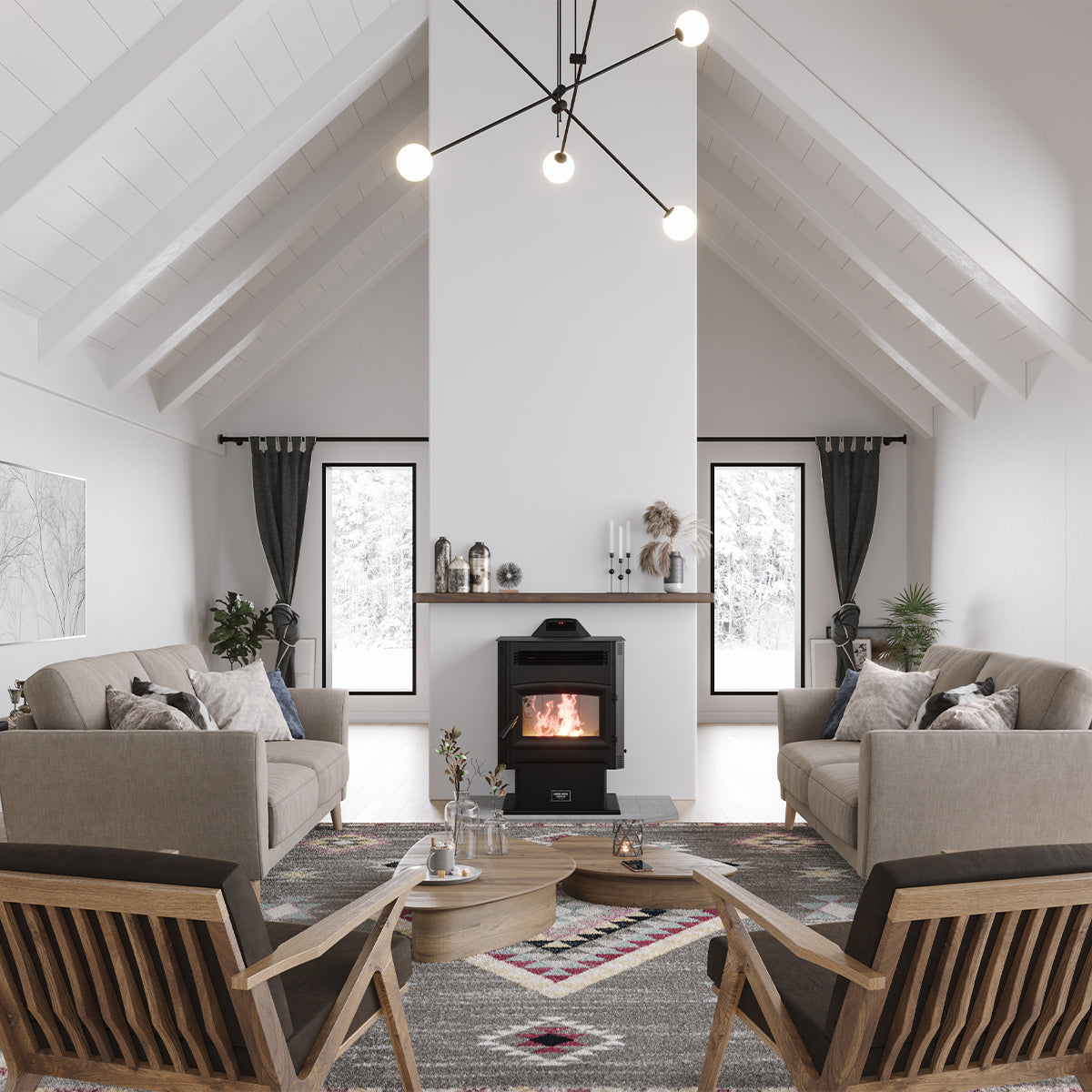

- Traditional Pedestal Styling: Classic freestanding pedestal design with a sturdy included base complements both modern and traditional home interiors.
US Stove US5517-W Pellet Stove Specs
| Model Number | US5517-W |
| Brand | US Stove Company |
| Fuel Type | Wood Pellets (PFI Certified Premium Hardwood) |
| Heating Capacity | Up to 2,200 sq ft |
| Heat Output | Up to 30,000 BTUs |
| Hopper Capacity | 90 lbs |
| Burn Time (Lowest Setting) | Up to 47 hours |
| Stove Type | Freestanding Pedestal |
| Dimensions (W × D × H) | 26 × 30 × 38 in |
| Weight | 216 lbs |
| Vent Diameter | 3 in |
| Vent Location | Rear |
| Vented or Vent-Free | Vented |
| Venting Required | Yes |
| Catalytic / Non-Catalytic | Non-Catalytic |
| Auto Ignition | Yes |
| Blower | Yes |
| Air Wash System | Yes |
| Temperature Gauge | Yes |
| Touchpad Controls | Yes (Top-Mounted Digital) |
| Wi-Fi / Remote Operation | Yes (Wi-Fi + Bluetooth via US Stove App) |
| Pedestal Base Included | Yes |
| Glass Type | Upgraded Ceramic Glass |
| Burner Technology | AURORA Diverse Airflow System |
| Mobile Home Approved (USA) | Yes (Optional Fresh Air Kit 69FAK) |
| Brick-Lined Firebox | No |
| Cooktop | No |
| Ash Drawer | No |
| EPA Approved | Yes |
| ETL Listed | Yes |
| CSA Certified | Yes |
| UL Listed | Yes |
| Warranty | 5-Year Limited Firebox, 1-Year All Other Parts, 1-Year Electrical Parts |
| Package Contents | Pellet Stove |
| Shipping | Ships on pallet via LTL carrier |
US Stove US5517-W Pellet Stove FAQ
What type of pellets should I use in the US5517-W?
US Stove recommends using only PFI (Pellet Fuels Institute) certified premium hardwood pellets. The stove is specifically designed and tested for wood pellets only—do not burn corn, coffee pellets, or other alternative fuels, as this will void the warranty and may damage the appliance.

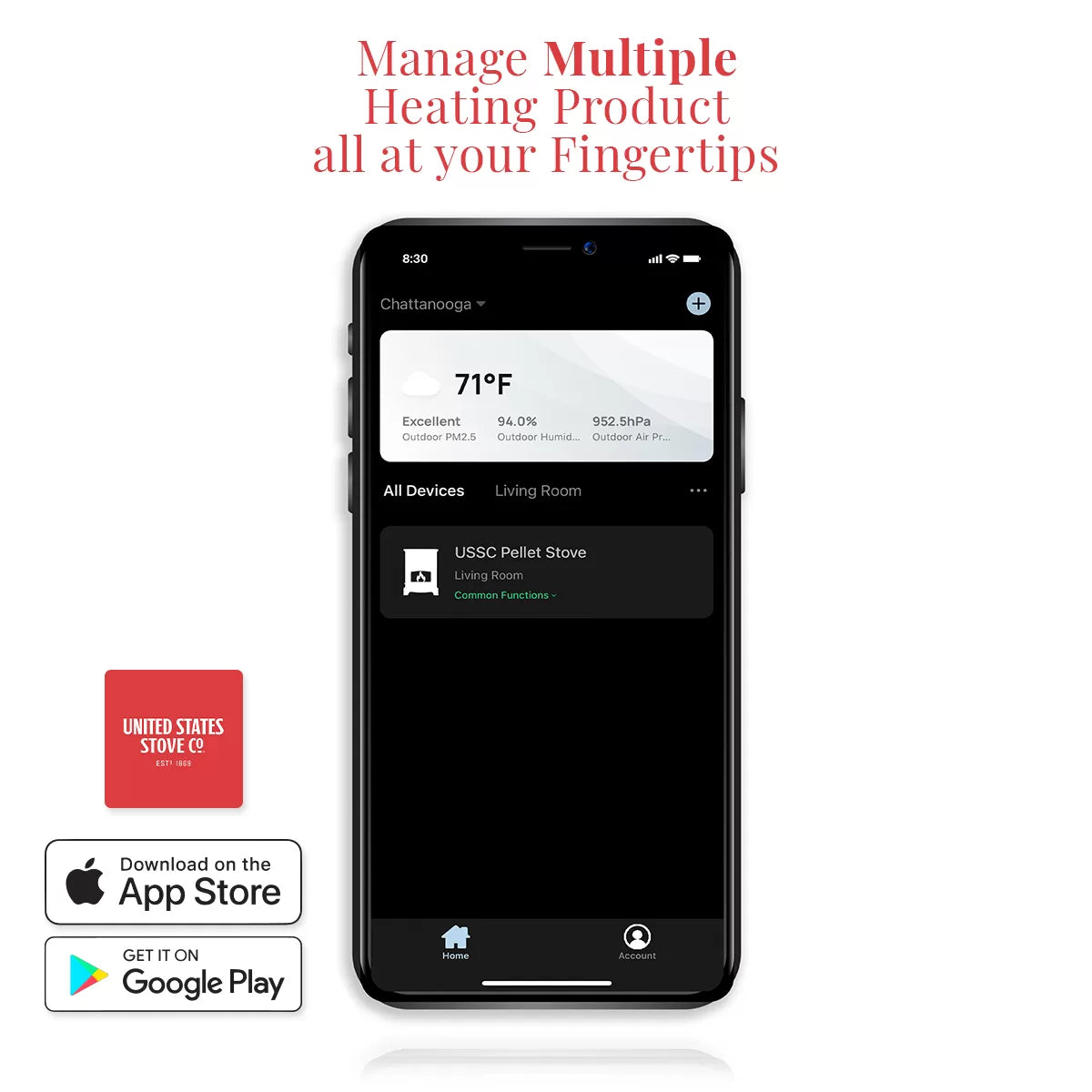

How does the Wi-Fi smart control work?

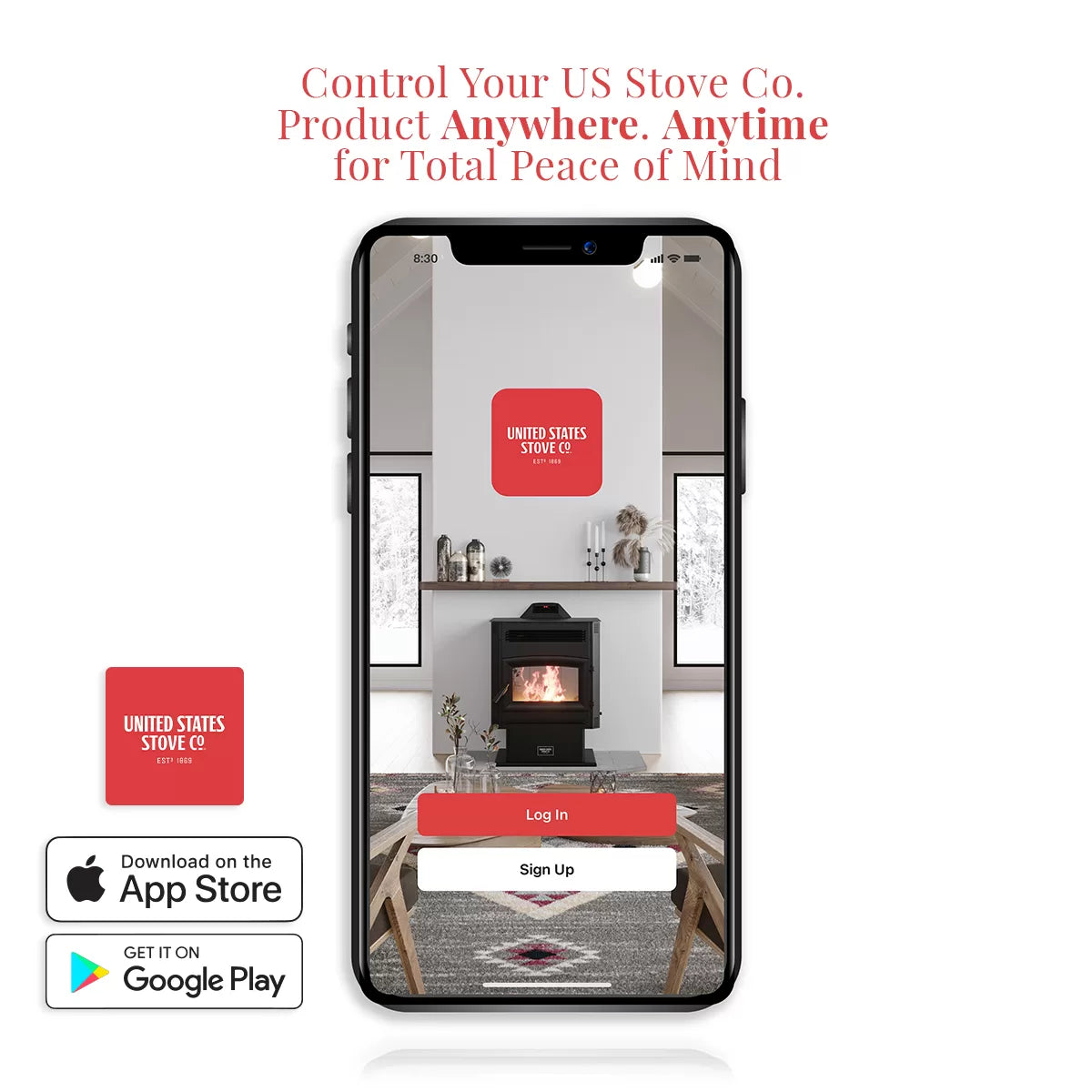

The "W" in US5517-W stands for Wi-Fi capability. The stove connects to your home network and pairs with the free US Stove mobile app, allowing you to control temperature, adjust heat settings, schedule operation, and monitor your stove remotely from your smartphone via Wi-Fi or Bluetooth.
Can the US5517-W be installed in a mobile home?
Yes. The US5517-W is Mobile Home Approved for use in the USA. However, mobile home installations require the optional Fresh Air Kit (Model 69FAK), which is sold separately. A fresh air kit is also recommended for newer, tightly sealed homes.
What venting is required and can it vent through the ceiling?

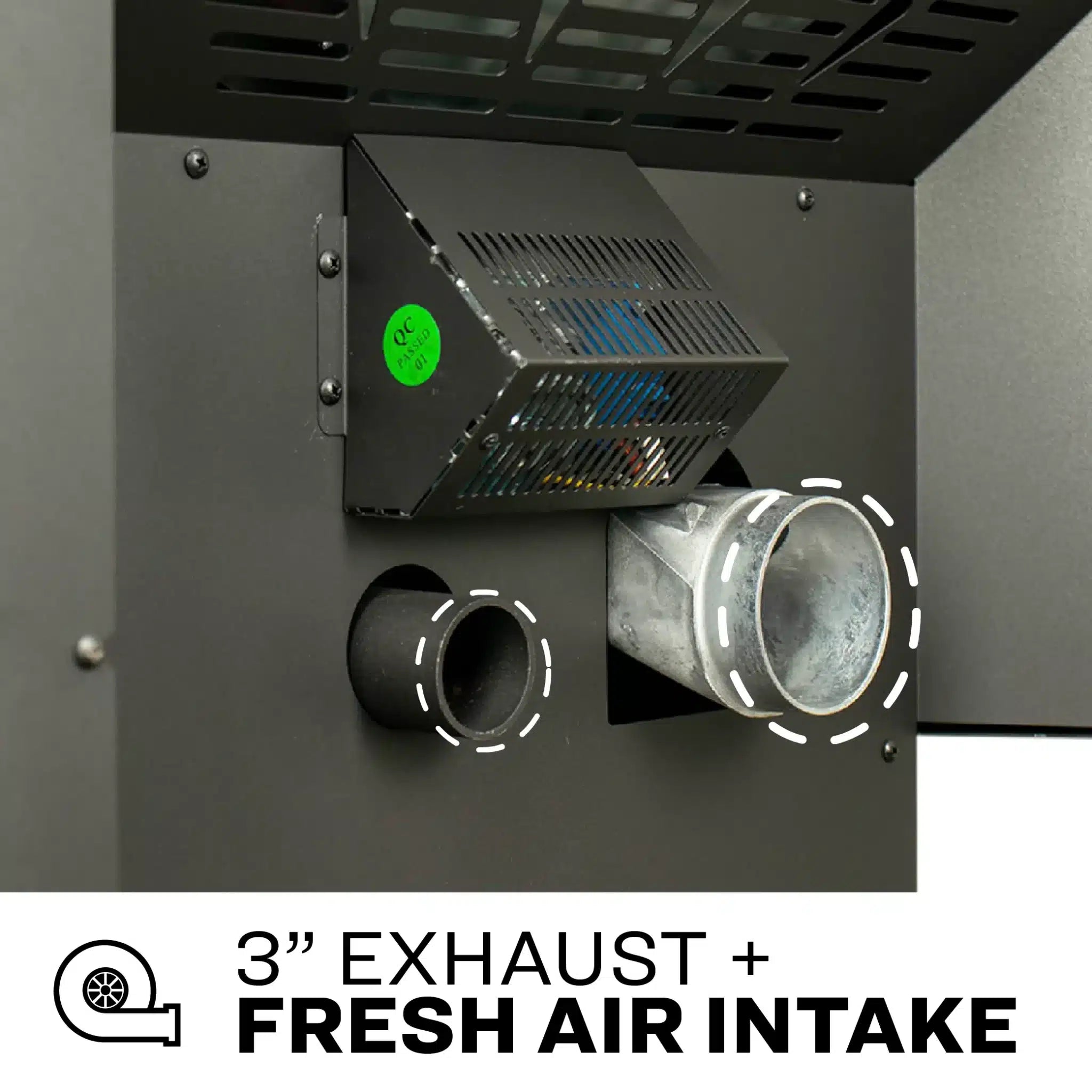

The stove requires a 3-inch diameter vent and is configured for rear venting. It can be exhausted through the ceiling—refer to the owner's manual for proper installation specifications and clearances. Professional installation by an NFI Certified Installer is recommended.
What warranty comes with the US5517-W?
The US5517-W is covered by a 5-year limited warranty on the firebox, plus a 1-year warranty on all other parts and a 1-year warranty on electrical components. Product registration is recommended to activate coverage.
How long will 90 lbs of pellets last in the hopper?
On the lowest heat setting, a full 90 lb. hopper provides up to 47 hours of continuous burn time. Burn duration decreases on higher heat settings. The large hopper capacity is 50% bigger than standard models, significantly reducing refill frequency.
Does the stove require electricity to operate?
Yes, pellet stoves require electricity to power the auger, blower, igniter, and control board. For power outages, US Stove recommends a minimum 1,000-watt pure sine wave inverter battery backup, or a 1,000-watt inverter generator for extended outages.

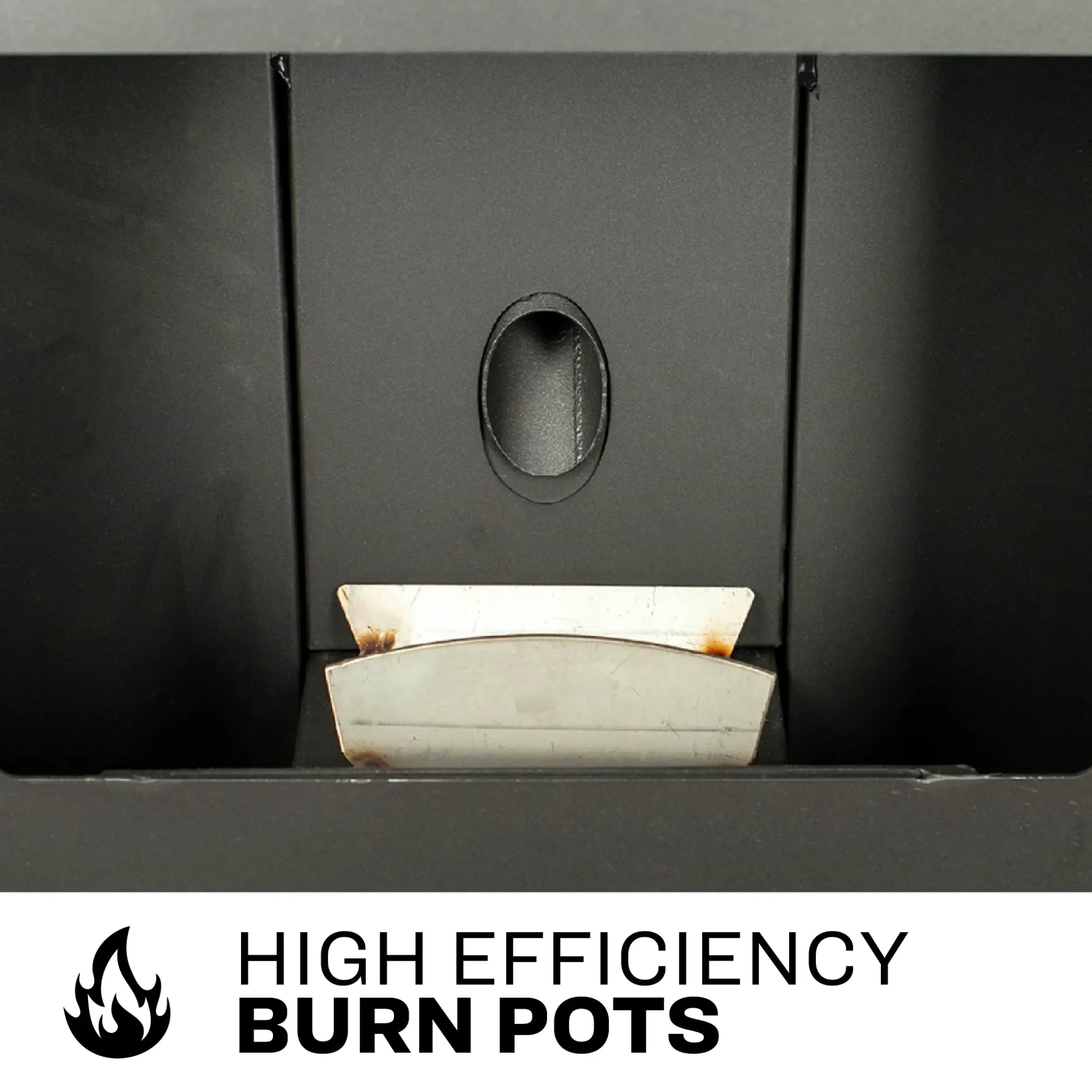

How often does the burn pot need cleaning?
For optimal performance, the burn pot should be emptied and cleaned before each ignition. If running the stove continuously, inspect the burn pot daily to determine if cleaning is needed. Regular maintenance ensures efficient combustion, proper airflow, and extends the life of your stove.
