Ashley AP5000 Wall Mount Direct Vent Pellet Stove Features

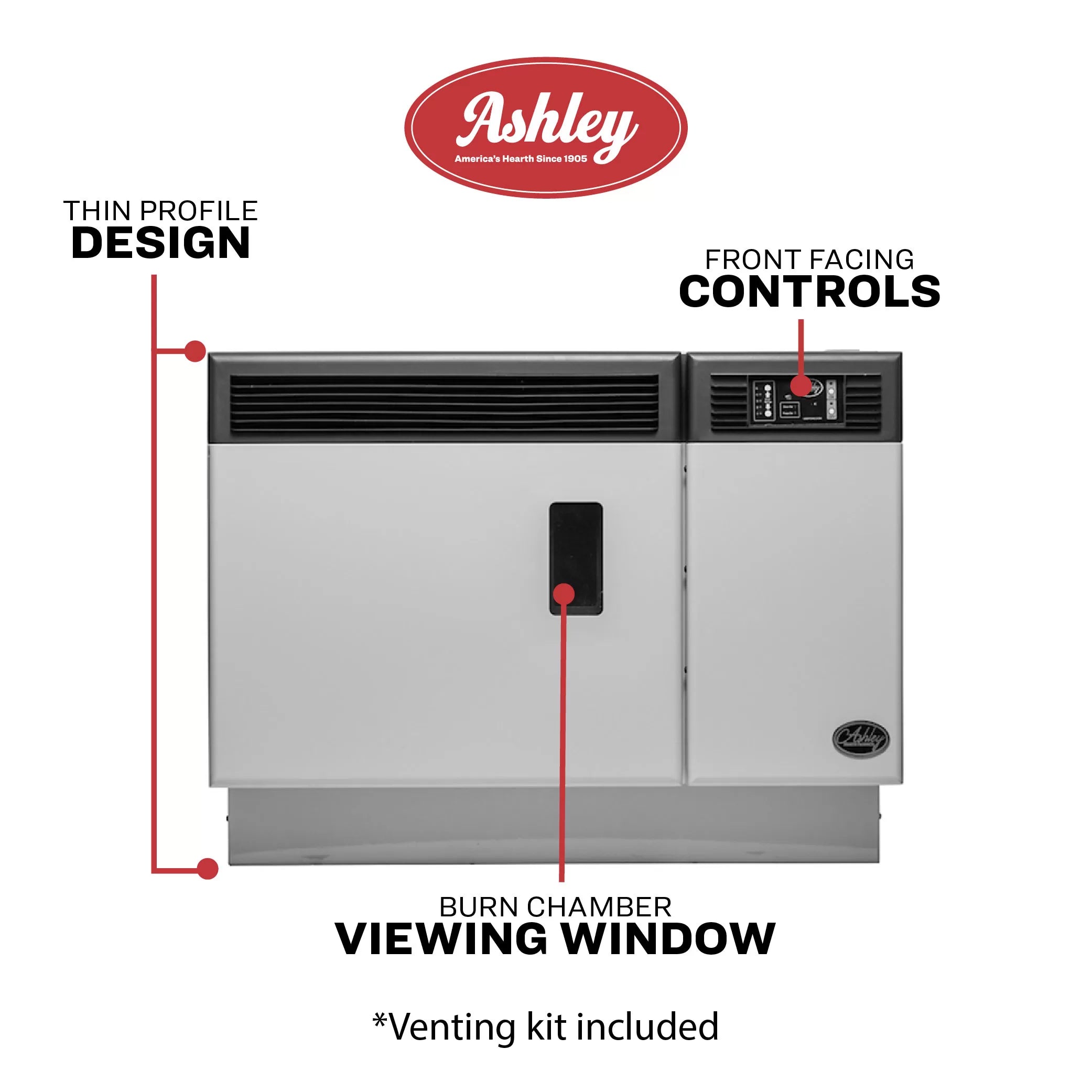

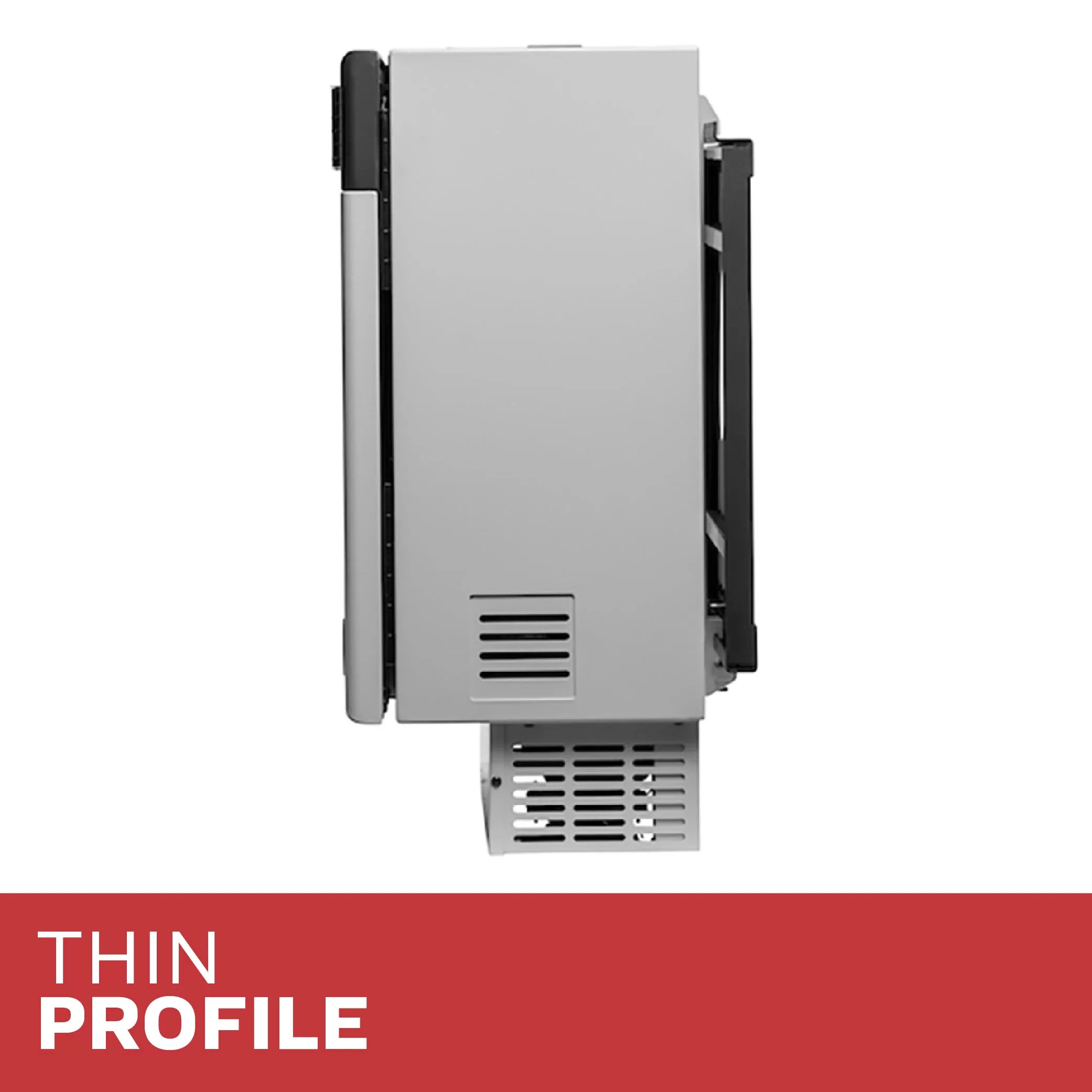

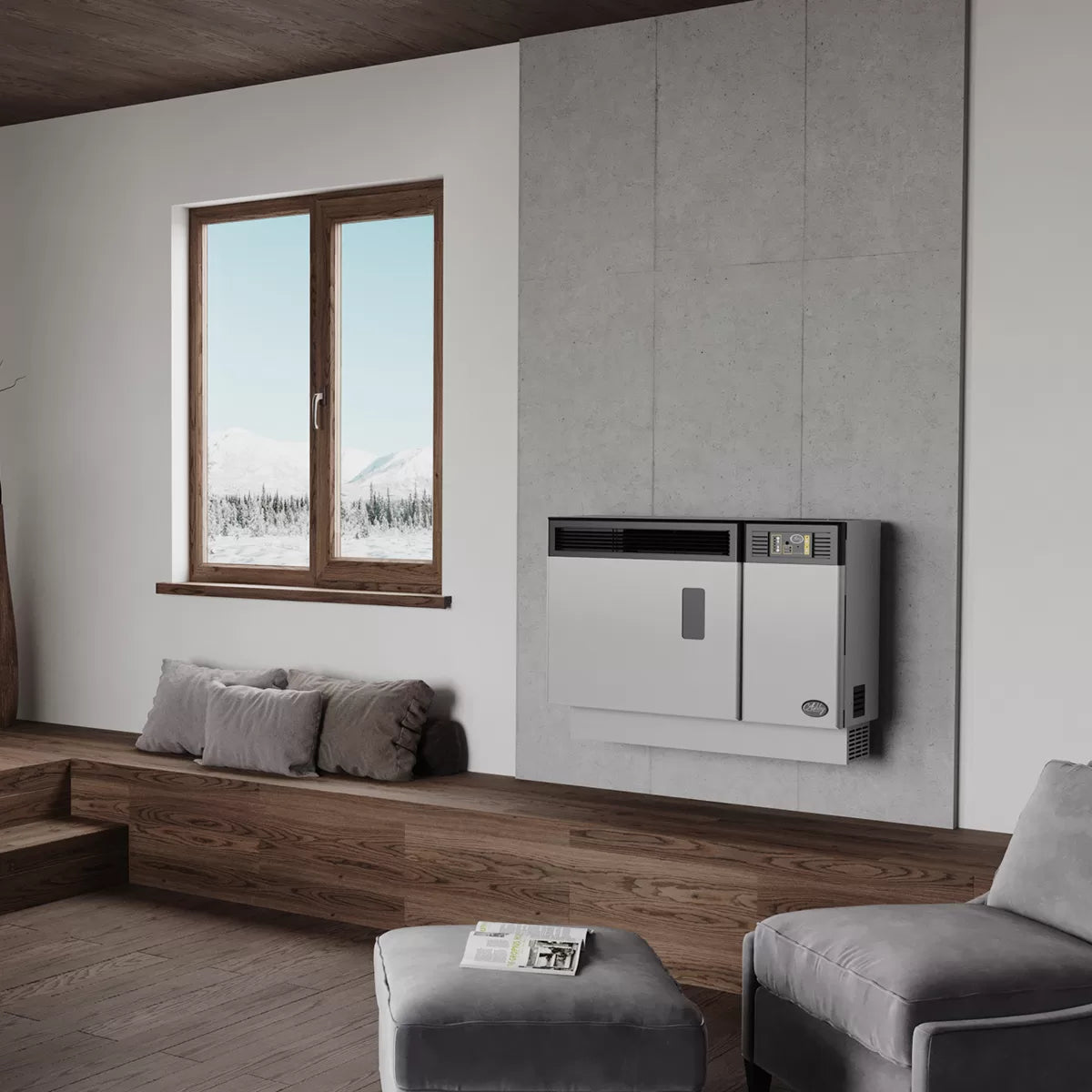

- Space-Saving Wall-Mount Design: This Euro-styled pellet stove mounts to the wall similar to a flat-screen TV, freeing up valuable floor space and giving any room a modern, streamlined look without sacrificing heating performance.
- Heats Up to 1,000 Sq. Ft.: Producing up to 24,000 BTUs, the AP5000 delivers powerful, even heat throughout small to mid-sized rooms, cabins, apartments, and supplemental heating zones.
- Direct Vent Installation: Eliminates the need for a traditional chimney with a horizontal direct-vent system, dramatically reducing installation complexity and clearance requirements compared to conventional pellet stoves.
- 28 lb Integrated Hopper: The generous hopper capacity provides up to 35 hours of continuous burn time on the lowest setting, letting you load it once and enjoy long stretches of heat without constant refilling.

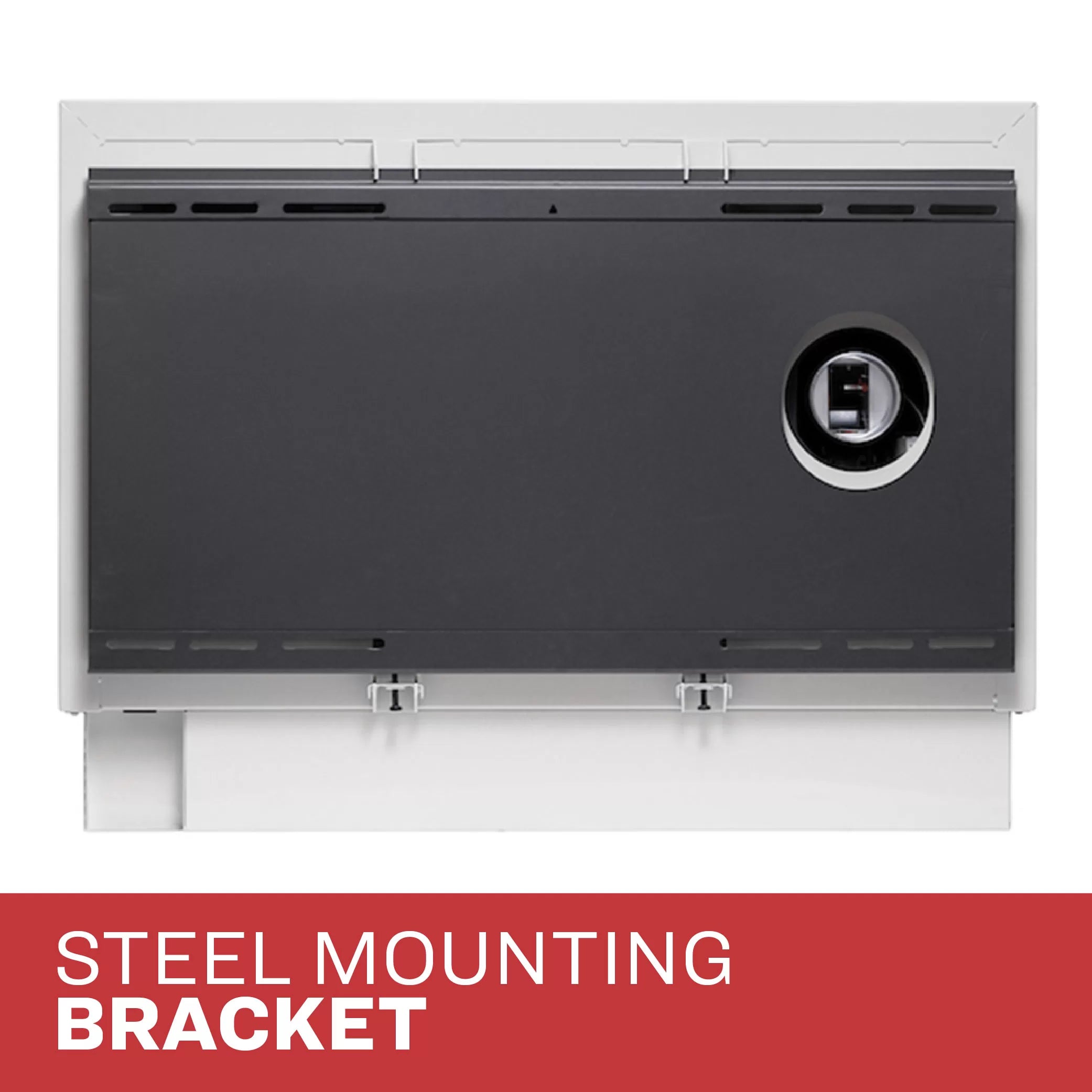

- Complete Venting Kit Included: Everything ships in the box—mounting bracket, stove adapter, vent cap, wall thimble, vent attachment, and twist-lock pipe—so there's no scrambling for accessories before installation day.
- 150 CFM Convection Blower: A built-in blower circulates heated air efficiently across the room while the exhaust blower removes combustion byproducts, maintaining consistent comfort and clean indoor air quality.

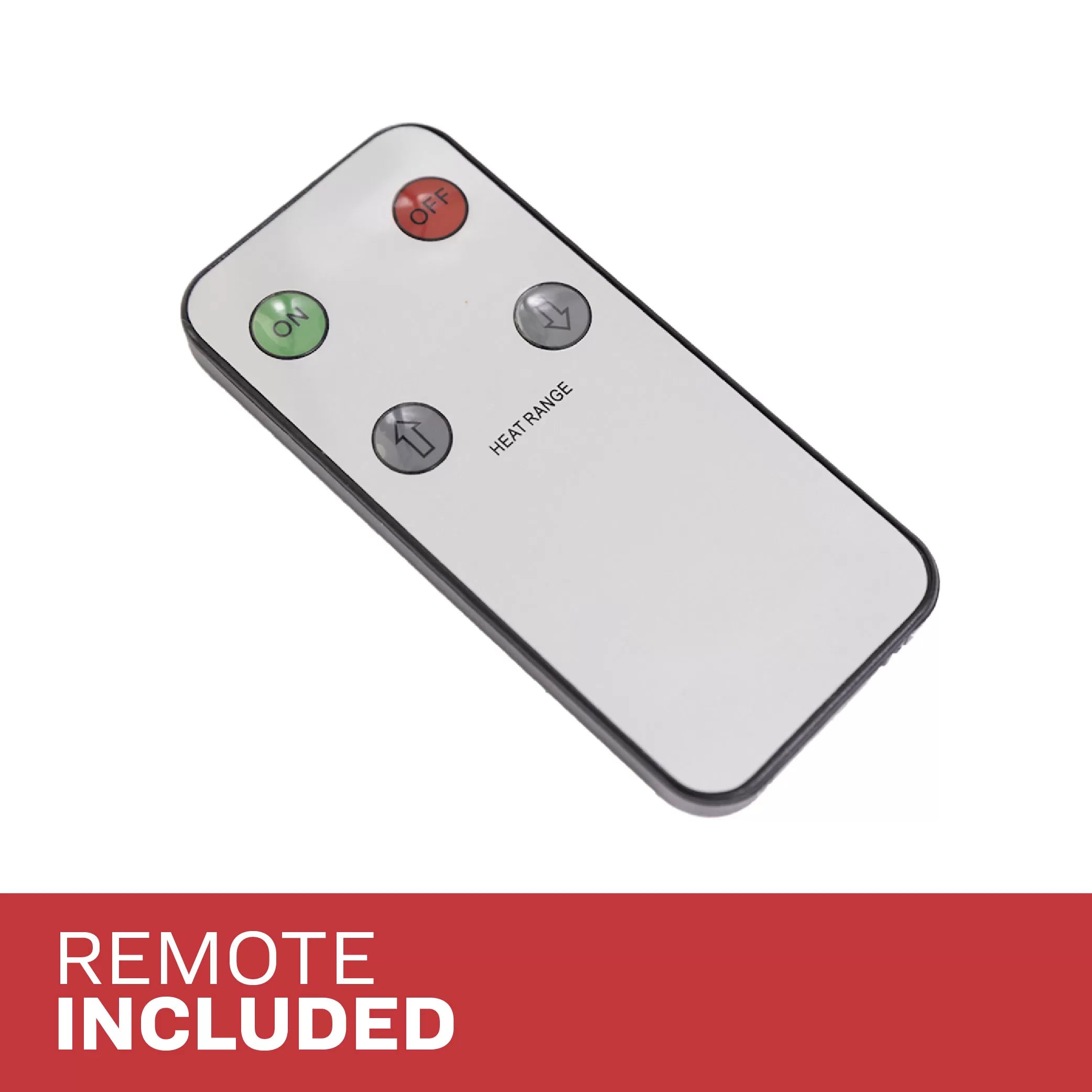

- Digital Controls with Remote: An intuitive digital control panel paired with an IR remote lets you adjust heat ranges, fan speeds, and operating modes from anywhere in the room.
- Automatic Ignition: One-touch auto-ignition lights the pellets quickly and reliably—no matches, lighter fluid, or fire-starting gels needed to get warm.
- Mobile Home Approved (USA): Certified for mobile home installation in the United States, expanding heating options for manufactured housing where many wood-burning appliances aren't permitted.
- T-Stat Compatible: Accepts a wired wall thermostat for high/low temperature regulation, giving you set-it-and-forget-it climate control during the heating season.
- EPA-Certified Clean Burn: Tested and listed to ASTM E1509-12 (2017) and ULC-S627 standards, the AP5000 meets the 2020 EPA crib wood emission limits for efficient, environmentally responsible heating.
- Minimized Clearances: The wall-mount configuration reduces required clearances to combustibles, making the AP5000 a smart choice for tight spaces where traditional pellet stoves won't fit.
Ashley AP5000 Wall Mount Direct Vent Pellet Stove Specs
| Model Number | AP5000 |
| Brand | Ashley Hearth Products (US Stove Company) |
| Fuel Type | PFI-Certified Premium Hardwood Pellets |

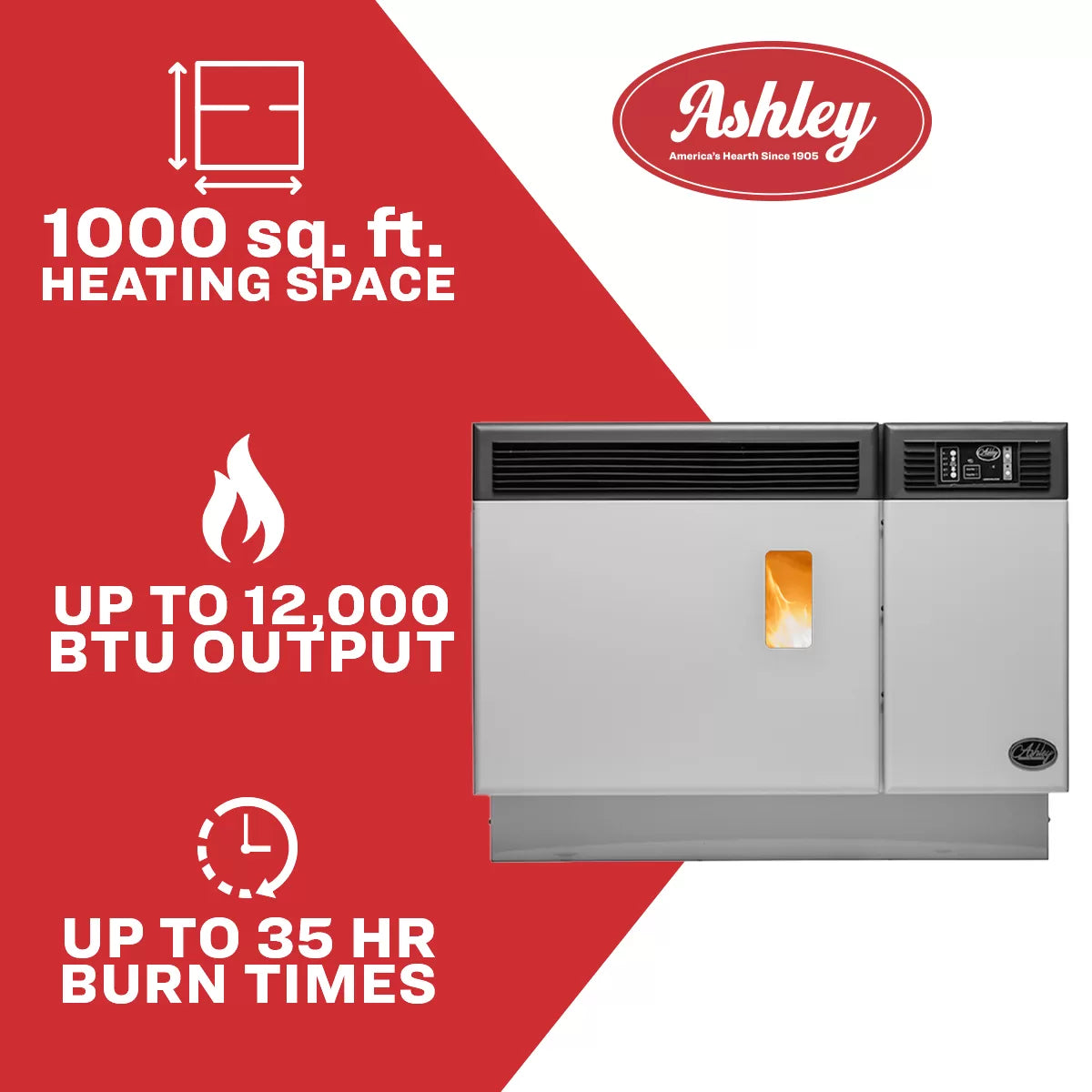

| Maximum Heating Area | Up to 1,000 sq. ft. |
| Maximum Heat Output | Up to 24,000 BTUs |
| Tested BTU Output Range | 8,141 – 12,161 BTU/hr |
| Hopper Capacity | 28 lbs |
| Burn Time | Up to 35 hours (low setting) |
| Burn Rate | 3/4 – 2-1/2 lbs/hr |
| Convection Blower | 150 CFM |
| Ignition | Automatic |
| Controls | Digital control board with IR remote |
| Thermostat Compatibility | Wired thermostat compatible (no wireless/smart) |
| Venting Type | Direct Vent (horizontal or vertical) |
| Venting Components Included | Mounting bracket, stove adapter, vent cap, wall thimble, vent attachment, twist-lock pipe |
| Installation Type | Wall-mounted |
| Width | 36 in (shipping 18 in) |
| Height | 27 in (shipping 46.5 in) |
| Depth | 12.43 in (shipping 33.5 in) |
| Weight | 230 lbs |
| Mobile Home Approved | Yes (USA only) |
| EPA Certification | Meets 2020 EPA crib wood emission limits |
| Safety Certifications | ASTM E1509-12 (2017); ULC-S627-00-REV1 |
| Test Report Number | F20-598 |
| Power Requirements | 120V household current |
| Recommended Backup Power | 1000W pure sine wave inverter (battery or generator) |
| Manufacturer Origin | Designed in South Pittsburg, TN; globally sourced components |
| Shipping Method | Pallet via LTL carrier |
Ashley AP5000 Wall Mount Direct Vent Pellet Stove FAQ
How large of a space will the AP5000 heat?
The AP5000 is designed to heat spaces up to 1,000 square feet, producing up to 24,000 BTUs. It's ideal for small homes, apartments, cabins, additions, garages, and as a supplemental heat source in larger homes.
What type of fuel does this pellet stove use?
The AP5000 is engineered to burn only PFI-certified premium hardwood pellets. Corn, coffee pellets, and alternative biomass fuels are not approved and will damage the stove and void the warranty.
Does the AP5000 require a chimney?
No. The AP5000 uses a direct vent system that exhausts horizontally through an exterior wall (or vertically through the ceiling). All required venting components—mounting bracket, stove adapter, vent cap, wall thimble, vent attachment, and twist-lock pipe—are included in the box.
How long will a full hopper of pellets burn?
A full 28 lb hopper delivers up to 35 hours of continuous burn time on the lowest heat setting. Burn time decreases as heat output increases, with consumption ranging from 3/4 lb/hr on low to about 2-1/2 lbs/hr on high.
Can the AP5000 be installed in a mobile home?
Yes. The AP5000 is mobile home approved in the USA. When installing in a mobile home, a fresh air kit is required, and the stove must not be installed in a sleeping room. Always follow the owner's manual for proper clearances and venting.
Can I use a wireless or smart thermostat with this stove?
No. The AP5000 control board only accepts wired thermostats. In T-Stat mode the stove operates between heat range 1 (when temperature is satisfied) and your selected setting (when calling for heat)—it does not fully shut off, so it can occasionally exceed the setpoint.
What happens during a power outage?
Like all pellet stoves, the AP5000 requires electricity to operate the auger, blowers, and ignition. For backup, US Stove recommends a minimum 1000W pure sine wave inverter battery backup or a 1000W inverter generator for short-term use during outages.
How often does the stove need to be cleaned?
The burn pot should be inspected daily and emptied and cleaned before each ignition under regular use. Ashes need to be checked weekly and emptied as needed, and the combustion chamber should be brushed monthly. An annual professional servicing by an authorized dealer is recommended to maintain peak performance and safety.
