| Models | SGM3-N1, SGM3-L1, SGM6-N1, SGM6-L1, SGM10-N1, SGM10-L1 |
| Input | 26,000 BTU/hr (SGM3), 52,000 BTU/hr (SGM6), 104,000 BTU/hr (SGM10) |
| Fuel Type | Natural gas or propane |
| Minimum Mounting Height | 12' (SGM3), 14' (SGM6), 15' (SGM10) |
| Shipping Weight | 30 lbs (SGM3), 40 lbs (SGM6), 70 lbs (SGM10) |
| Ignition | Manual light, millivolt standing pilot |
| Electrical | None required |
| Natural Gas Pressure | Burner 3.5" W.C. (SGM3) or 6.0" W.C. (SGM6, SGM10); supply 4.5" min (SGM3) or 7" min (SGM6, SGM10) to 14" max |
| Propane Pressure | Burner 10" W.C., supply 11" min to 14" max W.C. |
| Venting | Indirect vented operation |
| Mounting | Horizontal or angled up to 30 degrees |
| Clearances, Horizontal | SGM3: back, sides, ceiling 24", below 48"; SGM6: back 36", sides 30", ceiling 36", below 72"; SGM10: back 45", sides 48", ceiling 36", below 96" (larger with reflector, see spec sheet) |
| Clearances, 30 Degree Angle | SGM3: back 8", sides 24", ceiling 32", below 48"; SGM6: 12", 30", 36", 72"; SGM10: 18", 48", 60", 96" (with reflector, see spec sheet) |
| Construction | Aluminized steel, aluminum reflectors, protective radiant screen included |
| Certification | CSA design certified |
| Thermostat | Required, 750 mV thermostat part 42489010, one per heater |
No. It runs on a millivolt standing pilot that generates its own control voltage, so it needs no external power. Ignition is manual.
A 750 mV millivolt wall thermostat, SunStar part 42489010, one per heater. It is listed under the optional add-ons below.
No. SunStar does not approve the SGM for any residential installation, including homes, residential garages, mobile homes, RVs or campers. For a residential garage, SunStar recommends its SIR series vented tube heaters.

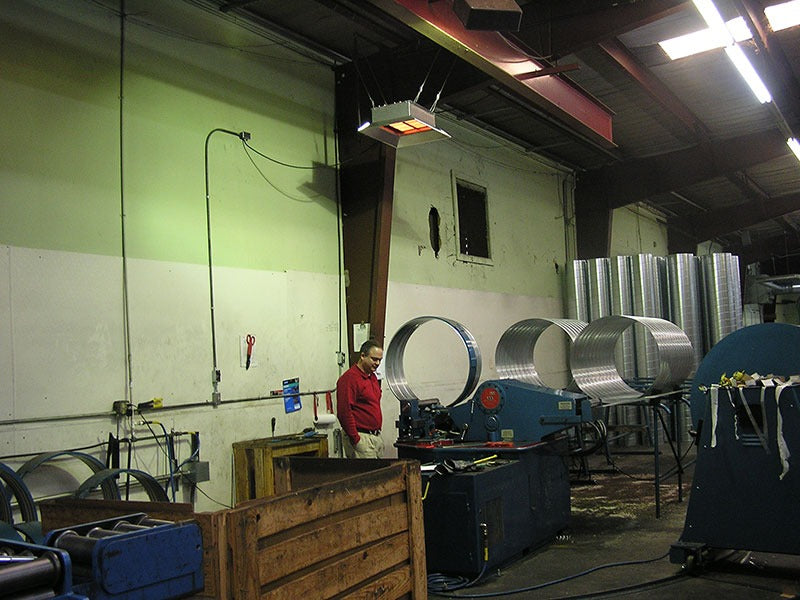

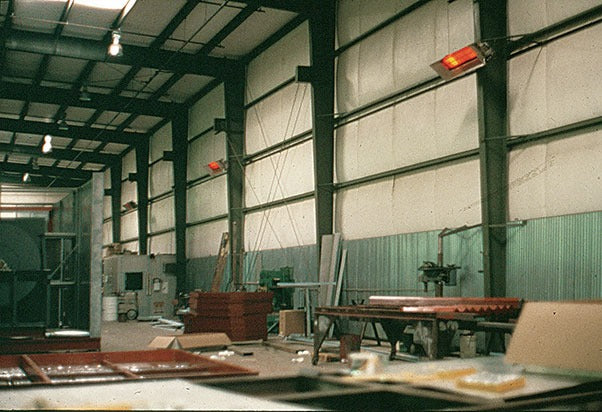

Remote locations, farm buildings, maintenance buildings, shops, warehouses, service areas and pump houses, especially where electrical power is not available.
12 ft minimum for the SGM3, 14 ft for the SGM6 and 15 ft for the SGM10. Check the clearance rows in the specs for your mounting angle.
SunStar's 25 ft chain kit with 12 S hooks (part 41690250) is sold separately and listed under the optional add-ons.
Call Fire Pit Surplus at 888-671-4611. We can help with sizing, gas type, mounting and the add-ons your install needs.
