| Models | SG3-N, SG3-L, SG4-N, SG6-N, SG6-L, SG8-N, SG10-N, SG10-L, SG12-N, SG13-L, SG14-N, SG15-N |
| Input Range | 30,000 to 155,000 BTU/hr (SG15-N listed at 150,000 BTU/hr in the spec table) |
| Fuel Type | Natural gas or propane |
| Burners | 1 (SG3, SG4), 2 (SG6, SG8), 3 (SG10, SG12), 4 (SG13, SG14, SG15) |
| Minimum Mounting Height | 12' (SG3, SG4), 13' (SG6), 14' (SG8), 15' (SG10), 16' (SG12), 17' (SG13, SG14), 18' (SG15) |
| Ignition | Automatic direct spark |
| Electrical | 120 VAC, 0.40 amp, 120/24 V transformer included |
| Gas Connection | 1/2" NPT female |
| Natural Gas Pressure | Burner 6" W.C., supply 7" min to 14" max W.C. |
| Propane Pressure | Burner 10" W.C., supply 11" min to 14" max W.C. |
| Mounting | Horizontal or angled up to 30 degrees |
| Clearances, Horizontal | SG3/SG4: sides 31", ceiling 37", below 73"; SG6/SG8: 49", 49", 99"; SG10/SG12: 49", 65", 129"; SG13/14/15: 49", 65", 137" |
| Clearances, 30 Degree Angle | SG3/SG4: below 73", front 37", rear 31"; SG6/SG8: 99", 49", 37"; SG10/SG12: 129", 61", 49"; SG13/14/15: 137", 65", 49" |
| Construction | Aluminized steel body, aluminum reflectors |
| Thermostat | Required, part 30348020, one per heater |
Yes. SunStar requires a thermostat (part 30348020) for proper operation, one per heater. It is listed under the optional add-ons below so you can order it with the heater.
No. SunStar does not approve the SG for any residential installation, including homes, residential garages, mobile homes, RVs or campers. For a residential garage, SunStar recommends its SIR series vented tube heaters.
From 12 ft for the SG3 and SG4 up to 18 ft for the SG15. Check the clearance table in the specs for your model and mounting angle.

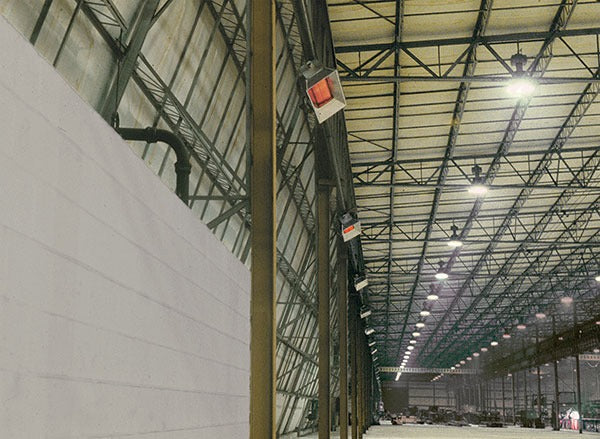

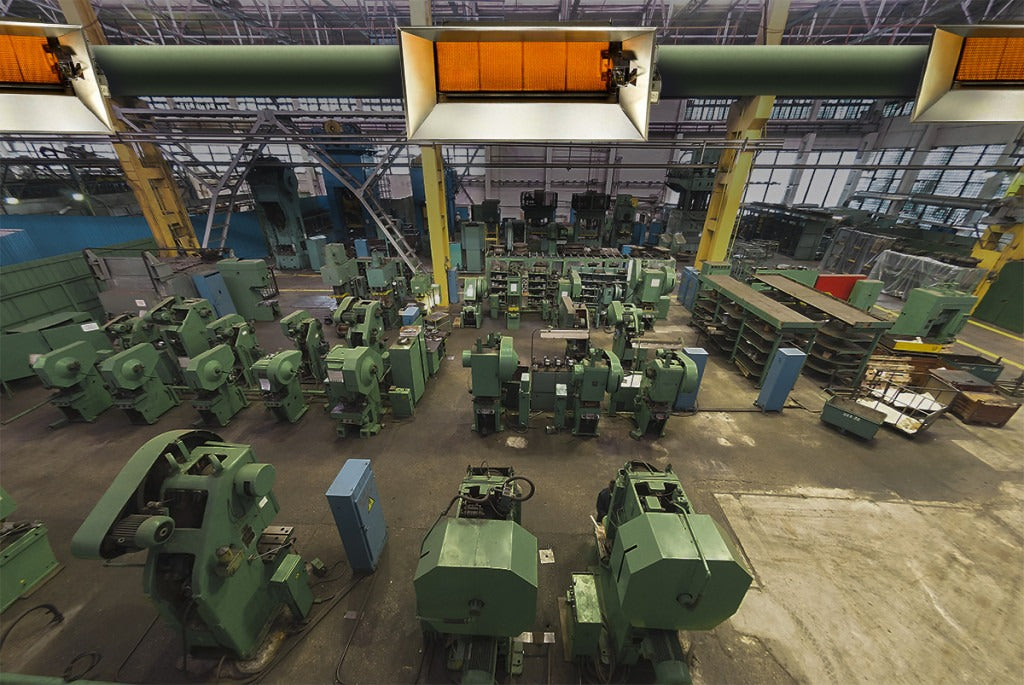

Manufacturing plants, warehouses, auto dealerships, aircraft hangars, loading docks, fire stations, commercial garages, machine shops, tennis courts, maintenance shops, farm buildings and truck service areas.
Yes. The direct spark ignition runs on 120 VAC at 0.40 amp, and the 120/24 V transformer is included. If you need a heater with no power, see the SunStar SGM millivolt series.

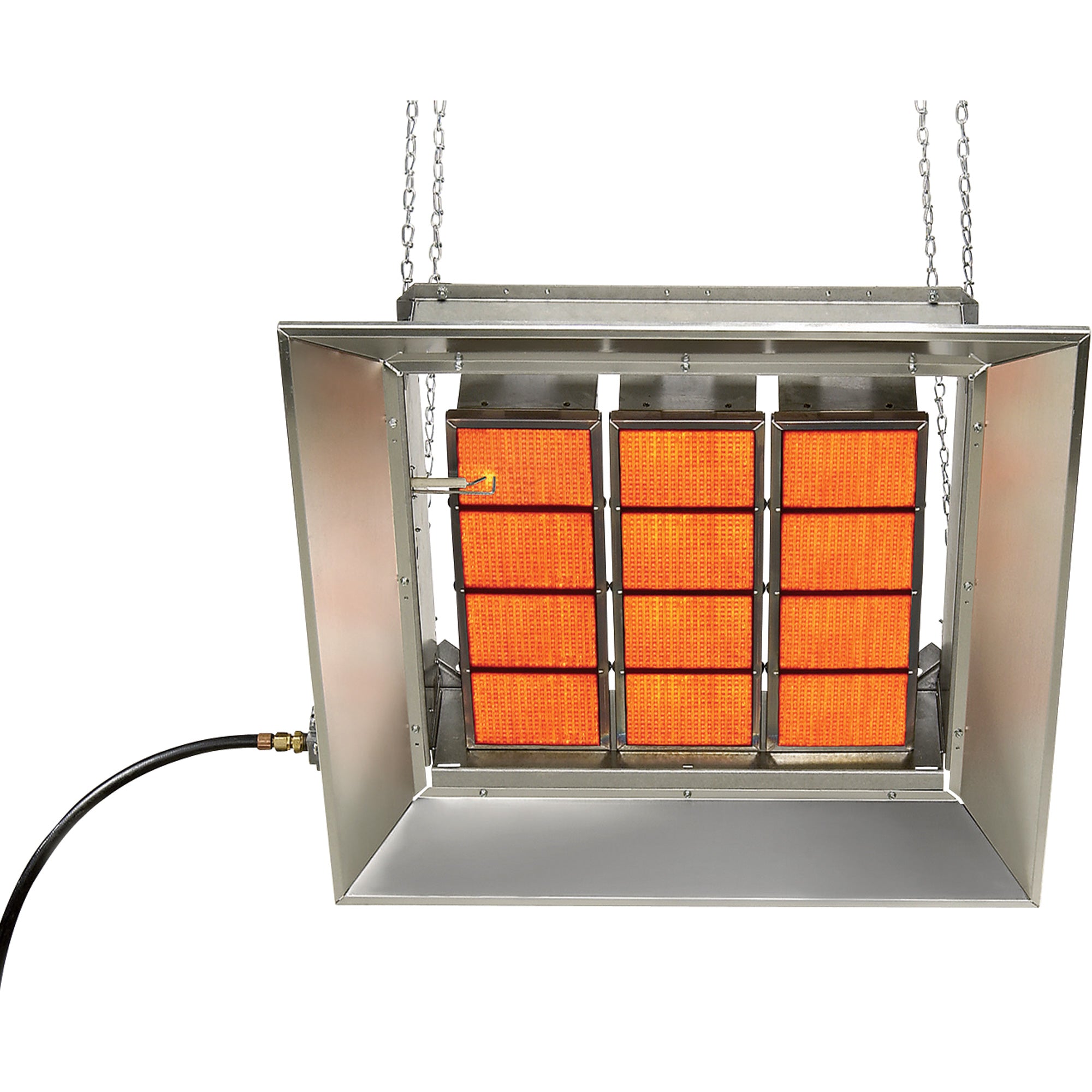

SunStar sells a 25 ft chain kit (part 41690250) separately; it is listed under the optional add-ons. Mount horizontally or at up to a 30 degree angle.
Call Fire Pit Surplus at 888-671-4611. We can help with sizing, gas type, mounting and the add-ons your install needs.
