SC-SLC 9 HD PRO complete outdoor cinema system – Projector, Screen, Accessories, Extension Cords, & Hand Truck! 10′-3″ diagonal screen picture, PRO ShowCase AV Console, 3500 Lumen Lamp Style Projector, 2000 watt Sound System, & Accessories.

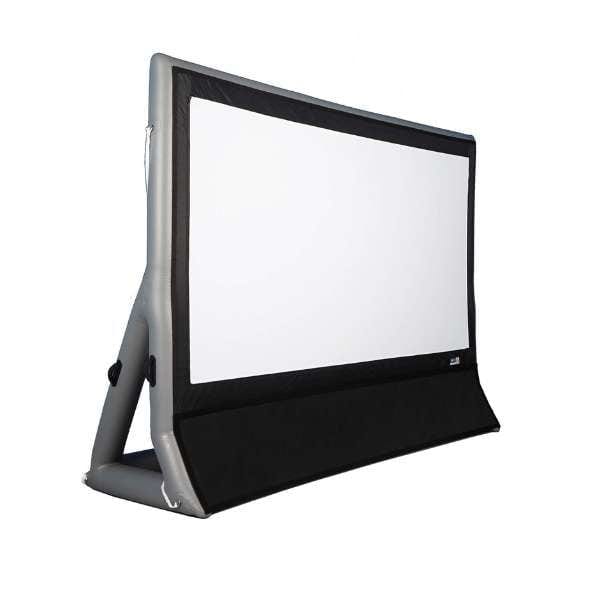

One (1)- EPIC E-SL 9 PRO Inflatable frame – (10’-6” X 9’-6” x 4’) Constructed of 25 oz. 700 denier heavy-duty, tear-resistant vinyl-coated polyester. NFPA 701, IFR materials, rated for safe operation in up to 25 mph winds. All seams hot air welded & reinforced at pressure points. Back support legs on the frame for hands-free inflation, & handles for easy positioning before tethering. The pressure release valve automatically controls pressure in the frame to guard against inadvertent overinflating. Proprietary frame fabrication methods eliminate sag at top of the viewing surface.

EPIC SC-SLC 9 PRO Complete System Features:

• PRO Model Screen Kit- EPIC’s Original Silent Sealed-Air Screen
• Bright Full HD 1080p Lamp Style Projector
• Professional 2000 Watt Sound System
• Compact Pre-Wired PRO ShowCase Audio Visual Console w/Blu-ray Player, Pro Audio Mixer, Power Conditioner, Wired Microphone & 5” Preview Monitor, and LED Work Light.
• PRO System Accessories: Adjustable Projector Stand, Quality Speaker Stands, Extension Cords, 500 lb. Rock-n-Roller Transport Cart. Heavy Duty Carry Bags for the Screen, Projector, and Speaker Stands.
• *Three-year Manufacturer’s Warranty on the Screen. Original Manufacturer’s Warranty carries on other electronics.
• Includes all nylon tethers & D-Ring Tie-down points, (4) steel ground stakes & mallet
• OV10 pump & hose w/1” adapter for inflation/deflation
• Durable deep black border/skirt made with 1000 denier marine canvas
• Includes Heavy-duty ground tarp for providing a clean and protective surface over any surface conditions
• Includes Heavy-duty screen transport bag with a reinforced pocket to safely store surface
• Comprehensive instruction manual, repair kit, & ongoing technical support
• 3-year Warranty on EPIC Screen & 1-year Warranty on Air Pump

Comes With:

One (1)- EPIC PRO Screen Surface – Dual-Vista™ theatrical quality screen surface: 9’ wide x 5’ tall viewing surface:

1. • 10’-3” diagonal, widescreen HD format, Quick- Zip™ removable screen surface
   • Dual projection (front & rear) – wrinkle-free, machine washable with reinforced zippers

One (1)- EPIC PRO ShowCase™ A/V Console – Hard Case, all components pre-wired, ready to plug & play.

• • One (1)- Professional rackmount power conditioner for clean power & surge protection.
  • One (1)- Blu-ray Player – (upscales DVD to near HD image quality), with remote.
  • One (1)- Professional rack-mounted 6 Channel Audio Mixer W/Professional Wired Microphone
  • One (1)- 5″ HDMI Preview Monitor
  • One (1)- LED console work light
  • One (1)- Pro ShowCase™ A/V Console T-Stand

One (1)- EPIC PRO Projector (Lamp Style) – 3500 Lumen High Definition 1080p Projector with lamp, lens, remote.

• • One (1)- Heavy-duty Tripod Projector Stand
  • One (1)- Soft Carry Case

One (1)- EPIC PRO Audio Package – top-quality & high performance sound system, 2000 watts total.

• • Two (2)-10” Portable powered bi-amplified professional speakers: weather resistant, & lightweight.
  • Two (2) 50’ XLR speaker cables
  • Two (2) padded speaker carry bags.
  • Two (2) Professional lightweight aluminum speaker stands with padded carry bag.

PRO System Accessories:

• • Extension cords: One (1)-50’ single outlet cord, One (1)-25’ single outlet cord, One (1)-25’ triple outlet cord.
  • One (1) Rock-n-Roller Multi-Cart 8-in-1 System Transporter w/steel tube frame, Loading capacity of 500 lbs.
  • Comprehensive instruction manual, repair kit, & ongoing technical support
  • Original Manufacturer’s Warranty carries on other electronics.

EPIC SC-SLC 9 PRO Complete System Specifications:

• Screen Size: 9’ X 5’ (10’-6” X 9’-6” X 4’)
• Shipping Weight 380 lbs
• Shipping Dimensions 48 × 40 × 40 in
• Pump Voltage: 120v, 220v

Resources:

E-SL9 PRO Structure Diagram

Click Here for Structure Diagram
