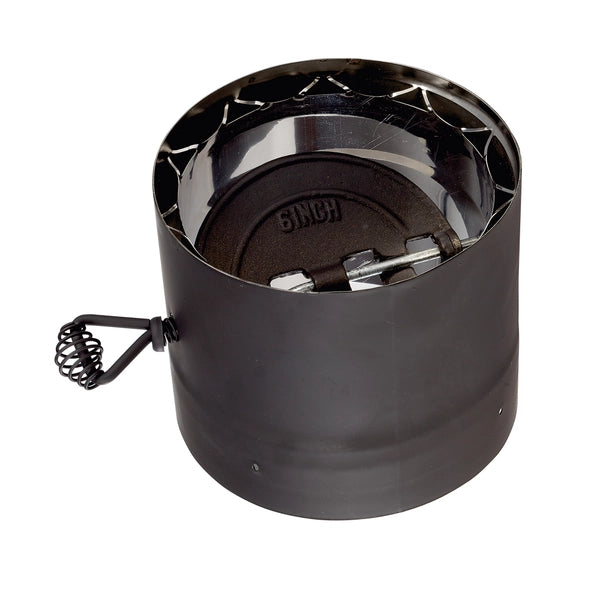

6" VORTEX DOUBLE WALL STOVE PIPE SECTION WITH DAMPER VOD0190

The integrated damper in the VOD0190 pipe section is designed to slow the heat flow exiting your wood stove and provide greater control over draft conditions. When installed between the stove flue collar and the first pipe section, the damper allows you to regulate the airflow through your venting system, which is particularly useful in situations of excessive draft. This control helps you optimize combustion efficiency, extend burn times, and prevent your stove from burning too hot or wasting fuel. The damper can be adjusted as needed throughout the heating season to maintain ideal burning conditions.

The Vortex double-wall design dramatically reduces clearance requirements from 18 inches (required for single-wall pipe) to just 6 inches from combustible materials. This is achieved through the air-insulated construction, which features a stainless steel inner wall with thermal weave technology and an air space between the inner and outer walls. This design keeps flue gas temperatures higher on the inside for better draft performance while keeping the outer wall temperatures significantly cooler, making it safer to install closer to walls, ceilings, and other combustible surfaces. This reduced clearance allows your wood stove to be positioned more efficiently in your living space.

No, you should never mix Vortex Double Wall connector pipe components with products from other manufacturers. The VOD0190 damper section must be used exclusively with other Vortex Double Wall pipe sections and components to maintain proper fit, safety certifications, and warranty coverage. Mixing different brands can compromise the integrity of the joints, void safety listings, and create dangerous gaps where heat or combustion products might escape. Always use a complete Vortex system from the stove adapter through to the chimney connection for optimal safety and performance.

Installation requires securing each joint with at least three #8 x 1/2" self-drilling screws. All vent connector joints should be sealed with high-temperature silicone to ensure an airtight system. The maximum total length should not exceed 15 feet if there's an offset in your installation, or 20 feet for straight vertical runs. For ongoing maintenance, the Vortex system requires annual inspection and cleaning by a qualified chimney professional at intervals no more than 12 months apart. During the heating season, you should inspect the system at least once every two months for creosote buildup, removing any accumulation immediately to prevent chimney fires and maintain warranty coverage.

The VOD0190 damper section is designed for use with certified residential wood-burning appliances including wood stoves, wood-burning fireplaces, wood furnaces, and wood boilers. The appliance must be certified by an accredited laboratory and used according to the manufacturer's instructions. This pipe section is specifically designed for solid fuel burning applications and should only be used with appliances burning natural wood - never burn treated lumber, plastic, household trash, driftwood, salt-containing wood, or pellets containing prohibited materials, as these can damage the system and void the warranty.

If a chimney fire occurs, you must not use your wood-burning appliance again until the entire system - including the chimney, connector pipe, and stove - has been thoroughly inspected and approved for continued use by a professional chimney sweep and/or Fire Department Inspector. The high temperatures during a chimney fire can compromise the structural integrity of the venting system, even if no visible damage is apparent. Professional inspection is essential to ensure the system remains safe for operation. Regular cleaning and inspection help prevent chimney fires by removing creosote buildup before it can ignite.

The VOD0190 damper section comes with a limited lifetime warranty for the original purchaser in residential installations. The warranty covers defects in manufacturing when the product is properly installed, maintained, and used according to specifications. To maintain warranty coverage, you must use the pipe exclusively with other Vortex Double Wall components, have the system inspected and cleaned annually by a chimney professional, use only approved fuels, install a chimney cap, and avoid chemical chimney cleaners. The warranty is non-transferable and only covers replacement of defective components - labor and installation costs are not included. Commercial applications are not covered under this residential warranty.

Clean the Vortex double-wall pipe system using a plastic, wood, or flexible steel brush - never use chemical chimney cleaners, as these can damage the system and void your warranty. The stainless steel inner wall with thermal weave technology should be cleaned annually by a qualified chimney professional, or more frequently if you notice significant creosote accumulation. During heating season, inspect at least every two months for buildup. When wood is burned at low temperatures, it produces creosote that condenses on the flue lining - regular cleaning prevents dangerous accumulation. Always ensure the system has cooled completely before cleaning, and have your chimney professional document each maintenance visit to maintain warranty compliance.
