6" VORTEX STOVE ADAPTER VOD0291

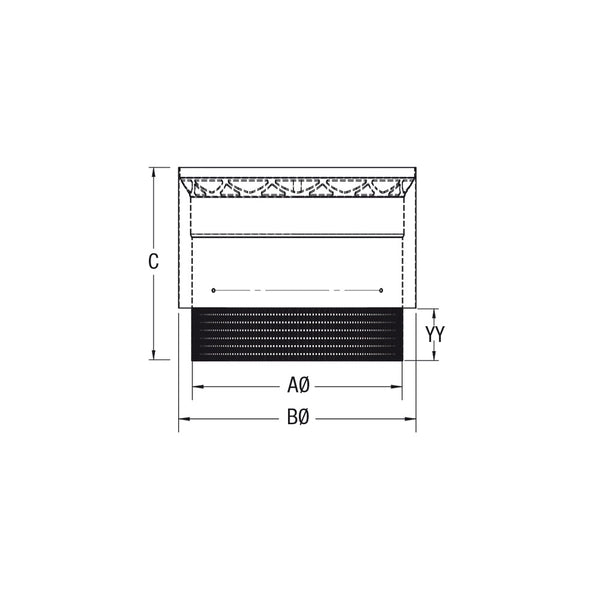

The Vortex Stove Adapter (VOD0291) is specifically designed to connect directly to your stove's flue collar, serving as the critical transition point between your wood stove or heating appliance and the rest of your venting system. Unlike regular pipe sections, it features a specialized design that ensures a secure, leak-free connection to the appliance collar while allowing easy attachment of additional Vortex double-wall pipe sections above it. The adapter's 5.5-inch length and precision-formed ends make it ideal for this specific connection point.

The Vortex Stove Adapter requires a minimum clearance of 6 inches to combustible side walls and 6 inches to combustible ceilings. These reduced clearance requirements are made possible by the double-wall design with thermal weave technology that keeps outer wall temperatures lower. However, you must also follow your stove manufacturer's specific clearance requirements, and if two clearances conflict, always use the larger clearance distance for safety.

To install the adapter, position it directly onto your stove's flue collar and secure it using at least three #8 x 1/2" self-drilling screws spaced evenly around the connection. Ensure the adapter is properly aligned and seated on the collar before fastening. Once secured, you can attach the next section of Vortex double-wall pipe to the top of the adapter using the same type and quantity of screws. The precision-formed ends ensure proper fit and alignment throughout the installation.

The VOD0291 Vortex Stove Adapter is designed specifically for use with the Vortex double-wall pipe system and is compatible with wood stoves, freestanding fireplaces, and furnaces equipped with a 6-inch flue collar. The inner diameter is 6 inches (outer diameter 6.75 inches), making it suitable for standard 6-inch venting systems. It must be used with other Vortex system components and should not be mixed with other manufacturers' pipe systems to ensure proper fit, safety compliance, and warranty coverage.

The Vortex Stove Adapter fully complies with multiple North American safety standards including NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances), CSA B365 (Installation Code for Solid-Fuel-Burning Appliances and Equipment), UL 103 HT (Factory-Built Chimneys for Residential Type and Building Heating Appliances), and ULCS629 (Standard for Solid-Fuel-Burning Appliances). This comprehensive compliance ensures the adapter meets all requirements for safe residential installation.

The stove adapter requires minimal maintenance but should be inspected annually as part of your regular chimney and venting system inspection. Check for any signs of corrosion, damage, or loosening of the mounting screws. The metallic black powder coat finish provides corrosion resistance, but you should still inspect the adapter for any deterioration. During annual chimney cleaning, verify that all connections remain secure and that there are no gaps or separations at the joints. Replace the adapter if you notice any cracks, warping, or significant corrosion.

While the Vortex Stove Adapter is designed primarily for use with Vortex double-wall pipe systems, it connects to the stove's flue collar in the same manner regardless of what pipe system continues above it. However, for optimal safety and to maintain the reduced clearance advantages of the double-wall system (6 inches vs. 18 inches for single-wall), it's recommended to use the adapter as part of a complete Vortex double-wall installation. Mixing pipe types may affect clearance requirements and system performance.

Warranty information for the Vortex Stove Adapter should be confirmed with your retailer or by contacting the manufacturer directly. Typical coverage for venting components includes protection against manufacturing defects in materials and workmanship. To maintain warranty coverage, ensure proper installation following all manufacturer guidelines, use only compatible Vortex system components, and maintain the system according to recommended maintenance schedules. Keep your purchase receipt and installation documentation for warranty claims.
