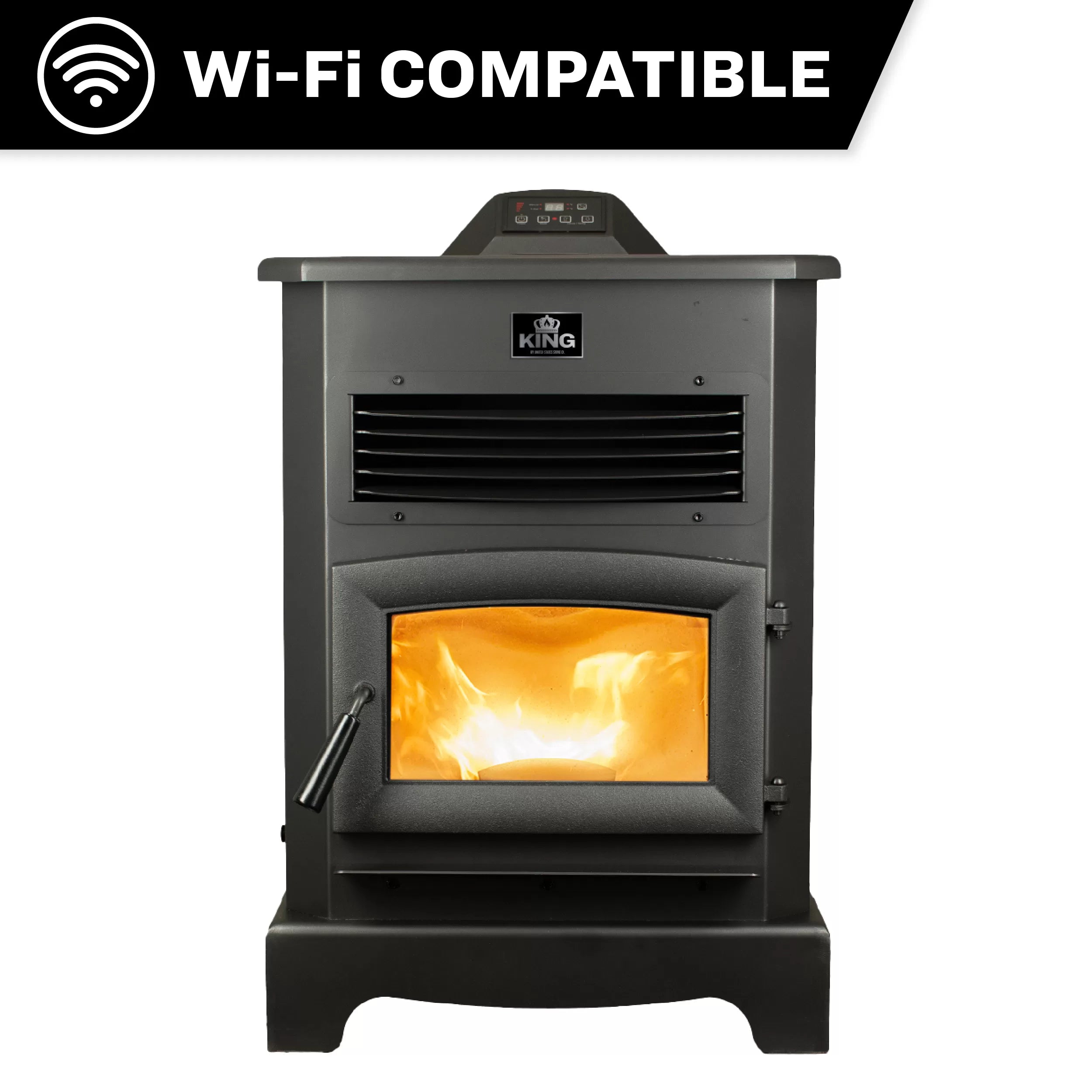

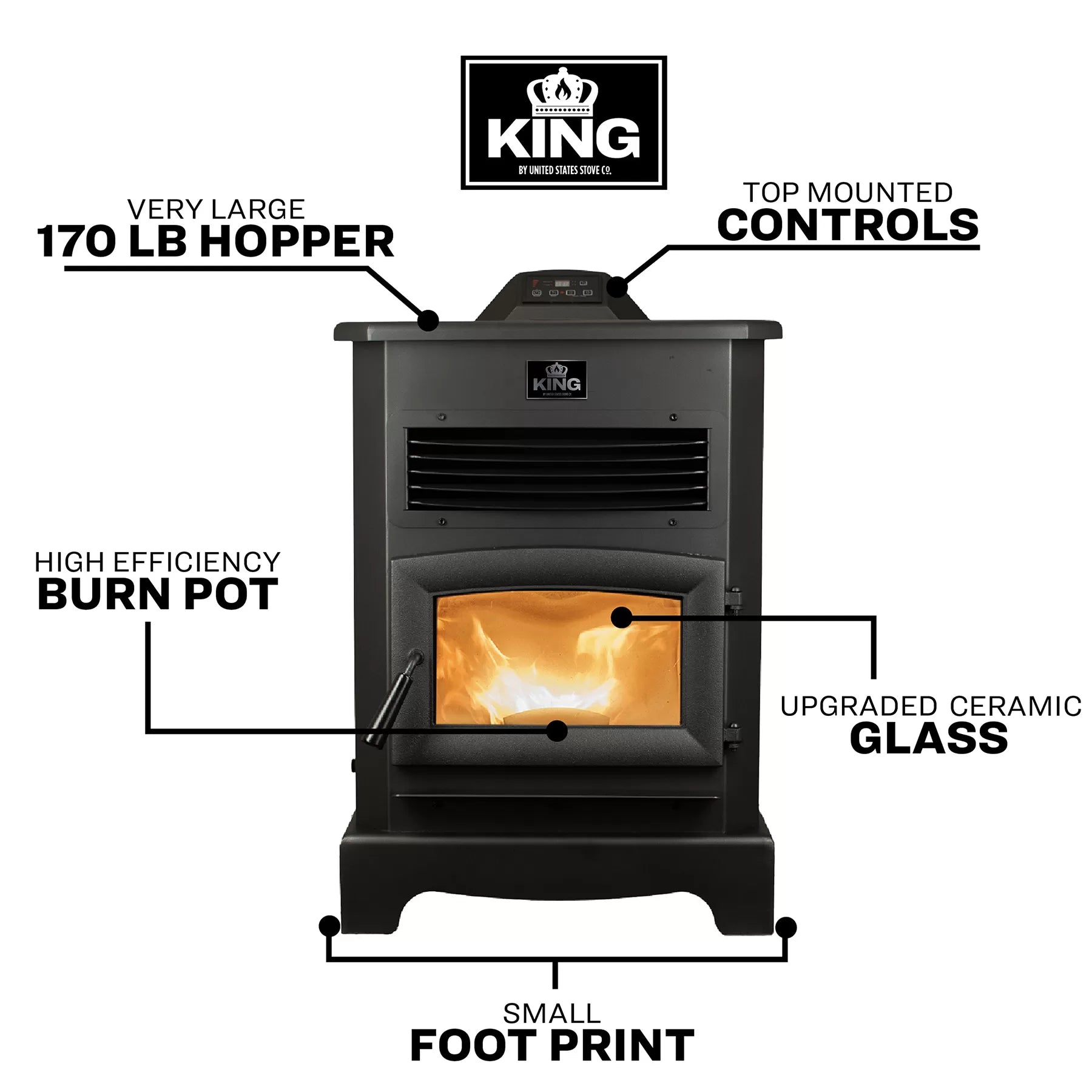

King KP5522-W Pellet Stove Features

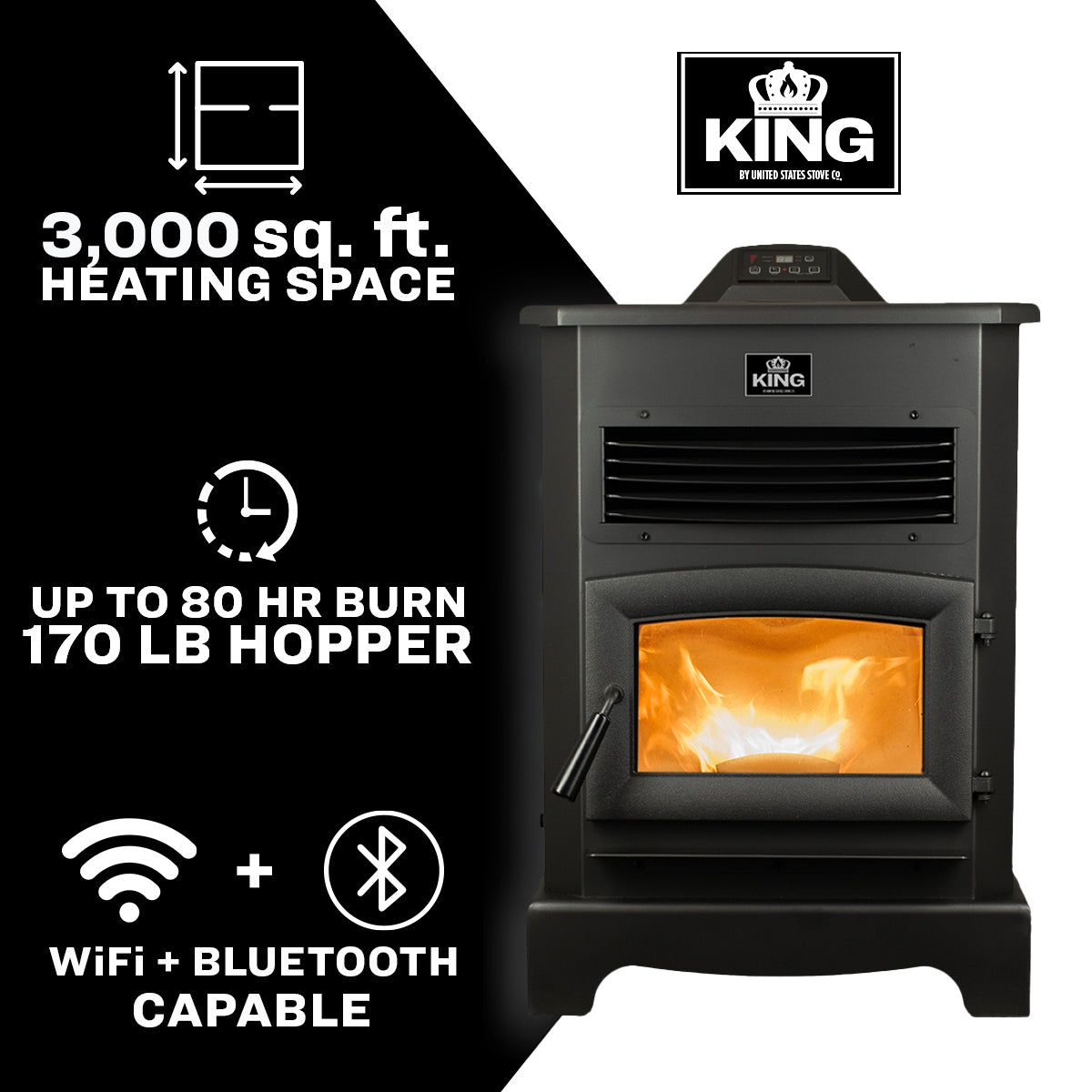

- Whole-Home Heating Power: Delivers up to 33,000 BTUs of clean, consistent heat with the ability to warm spaces up to 3,000 square feet, making it an ideal primary or supplemental heat source for large homes, cabins, and open-concept living areas.

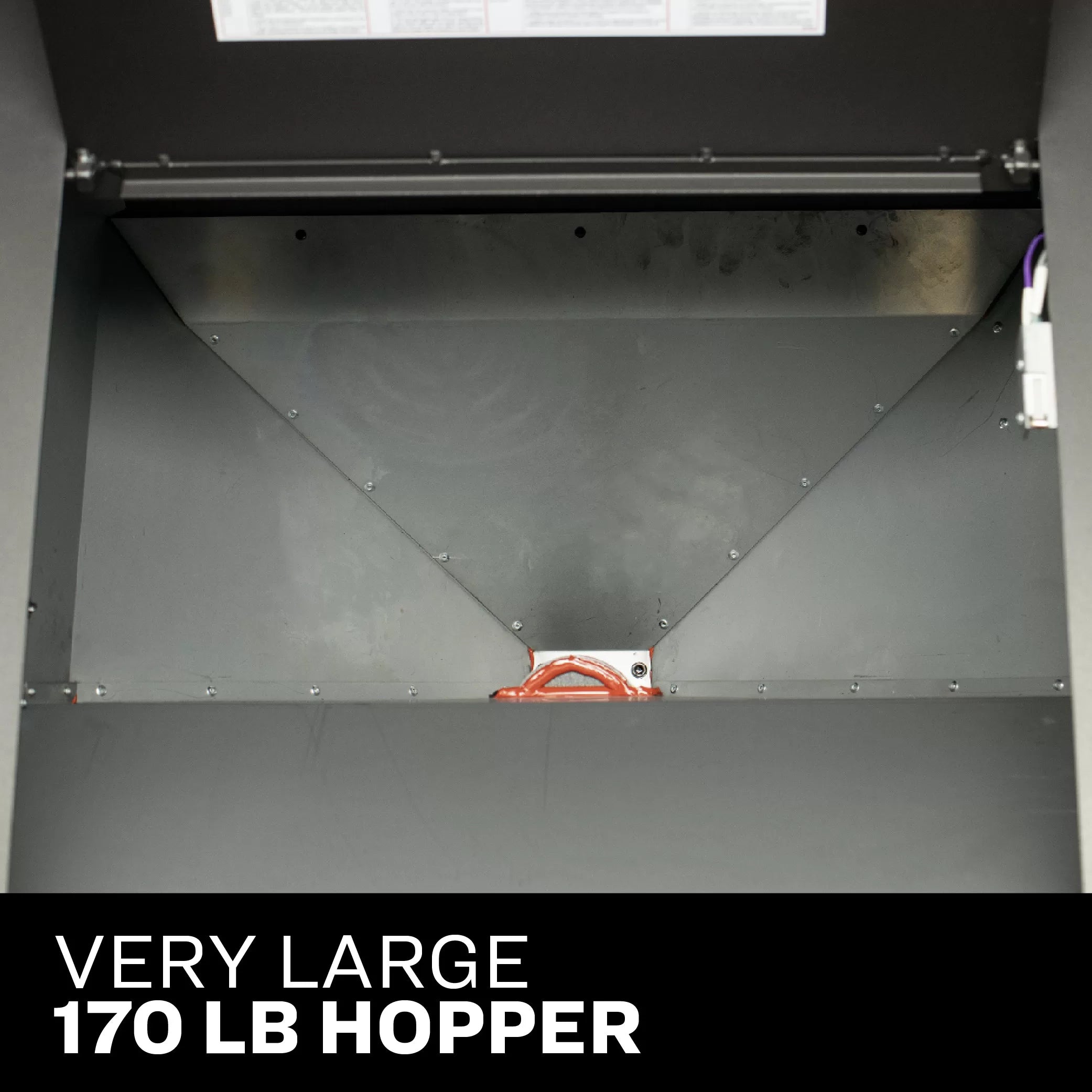

- Massive 170 lb. Hopper Capacity: The 20% larger pellet hopper provides up to 80 hours of continuous burn time on the lowest setting, dramatically reducing refill frequency and giving you reliable, hands-off heating through long winter nights and busy workweeks.
- Exclusive AURORA Burner Technology: The advanced AURORA diverse airflow burner system produces a beautiful, vibrant flame while delivering unmatched airflow and heat output, maximizing combustion efficiency and visual appeal.
- Smart Stove Wi-Fi Connectivity: Connect to your stove from anywhere using the US Stove Co. mobile app (iOS and Android) to control temperature settings, monitor performance, and adjust burn modes without leaving the couch.
- 76% Heating Efficiency: Independently tested to deliver 76% efficiency, qualifying for the 30% IRS 25C Residential Energy Tax Credit and dramatically reducing your annual heating costs compared to electric or propane systems.
- EPA 2020 Certified Clean Burn: Meets the 2020 EPA emission limits for wood heaters with an exceptionally low particulate emissions rate of 1.5 g/hr, making it one of the cleanest-burning solid-fuel heating options available.
- Easy Electronic Ignition: One-touch electronic ignition eliminates the hassle of matches, lighters, or starter gels, letting you start your stove quickly and safely every time.
- Upgraded Ceramic Glass Window: A large, high-temperature ceramic glass viewing window showcases the dancing flames while resisting thermal stress, providing both ambiance and durability.

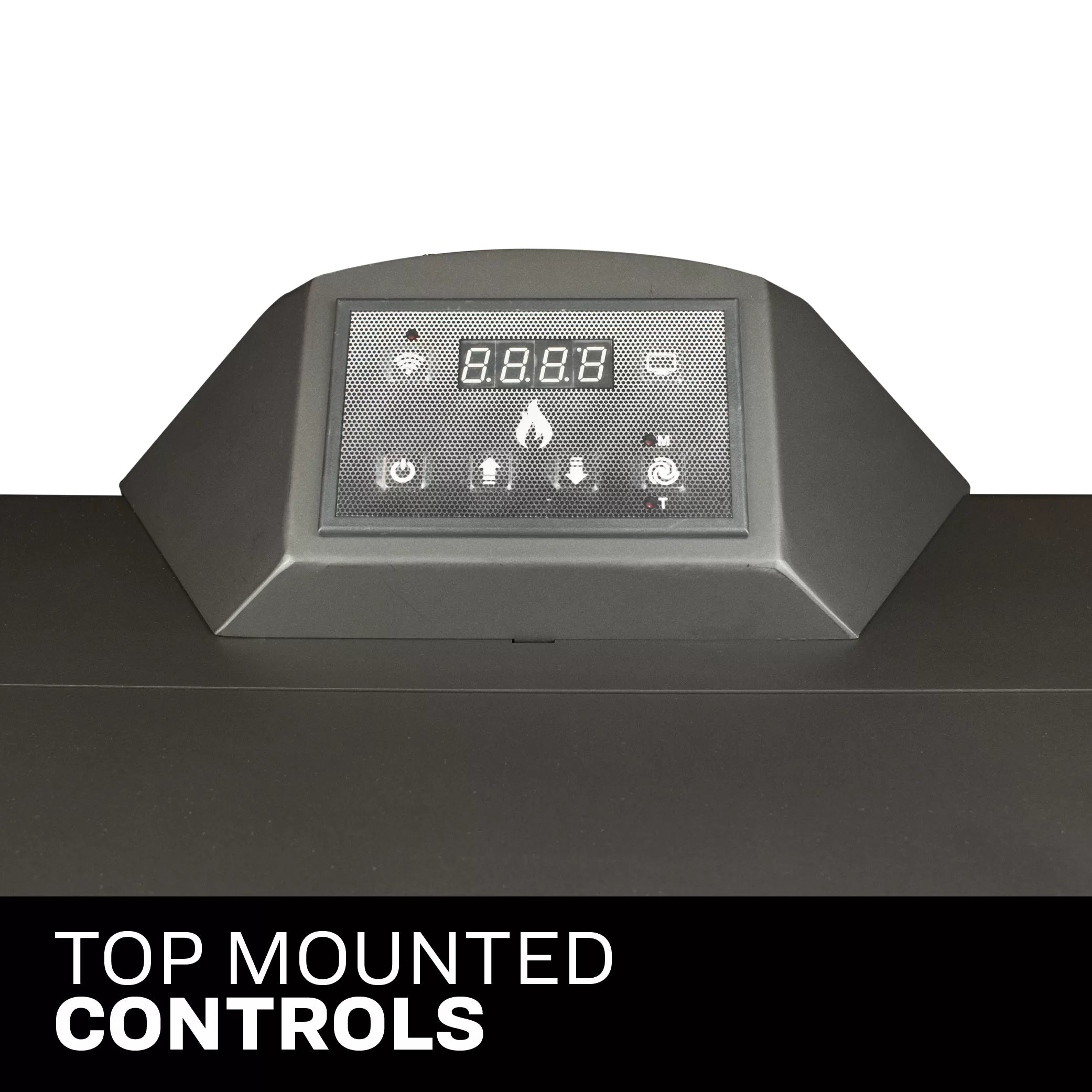

- Top-Mounted Digital Controls: Intuitive top-mounted control panel keeps adjustment buttons accessible and out of the heat zone, allowing easy operation without bending or reaching across the firebox.
- Mobile Home Approved: USA-approved for mobile home installation when paired with the optional 69FAK Fresh Air Kit, expanding installation flexibility for manufactured housing applications.
- Carbon-Neutral Green Heating: Wood pellet fuel is a renewable, carbon-neutral energy source made from compressed sawdust, offering one of the most environmentally responsible heating options on the market.
- Built-In Safety Listings: Safety tested and listed to ASTM E1509-2022 and CAN/ULC S627:2023 standards, giving you confidence in every aspect of the stove's design and operation.
King KP5522-W Pellet Stove Specs
| Model Number | KP5522-W |
| Brand | King (US Stove Company) |
| Stove Type | Freestanding Pellet Stove |
| Fuel Type | PFI Certified Premium Hardwood Pellets |
| Heating Capacity | Up to 3,000 sq. ft. |
| Maximum BTU Output | 33,000 BTUs |
| EPA Tested Heat Output Range | 13,640 – 32,591 BTU/hr |
| Efficiency Rating | 76% (qualifies for 30% IRS 25C Tax Credit) |
| Hopper Capacity | 170 lbs. |
| Maximum Burn Time | Up to 80 hours on lowest setting |
| Particulate Emissions Rate | 1.5 g/hr |
| EPA Certification | 2020 EPA Certified |
| Safety Listings | ASTM E1509-2022 / CAN/ULC S627:2023 |
| Ignition Type | Automatic Electronic Ignition |
| Control Type | Top-Mounted Digital Controls with Wi-Fi App |
| Wireless Connectivity | Wi-Fi / Bluetooth via US Stove Co. App (iOS & Android) |
| Viewing Window | Upgraded Ceramic Glass |
| Venting Type | 3" or 4" "PL" Pellet Vent (Negative Draft System) |
| Maximum Vertical Vent Height | 12 ft. (with 3" PL vent) |
| Electrical Requirements | 110–120V, 60 Hz, Grounded Outlet (Surge Protector Required) |
| Backup Power Recommendation | Minimum 1000W Pure Sine Wave Inverter |
| Mobile Home Approved | Yes (USA – requires optional 69FAK Fresh Air Kit) |
| Dimensions (W × D × H) | 27" × 32" × 41" |
| Weight | 264 lbs. |
| Shipping Method | LTL Freight on Pallet |
| Thermostat Compatibility | Wired Thermostats Only (High/Low T-Stat Mode) |
| Origin | Designed in South Pittsburgh, TN |
| Warranty | US Stove / King Wood & Pellet Stove Limited Warranty |
King KP5522-W Pellet Stove FAQ
What type of pellets should I use in the King KP5522-W?
US Stove recommends using only PFI (Pellet Fuels Institute) certified premium hardwood pellets. The stove is designed and tested specifically for wood pellets — burning corn, coffee pellets, or other alternative fuels is not permitted and will void the warranty.
Can the KP5522-W be installed in a mobile home?
Yes. The KP5522-W is USA mobile home approved when installed with the optional 69FAK Fresh Air Kit, which is required for mobile home installations. A fresh air kit is also recommended for newer, tightly sealed homes or any installation where makeup air is limited.

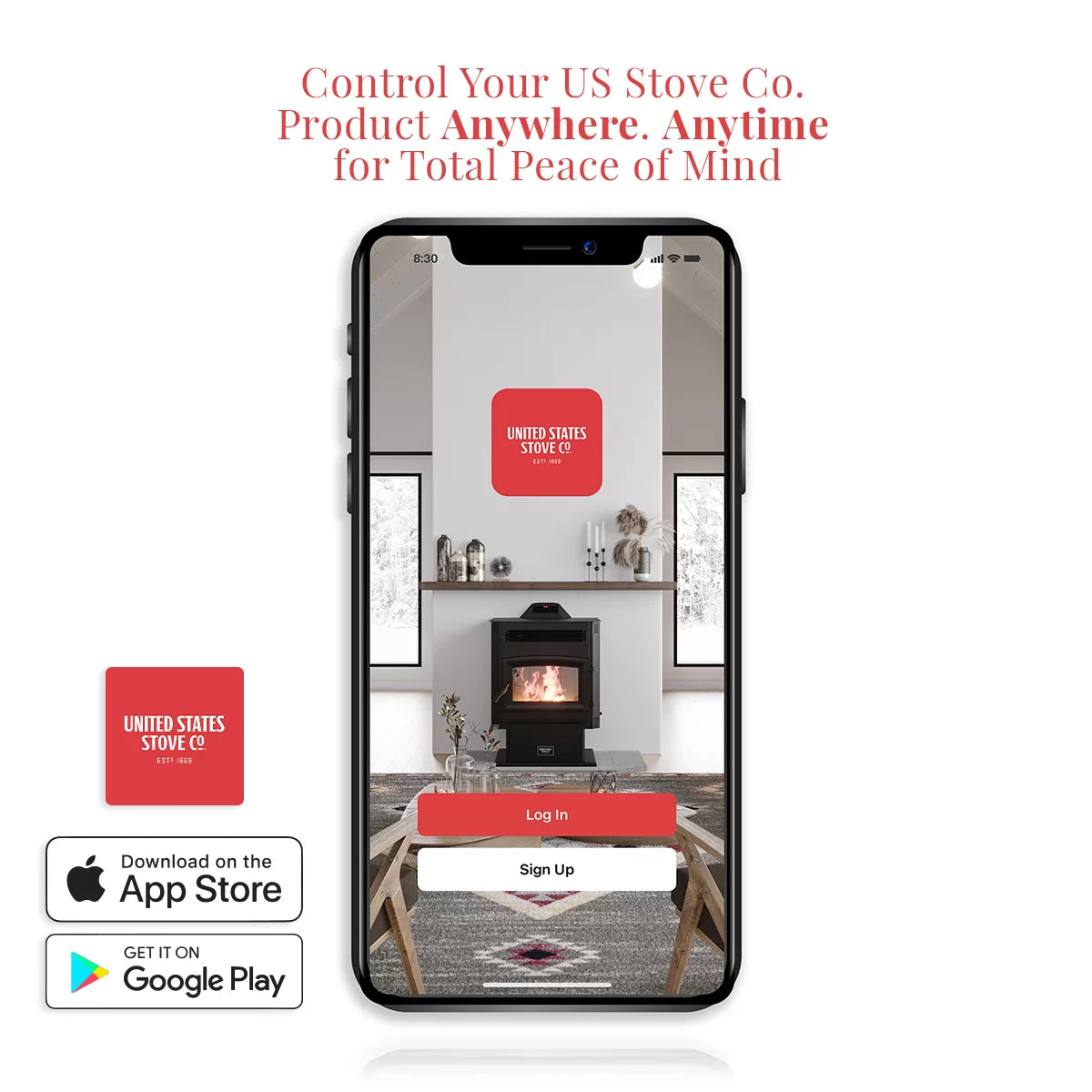

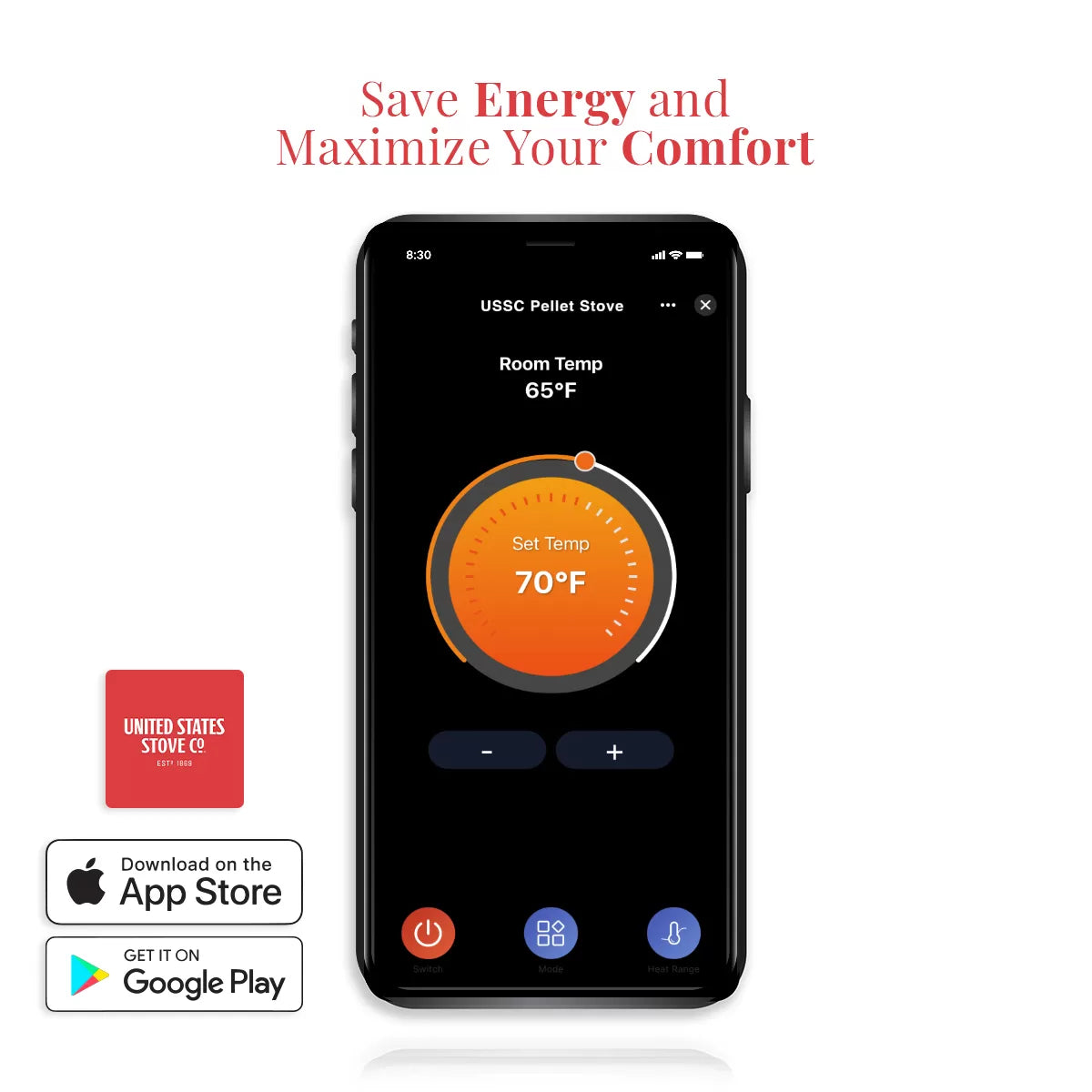

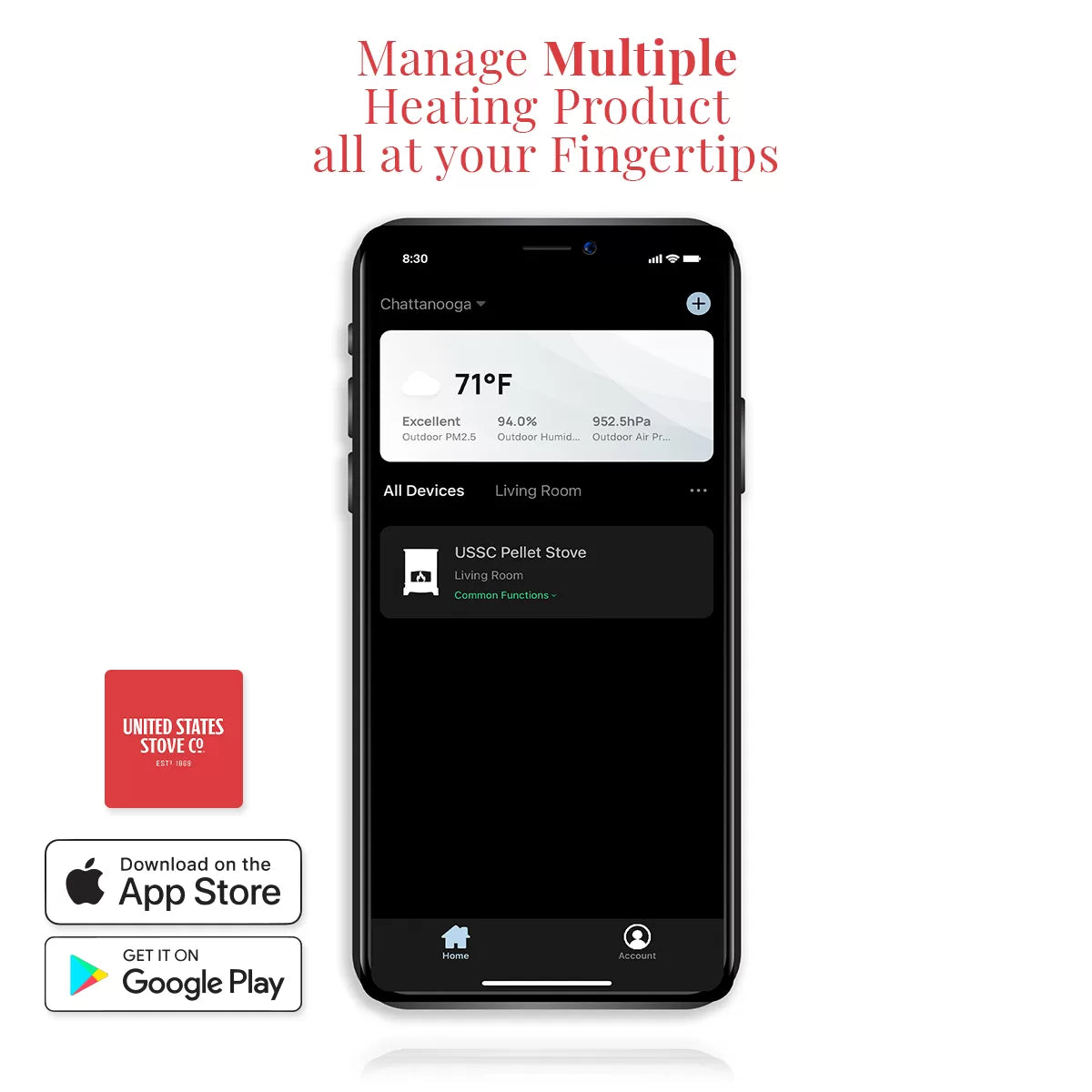

How does the Wi-Fi functionality work and what's the difference between the "W" model and the standard version?
The "W" designation indicates Wi-Fi capability, allowing you to control and monitor the stove using the US Stove Co. app on iOS or Android devices. The non-W model includes a wireless remote control that works with an infrared sensor on the stove instead of app-based control.

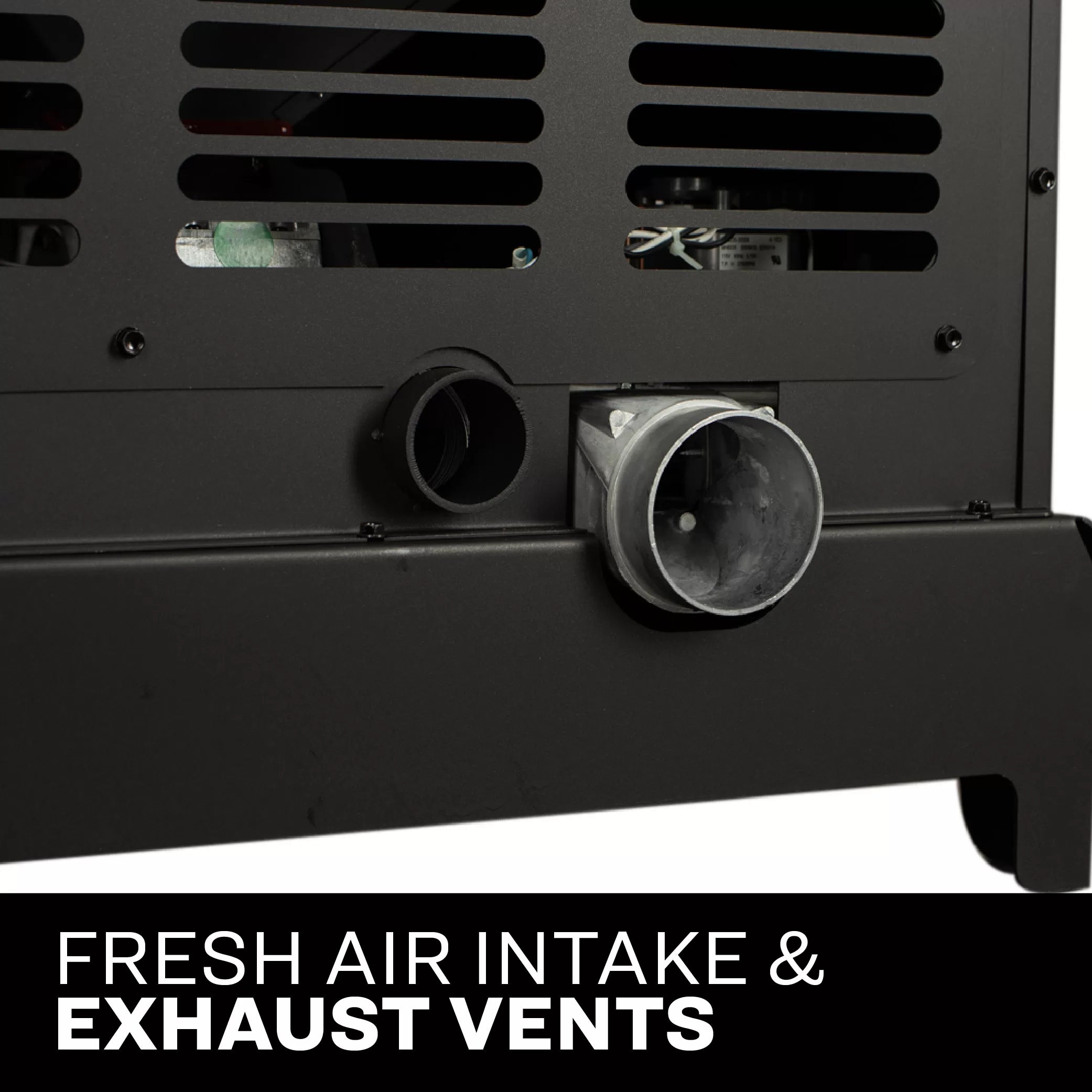

What venting is required for the KP5522-W and can it exhaust through the ceiling?
The stove uses a negative draft system requiring listed 3" or 4" "PL" pellet vent pipe. Yes, ceiling exhaust is supported — refer to the owner's manual for specific installation recommendations. Installation must include at least 3 feet of vertical pipe outside the home, with a maximum recommended vertical vent height of 12 feet for 3" PL vent.
Can I use a smart or wireless thermostat with this pellet stove?
No. The control board only accepts wired thermostats and is not compatible with wireless or smart thermostats. Additionally, the stove operates in High/Low T-Stat mode rather than On/Off — it will continue running at the lowest setting even when the set temperature is reached.
What kind of backup power do I need during an outage?
US Stove recommends a minimum 1000W pure sine wave inverter battery backup for short-term outages. If using a generator, a 1000W inverter generator is recommended to safely run the stove's electronic components and combustion blower.

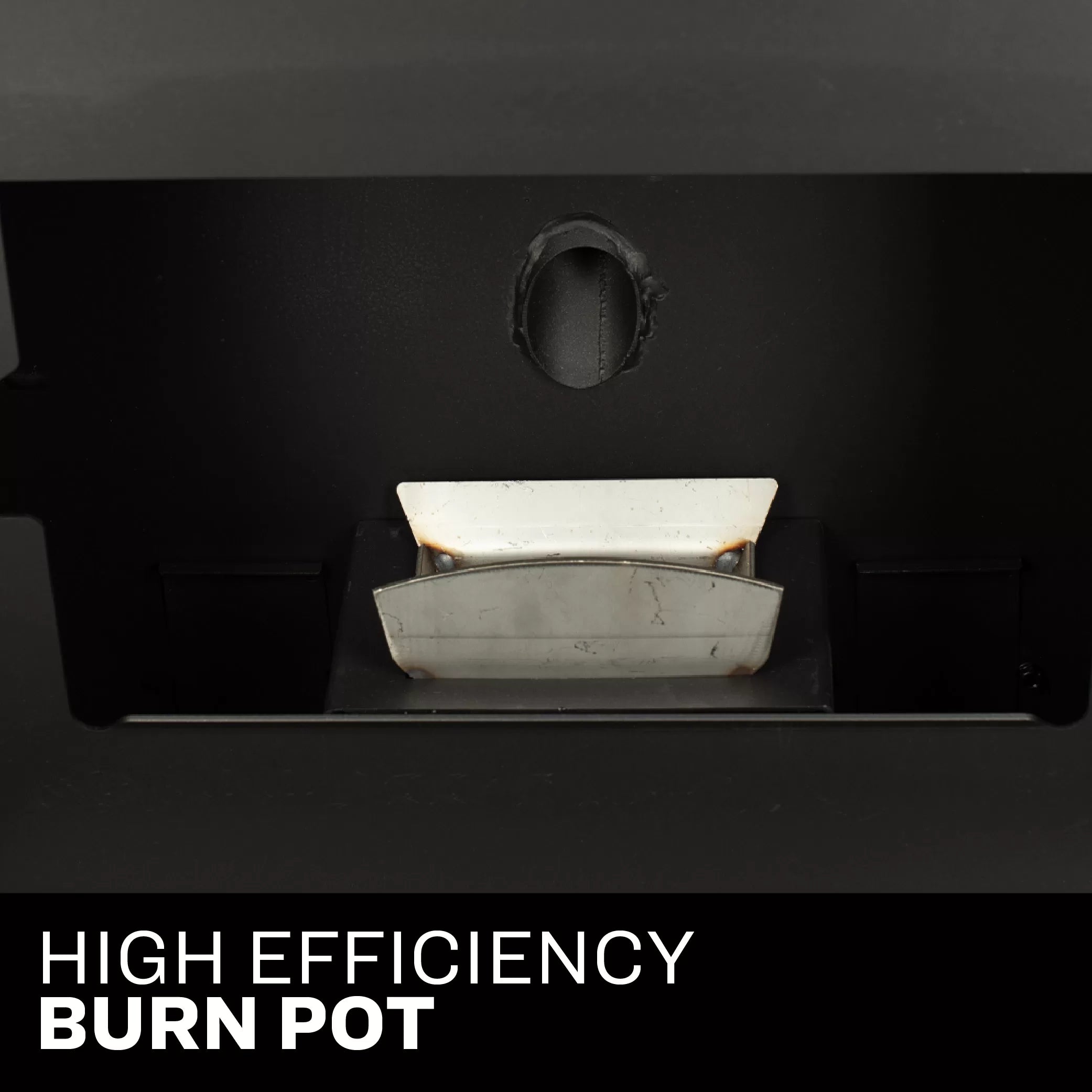

How often does the KP5522-W need to be cleaned and maintained?
The burn pot should be emptied and cleaned before each ignition, and inspected daily during continuous use. The chimney connector and venting should be inspected annually (or every ton of pellets burned) by a qualified technician to check for soot, fly ash, or creosote buildup.
Does the King KP5522-W qualify for the federal energy tax credit?
Yes. With 76% efficiency, the KP5522-W exceeds the 75% efficiency threshold required to qualify for the 30% IRS 25C Residential Energy Tax Credit. This credit can offset a significant portion of the purchase and installation cost — consult your tax professional for eligibility specifics.
