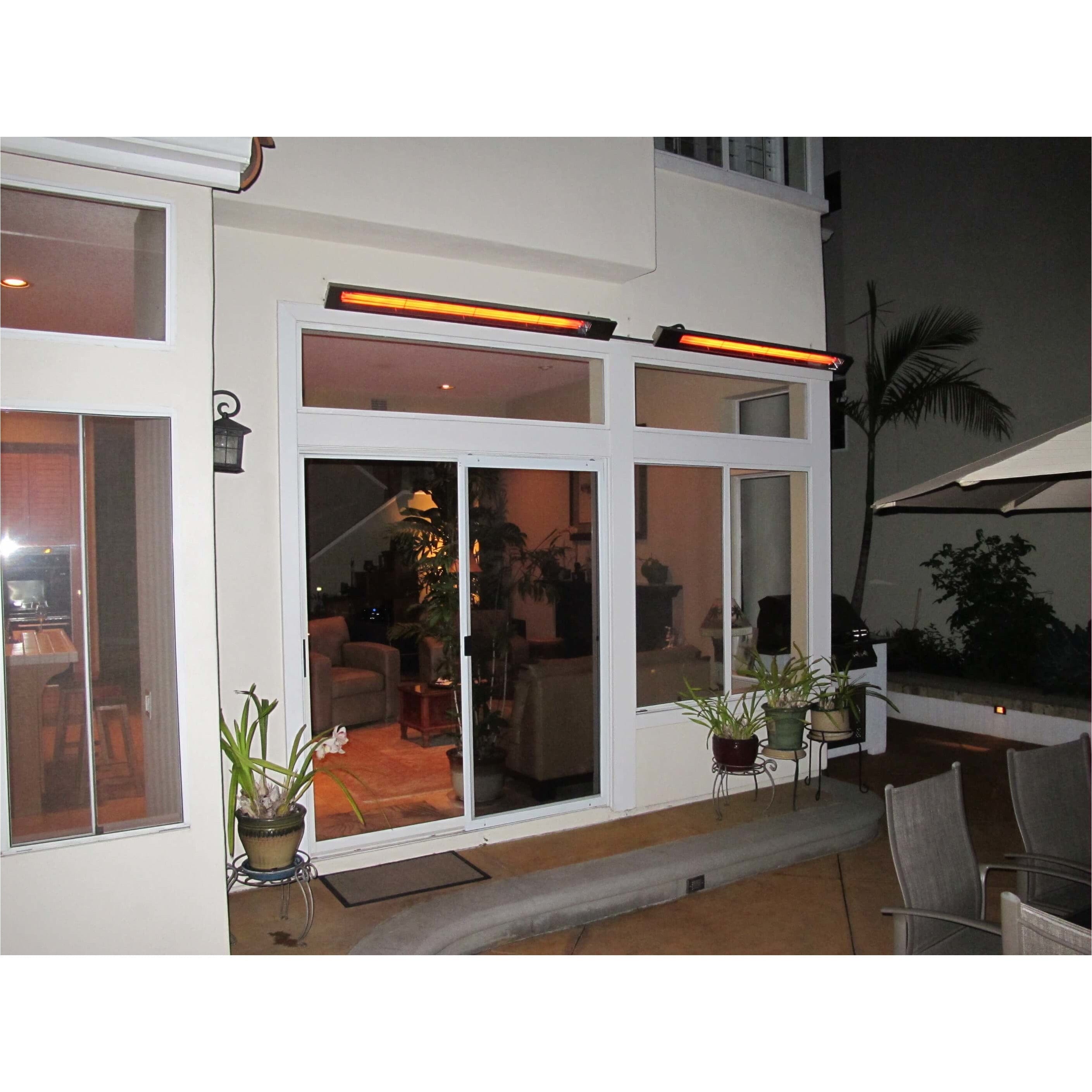

Patio Heating with Infratech Technology

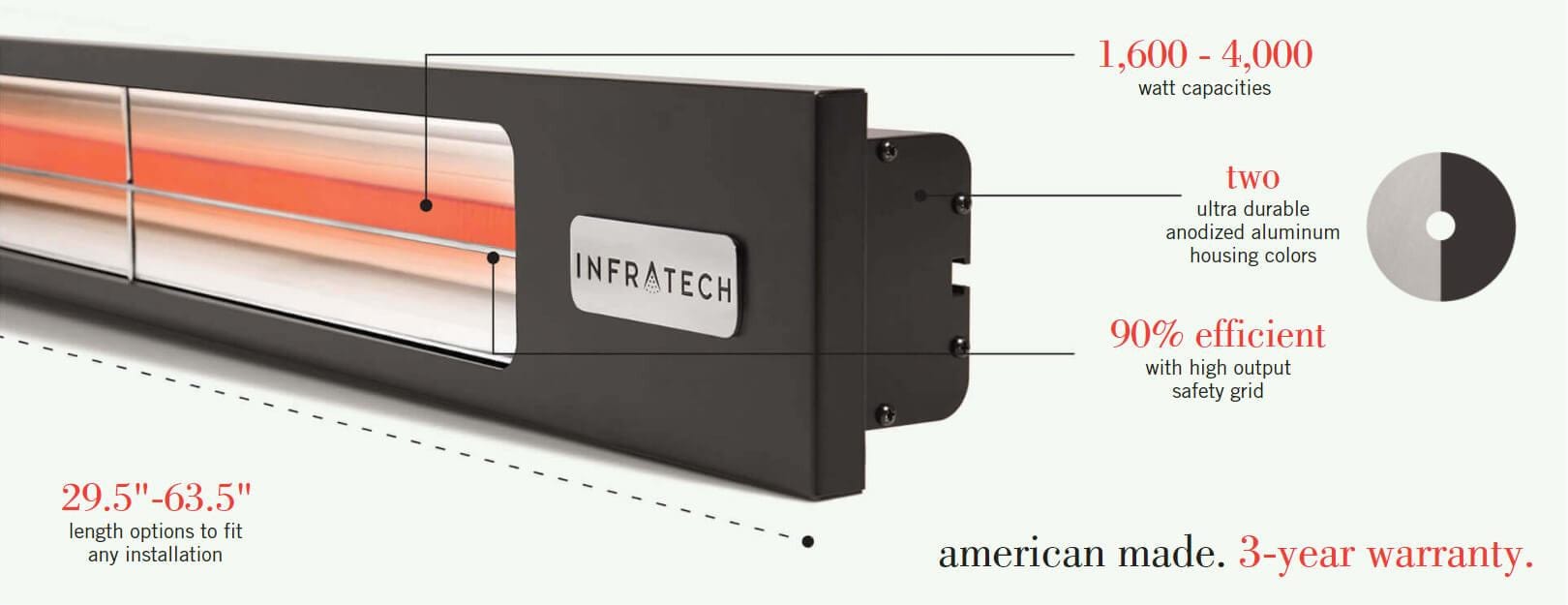

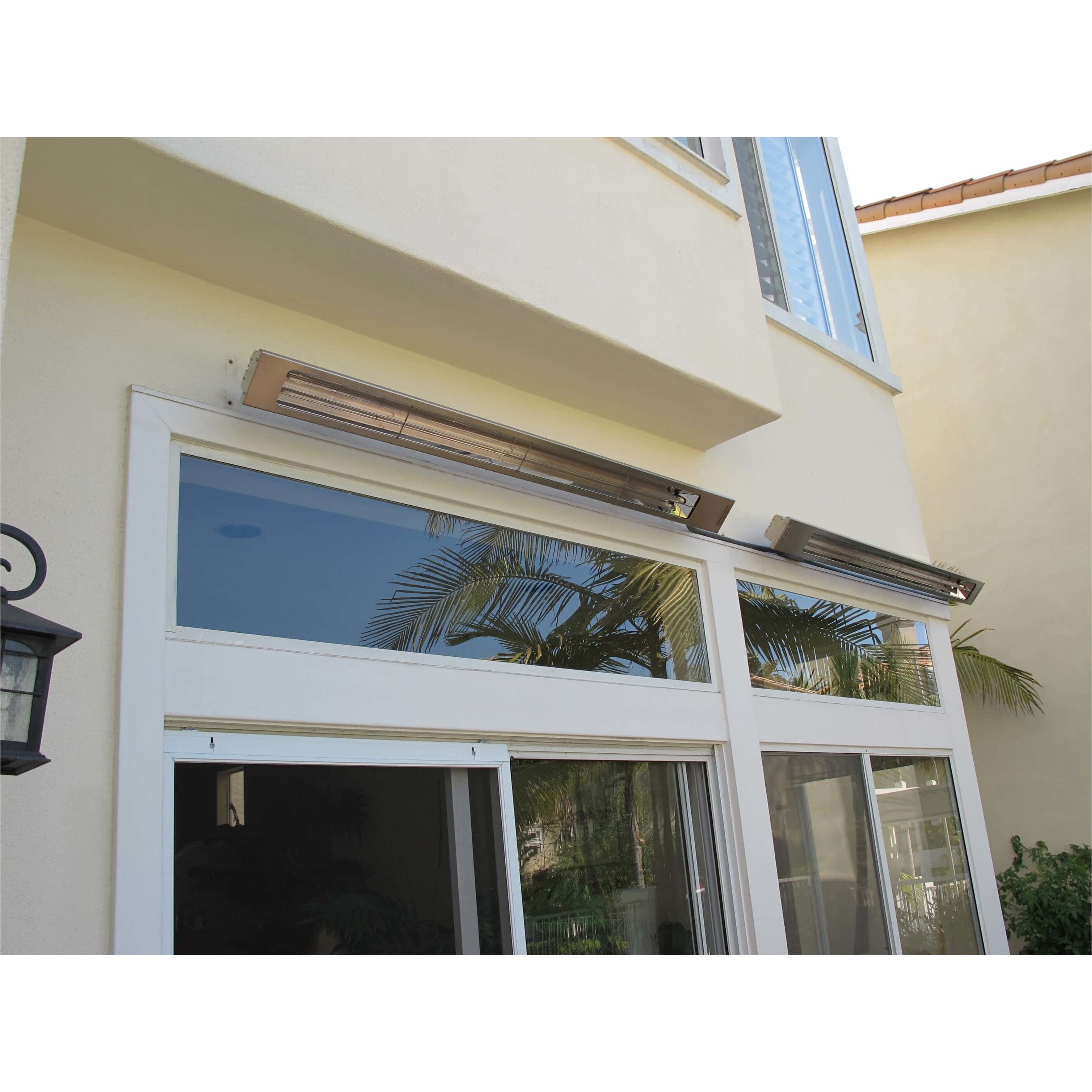

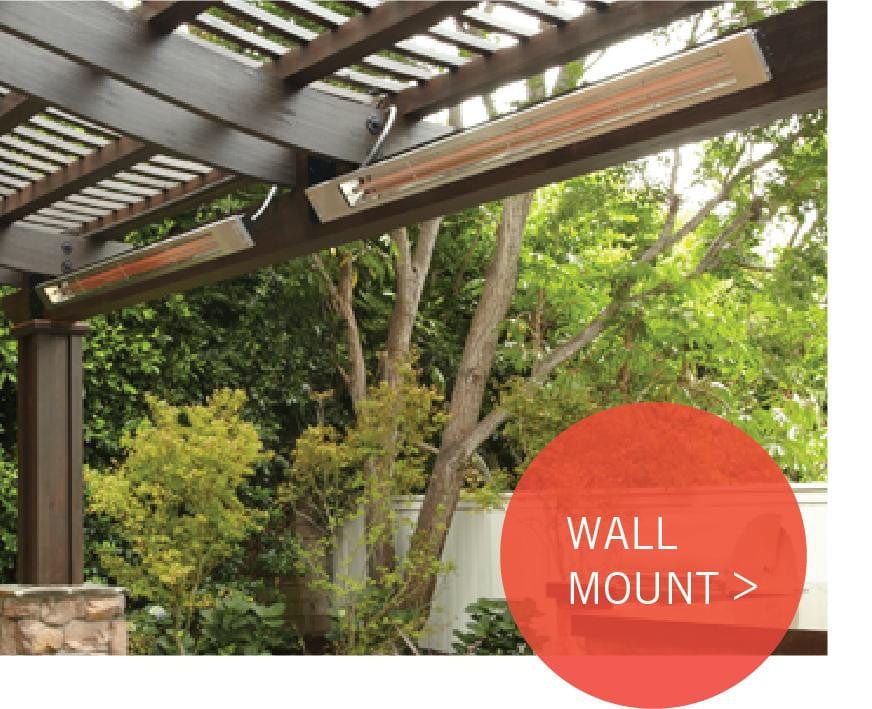

Sleek and streamlined, the Slimline Series single element heaters are an ideal choice for surface mount applications. Crisp, modern styling, brushed stainless steel faceplate with bronze anodized aluminum housing and narrow profiles virtually disappear in the surrounding decor.
Electric Heaters for Personal or Professional Use

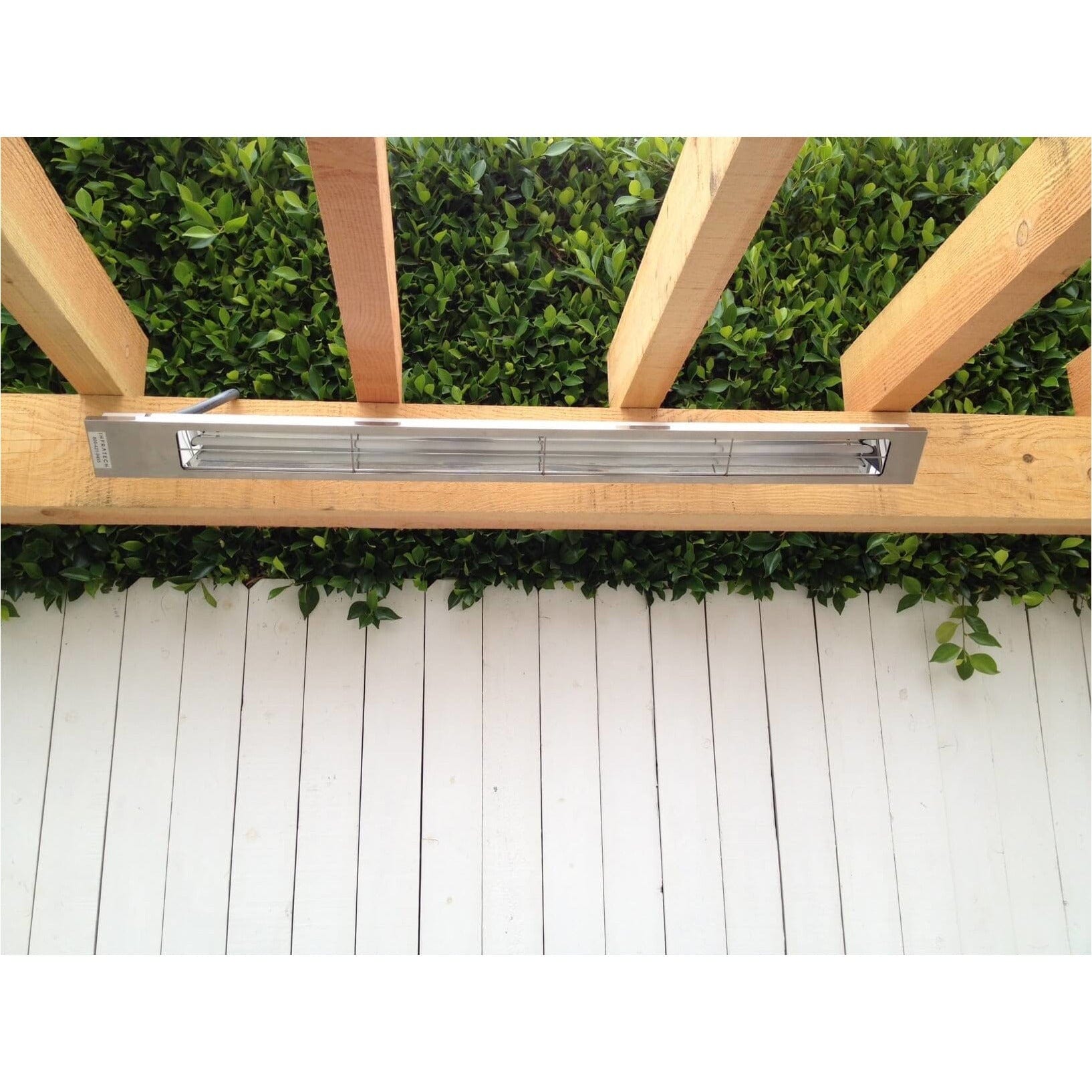

This high-powered heater features 4,000 watts of energy, with a slim silver housing that blends into most decors and styles. This large heater is perfect for recessed installation, premium outdoor heating applications, and spaces with 8' to 11' mounting heights.

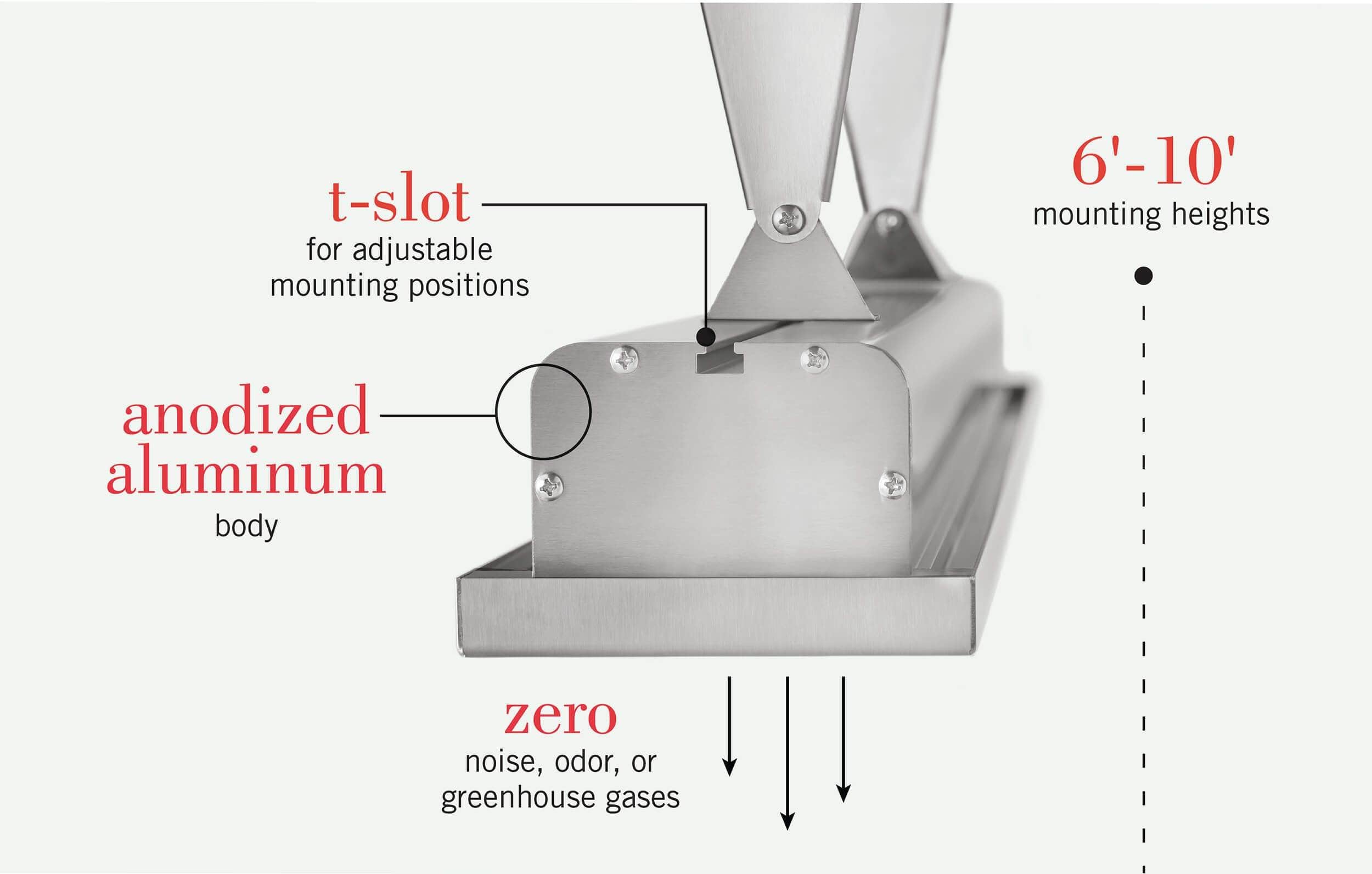

The Slimline design also includes a T-slot for flexible mounting options.
Quartz Element Heaters

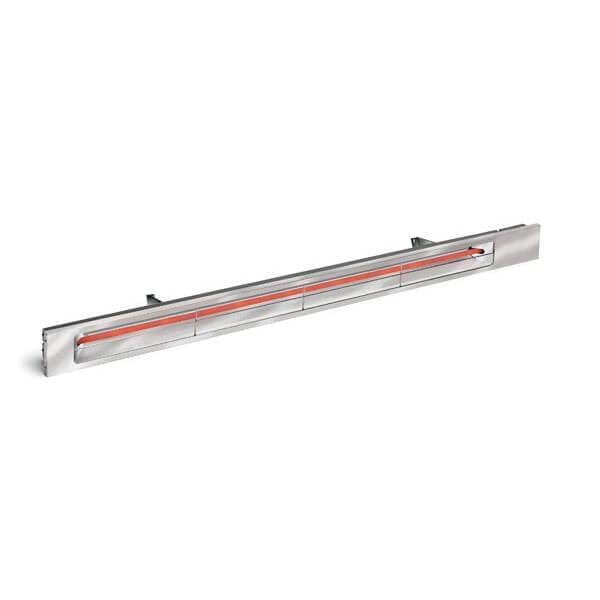

Model SL4024SV features:
- 4,000 Watts
- 16.7 amps
- 240 volts
- Available in 208 volt
- 63 1/2" Length with 4 3/4" Width
- Silver Anodized Aluminum Housing
- Stainless Steel Front Face Plate
- 6" Mounting Kit Included
- UL Listed for Indoor and Outdoor use
- Quartz Element with Approximately 5,000 hours of use
- Mounting Height: 8' to 11'

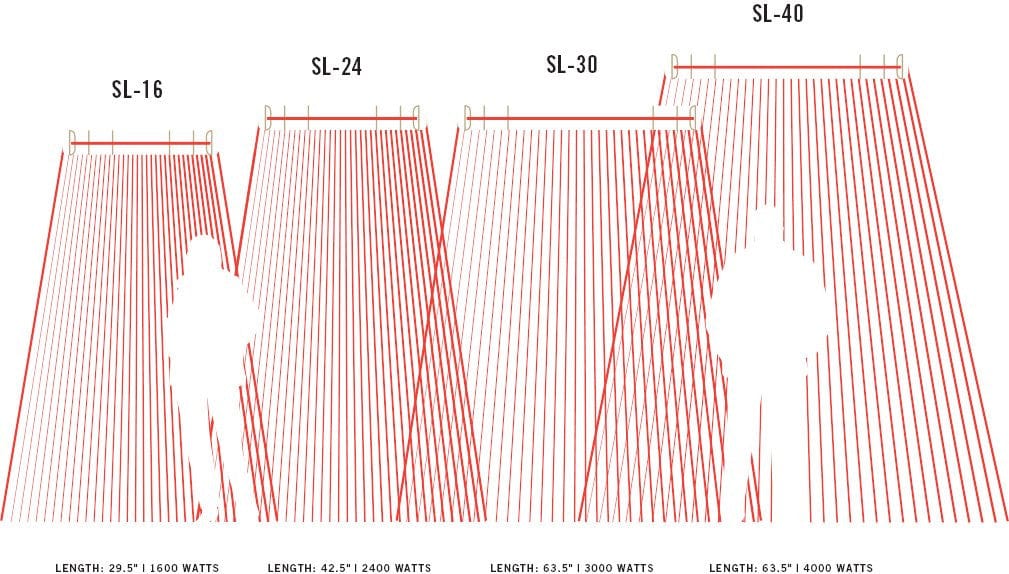

- Approximate 10' x 10' Heat Coverage

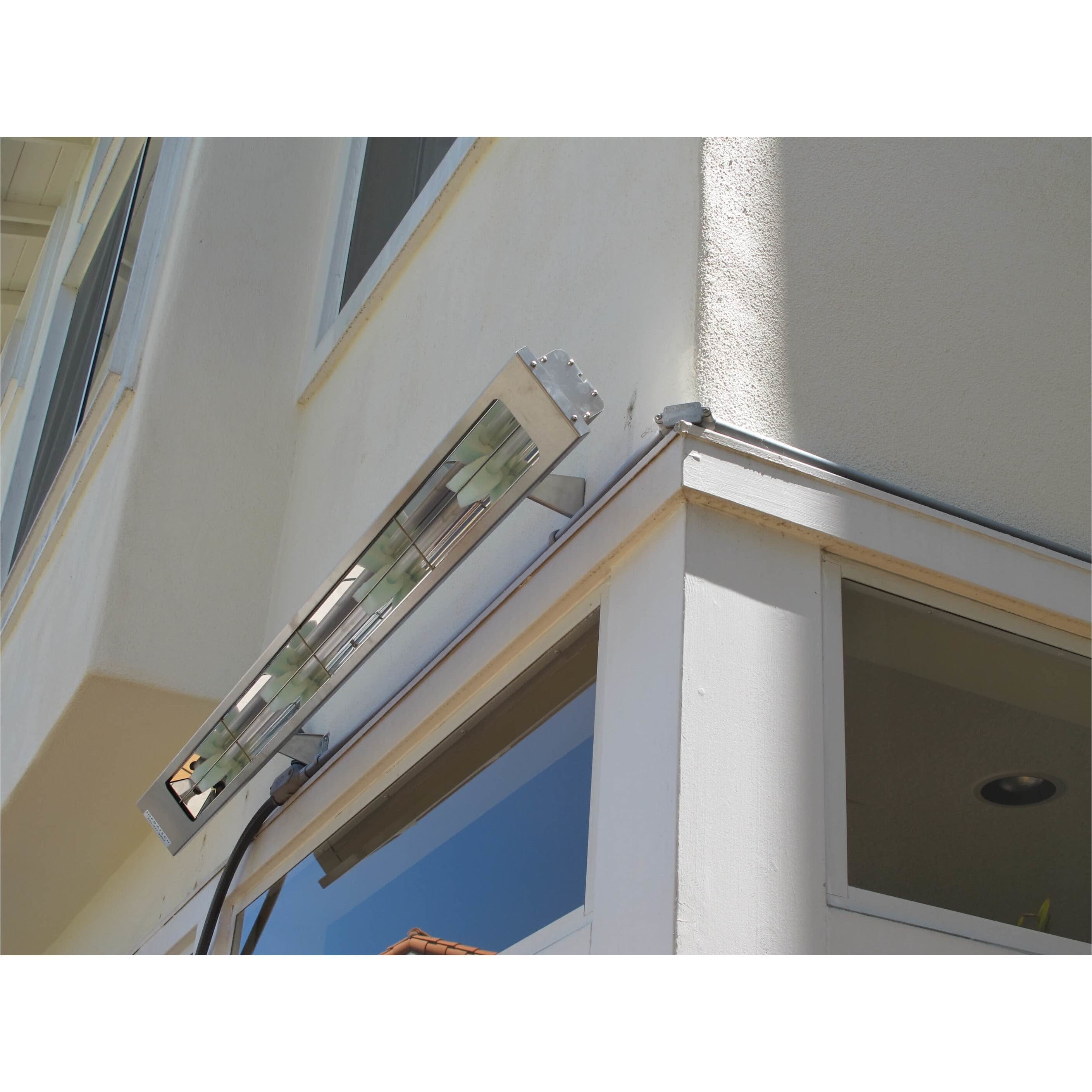

- 0 to 60° Mounting Angle
- Minimal Maintenance Cost
- 3 Year Warranty
- Made in the USA
Model SL3024SV features:
- 3,000 Watts
- 12.5 amps
- 240 volts
- Available in 208 volt
- 63 1/2" Length with 4 3/4" Width
- Silver Anodized Aluminum Housing
- Stainless Steel Front Face Plate
- 6" Mounting Kit Included
- UL Listed for Indoor and Outdoor use
- Quartz Element with Approximately 5,000 hours of use
- Mounting Height: 7' to 9'
- Approximate 8' x 8' Heat Coverage
- 0 to 60° Mounting Angle
- Minimal Maintenance Cost
- 3 Year Warranty
- Made in the USA
This product is made to order with a 2-4 week lead time.
Slimline SL4024SV Specifications:
Product SKU | SL4024SV |
Country of Manufacture | USA |
Watts | 4000 W |
Amps | 16.7 Amps |
Length | 63.5" |
Mounting Height | 8 - 10 ft. |
Item Weight | 17 lbs. |
Fuel Type | Electric |
Heat Output - BTU's | 13,652 |
Avg Heat Area | 100 Sq. Ft. |

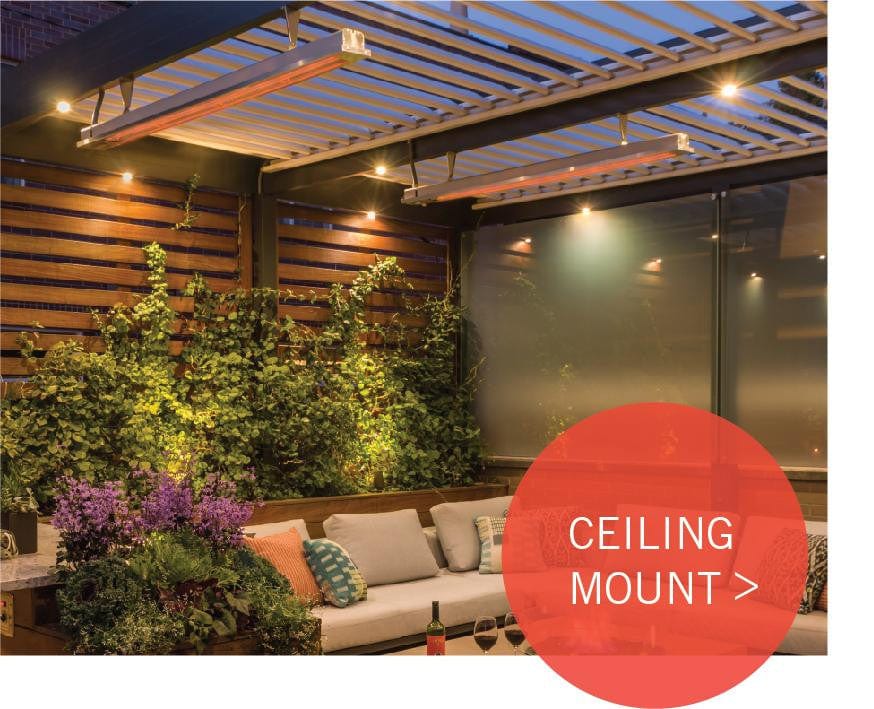

Style | Wall, Ceiling, Flush or Pole Mount |
Warranty | 3 years |
Volts | 240 |
Ignition | Electronic Ignition |
Slimline SL3024SV Specifications:
Product SKU | SL3024SV |
Country of Manufacture | USA |
Watts | 3000 W |
Amps | 12.5 Amps |
Length | 63.50 inches |
Mounting Height | 7 - 9 ft. |
Item Weight | 17 lbs. |
Fuel Type | Electric |
Heat Output - BTU's | 10,239 |
Avg Heat Area | 64 Sq. Ft. |
Style | Wall, Ceiling, Flush, or Pole Mount |
Warranty | 3 years |
Volts | 240 |
Ignition | Electronic Ignition |
Infratech Slimline Single Element Catalog:
Infratech Slimline 63.5" Single Element Technical Drawing:
Click Here For Technical Drawing
Infratech Slimline 63.5" Single Element Warranty:
Infratech Slimline 63.5" Single Element Manual:
