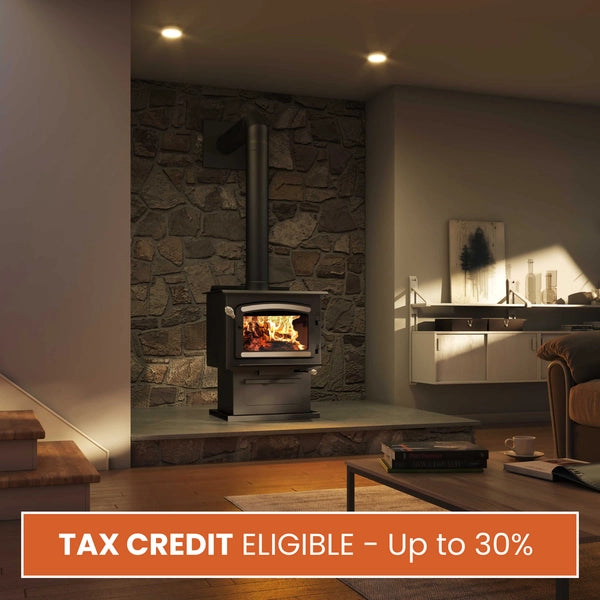

Drolet Heritage Wood Stove With Blower DB03190

by Drolet

$1,599.00

Notify me when back in stock

The Heritage: The Perfect Stove For Large Spaces

If you're looking for a top-quality wood stove with blower, the Heritage Wood Stove is the perfect choice. It features a pedestal with ash drawer, blower, air deflector, ceramic glass, and ash lip, making it one of the most durable and efficient wood stoves on the market. The Heritage Wood Stove also has an air damper that allows you to control the amount of airflow, so you can customize your heating experience. Whether you're looking for a primary heat source or a supplemental heater, the Heritage Wood Stove is the perfect option.

Included: pedestal with ash drawer, blower, air deflector, ceramic glass, ash lip, air damper

Heritage Wood Stove Features

  • Up to 8 hours burn time
  • 20" logs
  • 2.4 ft³ firebox volume
  • Heavy duty 5/16" steel top
  • EPA certified
  • Proudly made in Canada
  • Limited lifetime warranty
  • Certified for mobile home and alcove installation
  • Weight : 350 lbs

Options: Thermodisc, firescreen, fresh air intake kit

  • Firebox lined with refractory bricks for better heat distribution
  • Optimum efficiency : 77 %
  • Average particulate emissions rate : 1.54 g/h
  • High-efficiency certified appliance : CSA B415.1-10
  • Steel thickness – top : 5/16"
  • Approved for a mobile home installation
  • Recommended heating area-ft² : 500 - 2,100
  • Blower included

Drolet Heritage Specifications

Fuel type Dry cordwood (16" recommended)
Recommended heating area(9) 500 - 2,100 ft²
Overall firebox volume 2.4 ft³
EPA loading volume 2.02 ft³
Maximum burn time(9) 8 h
Maximum heat output-dry cordwood(4) 75,000 BTU/h (22 kW)
Minimum overall heat output rate(4) (5) 14,800 BTU/h (4.34 kW)
Maximum overall heat output rate(4) (5) 28,600 BTU/h (8.38 kW)
Average overall efficiency-dry cordwood (HHV)(5) (6) 69%
Average overall efficiency-dry cordwood (LHV)(5) (7) 74%
Optimum efficiency(1) (2) 77%
Optimum heat transfer efficiency(8) 75%
Average particulate emission rate(3) 1.54 g/h
Average CO(10) 89.4 g/h
Size Large
Maximum log length 20"
Shipping weight 367 lb (166 kg)
Overall dimension (Width) 26"
Overall dimension (Height) 32 3/4"
Overall dimension (Depth) 32"
Warranty Limited lifetime
Alcove installation approved Yes
Mobile home approved Yes, with fresh air intake
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM) 100 CFM included
Combustion technology Non-catalytic
Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Distance-center of the flue outlet to back unit 11 1/2"
Distance-center of the flue outlet to side unit 13"
Recommended chimney diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height 12'
Door type Single, glass with cast iron frame
Door opening size (Width) 17 1/2"
Door opening size (Height) 9"
Glass type Ceramic glass
Glass surface - W x H 16" x 9 1/4"
Steel thickness-body 3/16"
Steel thickness-top 5/16"
Firebox size (Width) 21"
Firebox size (Height) 11 3/4"
Firebox size (Depth) 16 3/4"
Log positioning Loading over width
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482, UL 737
Clearances to combustibles*
Canada
United-States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Side wall

Clearance to combustibles


Single wall pipe Double wall pipe
Clearance - Side wall 22" 22"
Clearance - Corner 12" 12"
Clearance - Back wall 11" 6"
Clearance - Base of the unit to ceiling** 84" 84"



Heritage stove install & owner's manual

American Fyre Design Calais Catalog

Stove dimensions

American Fyre Design Calais Catalog

Wood stove manual | Safety notifications & general information

American Fyre Design Calais Catalog
