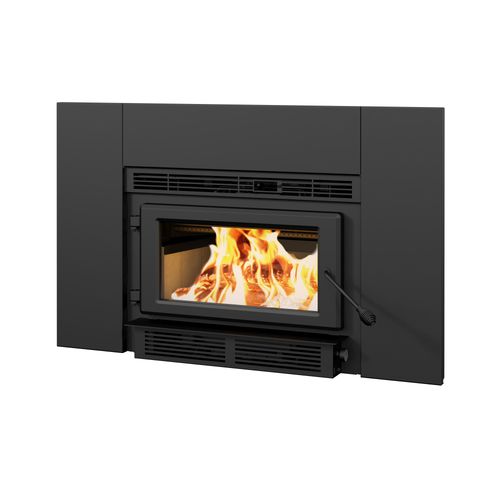

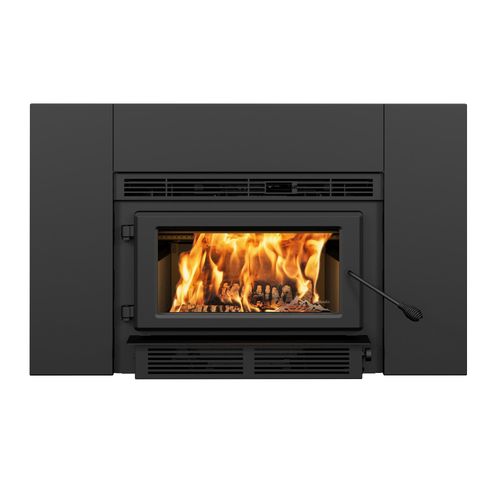

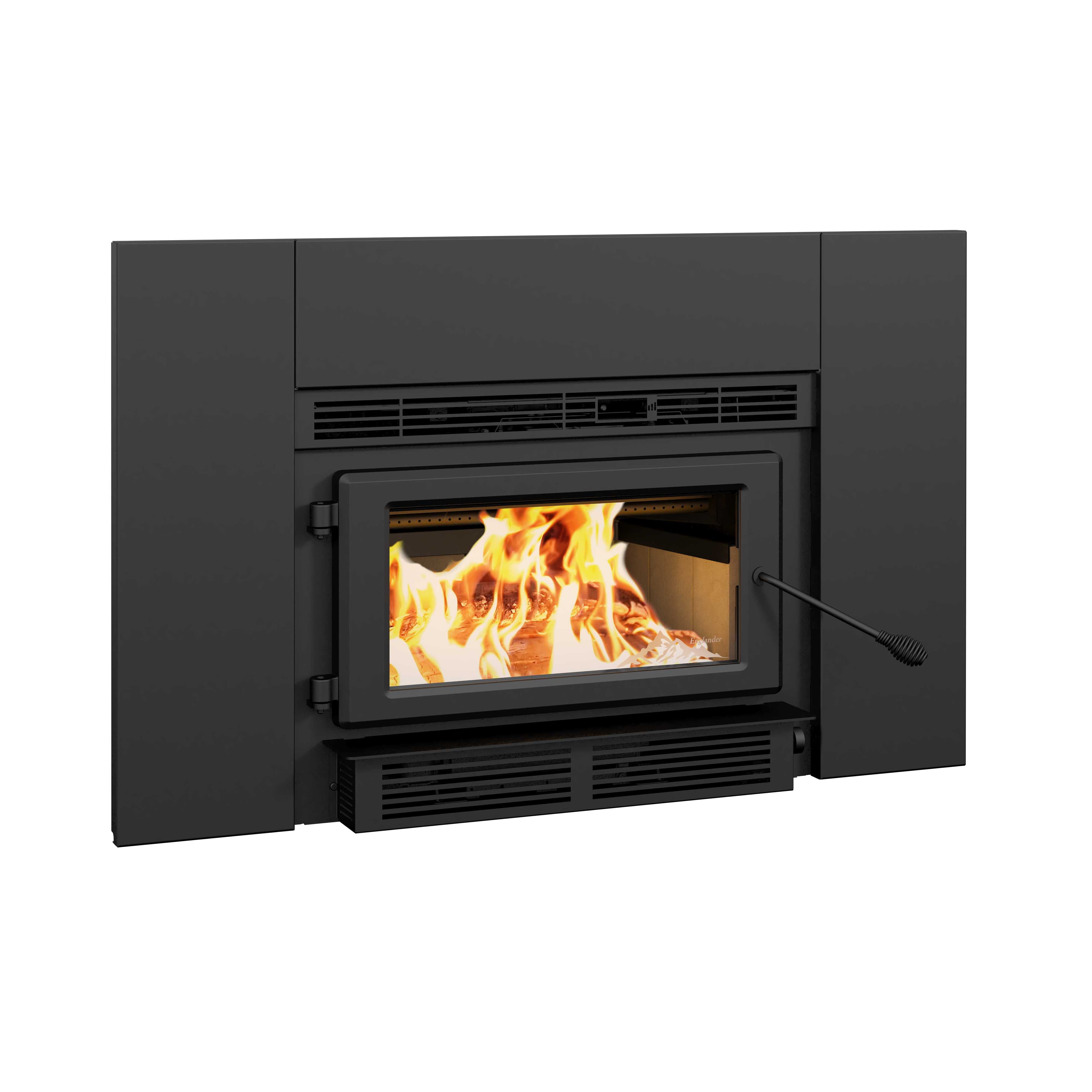

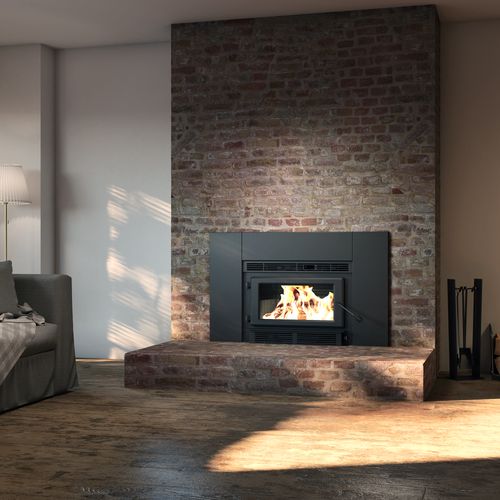

Englander Blue Ridge 150-I Compact Wood Burning Fireplace Insert with Blower ESW0006
$1,559.00

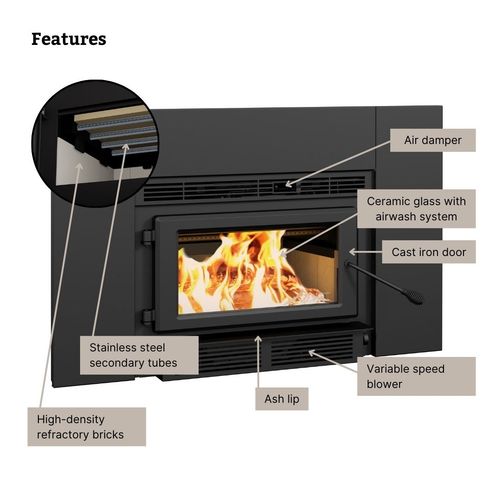

Englander Blue Ridge 150-I Wood Insert Features
- EPA 2020 Certified High Efficiency: Achieves impressive 75% average overall efficiency (HHV) and up to 82% optimum efficiency, meeting strict EPA 2020 standards with low particulate emissions of just 1.5 g/h for cleaner burning and reduced environmental impact.
- Extended 7-Hour Burn Time: Features a 1.1 cubic foot high-efficiency firebox with deep combustion chamber that allows ash to accumulate at the bottom, reducing cleaning frequency while delivering extended burn times of up to 7 hours on a single load of cordwood.
- Panoramic Glass Viewing Area: Large ceramic glass viewing window (17 3/8" x 8 1/8") provides stunning panoramic views of the flames, enhanced by an advanced glass airwash system that keeps the glass cleaner for unobstructed fire enjoyment.
- Powerful Heating Capacity: Heats spaces from 250 to 1,200 square feet with maximum heat output of 45,000 BTU/h, making it ideal for medium to large rooms while maintaining energy-efficient operation with non-catalytic combustion technology.
- Complete Installation Package: Includes everything needed for professional installation including a 26" x 42" lightweight steel faceplate with hook-on mounting system, air intake damper, and premium 90 CFM thermodisc-controlled blower for enhanced heat distribution.
- Durable Cast Iron Construction: Features a robust cast iron door with ceramic glass, 3/16" thick steel body and top reinforced with stainless steel heat shield, and high-density refractory brick lining for superior heat retention and long-lasting durability.
- Advanced Secondary Air System: Incorporates a stainless steel secondary air system that promotes complete combustion, maximizing heat output while minimizing emissions for cleaner, more efficient burning throughout the entire burn cycle.
- Compact Design for Easy Installation: Tapered top and sides allow for easy installation in smaller hearths, requiring only a 25" wide x 19" high x 15 1/2" deep fireplace opening while providing substantial heating power in a space-saving design.

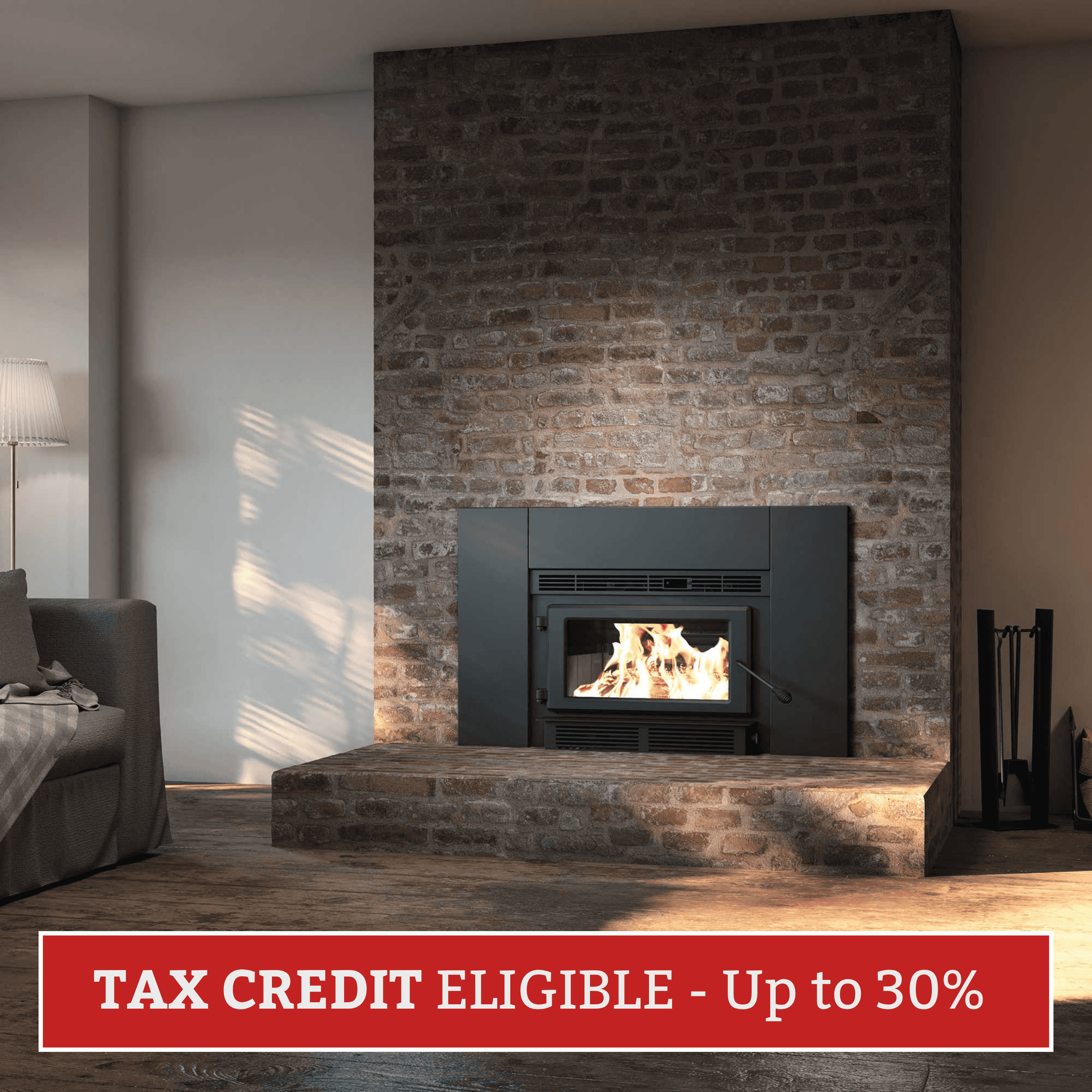

- Federal Tax Credit Eligible: Qualifies for US federal tax credits as a high-efficiency certified appliance, helping offset installation costs while providing long-term energy savings and reduced heating bills.
- Made in North America: Proudly manufactured in the USA and Canada to rigorous quality standards, backed by a comprehensive 5-year limited warranty and certified to meet both Canadian (CSA B415.1-10, ULC S628) and US safety standards (EPA, UL 1482, UL 737).
Englander Blue Ridge 150-I Wood Insert Specs
| Model Number | ESW0006 |
| Fuel Type | Dry Cordwood |
| Heating Area | 250 - 1,200 sq ft |
| Overall Firebox Volume | 1.1 cubic feet |
| EPA Loading Volume | 1.03 cubic feet |
| Maximum Burn Time | 7 hours |
| Maximum Heat Output | 45,000 BTU/h |
| Minimum Heat Output Rate | 8,471 BTU/h (2.48 kW) |
| Maximum Heat Output Rate | 31,700 BTU/h (9.29 kW) |
| Average Overall Efficiency (HHV) | 75% |
| Average Overall Efficiency (LHV) | 80% |
| Optimum Efficiency | 82% |
| Optimum Heat Transfer Efficiency | 78% |
| Average Particulate Emission Rate | 1.5 g/h |
| Average CO Emissions | 34 g/h |
| Combustion Technology | Non-catalytic with stainless steel secondary air system |
| Overall Dimensions (W x H x D) | 27 7/8" x 20 1/8" x 21 7/8" |
| Firebox Dimensions (W x H x D) | 16 3/8" x 8 3/4" x 12 3/8" |
| Maximum Log Length | 17" (16" recommended) |
| Door Type | Single cast iron frame with ceramic glass |
| Door Opening Size | 18 1/4" W x 7 7/8" H |
| Glass Surface Area | 17 3/8" x 8 1/8" |
| Steel Body Thickness | 3/16" |
| Steel Top Thickness | 3/16" with stainless steel heat shield |

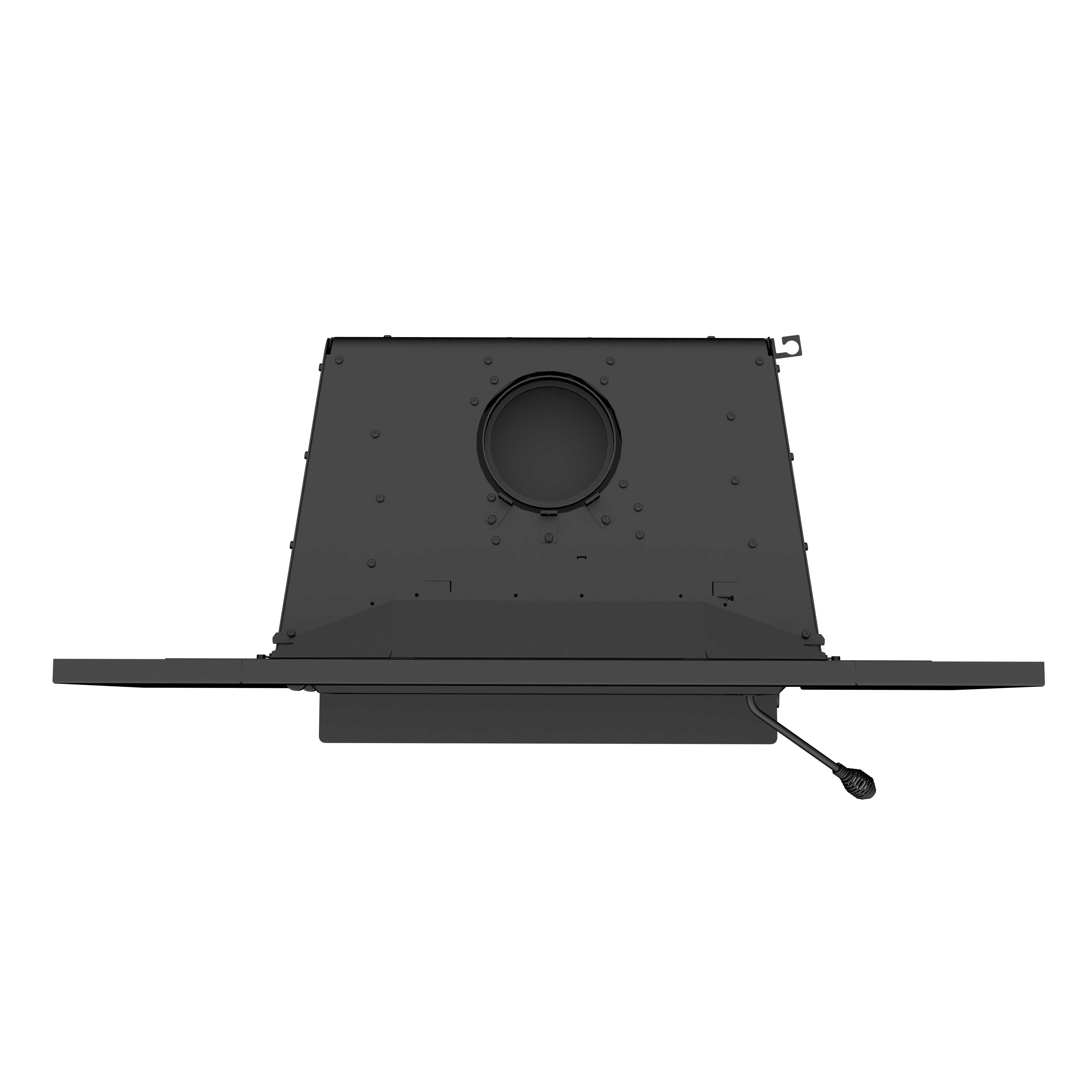

| Flue Outlet Diameter | 6" |
| Recommended Chimney Diameter | 6" |
| Minimum Chimney Height | 12" |
| Chimney Type Required | ULC-S635, CAN/ULC-S640, UL 1777 |
| Minimum Fireplace Opening (W x H x D) | 25" x 19" x 15 1/2" |
| Minimum Fireplace Opening at Back | 21 1/2" W x 17 1/4" H |
| Blower Included | 90 CFM with thermodisc control |
| Faceplate Included | 26" x 42" lightweight steel with hook mounting |
| Firebox Lining | High-density refractory bricks |
| Baffle Type | Vermiculite |
| Mobile Home Approved | No |
| Clearance to Combustible Side Wall | 16" |
| Clearance to Combustible Side Mantle | 1" |
| Clearance to Combustible Top Mantle | 1" |
| Floor Protection Required (from door) | 16" (Canada) / 18" (USA) |
| Certifications | EPA 2020, CSA B415.1-10, ULC S628, UL 1482, UL 737 |
| Warranty | Limited 5 Years |
| Shipping Weight | 295 lb (134 kg) |
| Country of Origin | USA and Canada |
Englander Blue Ridge 150-I Wood Insert FAQ

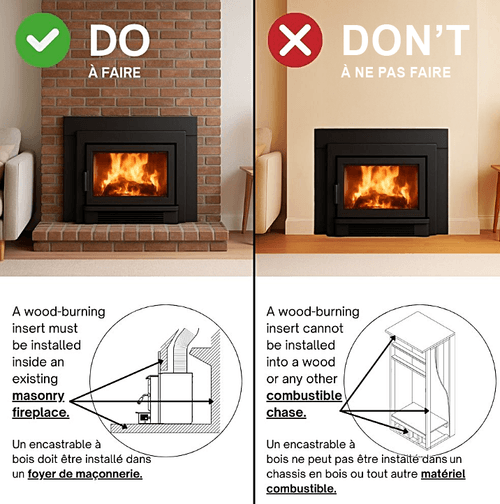

What type of fireplace is required for the Blue Ridge 150-I insert?
The Blue Ridge 150-I must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure. Your fireplace opening must be at least 25" wide, 19" high, and 15 1/2" deep. The fireplace opening at the back needs to be at least 21 1/2" wide and 17 1/4" high. This insert is not approved for mobile home installation.
How long will the Blue Ridge 150-I burn on a single load of wood?
The Blue Ridge 150-I provides up to 7 hours of burn time on a single load of dry cordwood. The deep combustion chamber design allows ash to accumulate at the bottom, which helps maintain longer burn times and reduces the frequency of cleaning. Actual burn times will vary depending on wood quality, moisture content, and heat output settings.
Does the Blue Ridge 150-I qualify for federal tax credits?
Yes, the Blue Ridge 150-I qualifies for US federal tax credits as a high-efficiency certified appliance. It meets EPA 2020 standards with 75% average overall efficiency and low emissions of just 1.5 g/h particulate matter. Consult with your tax professional for current tax credit amounts and eligibility requirements.
What is included with the Blue Ridge 150-I purchase?
The insert comes complete with a 26" x 42" lightweight steel faceplate featuring a convenient hook-on mounting system, an air intake damper for combustion control, and a premium 90 CFM blower with thermodisc control for automatic heat distribution. All necessary components for professional installation are included in the package.
How large of an area can the Blue Ridge 150-I heat effectively?
The Blue Ridge 150-I is designed to heat spaces ranging from 250 to 1,200 square feet. With a maximum heat output of 45,000 BTU/h and variable heat output from 8,471 to 31,700 BTU/h, it's ideal for medium to large rooms. The included 90 CFM blower helps distribute heat more efficiently throughout your space.
What size logs can I use in this insert?
The Blue Ridge 150-I accommodates logs up to 17" in length, though 16" logs are recommended for optimal performance. The firebox measures 16 3/8" wide, 8 3/4" high, and 12 3/8" deep with an overall volume of 1.1 cubic feet. Logs are loaded across the width of the firebox for convenient access through the 18 1/4" wide door opening.
How does the glass airwash system work?
The glass airwash system directs a controlled flow of preheated air down across the inside of the large ceramic glass viewing window (17 3/8" x 8 1/8"). This continuous air curtain helps prevent smoke and soot from adhering to the glass, keeping your view of the flames cleaner for longer periods between manual cleanings and maintaining the panoramic fire viewing experience.
What are the warranty and safety certifications for this insert?
The Blue Ridge 150-I is backed by a comprehensive 5-year limited warranty and is proudly made in the USA and Canada. It's certified to meet rigorous safety and emission standards including EPA 2020, CSA B415.1-10, ULC S628, UL 1482, and UL 737. The insert has been tested by CAN/USA accredited laboratories and requires a 6" diameter chimney meeting ULC-S635, CAN/ULC-S640, or UL 1777 standards.
