Empire Tahoe Deluxe 36 Direct Vent Gas Fireplace - DVD36FP
Speak With An Expert
Features:
- Up to 20,000 BTUs
- Includes log set
- Has louvers and an available trim kit
- The large heat-resistant, tempered glass window provides an unobstructed view to the log set
- Offer several styles of liners - Aged Brick, Herringbone, Stacked Limestone, and Black Reflective
- Ideal for applications where wall-cavity space is tight
Download:
Empire Tahoe Deluxe 36 Direct Vent Gas Fireplace Brochure
Empire Tahoe Deluxe 36 Direct Vent Gas Fireplace Installation Manual
Specifications | ||
Fuel Type: | Gas | |
Vent Type: | Direct Vent | |
Vent Size: | 4x6-5/8 | |
Ignition Type: | Millivolt or Electronic | |
Installation Type: | Zero Clearance | |
Style: | Traditional | |
Vent Inner Diameter: | 4 Inches | |
Vent Outer Diameter: | 6-5/8 Inches | |
Weight: | 105 lbs. | |
Model: | Natural Gas (NG) | Propane (LP) |
Max. (BTU/HR): | 20,000 BTU's | 20,000 BTU's |
Min. (BTU/HR): | 14,000 BTU's | 16,500 BTU's |

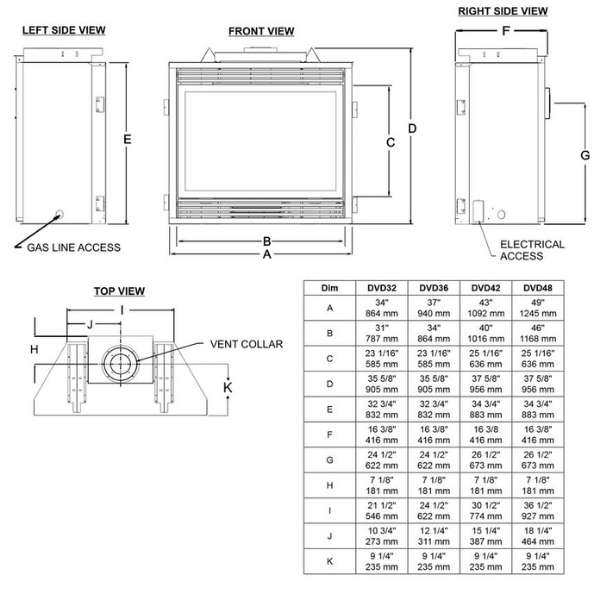

Actual Dimensions | ||
Height | Width | Depth |
355/8" | 37" | 163/8" |

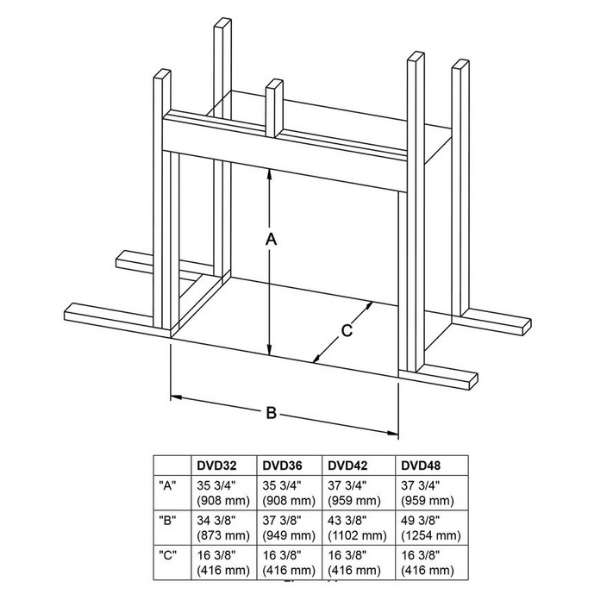

Framing Dimensions | ||
Height | Width | Depth |
353/4" | 373/8" | 163/8" |
