DuraVent DuraBlack Features
- Sectioned and Adjustable: Sectioned construction lets both the 45 and the 90 rotate to the exact angle you need, which matters when the stove and the ceiling penetration do not line up.
- Economical Single-Wall Connector: The cost-effective way to connect a wood stove to a manufactured chimney when you have the clearance for it. Roughly a third the cost of double wall for the same run.
- 24-Gauge Lock-Seamed Steel: Heavier than the thin stovepipe sold at hardware stores, with a lock-seamed body that holds its shape and resists warping through repeated heat cycles.
- Die-Formed End Fittings: Ends are die-formed rather than rolled, so sections seat squarely and stay tight. The drip-free design keeps condensed creosote inside the pipe rather than running out a seam onto the stove.
- Black Painted Finish: A clean finished black surface out of the box, no priming or painting needed, and it matches standard black stove bodies.
DuraBlack Pipe Specifications

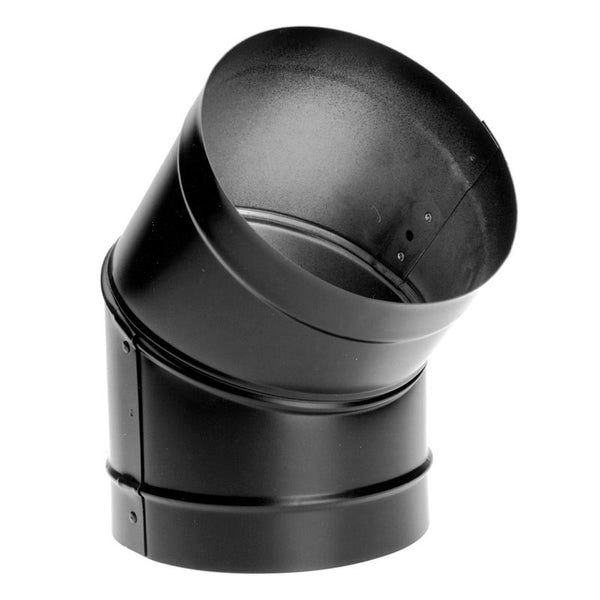

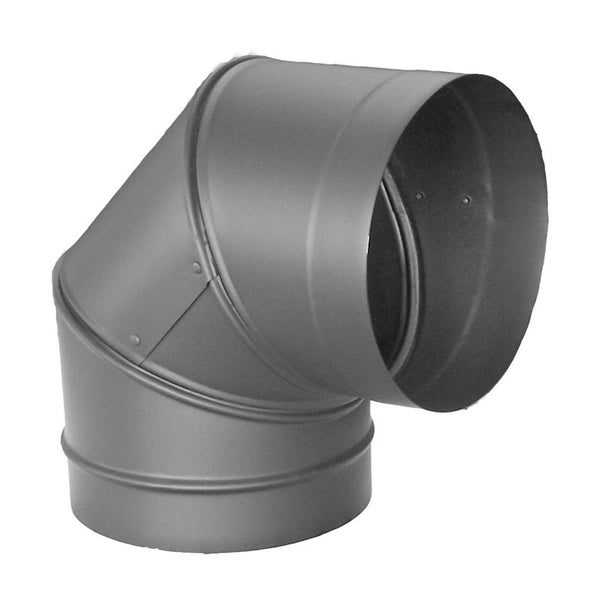

| Available Angles | 45 degree, 90 degree |
| Part Numbers | 6DBK-E45, 6DBK-E90 |
| Inner Diameter | 6" |
| Adjustability | Sectioned, adjustable |
| Construction | Single-wall, lock-seamed |
| Material | 24-gauge steel |
| Finish | Black painted |
| End Fittings | Die-formed, drip-free design |
| Clearance to Combustibles | 18" |
| Application | Interior use only, stove to chimney |
| Connects To | Class A chimney via 6DVL-ADT adaptor |
DuraBlack Stove Pipe Installation Manual
Download the full manufacturer installation instructions before you begin. Installation must follow these instructions and your appliance manual to stay code compliant and keep the warranty valid.
DuraVent DuraBlack FAQ
Are these adjustable or fixed?
Sectioned and adjustable. The sections rotate against each other so you can set the exact angle rather than accept a fixed 45 or 90.
Should I screw the elbow sections together?
Yes. Once the angle is set, secure the sections with sheet metal screws so vibration and heat cycling cannot shift it.
Can I use two 90s in one run?
Two is generally the maximum in a connector run, and each one costs draft. Where the geometry allows, two 45s are gentler on draft than a single 90.
How far does this need to be from the wall?
18" to any combustible surface. If you cannot hold 18", use double wall DVL instead, which drops the requirement to 6". Never reduce clearance with a homemade heat shield unless your stove manual permits it.
Is single wall good enough, or should I pay for double wall?
Single wall is fine when you have the clearance and want to save money. Double wall drafts better, builds less creosote and fits tighter spaces. If the stove is in a corner or alcove, go double wall.
Can it pass through a wall or ceiling?
No. This is interior connector pipe only. Any penetration through a wall, ceiling or roof requires Class A chimney, joined to this pipe with a chimney adaptor.
How do I attach it to my stove?
Use the DuraBlack stovepipe adaptor (6DBK-AD) at the stove's flue collar. Sections should be secured with sheet metal screws, crimped end pointing down toward the stove so condensation stays inside the pipe.
