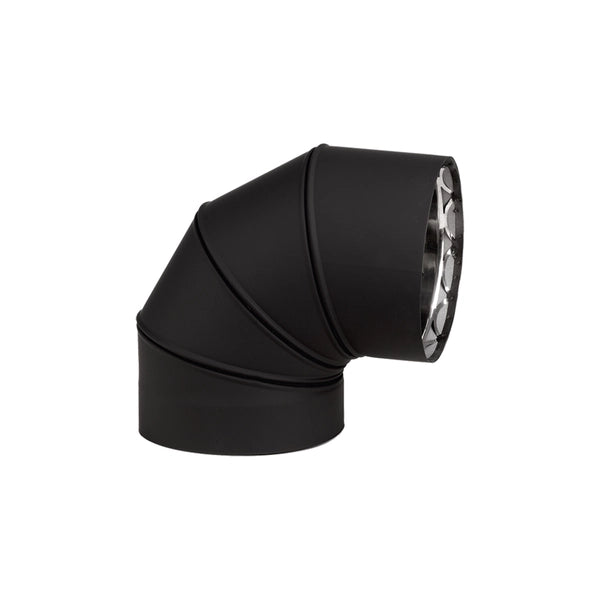

90° ELBOW 6" VORTEX DOUBLE WALL VOD0093

No, this Vortex double-wall elbow is designed exclusively for use with Vortex double-wall stove pipe components. Double-wall stove pipe systems are brand-specific and will not properly mate with other manufacturers' products. Mixing brands can compromise safety, void warranties, and potentially violate building codes. Always use matching Vortex components throughout your entire stove pipe run to ensure proper fit, safety compliance, and optimal performance.

This double-wall stove pipe elbow is designed for interior use only, connecting your wood stove to the point where the pipe enters a wall or ceiling. It requires 6-inch clearance to walls and 8-inch clearance to ceilings. When your venting system penetrates a wall, ceiling, attic, or roof, you must transition to UL 103 HT Class A chimney pipe, which is fully insulated, rated for temperatures up to 2100°F, and requires only 2-inch clearance to combustibles. Never run stove pipe through walls or ceilings.

Installation involves connecting the elbow between pipe sections using at least three #8 x 1/2" self-drilling screws at each joint to ensure a secure, leak-free connection. For horizontal runs longer than 4 feet, you must use a pipe hanger, with additional hangers required every 4 feet thereafter. When possible, using two 45-degree elbows instead of a single 90-degree elbow creates less turbulence and results in shorter horizontal runs, which can improve draft performance. Always follow the manufacturer's installation manual for complete instructions.

This Vortex double-wall elbow requires a minimum clearance of 6 inches from combustible walls and 8 inches from combustible ceilings. These reduced clearances (compared to 18 inches required for single-wall pipe) are possible due to the double-wall air-insulated design that keeps outer surfaces cooler. Clearances can be further reduced by using approved heat shields on walls. Never reduce clearances below the manufacturer's specifications, as this creates serious fire hazards and violates safety codes.

While there's no absolute limitation on total length according to NFPA 211 and CSA B365 standards, manufacturers recommend a maximum of 15 feet of total stove pipe length when your installation includes an offset (using elbows), and no more than 20 feet without any offsets. Longer runs or multiple elbows can reduce draft efficiency and increase creosote buildup. Your installation should be as short and direct as possible between your stove and chimney connection point for optimal performance.

Regular inspection and cleaning by a professional chimney sweep is essential for safe operation. The entire stove pipe system, including elbows, should be inspected annually and cleaned as needed to remove creosote and soot buildup. Never use chemical cleaners, as these do not eliminate the need for mechanical cleaning and can create corrosive acids when mixed with deposits. If a chimney fire occurs, discontinue use immediately and have the entire system professionally inspected before resuming operation.

The manufacturer's warranty applies only to the original purchaser and is non-transferable. Subject to proper installation according to all applicable codes and manufacturer instructions, the warranty covers manufacturing defects in the double-wall stove pipe components. The warranty only covers replacement of defective parts and does not cover damage caused by improper installation, lack of maintenance, chimney fires, or misuse. Always retain your proof of purchase and follow all installation and maintenance guidelines to maintain warranty validity.

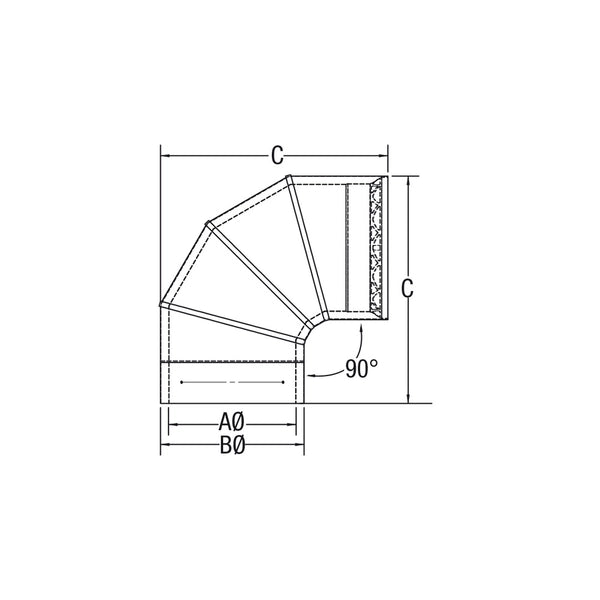

No, this is a fixed 90-degree elbow that cannot be adjusted after installation. Unlike some adjustable elbows from other manufacturers, this Vortex elbow maintains a permanent 90-degree angle. If you need flexibility in positioning, you may want to consider using two 45-degree elbows instead, which often provide better draft performance and less turbulence in exhaust flow. Carefully plan your installation layout before purchasing components to ensure the fixed 90-degree angle will work for your specific application and spatial requirements.
