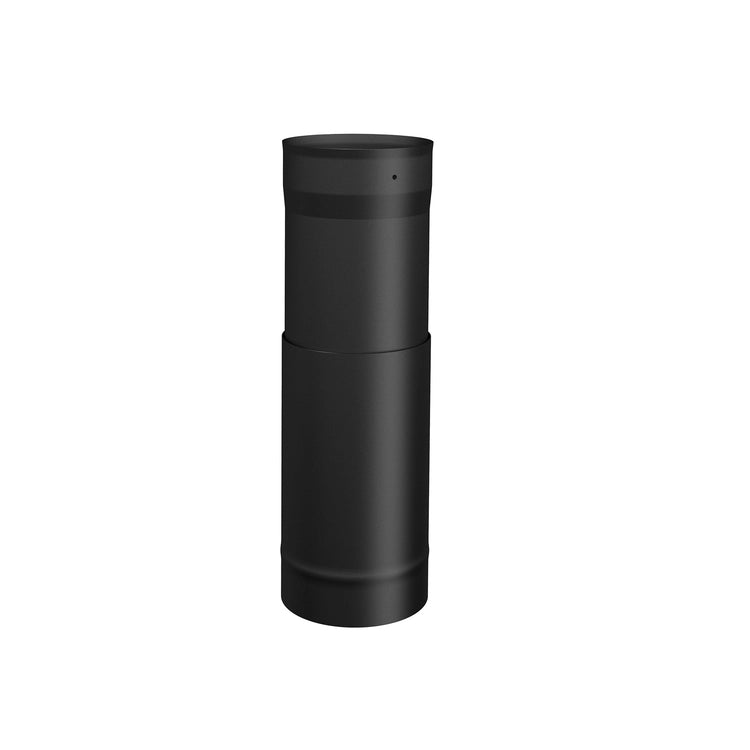

TELESCOPIC SINGLE WALL BLACK PIPE - 6"Ø (14"-22"L) SP00050

Single wall stove pipe requires a minimum of 18 inches clearance from all combustible materials including walls, ceilings, drywall, wood, and insulation. This clearance can be reduced to 9 inches if you install approved heat shielding on either the pipe or the combustible surface. Always verify local building codes as requirements may vary by jurisdiction.

No, single wall stove pipe is designed for interior use only and cannot penetrate walls, ceilings, or be used outside. When transitioning through a wall or ceiling, you must switch to UL-listed Class A insulated chimney pipe which is rated for those applications. Single wall pipe only connects from your stove to where it meets the Class A chimney system.

Measure the distance from your stove's flue collar to where the pipe will connect to your chimney system. For through-wall installations, the stove pipe must extend at least 24 inches vertically above the stove before making a 90-degree turn. The SP00050 adjusts from 14 to 22 inches, so ensure this range fits within your required measurements. Remember to account for 2 inches of overlap at each joint connection.

Install the pipe with the crimped (male) end pointing toward the stove. This orientation ensures that falling dust, ash, and any condensation remain contained within the pipe and drain back toward the stove rather than leaking out at the joints.

Inspect your stove pipe after burning each cord of wood or at minimum once per year before heating season. The telescoping design allows for easy removal for thorough cleaning and inspection. Check for creosote buildup, rust, damage to joints, and proper clearances. Clean the pipe when creosote accumulation is noticeable to prevent chimney fires.

The gauge number indicates steel thickness - lower numbers mean thicker, more durable steel. This 22 gauge pipe is approximately 9% thicker than standard 24 gauge pipe found at big box stores, providing better durability, longer lifespan, and more rigid construction. The welded seam construction also provides superior strength compared to clip-together 24 gauge alternatives.

No, never use galvanized pipe for wood stove installations. At high temperatures, the zinc coating on galvanized pipe vaporizes and releases dangerous toxic gases that are harmful to breathe. Always use black painted steel pipe designed specifically for wood stove applications.

You'll need the telescoping pipe section, additional straight pipe sections to reach your chimney connection, elbows if required (45-degree preferred over 90-degree for better draft), at least 3 screws per joint for secure connections, and a stove pipe adapter if your pipe doesn't fit directly to your stove collar. When transitioning to a chimney, you'll also need a Class A chimney adapter and UL-listed insulated chimney pipe for sections passing through walls or ceilings.
