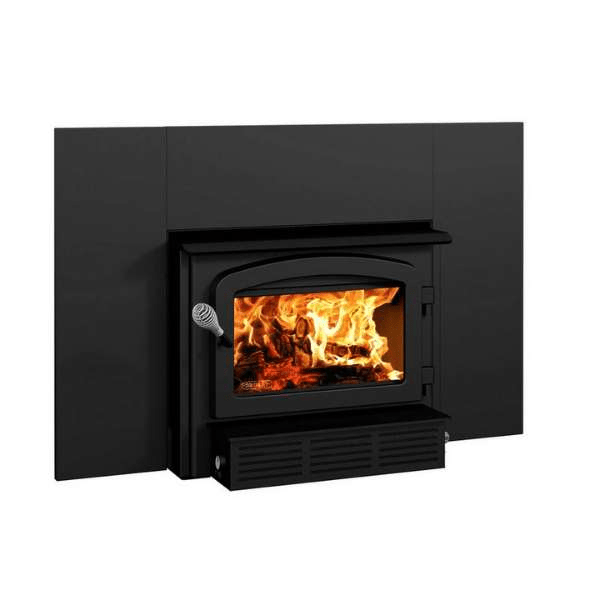

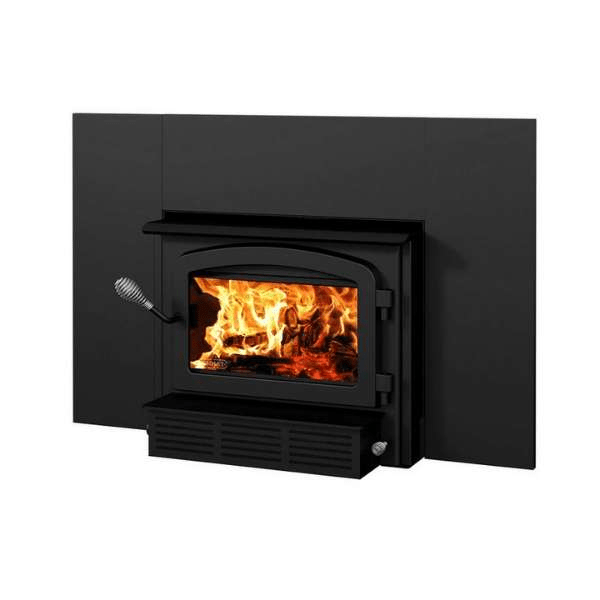

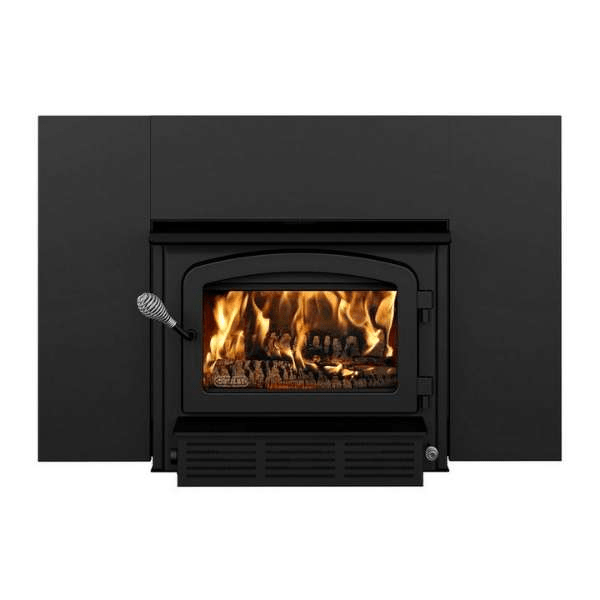

Get The Most Out Of Your Wood Insert With The Drolet Escape 1500
Is your home feeling a little too chilly this winter? Warm up with the Drolet Escape 1500 Wood Insert Trio! This wood stove is perfect for homes up to 1,800 ft², and features an impressive 65,000 BTUs of heating power. Plus, the non-catalytic design emits only 1.26 g/h of particulate emissions, making it a great eco-friendly option. So gather around the fire and enjoy some cozy warmth this winter! With side panels that help reduce clearances to combustible materials and the top heat exchanger that helps redirect the heat to the front of the unit, this stove is a great choice for for those looking for an impressive heating solution.
Included: 6'' liner kit (25' or 35' Vortex flexible stainless steel liner, connector, 13'' x 13'' top plate, chimney cap with no screen), 29'' x 44'' faceplate, blower, ceramic glass, ash lip, air damper
Options: firescreen, fresh air intake
Drolet Escape 1500-I Wood Insert Trio Features:
- Burn time up to 6 hours
- Up to 18'' logs
- 1.9 ft³ firebox
- Robust 5/16'' steel
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Firebox lined with refractory bricks for better heat distribution
- Optimum efficiency : 78 %
- Average particulate emissions rate : 1.26 g/h
- Steel thickness – top : 5/16"
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Recommended heating area-ft² : 500 - 1,800
- Blower included
Drolet Escape 1500-I Wood Insert Trio (25 Ft) DB03137K Specifications:
| Fuel type |
Dry cordwood (16" recommended)
|
| Recommended heating area-ft² | 500 - 1,800 |
| Overall firebox volume-ft³ | 1.9 |
| EPA loading volume-ft³ | 1.44 |
| Maximum burn time | 6 h |
| Maximum heat output-dry cordwood | 65,000 BTU/h (19 kW) |
| Overall heat output rate |
15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
|
| Average overall efficiency (dry cordwood) | 70 % (HHV) to 75 % (LHV) |
| Optimum overall efficiency | 78 % |
| Optimum heat transfer efficiency | 74 % |
| Average particulate emissions rate | 1.26 g/h |
| Average CO | 58 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney |
Liner - ULC-S635, CAN/ULC-S640, UL1777
|
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for a mobile home installation | No |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15 3/4" x 9 3/4" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 144 |
| Overall dimension (Height) | 21 1/4" |
| Overall dimension (Width) | 27 1/4" |
| Overall dimension (Depth) | 22 3/8" |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening - dimension (Width) | 17 1/4" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 19 5/8" |
| Firebox – dimension (Depth) | 13 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards |
By an accredited laboratory (CAN/USA)
|
| Warranty | Limited lifetime |
Drolet Escape 1500 Clearance Requirements:
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" |
| Clearance – combustible side mantle to unit | 9" |
| Clearance – combustible top mantle to unit | 27" |
| Clearance – combustible side wall to unit | 16" |
| Clearance – minimum floor protection in front of the appliance | 16" |
| Clearance – from the top of the insert to the shelf | 27" |
Escape 1500-I Wood Insert Trio (25 Ft) Installation Manual:
Click Here for Installation Manual
Wood Insert Trio Escape 1500-I DB03137K Specification Sheet:
