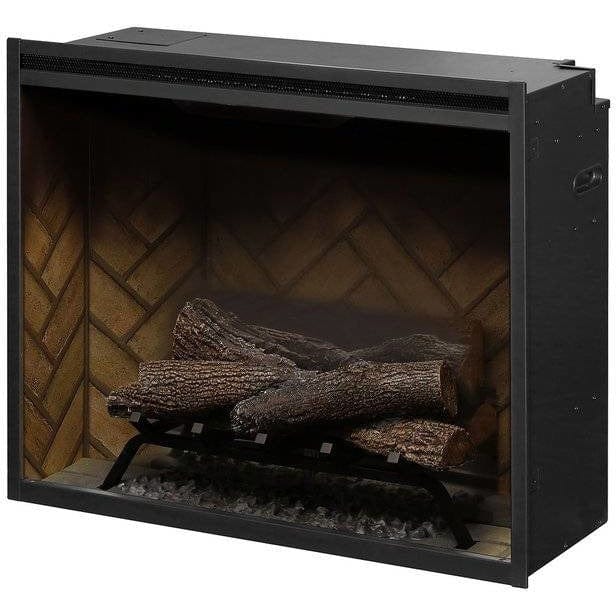

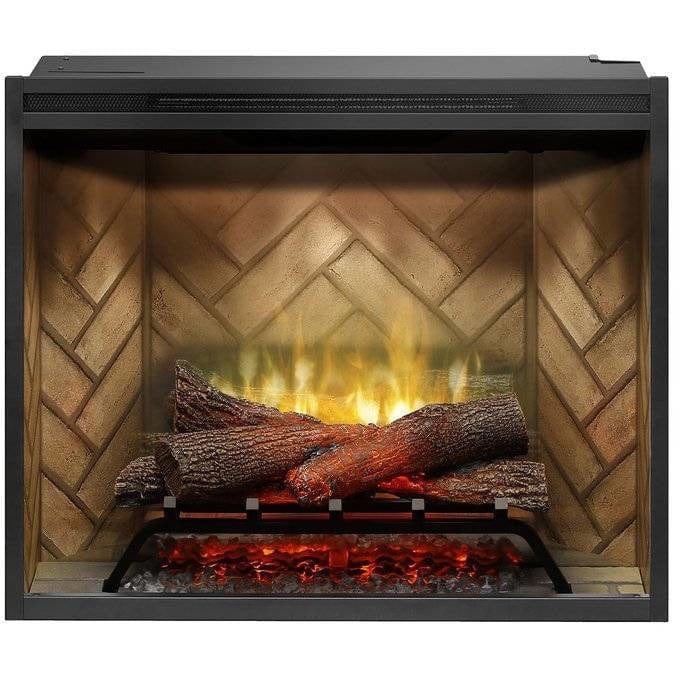

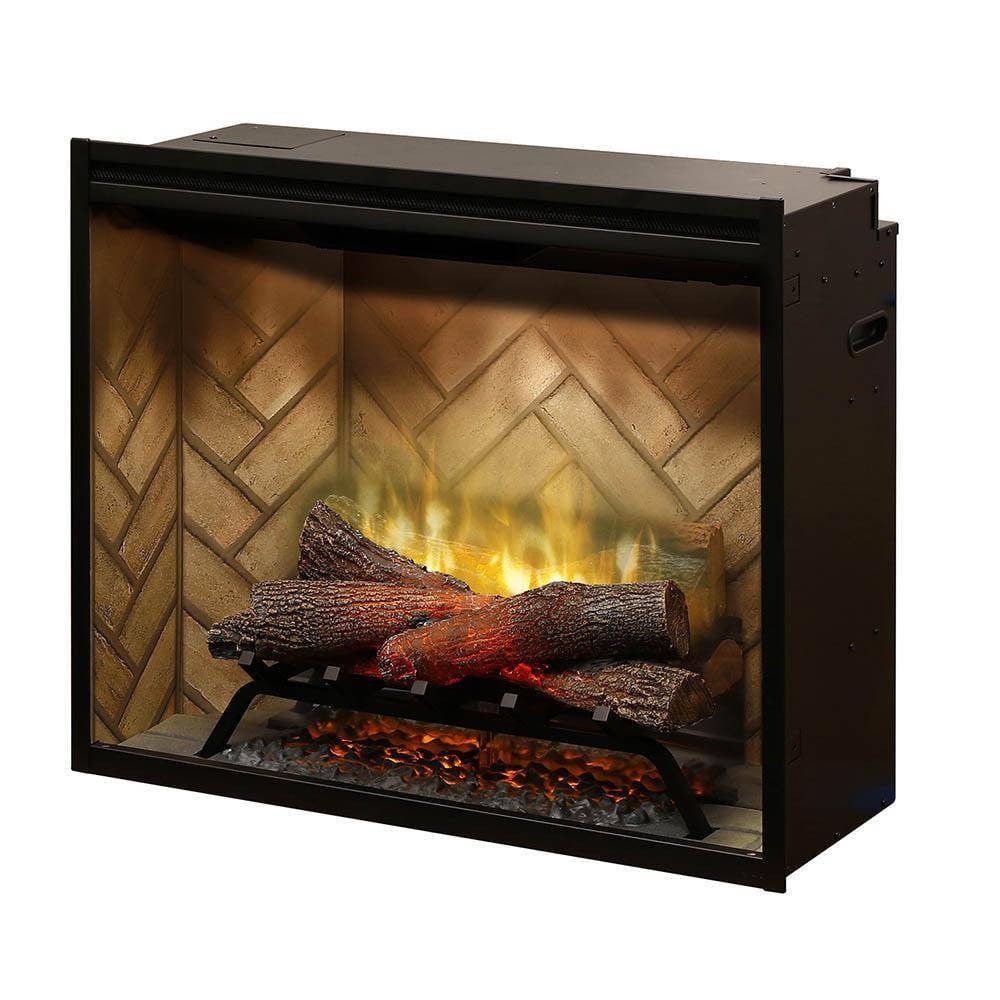

Revillusion® is a completely new way of looking at fireplaces, and changing the standard for electric. A clear view through the lifelike flames, to the full brick interior, captures the charm of a wood-burning fireplace. Enjoy the look of a fireplace cut straight from the pages of a magazine by choosing Revillusion®; clearly a better fireplace.

Product Features:

  • Revillusion® Flame Technology- Flames are larger, brighter and more random, appearing from within the logs.
  • Mirage™ Flame Panel- Partially frosted acrylic panel is clearly better than a mirror, showing only dazzling flames and no reflections.
  • ThruView™ Full-depth Design- See clear through the flames to the back of a masonry fireplace for a more authentic experience.
  • Mood Lighting- Customize the firebox glow with a choice of warm hues, plus midnight mode.
  • Color Enhancement- Adjust the flame base color to red or blue.
  • Realogs® Plus- A full grate of life-size hardwood-cast logs, tiered for greater depth.
  • Full Brick-surround Firebox- More authentic day or night; 270-degree herringbone brick with natural soot markings.
  • Brightness and Flicker- Adjust light level to suit the room and choose flicker effect for enhanced firelight.
  • Ambient Light Sensor- Automatically adjusts firebox light to suit the room day to night.

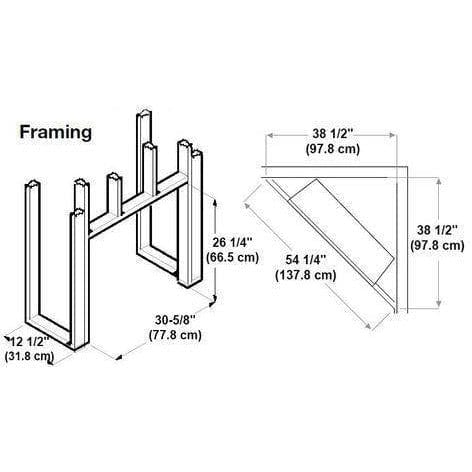

  • Quick and Easy Installation- Simply frame, wire and finish – no venting, gas lines or safety screens.
  • Primary Heat- Option to use 240 volt supply for up to 8,800 BTU - use as part of primary heating plan; heater also operates without flame and can be deactivated.
  • Direct-wire- Designed to be direct-wired to a 120, 208 or 240 volt circuit for a seamless look (optional plug kit available).
  • All-season Flames- Enjoy the unique charm of a fireplace 365 days a year using the flames without the heat.
  • Low Carbon Footprint- The most sustainable fireplace option; no emissions and 100% efficient.

Specifications:
  • Firebox: Log Set
  • Volts: 120/208/240
  • Wattage: 1300/1975/2575
  • Amps: 10.8/9.5/10.7
  • BTUs: 4400/6745/8794
Comes With:
  • Dimplex Revillusion 30" Built-In Electric Fireplace
  • Media Kit

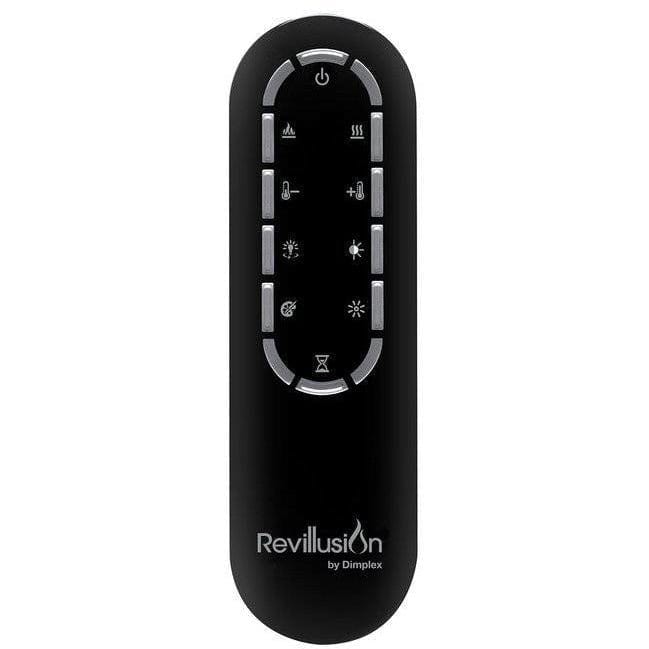

  • Multi-Function Remote
  • 2 Year Warranty
Resources:
Download Specifications Manual
Download Installation Manual
 Return/Warranty
