Dimplex 46" Optimyst Linear Electric Fireplace Features
- Patented Optimyst® Vapor Flame Technology: Revolutionary ultrasonic technology produces water vapor that creates the illusion of three-dimensional flames and smoke, delivering the world's most realistic flame effect without the mess, emissions, or hazards of a real fire.

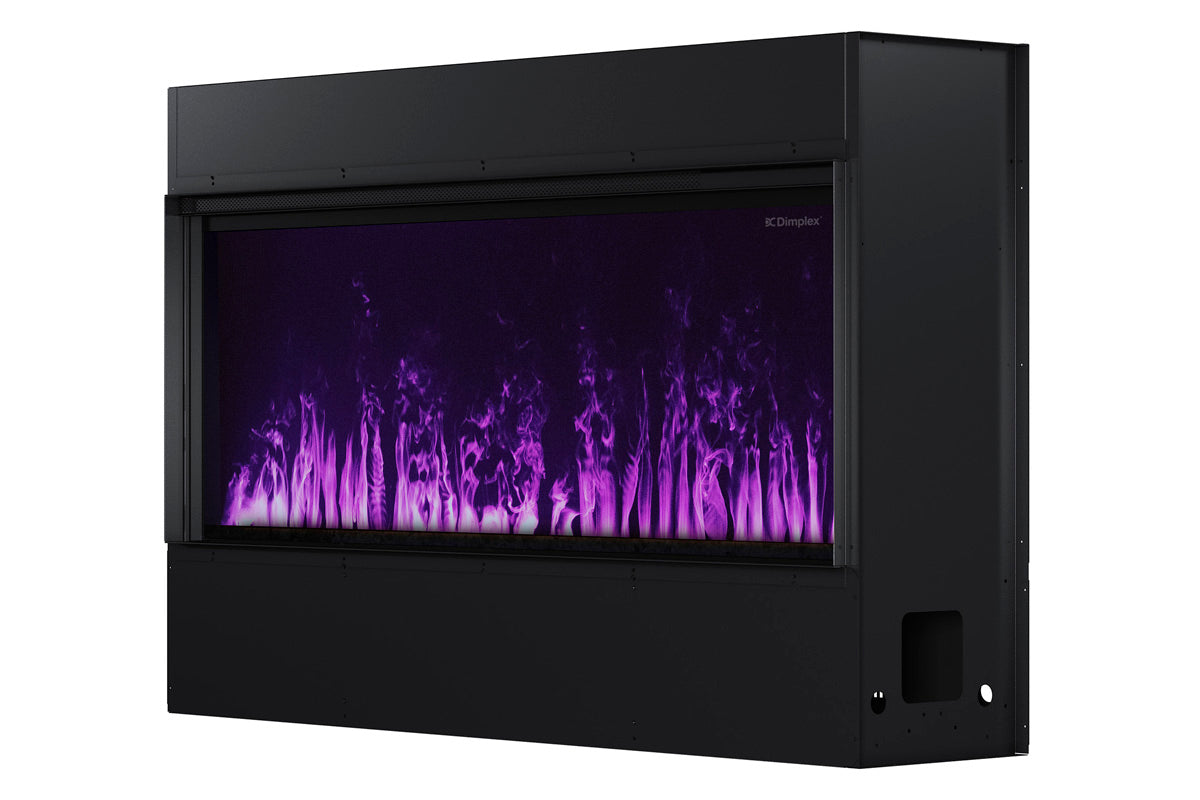

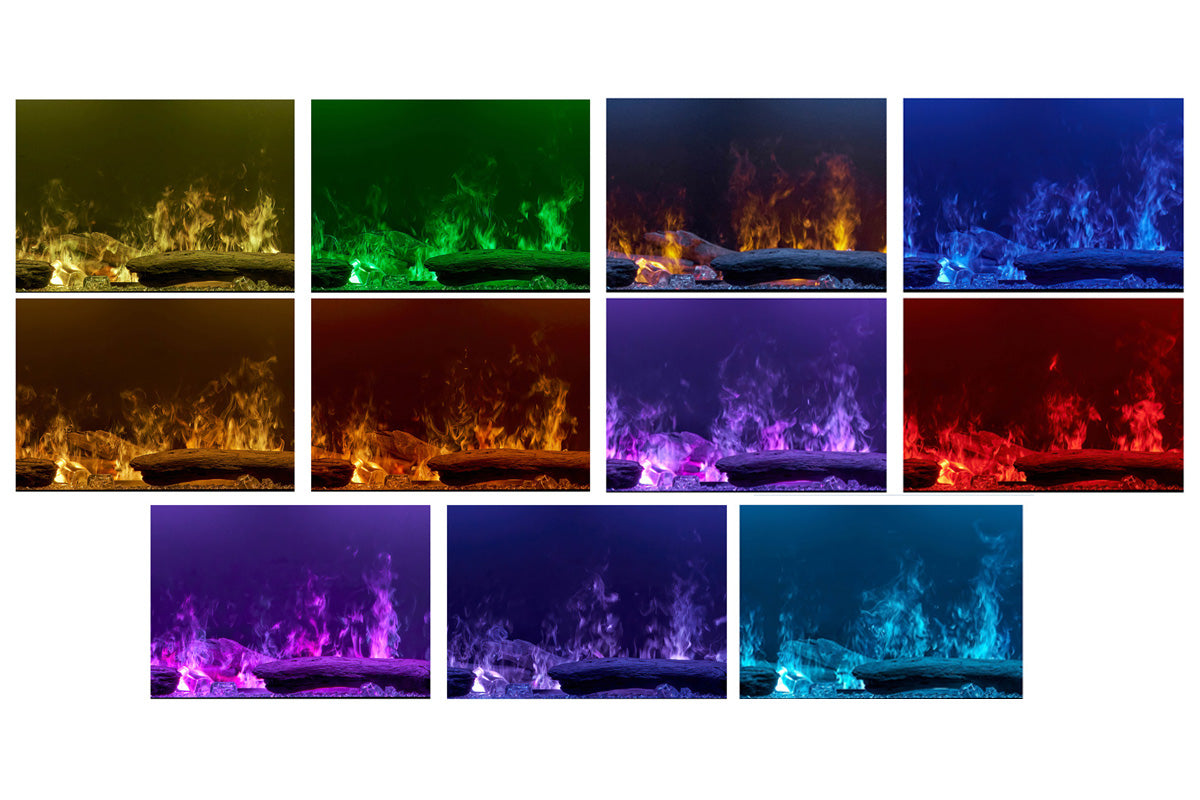

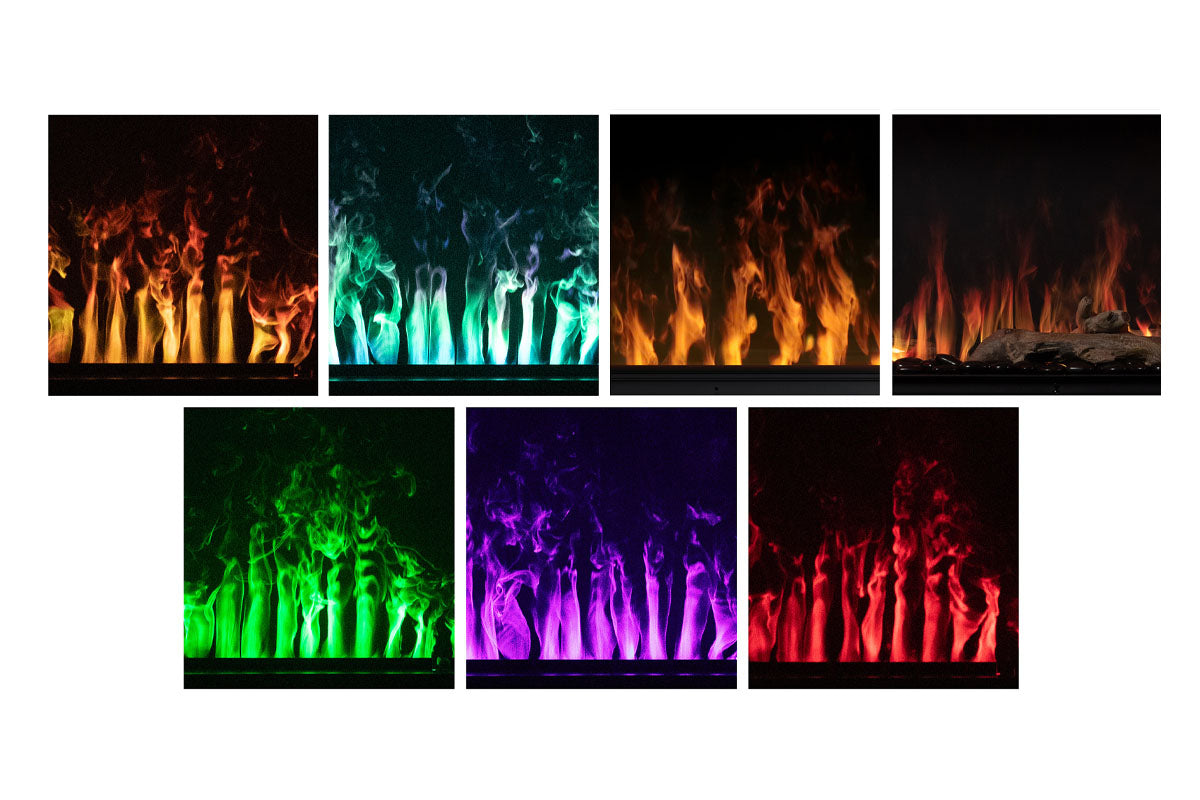

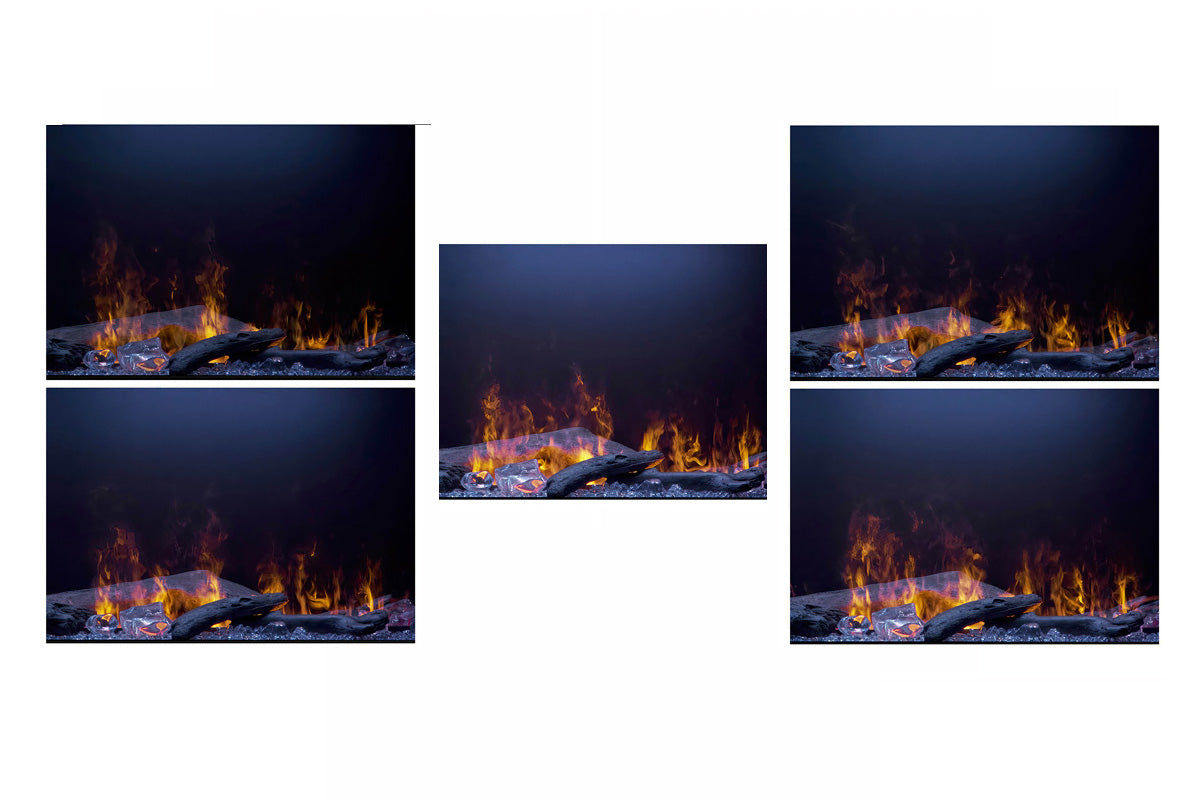

- Advanced Multicolor LED Lighting: Choose between a traditional natural amber flame or go contemporary with 7 different ambient and flame color themes, including dynamic Prism and Kaleidoscope modes that project vivid color onto the vapor flames.
- Customizable Custom Mode: Cycle through a full range of colors using the custom mode, freezing on the hue of your choice to create the perfect atmosphere for any room or occasion.
- Realistic Crackling Wood Fire Sounds: Built-in audio delivers authentic crackling sounds of a natural wood fire, providing a complete multi-sensory experience that elevates the ambiance of your space.
- Cool-to-Touch Safety Design: Flames do not generate heat and the glass remains cool to the touch, making this fireplace safe for homes with children, pets, and high-traffic environments.
- Concealed Ceramic Heater: Integrated heater provides supplemental warmth for up to 500 sq ft (120V) or 1,000 sq ft (240V), with 11% energy savings and the ability to enjoy flames independently of heat.
- Adjustable Flame Spacers: Includes spacers and slots to customize flame width and pattern options, allowing you to create a unique fire experience tailored to your installation.
- Wi-Fi Enabled with Dimplex Flame Connect App: Operate your fireplace from anywhere using the dedicated app, save customized mood settings, and access bonus features for ultimate convenience and control.

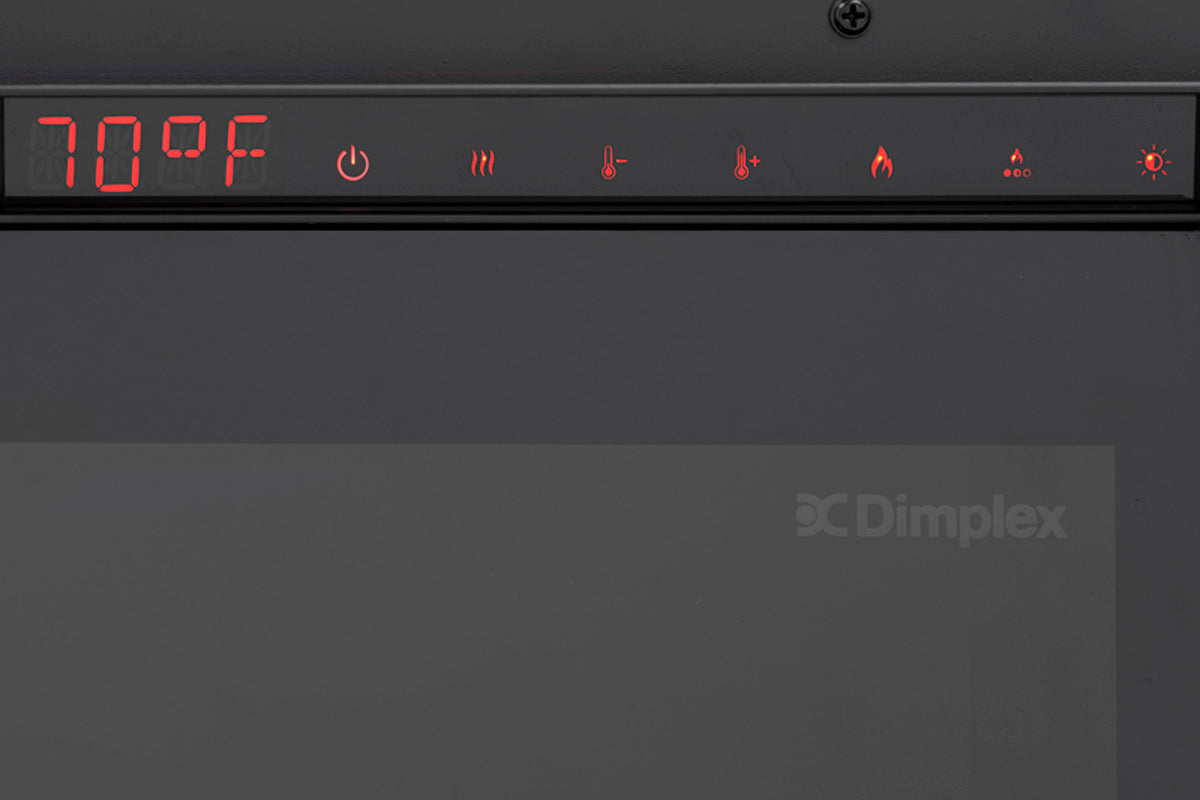

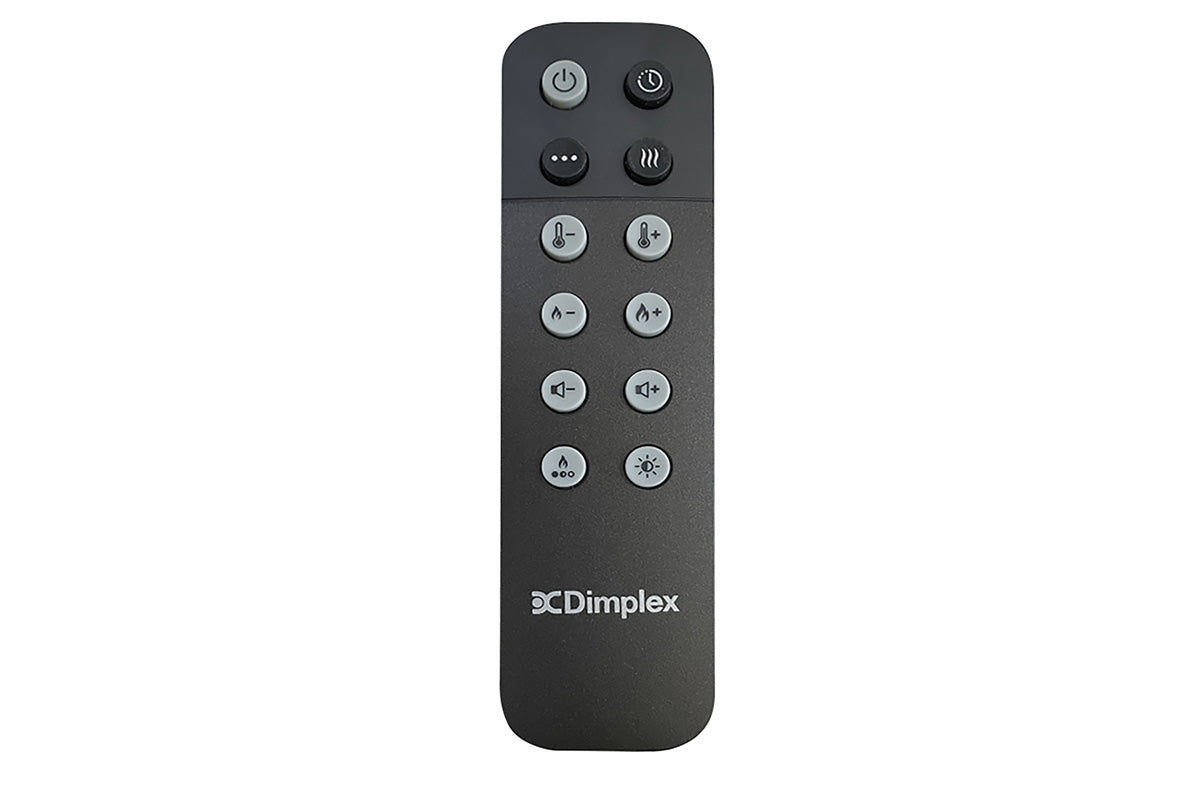

- Multiple Control Options: Operate using the included multi-function remote control, hidden touch control panel, or the Dimplex Flame Connect mobile app.
- Continuous Water Supply Connection: Designed to connect to your main water line for uninterrupted operation, or use the refillable reservoir for easy plug-and-play setup—ideal for both residential and hospitality use.
- Flexible Installation Options: Four installation configurations—front, left-corner, right-corner, or bay—offer seamless integration into any wall or architectural design with a slim 12" deep zero-clearance firebox.
- Smart Self-Diagnostics: Integrated self-diagnostic technology works behind the scenes to monitor performance, simplify troubleshooting, and enhance the long-term reliability of your fireplace.
Dimplex 46" Optimyst Linear Electric Fireplace Specs
| Model Number | OLF46-AM (also known as 136786) |
| Brand | Dimplex |
| Series | Optimyst® Linear |
| Fireplace Type | Built-In / Wall-Mount Water Vapor Electric Fireplace |
| Width | 47.5 in |
| Height | 31.5 in |
| Depth | 11.8 in (slim 12" deep design) |
| Product Weight | 149.9 lbs |
| Wattage | 1220W (120V) / 1920W (240V) |
| Voltage | 120V / 240V |
| BTU Output | 4,163 BTU at 120V / 6,551 BTU at 240V |
| Heating Coverage | Up to 500 sq ft (120V) / 1,000 sq ft (240V) |
| Heater Type | Concealed ceramic heater with 11% energy savings |
| Flame Technology | Patented Optimyst® ultrasonic water vapor with multicolor LED |
| Flame Colors | 7 ambient/flame color themes plus Prism and Kaleidoscope modes |
| Sound Effect | Crackling wood fire sounds |

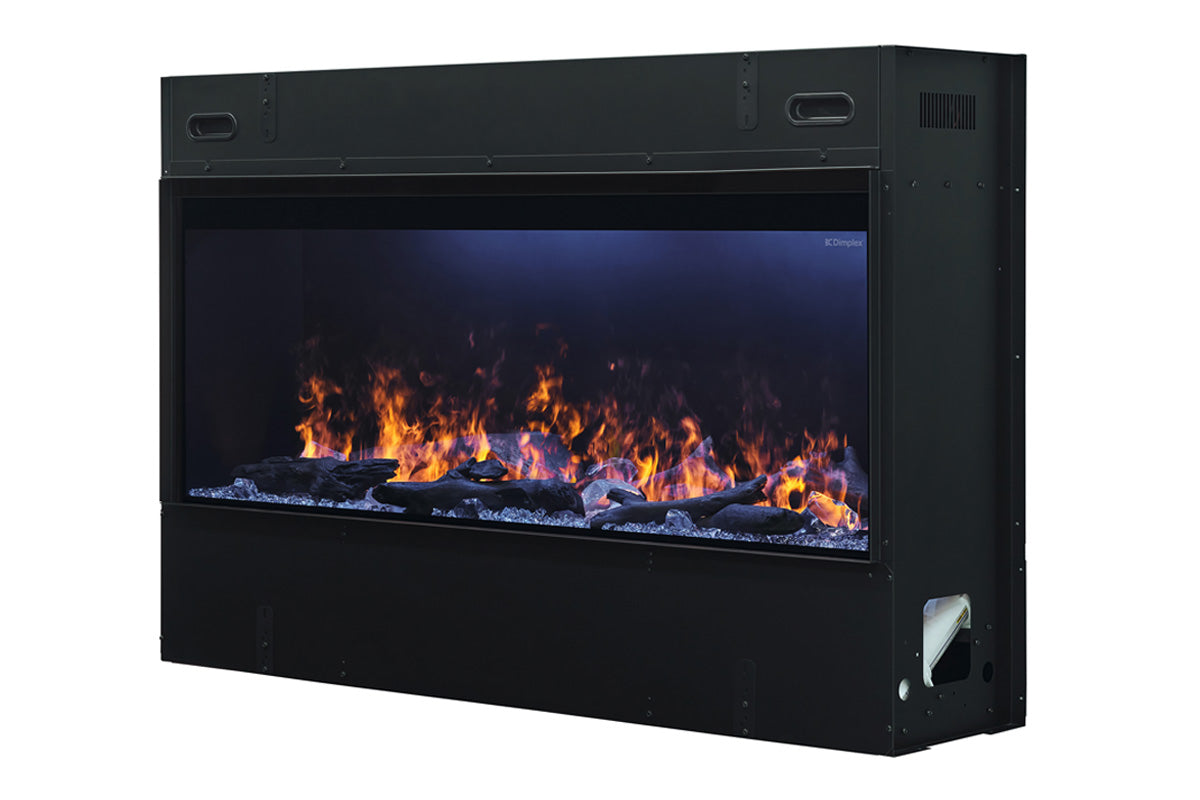

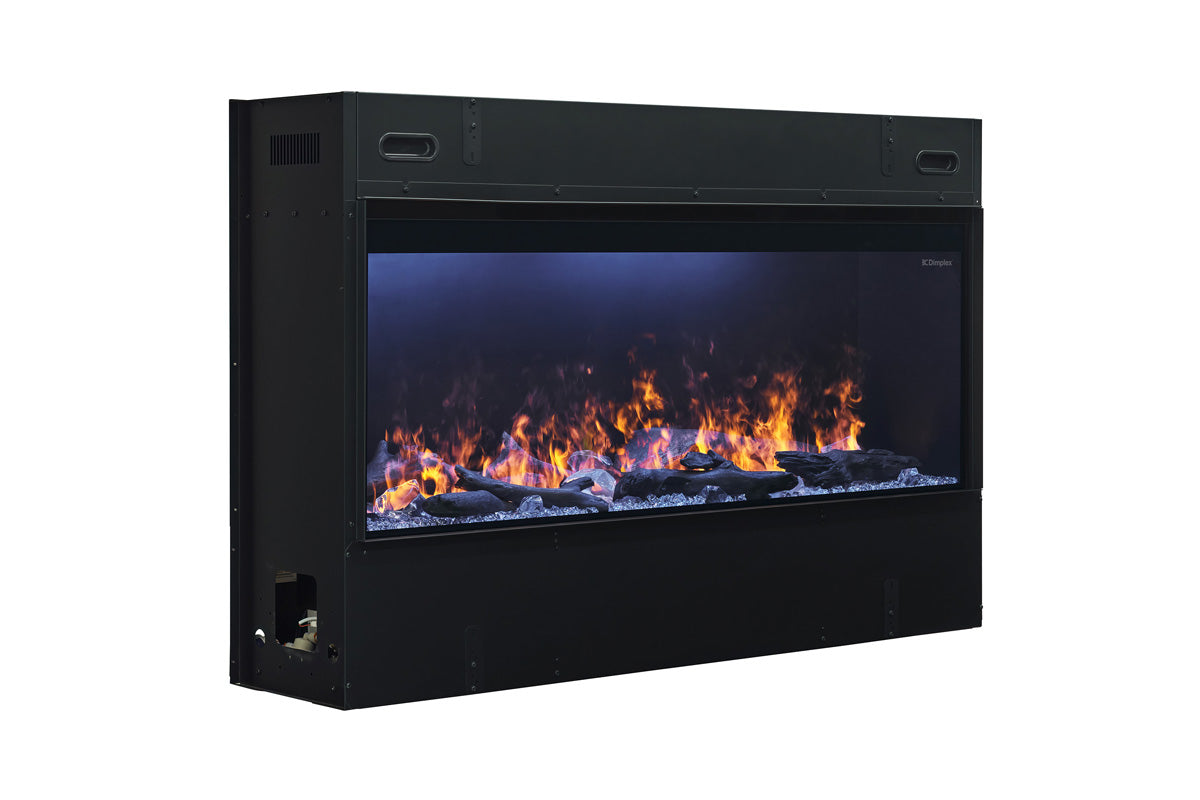

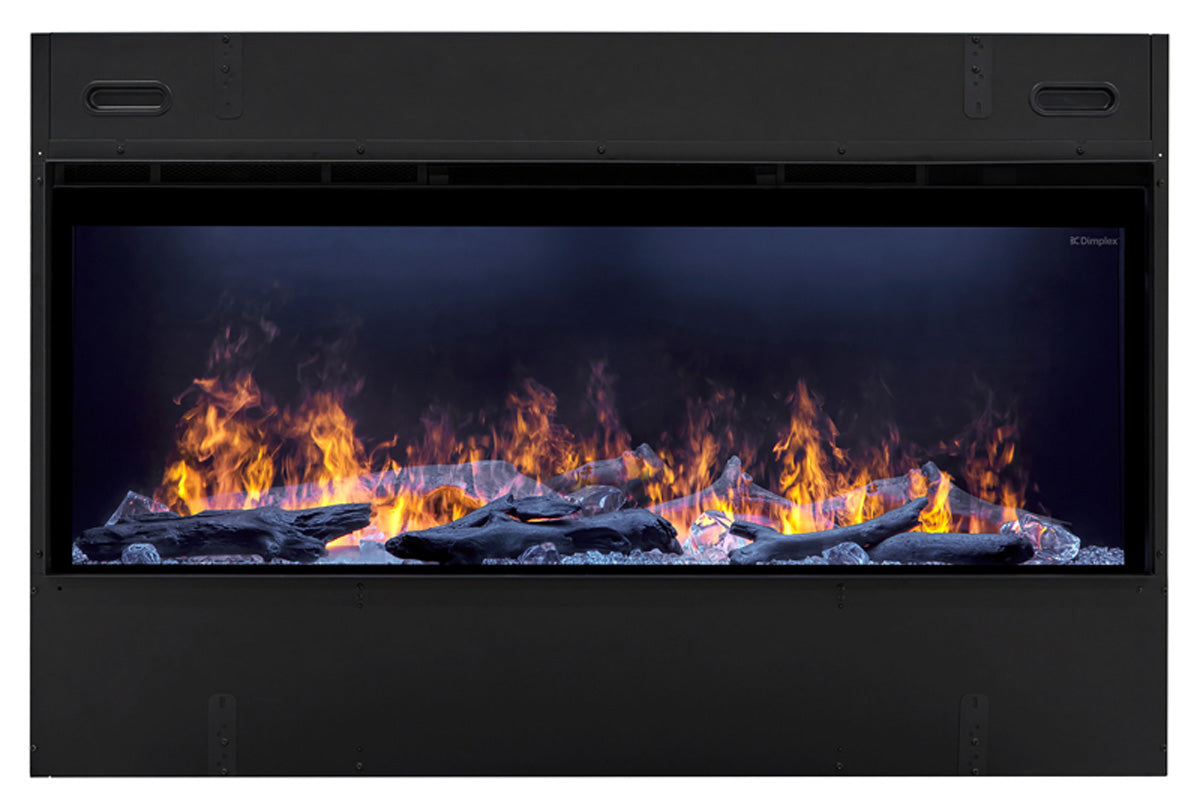

| Fuel Bed / Media | Acrylic Ice and Driftwood Logs (included) |
| Finish | Black |
| Glass | Fully-sealed continuous front glass (cool to touch) |
| Installation Options | Front, left-corner, right-corner, or bay |
| Firebox | Zero-clearance |
| Water Supply | Refillable reservoir or direct main water line connection (plumbing kit optional) |
| Controls | Multi-function remote, touch control panel, Dimplex Flame Connect App |
| Wi-Fi Connectivity | Yes (Flame Connect App enabled) |
| Built-In Thermostat | Yes |
| Timer | Yes (30 minutes to 8 hours) |
| Automatic Shut-Off | Yes |
| Self-Diagnostics | Smart Self-Diagnostic technology included |
| Power Source | Electric (hardwire required for 240V; optional 120V plug kit available) |
| Available Sizes in Series | 46", 66", 86" |
| Warranty | 2-Year Limited Manufacturer Warranty |
Dimplex 46" Optimyst Linear Electric Fireplace FAQ
How does the Optimyst® flame effect work?
The Dimplex Optimyst® uses patented ultrasonic technology to atomize water into an ultra-fine mist, which is then illuminated by advanced multicolor LED lighting. The combination produces the appearance of three-dimensional flames and rising smoke without generating any actual fire, heat from the flames, or emissions—delivering the most realistic electric flame effect on the market.
Does the OLF46-AM require a water connection?
The fireplace can be operated two ways: by filling the integrated refillable reservoir for plug-and-play use, or by connecting it directly to your home's main water line for continuous, uninterrupted operation. An optional Dimplex plumbing kit is available for hardline installations, making this unit ideal for both residential homes and commercial hospitality settings.
How much heat does this fireplace produce?
The concealed ceramic heater is rated at 1,220 watts on a 120V circuit (4,163 BTU) and can warm spaces up to 500 sq ft. When wired to a 240V circuit, it operates at 1,920 watts (6,551 BTU) and provides supplemental heat for areas up to 1,000 sq ft. The flame effect can also be operated independently of the heater for year-round ambiance.
Can this fireplace be installed in a corner or recessed wall application?
Yes. The Optimyst® Linear is designed with four flexible installation options: front-facing, left-corner, right-corner, and bay configurations. Its zero-clearance firebox and slim 11.8" depth allow it to be fully recessed into a wall or framed structure, giving designers and homeowners complete flexibility for any architectural layout.
Is the Dimplex OLF46-AM safe for homes with children and pets?
Absolutely. Because the flame effect is produced by water vapor and LED light rather than actual combustion, the flames themselves generate no heat and the front glass stays cool to the touch. The heater is fully concealed and includes automatic shut-off protection, making this one of the safest fireplace options available for families.
Can I control the fireplace remotely with my phone?
Yes. The Optimyst® Linear is Wi-Fi enabled and pairs with the free Dimplex Flame Connect App, allowing you to control flame intensity, color themes, heat settings, timer functions, and custom mood scenes from anywhere. The unit also includes a multi-function remote control and hidden touch controls on the unit itself.

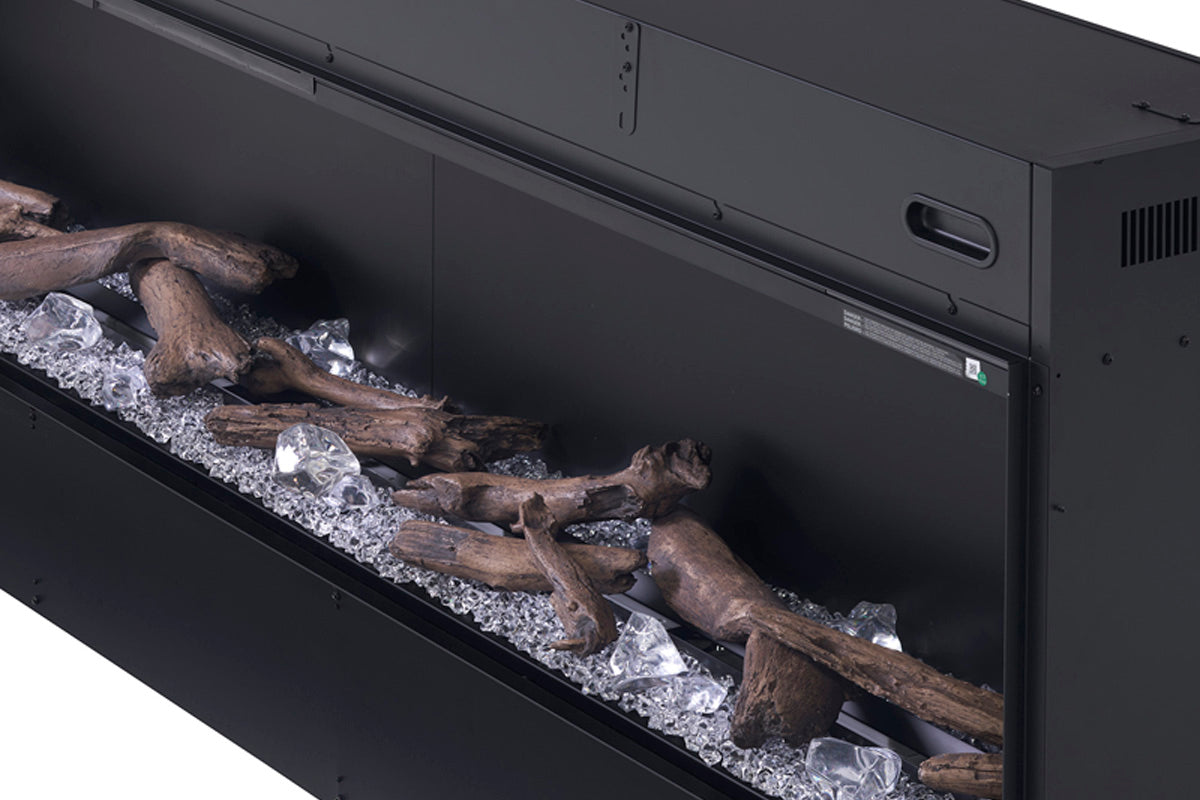

What media is included with the fireplace?
Each Dimplex 46" Optimyst® Linear ships complete with realistic Driftwood logs and Acrylic Ice media for layering effects on the fuel bed. Adjustable flame spacers are also included so you can customize the width and shape of the vapor flames to suit your installation.
What is the warranty on the Dimplex OLF46-AM?
The Dimplex Optimyst® Linear Electric Fireplace is backed by a 2-Year Limited Manufacturer Warranty covering defects in materials and workmanship under normal residential use. Built-in Smart Self-Diagnostic technology also helps simplify troubleshooting and service should any issue arise during ownership.
Dimplex Opti-myst 46-inch Linear Built-In Electric Fireplace Documents:
