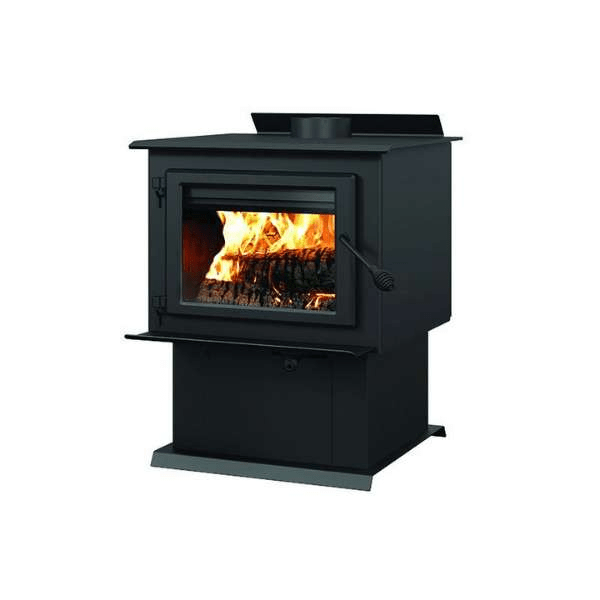

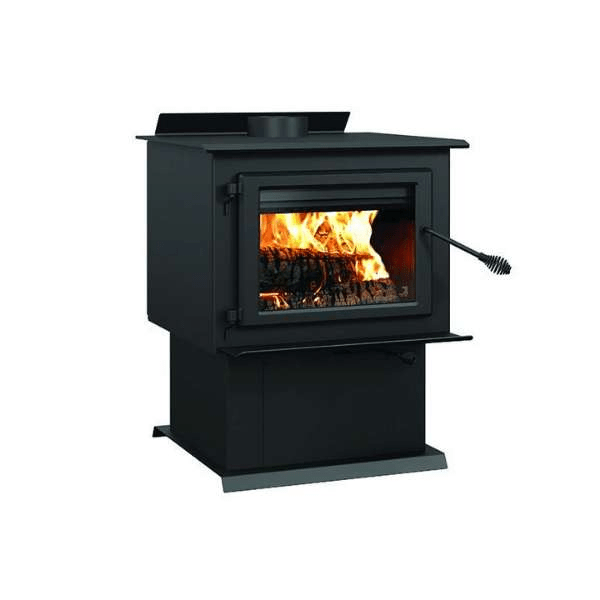

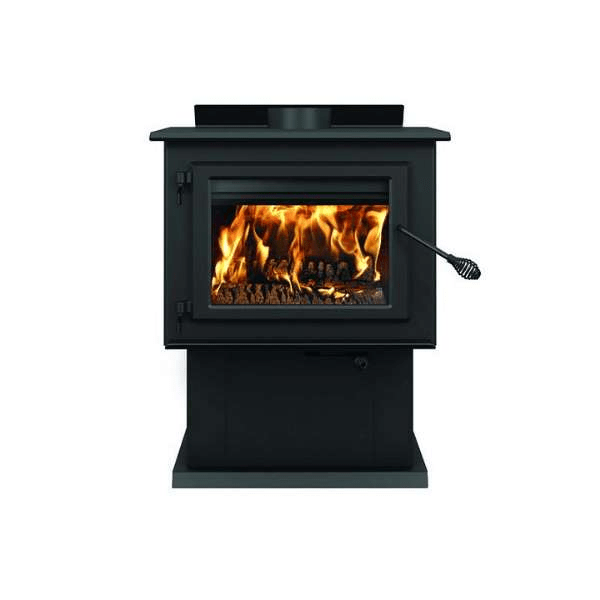

    FW3500 Century Heating: The Perfect Wood Stove For Big Rooms & Harsh Climates

    Extra-large and EPA certified the Century Heating FW3500 wood stove is perfect for large spaces and harsh climates. Featuring a C-Cast heat shield for durability, a cast iron door, ceramic glass, and a non-catalytic combustion system, this stove is designed and made in Canada. Ash lip, air intake damper, and rear air deflector are included.

    Century Wood Burning Fireplace Features:

    • Extra-large firebox, ideal for large spaces and harsh climates
    • Included: pedestal, ash lip, air intake damper and rear air deflector
    • C-Cast heat shield for added durability
    • Cast iron door and ceramic glass
    • EPA certified at 1.32 g/h
    • Non-catalytic combustion system
    • Designed and made in Canada
    • Firebox lined with refractory bricks for better heat distribution
    • Optimum efficiency : 77 %
    • Average particulate emissions rate : 1.32 g/h
    • Steel thickness – top : 5/16"
    • High-efficiency certified appliance : Yes, EPA 2020 approved
    • Approved for a mobile home installation
    • Recommended heating area-ft² : 1,000 - 2,700

    OPTIONS: 100 CFM blower, thermodisc, ash drawer, firescreen, fresh air intake kit, fresh air intake register and insulated flex pipe for fresh air intake.

    Century Cast Iron Wood Stove Specifications:

    Appliance Performance
    Fuel type Dry cordwood
    Recommended heating area 1,000 - 2,700 ft²
    Overall firebox volume 3.5 ft³
    EPA loading volume 2.84 ft³
    Maximum burn time 10 h
    Maximum heat output-dry cordwood 110,000 BTU/h (32.2 kW)
    Minimum overall heat output rate 18,200 BTU/h (5.3 kW)
    Maximum overall heat output rate 49,500 BTU/h (14.5 kW)
    Average overall efficiency-dry cordwood (HHV) 71%
    Average overall efficiency-dry cordwood (LHV) 76%
    Optimum efficiency 77%
    Optimum heat transfer efficiency 76%
    Average particulate emission rate 1.32 g/h
    Average CO 92 g/h

    General Features
    Alcove installation approved Yes
    Mobile home approved Yes, with fresh air intake
    Premium quality blower included (CFM) Optional
    Certified according to applicable standards CAN/USA accredited laboratory
    Combustion technology Non-catalytic
    Stainless-steel secondary-air system Yes
    Flue outlet diameter 6"
    Chimney diameter 6"
    Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
    Minimum chimney height 12"
    Overall dimension (Width) 28 1/8"
    Overall dimension (Depth) 31 1/4"
    Overall dimension (Height) 35 3/4"
    Door type Single, glass with cast iron frame
    Door opening size (Width) 19"
    Door opening size (Height) 9 7/8"
    Glass type Ceramic glass
    Glass surface - W x H 16 5/8" x 11 3/4"
    Firebox size (Width) 22 7/8"
    Firebox size (Height) 12 7/8"
    Firebox size (Depth) 20 1/8"
    Maximum log length 22" (16" recommended)
    Log positioning Loading over width and over depth
    Baffle type High quality vermiculite
    High-efficiency certified appliance Yes
    Canadian Standard (emissions) CSA B415.1-10
    USA Standard (emissions) EPA
    Canadian Standard (safety) ULC S627
    USA Standard (safety) UL 1482, UL 737
    Steel thickness-body 3/16"
    Steel thickness-top 5/16"
    Warranty Limited 5 years
    Shipping weight 451 lb (205 kg)



    Clearance Requirements:

    Single wall pipe Double wall pipe
    Clearances - Back wall 14 1/2" 7 1/2"
    Clearances - Side wall 20" 20"
    Clearances - Corner 12" 10"
    Clearances - Base of the unit to ceiling ** 84" 84"

    Century Mini Wood Stove Manual:

    Click Here for Operations and Installation Manual

    FW3500 Century Wood Burning Stove Dimensions:

    Click Here for Spec Sheet
