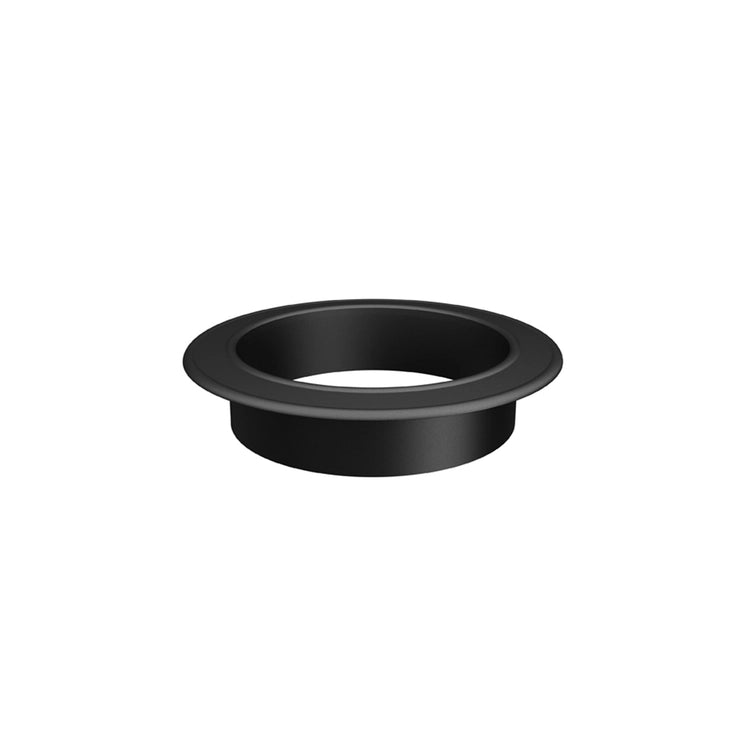

7" Single Wall Stove Pipe Masonry Tile Connector Features
- Premium 22 Gauge Steel Construction: Engineered with heavy-duty 22 gauge steel for superior durability and strength, exceeding standard 24 gauge alternatives commonly found in the market.
- Professional Welded Assembly: Features fully welded seams rather than clip-on connections, providing a cleaner appearance and significantly sturdier assembly that resists separation and maintains structural integrity over time.
- Masonry Chimney Connection: Specifically designed to connect 7" stove pipe to masonry tile thimbles, facilitating safe and secure installations when connecting wood stoves or solid fuel appliances to existing masonry chimneys.
- Enhanced Heat Radiation: Single wall design allows maximum heat transfer into the living space, improving heating efficiency and providing more warmth from your wood burning appliance compared to double wall alternatives.
- Limited Lifetime Warranty: Backed by a comprehensive limited lifetime warranty, providing long-term protection and peace of mind for your heating system investment.
- Professional Grade Quality: Superior craftsmanship ensures a tight, secure fit that minimizes air leaks and maintains optimal draft performance for efficient wood stove operation.
- Easy Installation: Designed for straightforward connection between stove pipe sections and masonry thimble openings, simplifying installation while maintaining safety standards.
- Durable Black Finish: Features a matte black coating that provides an attractive appearance while protecting against rust and corrosion in normal operating conditions.
7" Single Wall Stove Pipe Masonry Tile Connector Specs
| Product Name | 7" Single Wall Stove Pipe Masonry Tile Connector |
| Model Number | SP00236 |
| Pipe Diameter | 7 inches |
| Material | Premium Steel |
| Gauge | 22 gauge |
| Construction Type | Welded seams |
| Wall Type | Single wall |
| Finish | Matte black coating |
| Application | Connects 7" stove pipe to masonry tile |
| Fuel Type Compatibility | Wood burning and solid fuel appliances |
| Clearance to Combustibles | 18 inches minimum (unshielded single wall standard) |
| Warranty | Limited lifetime warranty |
7" Single Wall Stove Pipe Masonry Tile Connector FAQ
What is the purpose of this masonry tile connector?
This connector is specifically designed to create a secure connection between your 7" single wall stove pipe and a masonry chimney tile or thimble. It facilitates the transition from your wood stove or solid fuel appliance to an existing masonry chimney system, ensuring proper venting of combustion gases while maintaining safe clearances.
How does 22 gauge steel compare to standard 24 gauge stove pipe?
The 22 gauge steel used in this connector is thicker and more durable than standard 24 gauge alternatives. This heavier gauge provides superior structural strength, better heat retention, improved longevity, and greater resistance to warping or damage during installation and use. The welded construction further enhances durability compared to clip-on style connections.
What clearance to combustibles is required for this single wall connector?
Single wall stove pipe requires a minimum clearance of 18 inches from combustible materials such as walls, ceilings, floors, and furniture. This is a standard safety requirement to prevent heat transfer that could cause ignition of nearby combustible surfaces. Always follow NFPA standards and local building codes for your installation.
Can this connector be used with double wall stove pipe?
This connector is designed for use with single wall 7" stove pipe systems. If you're transitioning from double wall pipe to a masonry chimney, you may need specific adapter components designed for double wall systems. Consult with a certified chimney professional to ensure proper component selection for mixed-wall installations.
How do I properly install this connector to a masonry thimble?
The connector should be inserted through the masonry thimble opening, ensuring the crimped end is oriented correctly for proper creosote drainage (typically crimped end pointing toward the stove). Secure all connections with a minimum of three sheet metal screws per joint. The thimble must not extend beyond the inner surface of the flue liner, and proper refractory cement should be used to seal the thimble connection within the masonry chimney.
What maintenance is required for this stove pipe connector?
Regular inspection and cleaning are essential for safe operation. Inspect the connector annually (or more frequently with heavy use) for signs of corrosion, warping, or creosote buildup. Clean the interior surfaces during your regular chimney cleaning schedule, typically at least once per year or when creosote accumulation reaches 1/4 inch thickness. Replace any damaged components immediately.
Is this connector compatible with all types of masonry chimneys?
This connector is designed to work with standard 7" masonry tile openings typically found in residential masonry chimneys. Ensure your masonry chimney has proper clay tile lining and that the thimble opening is appropriate for a 7" connection. The masonry chimney should be in good condition with no cracks or deterioration, and must meet local building codes and NFPA standards for safe operation.
What does the limited lifetime warranty cover?
The limited lifetime warranty provides long-term protection against manufacturing defects in materials and workmanship under normal use conditions. This warranty demonstrates the manufacturer's confidence in the quality and durability of their premium 22 gauge welded construction. For specific warranty terms, exclusions, and claim procedures, contact the manufacturer directly or consult the warranty documentation included with your purchase.
CAST IRON CONNECTOR FOR TILE BLACK SINGLE WALL - 7"Ø Manual:
