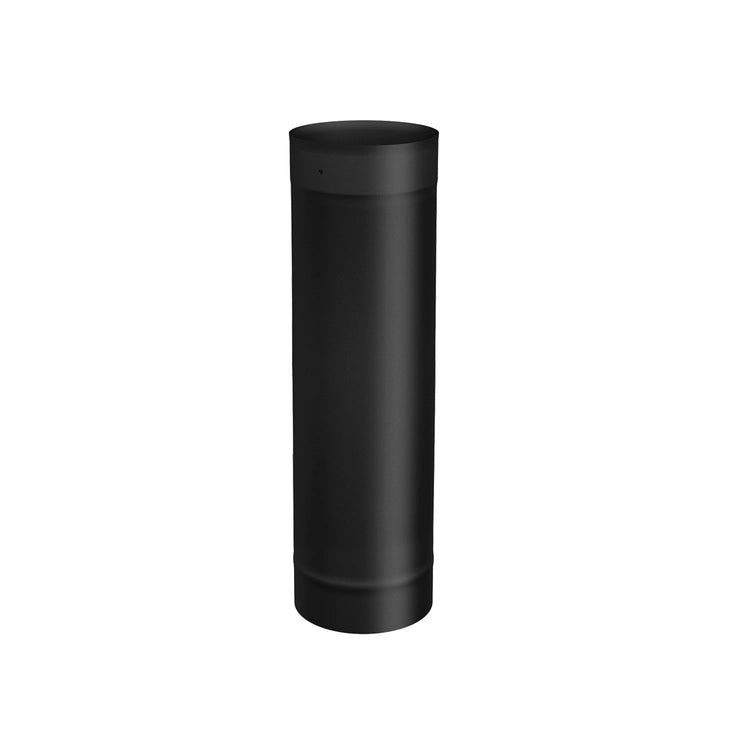

BLACK SINGLE WALL PIPE - 7"Ø X 12"L SP00002

The gauge number refers to the thickness of the steel - the lower the number, the thicker and more durable the material. This SP00002 pipe features premium 22 gauge steel, which is significantly thicker and more robust than the standard 24 gauge pipe commonly found at big-box retailers. The 22 gauge construction provides better heat resistance, longer lifespan, and superior structural integrity. Additionally, this pipe uses welded seams rather than clip-on connections, ensuring a sturdier assembly that won't separate or leak over time.

Single wall stove pipe must always be installed with the crimped male end pointing toward the stove. This ensures that any condensation or creosote buildup inside the pipe flows harmlessly back down into the stove rather than leaking out into your home. When connecting sections, the female (non-crimped) end with pre-drilled holes should face away from the stove. This male-end-down configuration is a critical safety requirement for all stove pipe installations.

Single wall stove pipe requires a minimum clearance of 18 inches from all combustible materials, including walls, ceilings, furniture, and other flammable surfaces. This clearance can be reduced by 50% to 9 inches if you install suitable heat shielding either on the pipe itself or on the combustible material. Always verify local building codes and follow your stove manufacturer's installation instructions, as some jurisdictions may have more stringent requirements. Never install single wall pipe inside combustible walls or chimney chases.

No, single wall stove pipe is designed for indoor use only and cannot penetrate ceilings, walls, or be used outdoors. For transitions through ceilings or walls, you must use properly rated insulated chimney pipe (also called Class A chimney pipe) along with appropriate ceiling support boxes, wall thimbles, and other UL-listed components. The single wall pipe connects your stove to the point where it transitions to insulated chimney pipe or enters an existing masonry chimney.

To connect pipe sections, ensure both ends are perfectly round (use a rubber mallet if needed to adjust). Insert the crimped male end into the female end of the adjoining pipe - this will be a tight fit by design for safety. Once connected, use the pre-drilled holes in the female end as a guide to drill 1/8-inch holes through the male end underneath. Secure the connection with at least three sheet metal screws around the circumference. Note that each connection creates a 2-inch overlap, so the effective installed length is 2 inches less than the purchased pipe length.

Yes, this 7-inch single wall stove pipe is compatible with wood stoves, pellet stoves, coal stoves, gas appliances, and oil-burning units that have a 7-inch flue collar. However, always verify your specific appliance's venting requirements in the manufacturer's installation manual, as some appliances may require different venting systems. Pellet stoves and gas appliances may have different clearance requirements or may need special venting components, so consult with a professional installer if you're uncertain about compatibility.

It's normal for new stove pipe to emit a slight odor or minimal smoke during the first few uses as the fume-free finish cures. This is a temporary condition that typically resolves after 2-3 fires. Ensure adequate ventilation during initial operation by opening windows. If excessive smoke or strong odors persist beyond the break-in period, check all connections for proper assembly and ensure your stove is operating correctly with adequate draft. The welded construction and quality finish of this pipe minimize break-in odors compared to lower-quality alternatives.

The limited lifetime warranty covers defects in materials and workmanship for the life of the original purchaser. This includes issues with the welded seams, steel integrity, and manufacturing defects that affect the pipe's performance or safety. The warranty demonstrates the manufacturer's confidence in the premium 22 gauge construction and quality control standards. For specific warranty terms, exclusions, and claim procedures, contact the manufacturer directly. Normal wear from use, damage from improper installation, or modifications to the pipe are typically not covered.
