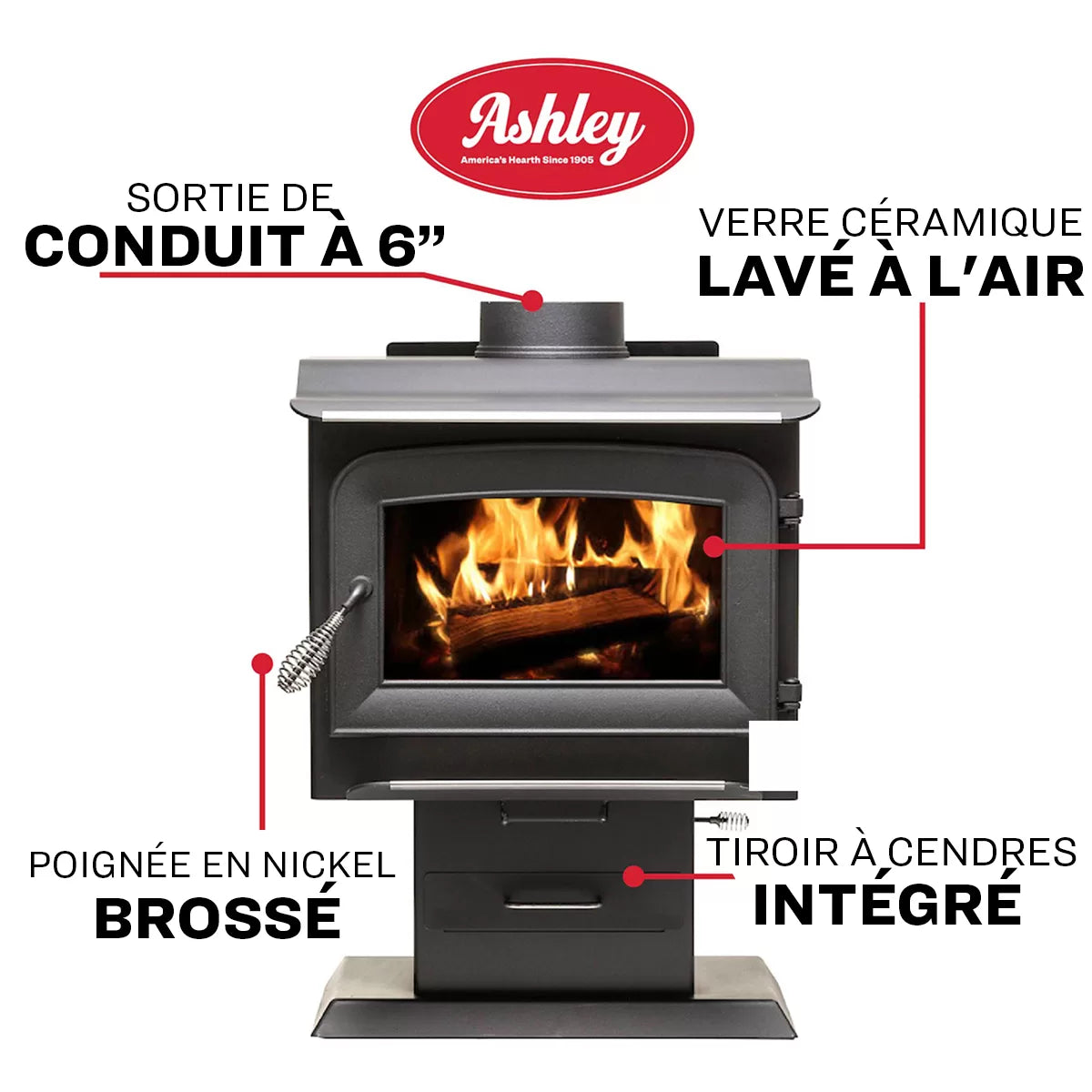

Ashley AW1120E-P 1,200 Sq. Ft. Pedestal Wood Stove Features

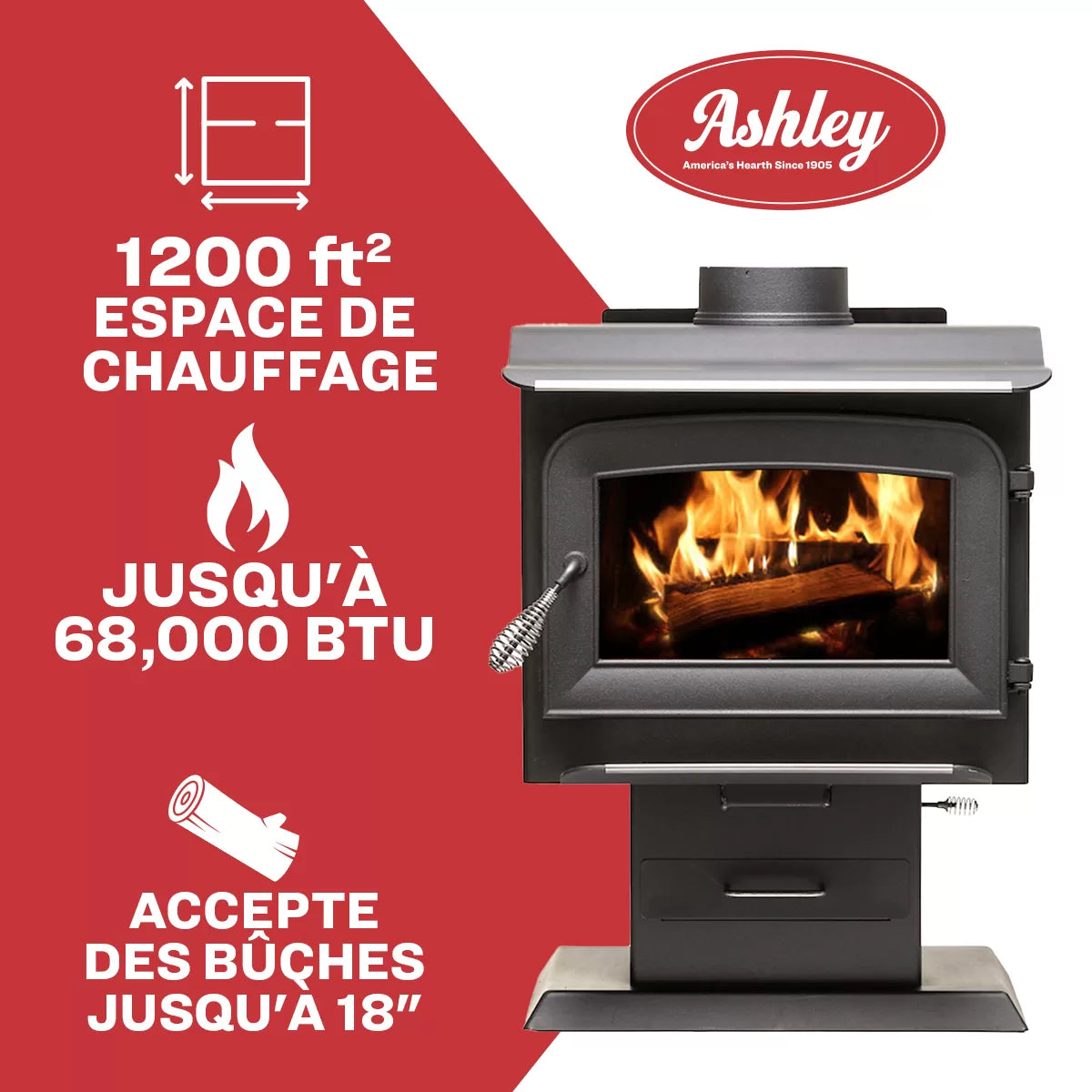

- Powerful 68,000 BTU Heat Output: Delivers up to 68,000 BTUs of clean, radiant warmth, comfortably heating spaces up to 1,200 square feet — ideal for cabins, large rooms, and supplemental whole-home heating.
- Air-Tight Plate Steel Construction: Built from durable plate steel with a charcoal black finish and nickel-pewter trim, this air-tight design maximizes burn efficiency and delivers long-lasting, dependable performance.

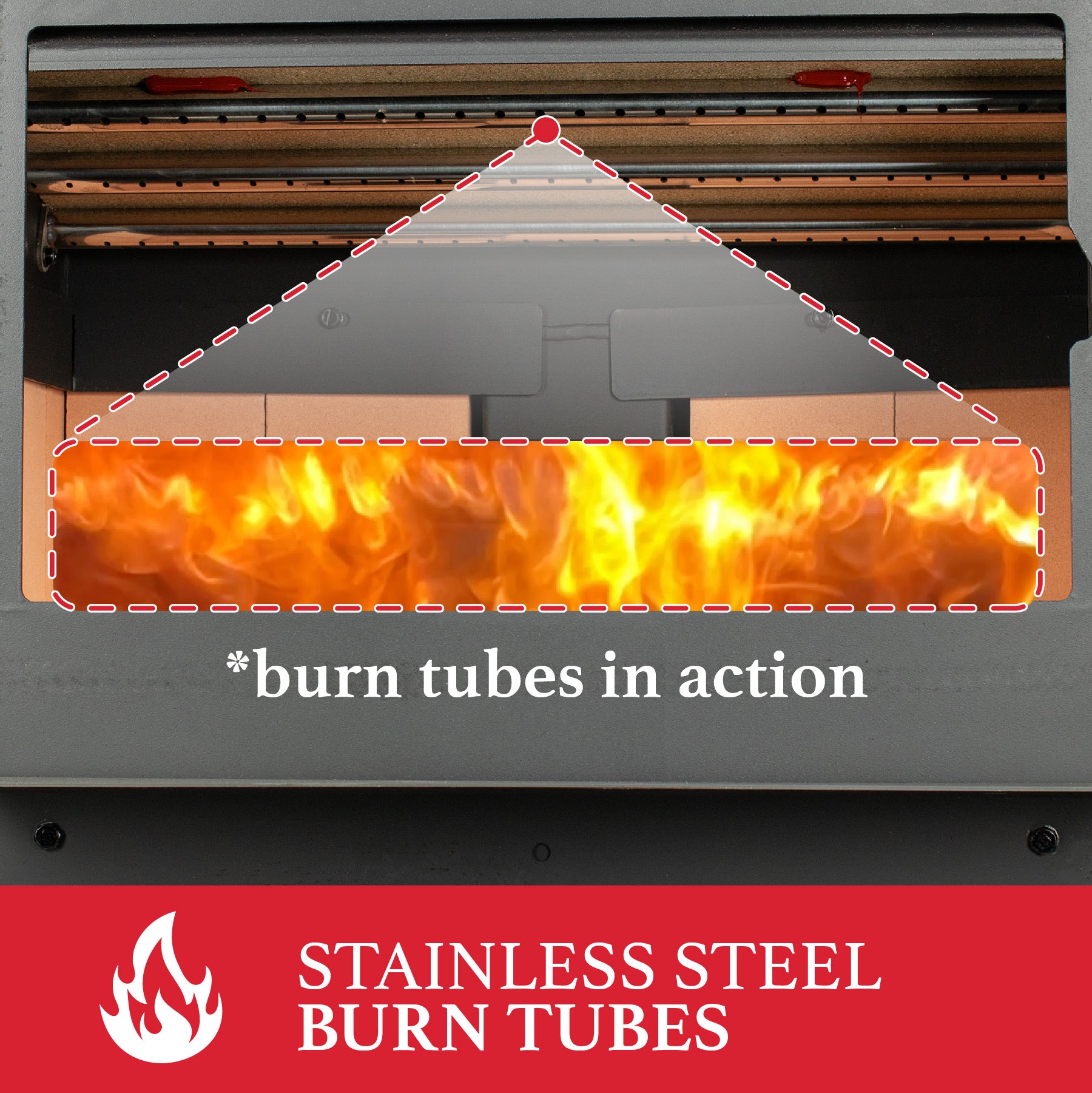

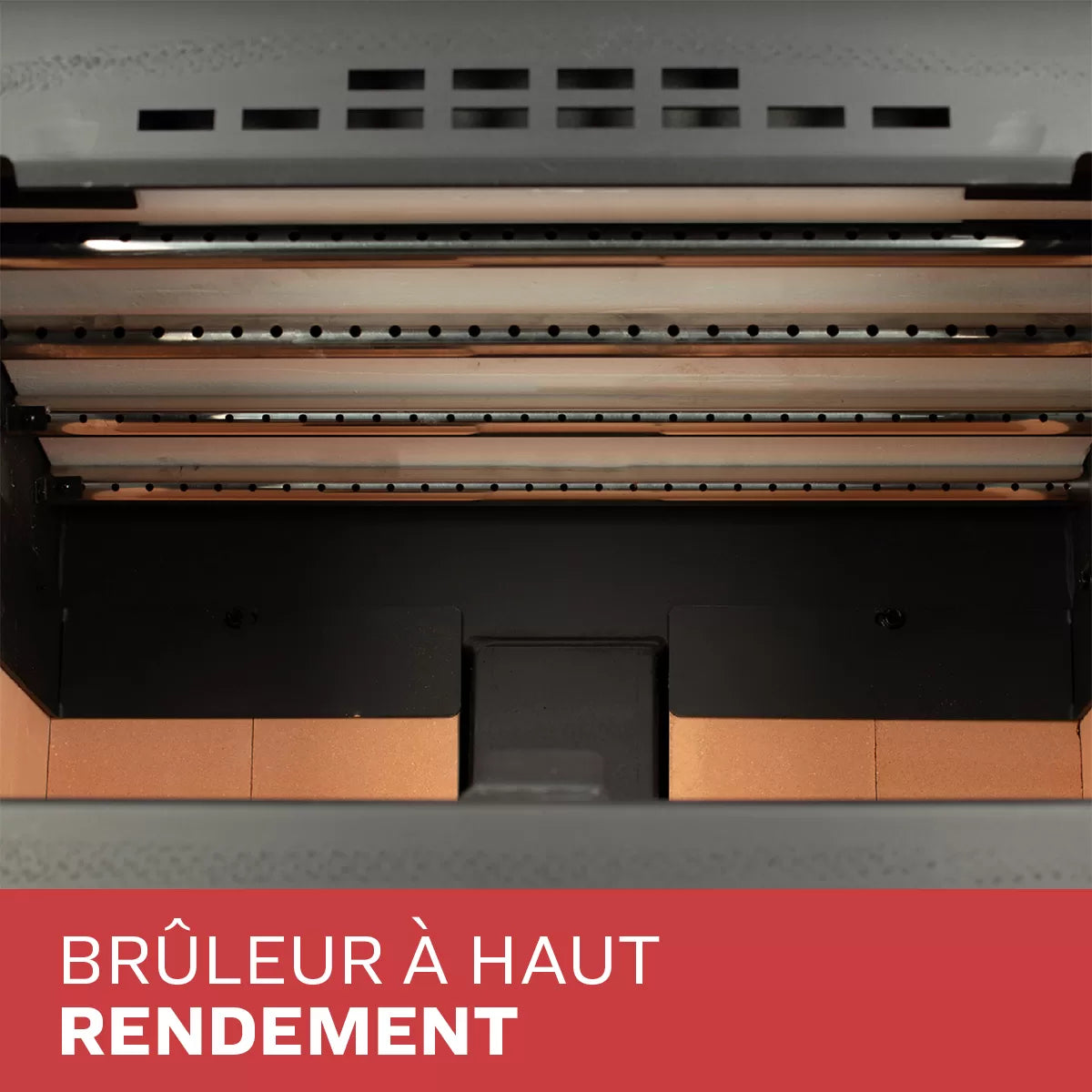

- Non-Catalytic Secondary Burn System: A rear secondary air inlet feeds three ignition tubes above the wood, igniting fire at both the bottom and top of the load to extract maximum energy from every log while reducing emissions.
- 2020 EPA Certified: Meets the stringent EPA "Step 2" 2020 Certification Guidelines while burning cordwood, ensuring a cleaner, more environmentally responsible burn.

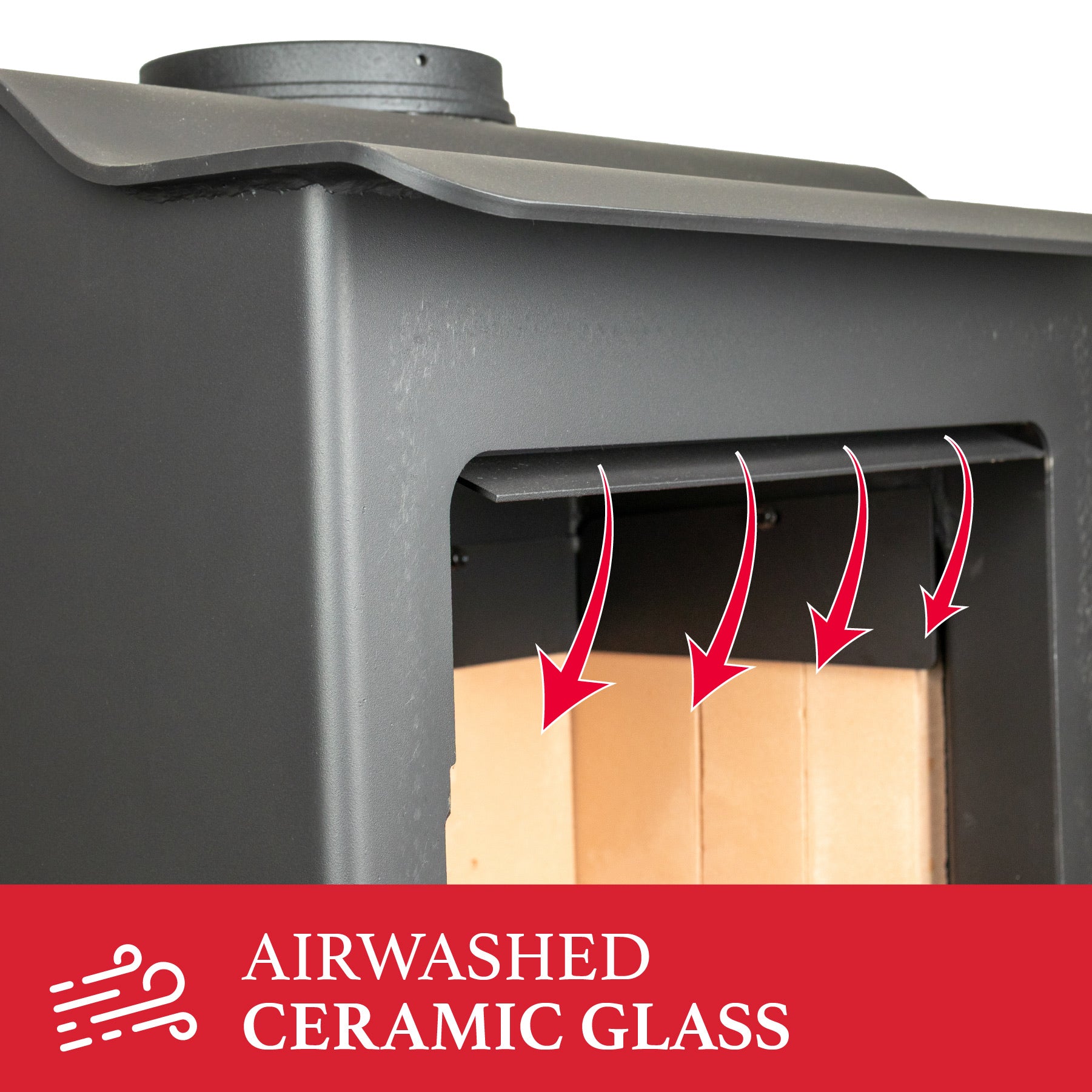

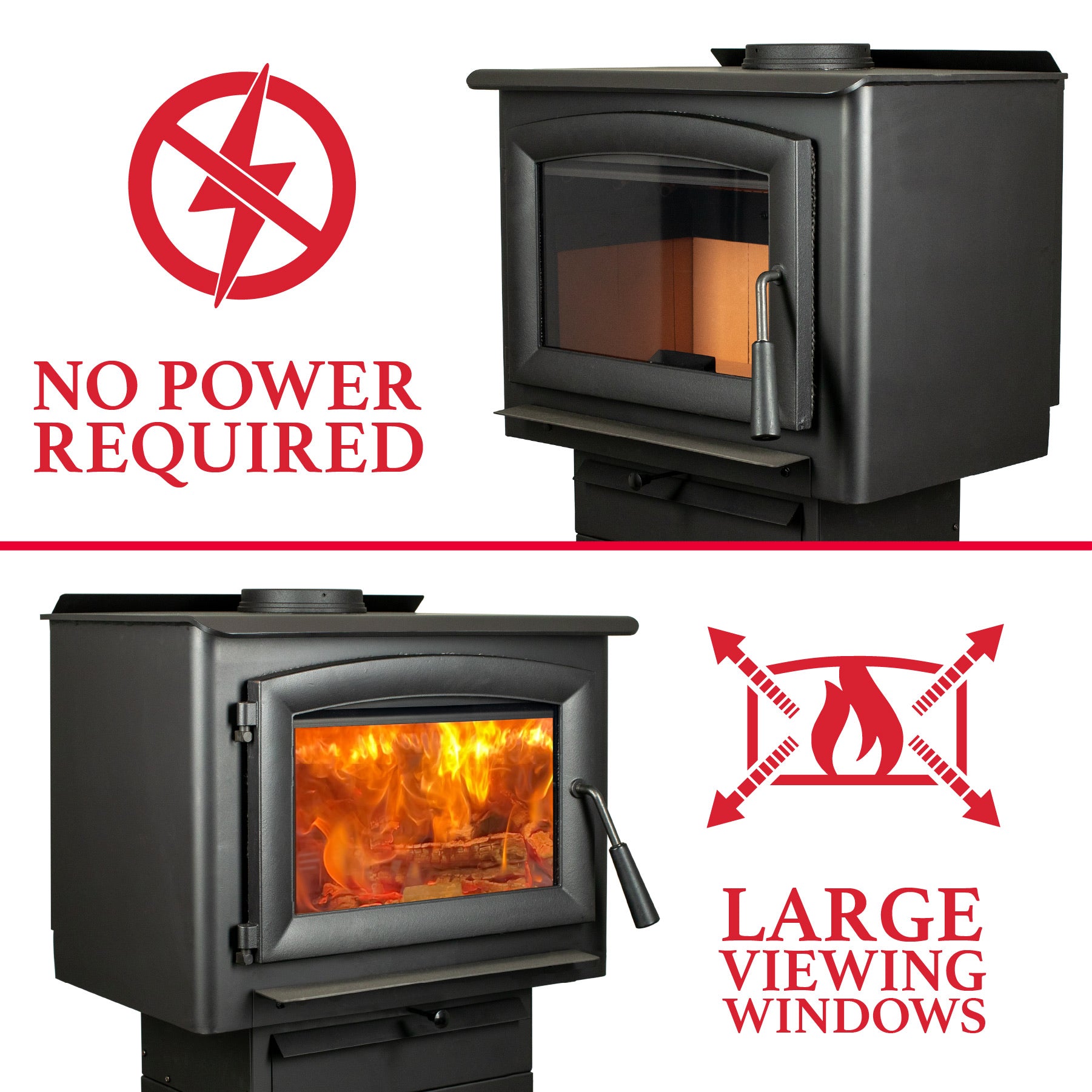

- Air-Washed Ceramic Glass Door: A heavy cast iron door with air-washed ceramic glass keeps the viewing area clear so you can enjoy an unobstructed view of the dancing flames.

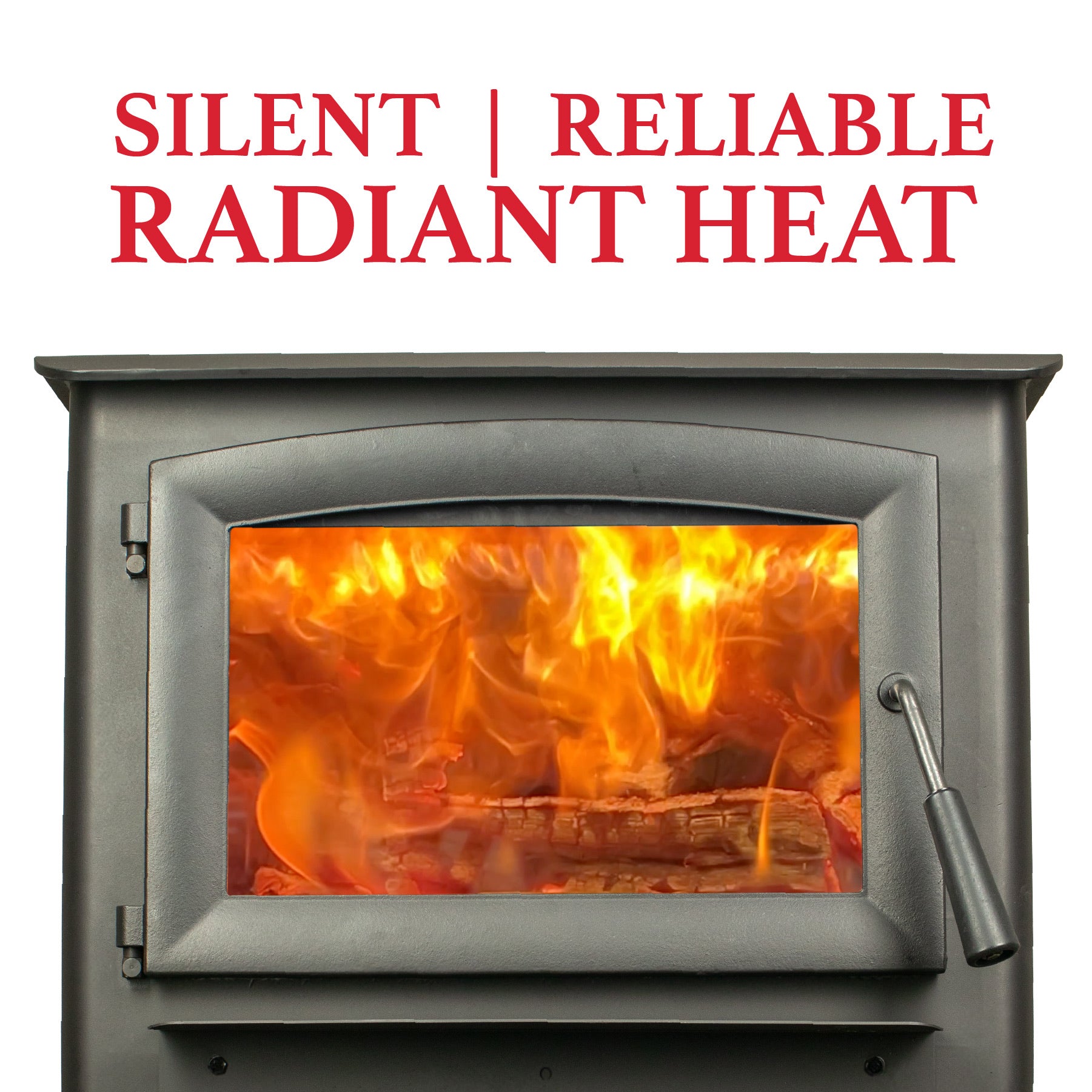

- No Electricity Required: Operates entirely without power, making it a reliable heat source during outages and off-grid living — no blower needed for operation.

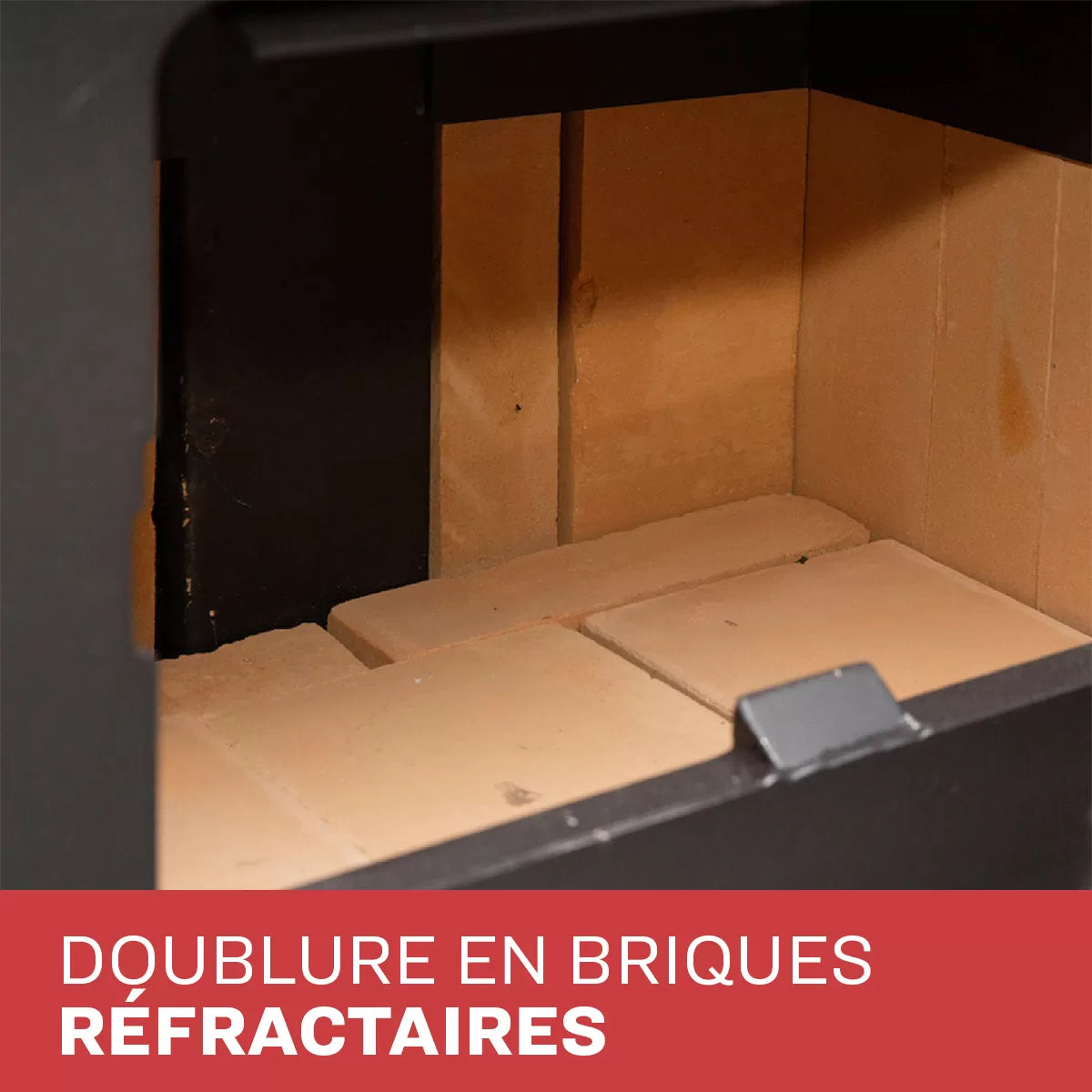

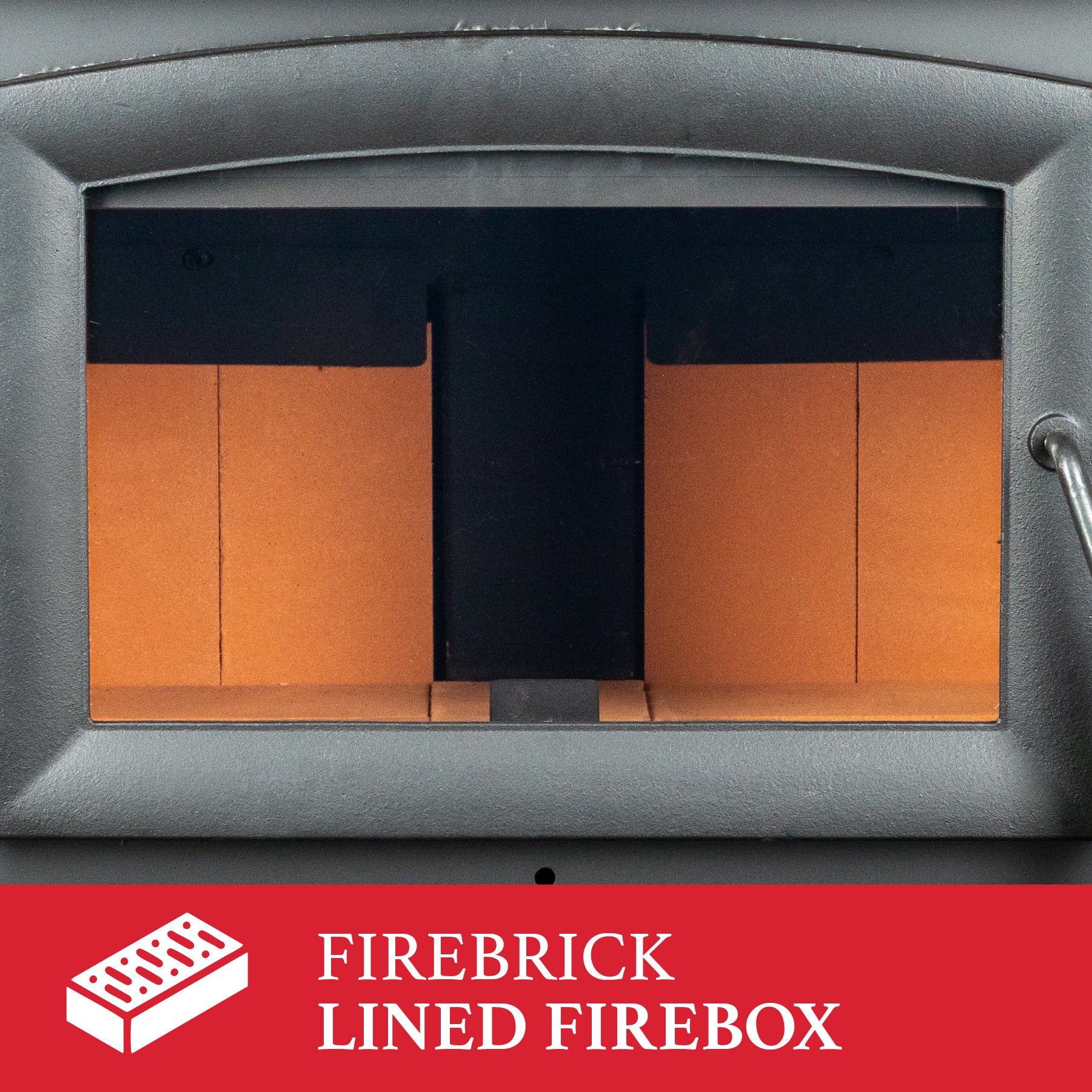

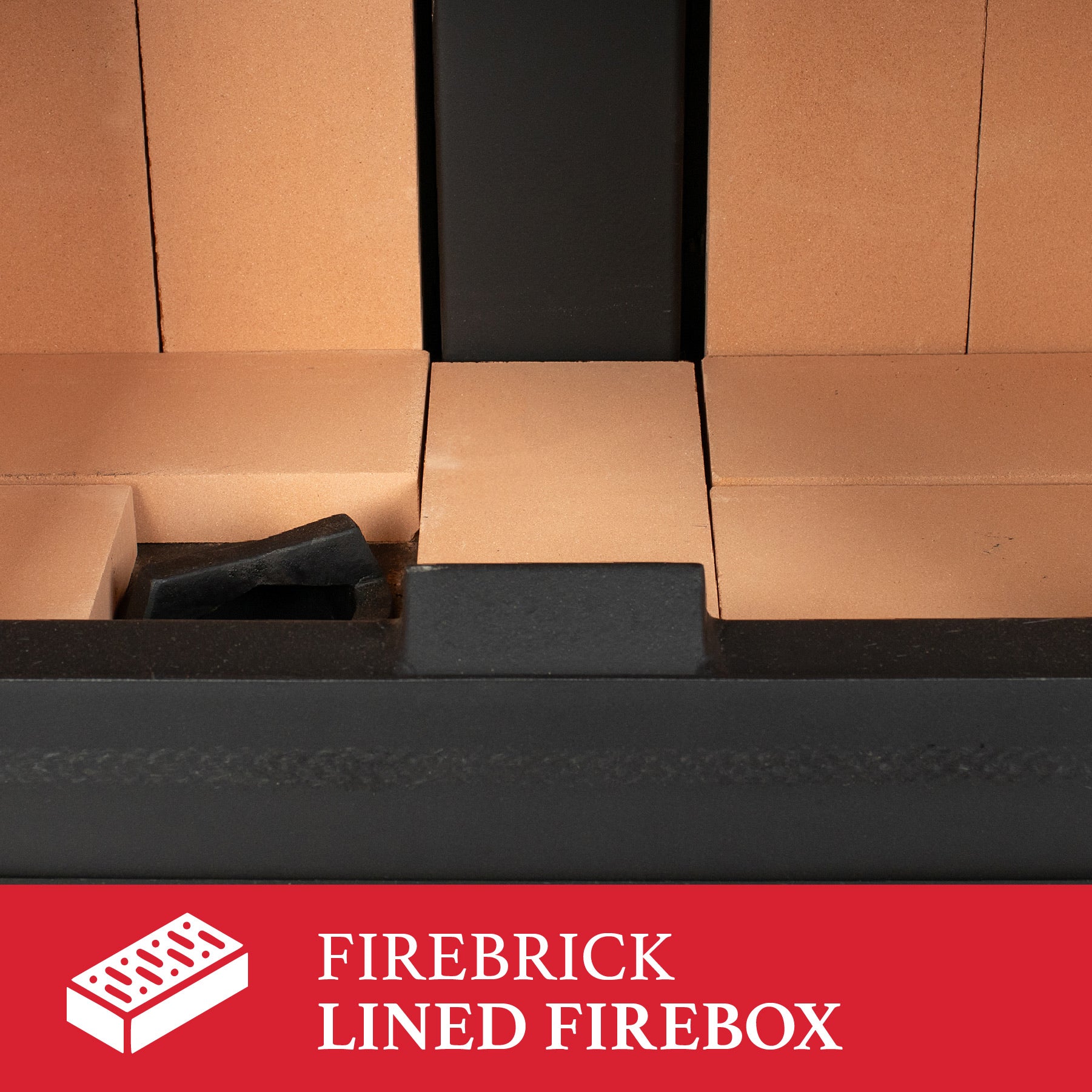

- 1.31 Cubic Foot Firebrick-Lined Firebox: A generously sized firebox lined with firebrick promotes combustion efficiency and extends the life of the stove while accepting logs up to 18" in length.

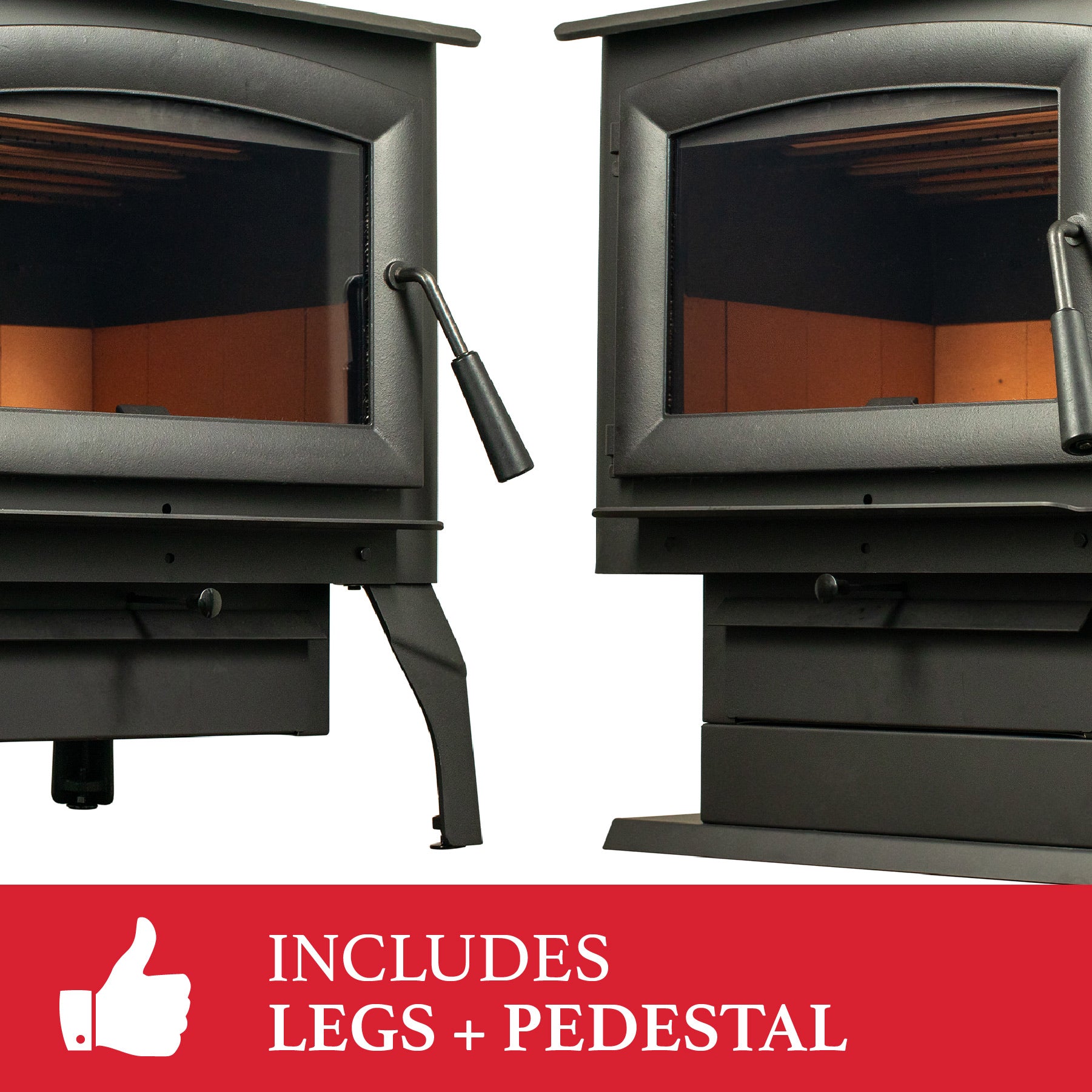

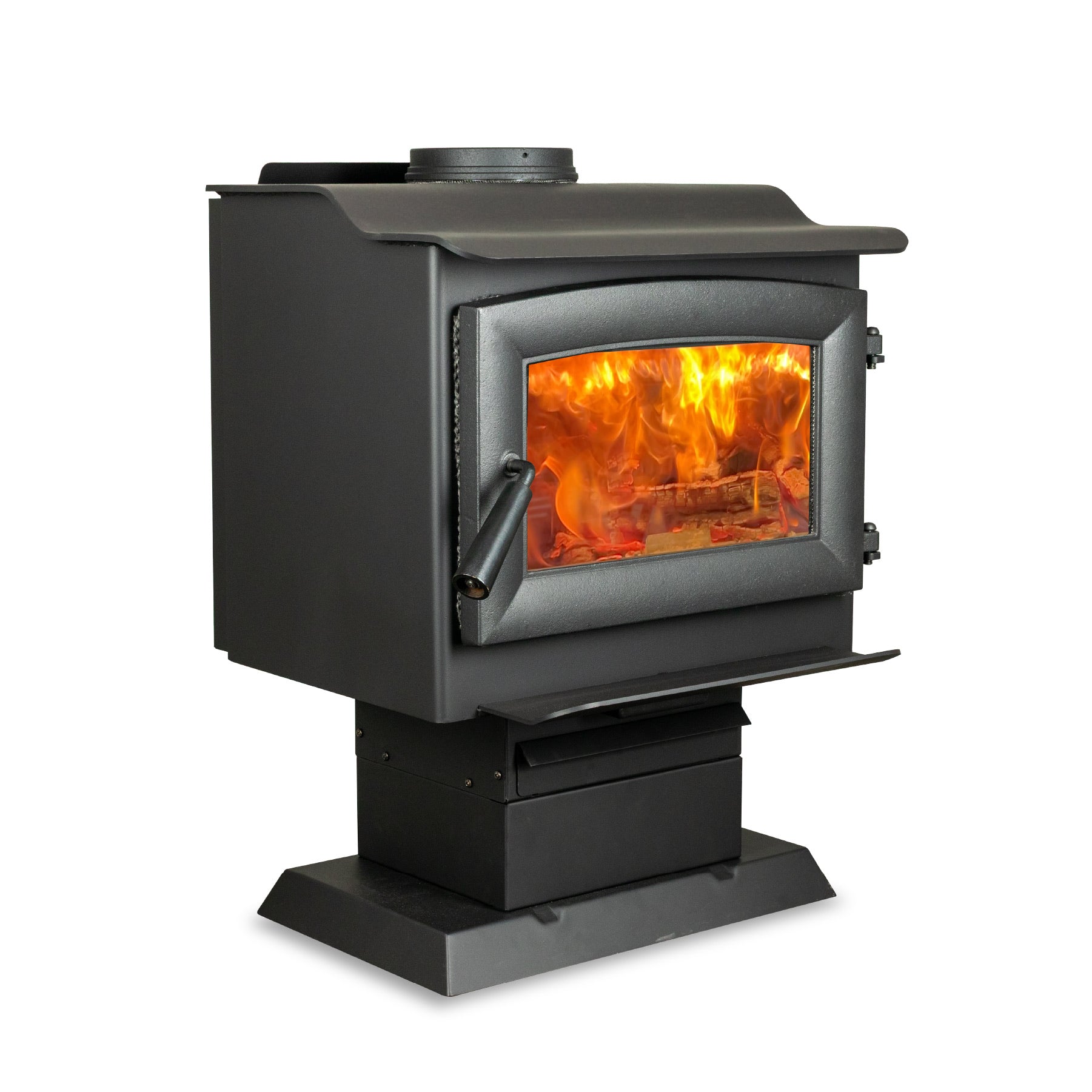

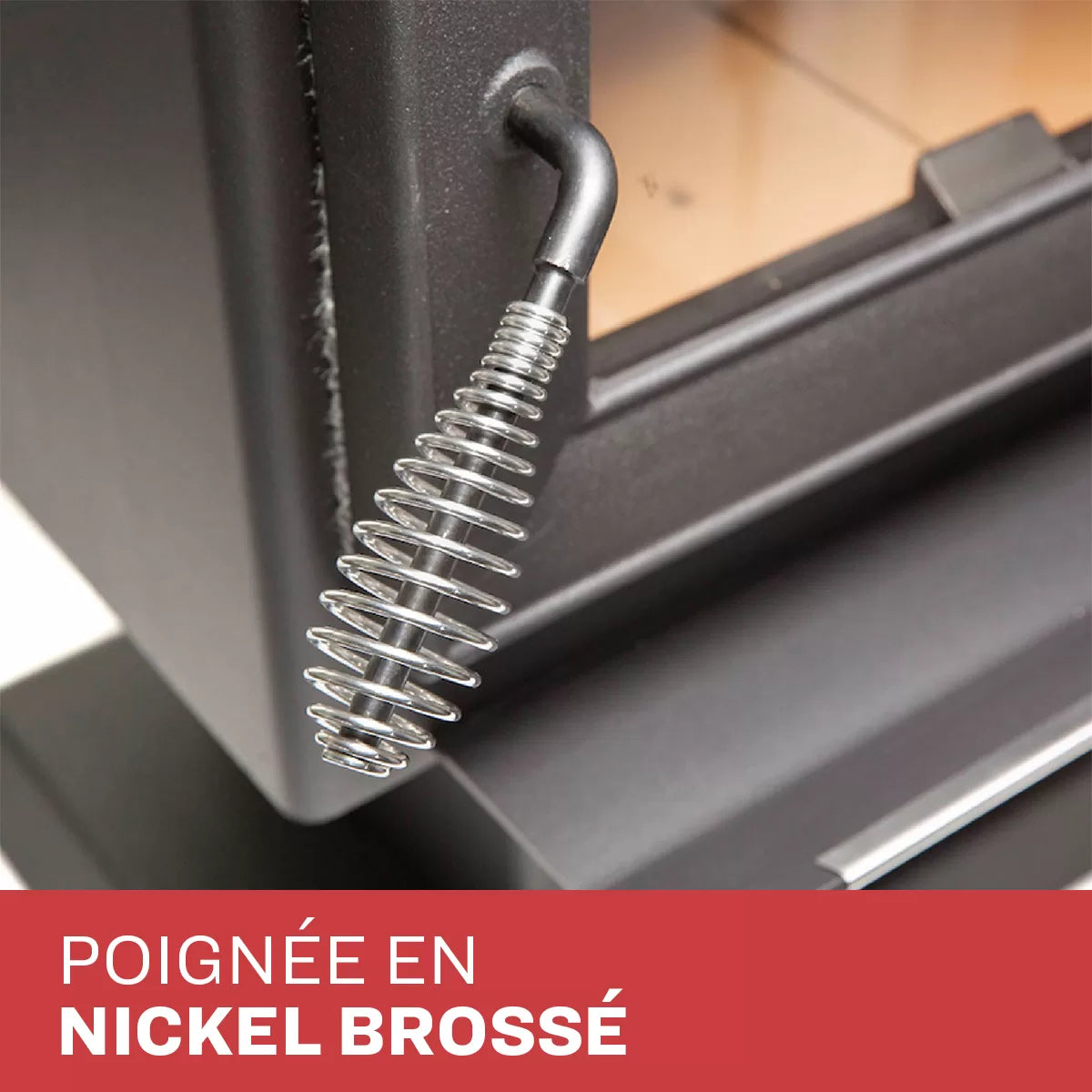

- Elegant Pedestal Base: An included pedestal base with brushed nickel spring door handle adds a refined, classic touch to any living space.

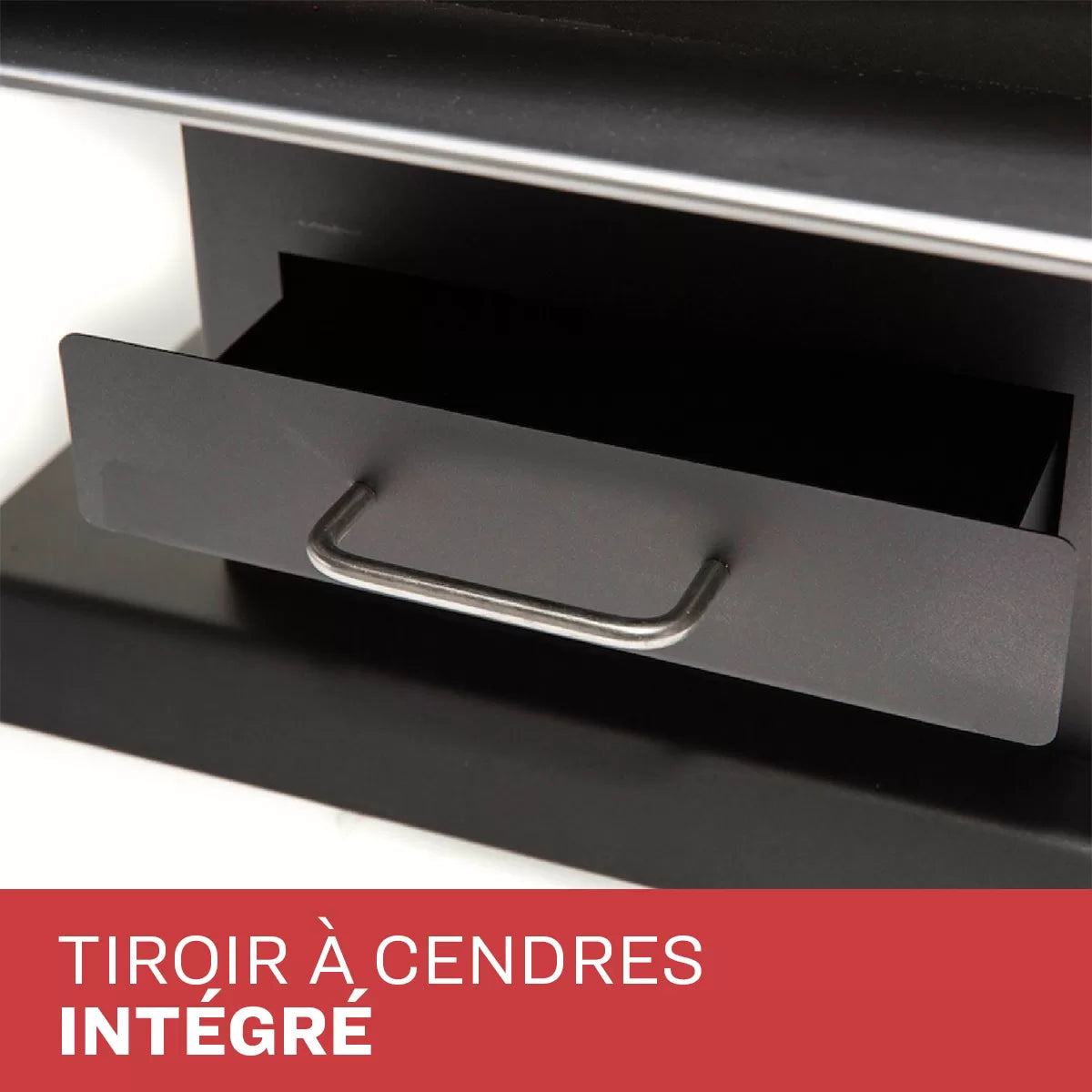

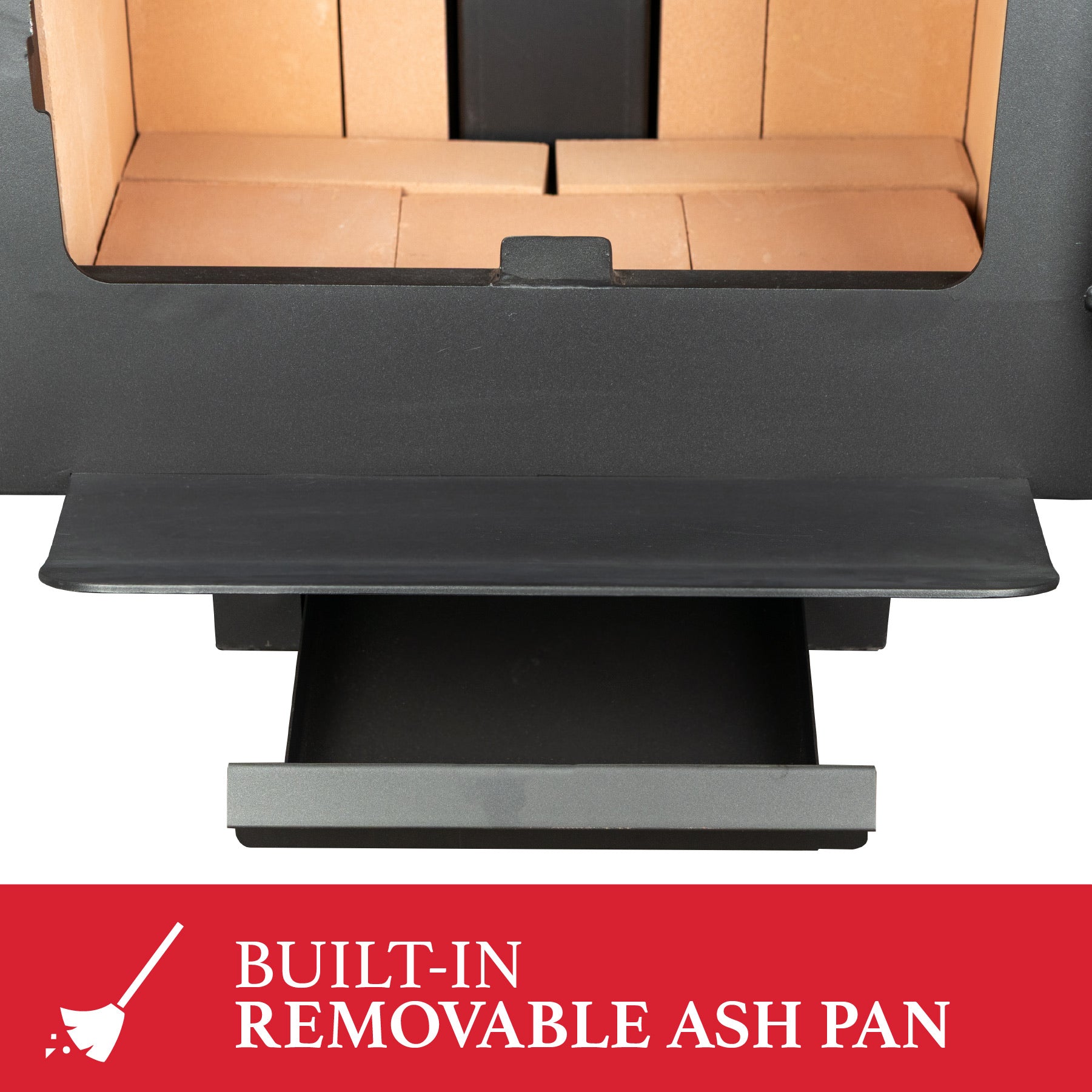

- Integrated Ash Pan: A built-in ash pan with brushed nickel handle makes routine cleanup quick and mess-free.

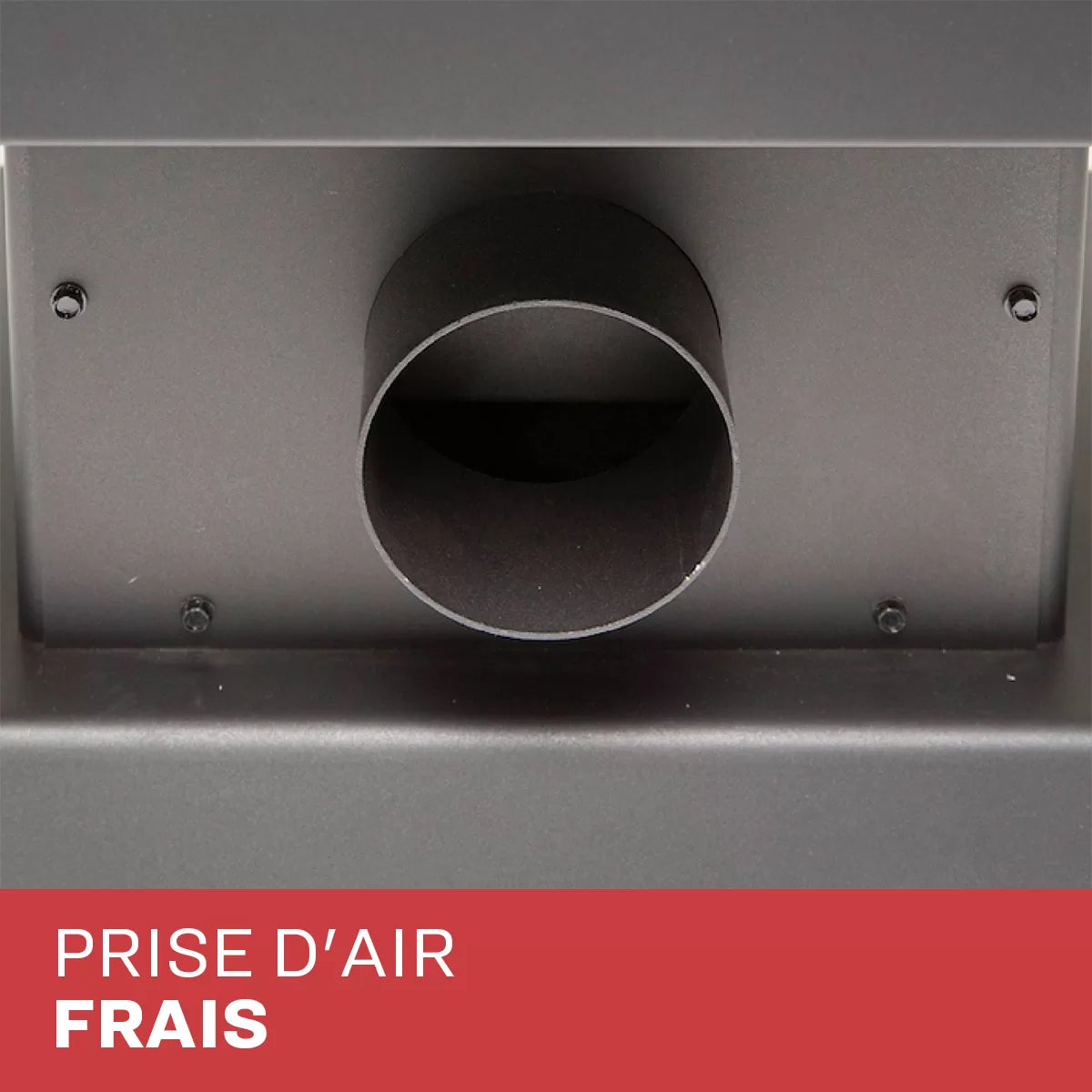

- Mobile Home Approved: Approved for mobile home installation (USA only), expanding your placement options with proper venting and a fresh air kit.
- Direct Replacement Model: Replaces previous Vogelzang models TR001, TR001B, TR001WS, and APS1100, making it an easy upgrade for existing owners.

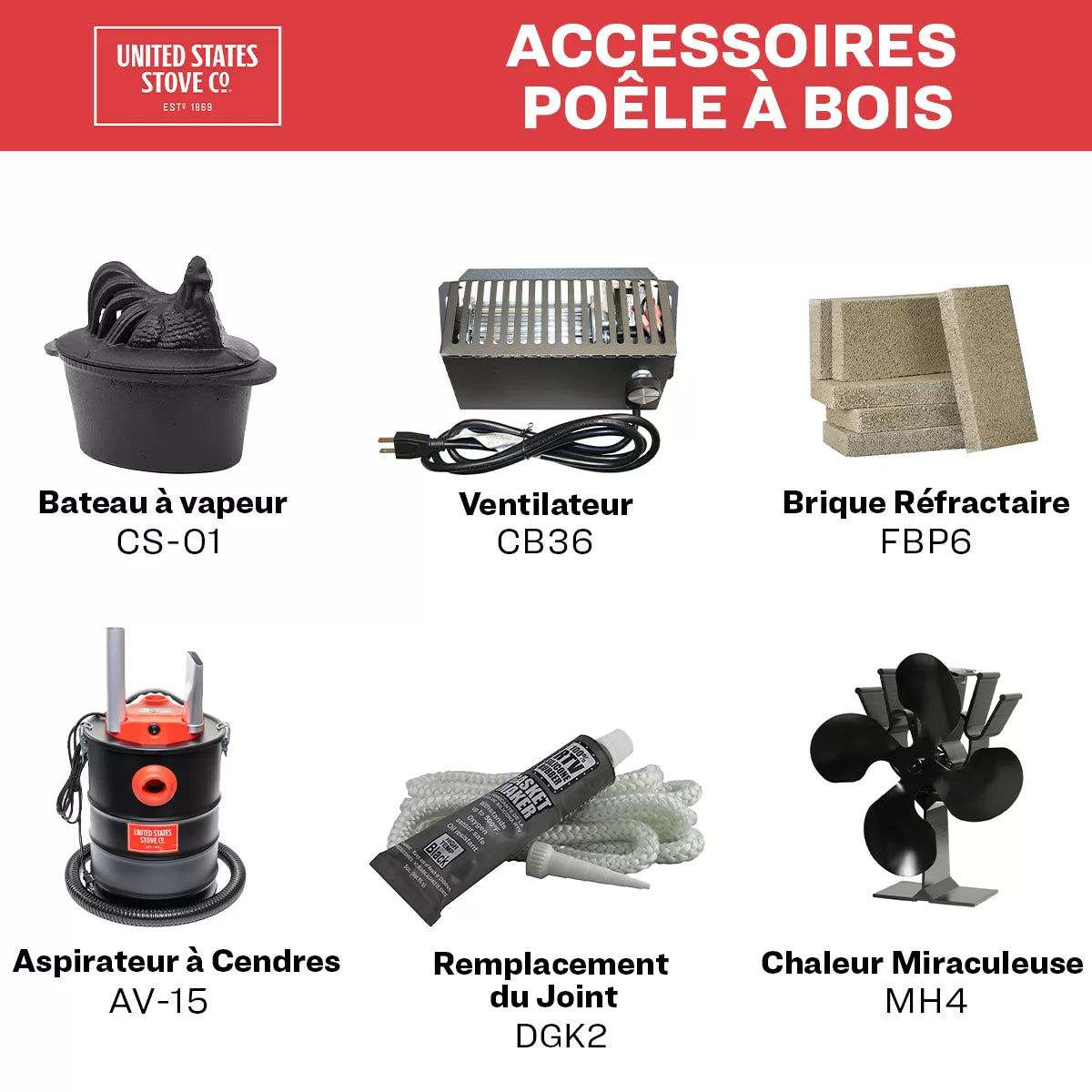

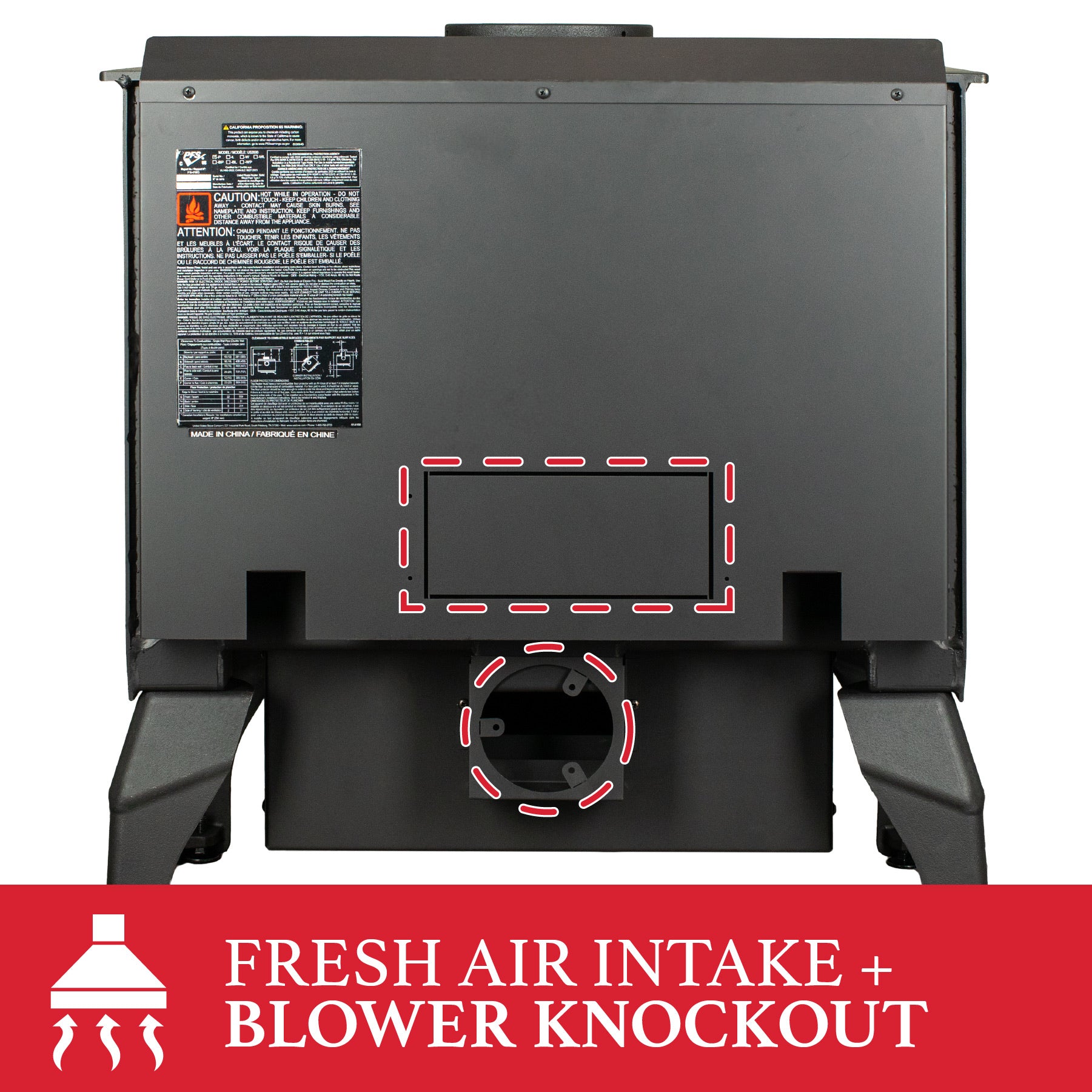

- Optional Blower Compatibility: Accepts an optional blower (model CB36 or B36, sold separately) to help circulate warm air more efficiently throughout your space.
Ashley AW1120E-P 1,200 Sq. Ft. Pedestal Wood Stove Specs
| Model Number | AW1120E-P |
| Collection | Ashley Hearth Wood Stove |
| Stove Type | Freestanding |
| Fuel Type | Wood |
| Heating Area | Up to 1,200 sq. ft. |
| Maximum BTU Output | 68,000 BTUs |
| Efficiency | 68.6% |
| Firebox Capacity | 1.31 cubic feet |
| Firebox Width | 18.29 in |
| Firebox Depth | 11.00 in |
| Firebox Height | 11.68 in |
| Maximum Log Length | 17–18 in |
| Combustion Type | Non-Catalytic Secondary Burn |
| Overall Dimensions (W × D × H) | 22.5 × 21.5 × 29.8 in |
| Shipping Dimensions | 23 × 27 × 25 in |
| Weight | 233 lbs |
| Material | Plate Steel |
| Color / Finish | Metallic Black with Nickel-Pewter Trim |
| Firebrick Lined | Yes |
| Air Wash System | Yes |
| Ash Drawer | Yes |
| Pedestal Base Included | Yes |
| Vent Location | Top |
| Vent Diameter | 6 in |
| Venting Required | Yes (Vented) |
| Ignition System | Manual |
| Blower | Optional (model CB36 or B36, sold separately) |
| Outside Air Kit | Not Included (optional) |
| Electricity Required | No |
| EPA Approved | Yes (2020 "Step 2" Certified) |
| UL Listed | Yes |
| Mobile Home Approved | Yes (USA only) |
| Installation Method | Floor Unit |
| Package Contents | Wood stove, owner's manual, warranty sheet |
| Warranty | Limited Lifetime firebox; 1 Year all other parts; 1 Year electrical parts |
Ashley AW1120E-P 1,200 Sq. Ft. Pedestal Wood Stove FAQ
How large of a space can this wood stove heat?
The Ashley AW1120E-P produces up to 68,000 BTUs and is rated to heat spaces up to 1,200 square feet, making it well suited for cabins, large rooms, and supplemental whole-home heating. Actual performance varies with home insulation, climate, layout, and wood quality.

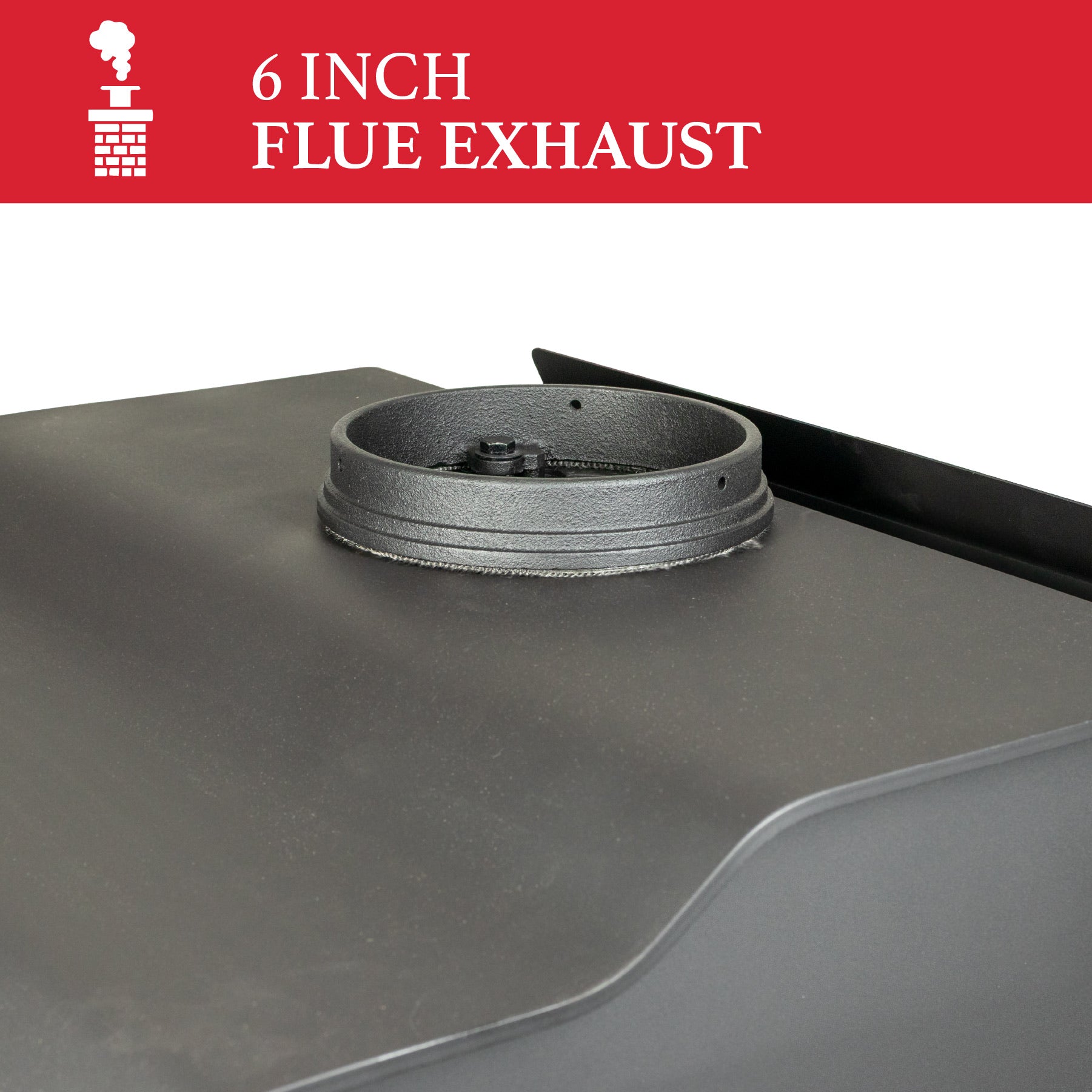

What size flue pipe does this stove require?
The flue collar is designed to accept 6" flue pipe, with a top vent location. Note that the venting cannot be converted from top to back or vice versa, so plan your chimney installation accordingly.
Does this stove require electricity to operate?
No. The AW1120E-P operates entirely without electricity, making it a dependable heat source during power outages and for off-grid living. A blower is optional and not required for operation.
Is this wood stove approved for mobile home installation?
Yes, this stove is mobile home approved for the USA only. When installed in a mobile home, a fresh air kit is required. The owner's manual cover indicates mobile home approval status.

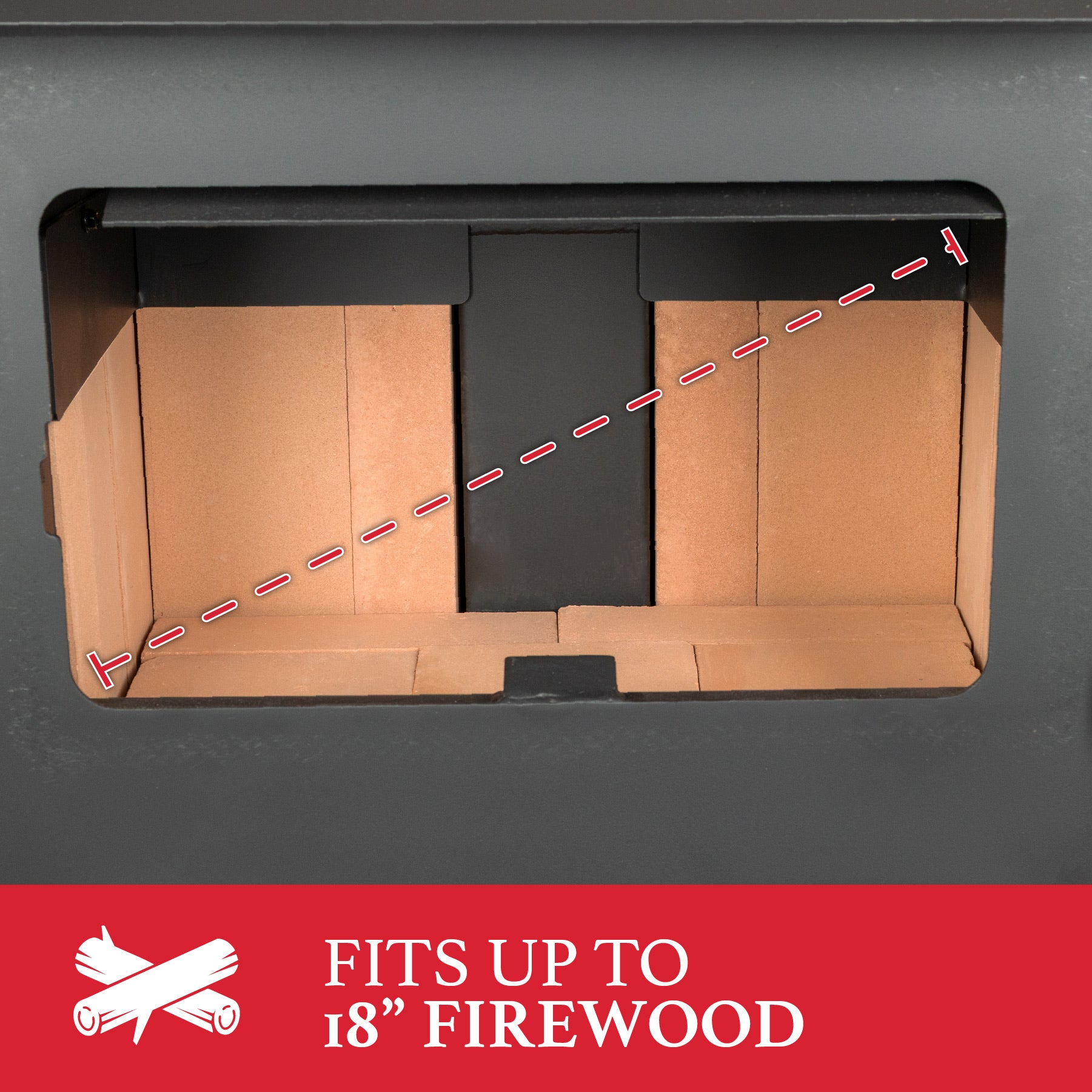

What length of logs can I burn in this stove?
The firebox accepts logs up to approximately 17–18 inches in length. For best performance, burn properly seasoned cordwood with a moisture content between 15% and 20%, splitting wood before checking moisture for accuracy.
Can I add a flue damper to the chimney pipe?
With an EPA-certified stove, a manual solid flue damper cannot be used. If you want more control for a slower burn, US Stove recommends a Barometric Draft Regulator instead. Adequate chimney draft is the single most important factor in proper stove performance.
What is the warranty on this wood stove?
The AW1120E-P is backed by a Limited Lifetime warranty on the firebox, plus a 1-Year warranty on all other parts and a 1-Year warranty on electrical parts. The stove is also UL listed for safety.
Which older models does this stove replace?
The AW1120E-P is a direct replacement for the previous Vogelzang models TR001, TR001B, TR001WS, and APS1100 wood stoves, making it a straightforward upgrade for existing owners. It ships on a pallet via LTL freight carrier.
