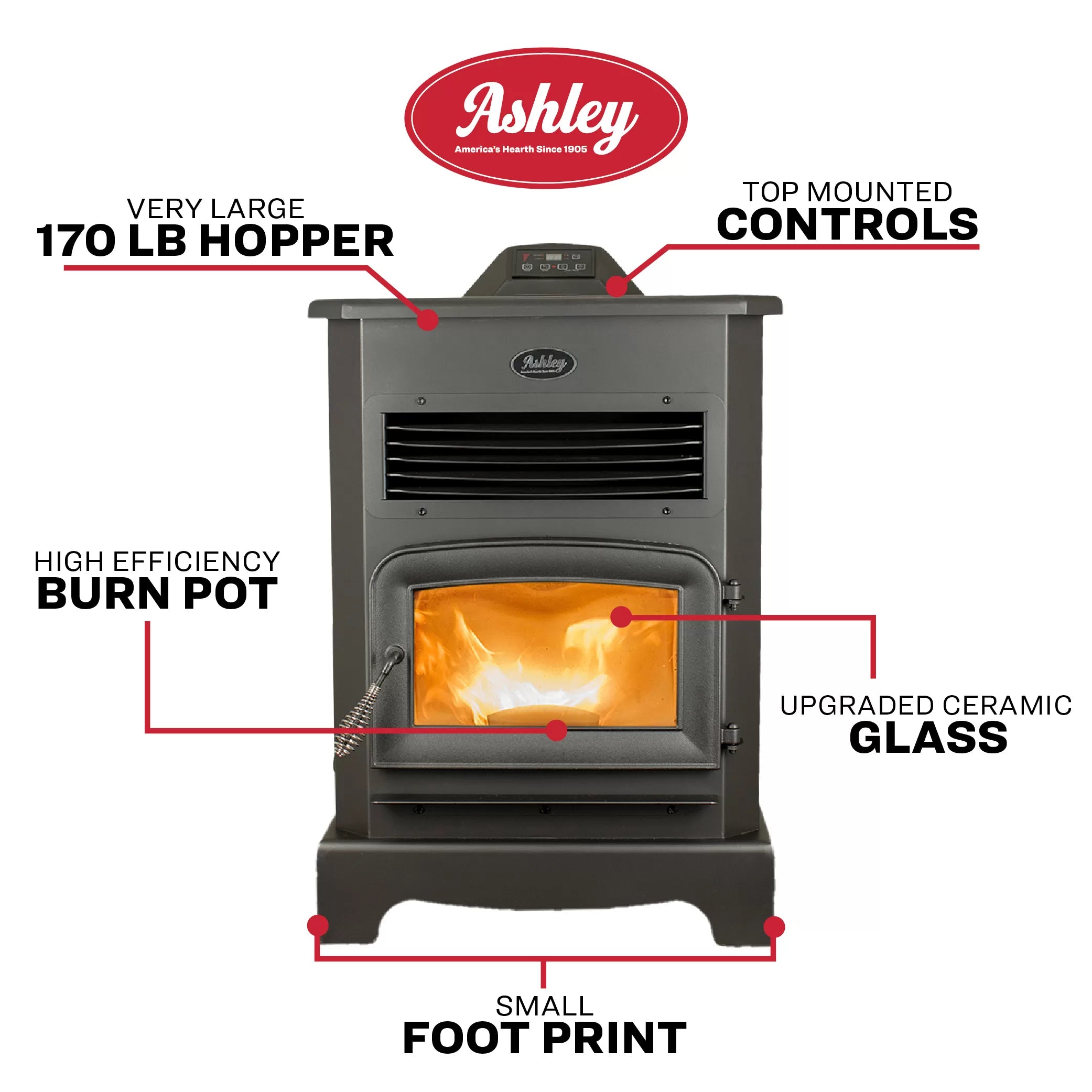

Ashley AP5622 Pellet Stove Features

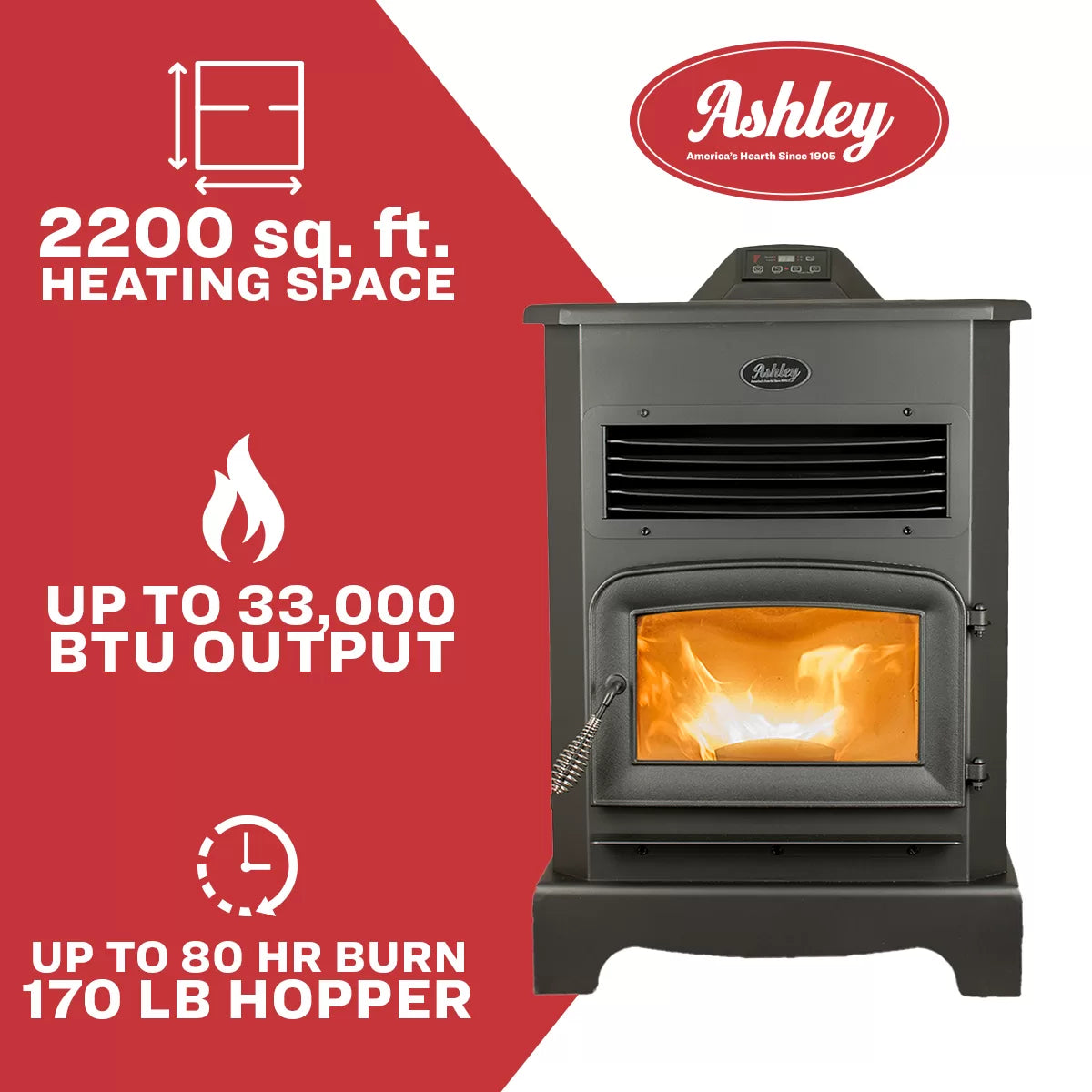

- Powerful Whole-Home Heating: Delivers reliable warmth across living spaces up to 2,500 sq. ft., making it an ideal primary or supplemental heat source for medium to large homes, cabins, or open-concept layouts.

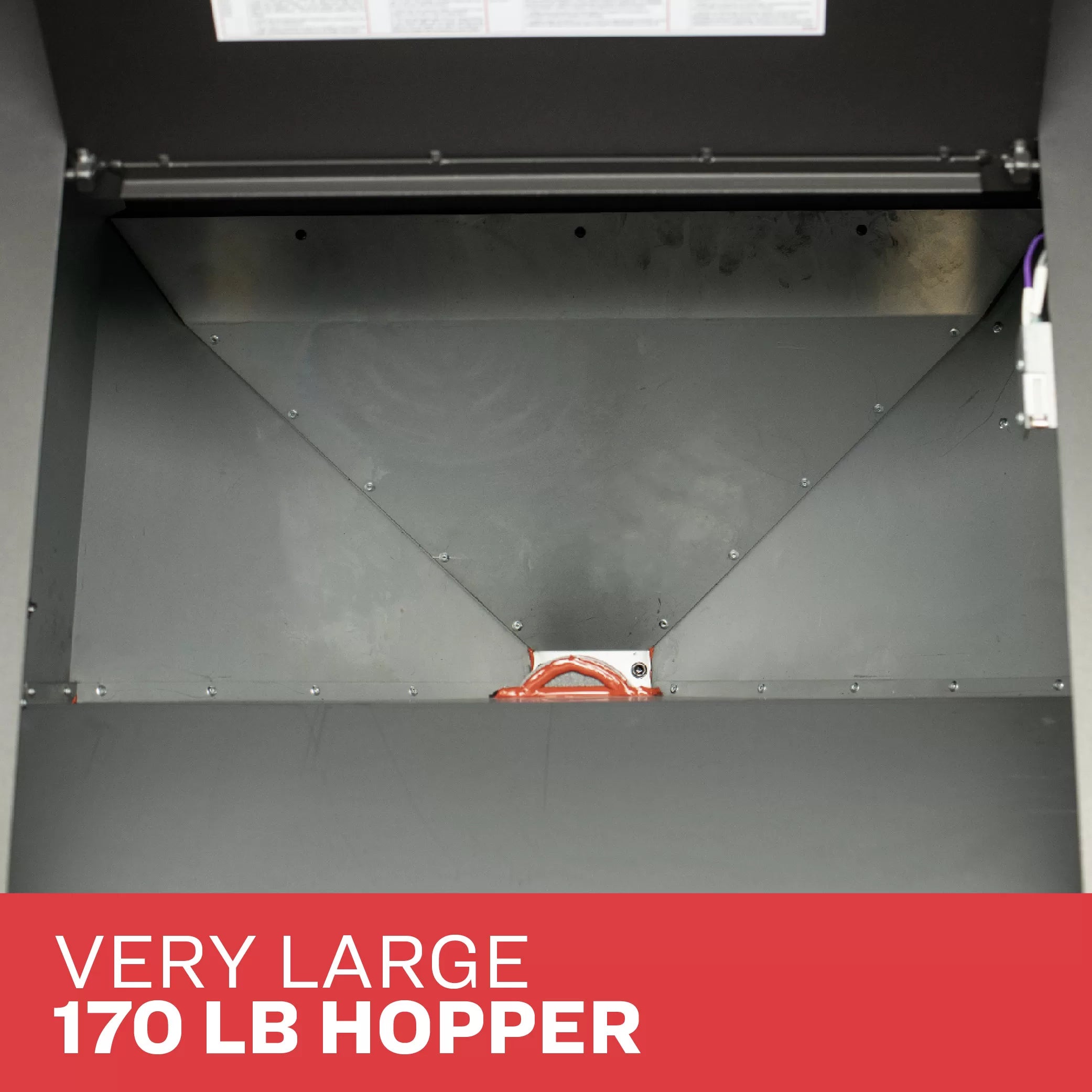

- Massive 160 lb. Hopper Capacity: Engineered with a 20% larger hopper than the legacy AP130 model, delivering up to 80 hours of continuous, hands-off heating on the lowest setting—dramatically reducing refill frequency during cold snaps.

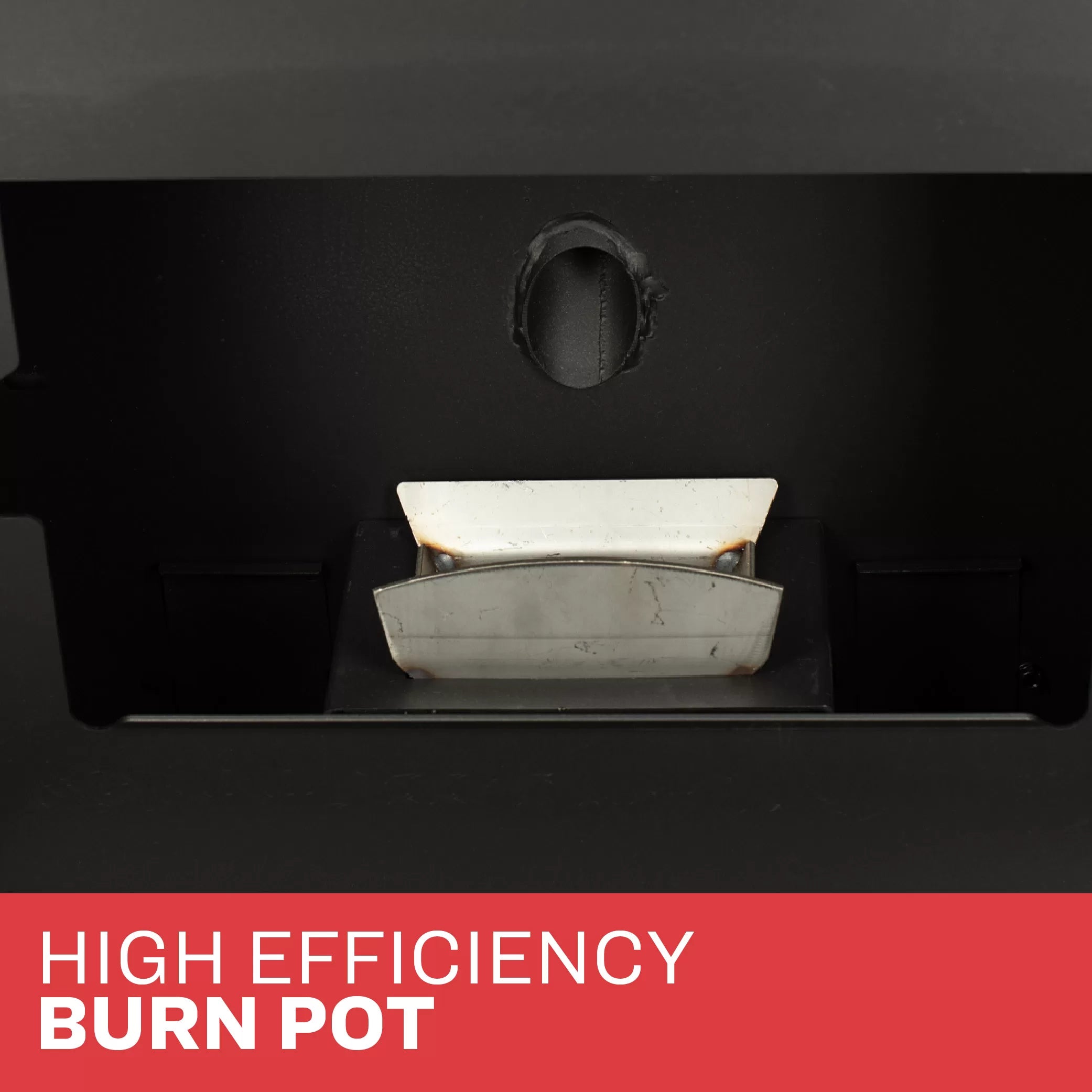

- AURORA Diverse Airflow Burner System: Advanced combustion technology produces a vivid, beautiful flame display while maximizing airflow and heat output for unmatched efficiency in its class.
- Wireless Remote Control Included: Operate the stove and adjust heat output from across the room at the touch of a button—no need to walk over to the unit to fine-tune your comfort.
- EPA 2020 Certified Clean Burn: Meets the strict 2020 U.S. Environmental Protection Agency emissions limits for wood heaters, with a particulate emissions rate of just 1.5 g/hr tested to ASTM E 2779 / EPA Method 28R.
- Exceeds 75% Heating Efficiency: Achieves 76% efficiency under EPA test conditions, ensuring you get the maximum heat value from every pellet you burn.
- Federal Tax Credit Qualified: Qualifies for the 30% IRS Sec. 25(C) Residential Energy Tax Credit, providing significant savings on your purchase and installation.
- Green, Carbon-Neutral Fuel: Runs on premium hardwood pellets—a renewable, carbon-neutral fuel source that's one of the most environmentally friendly heating options available today.

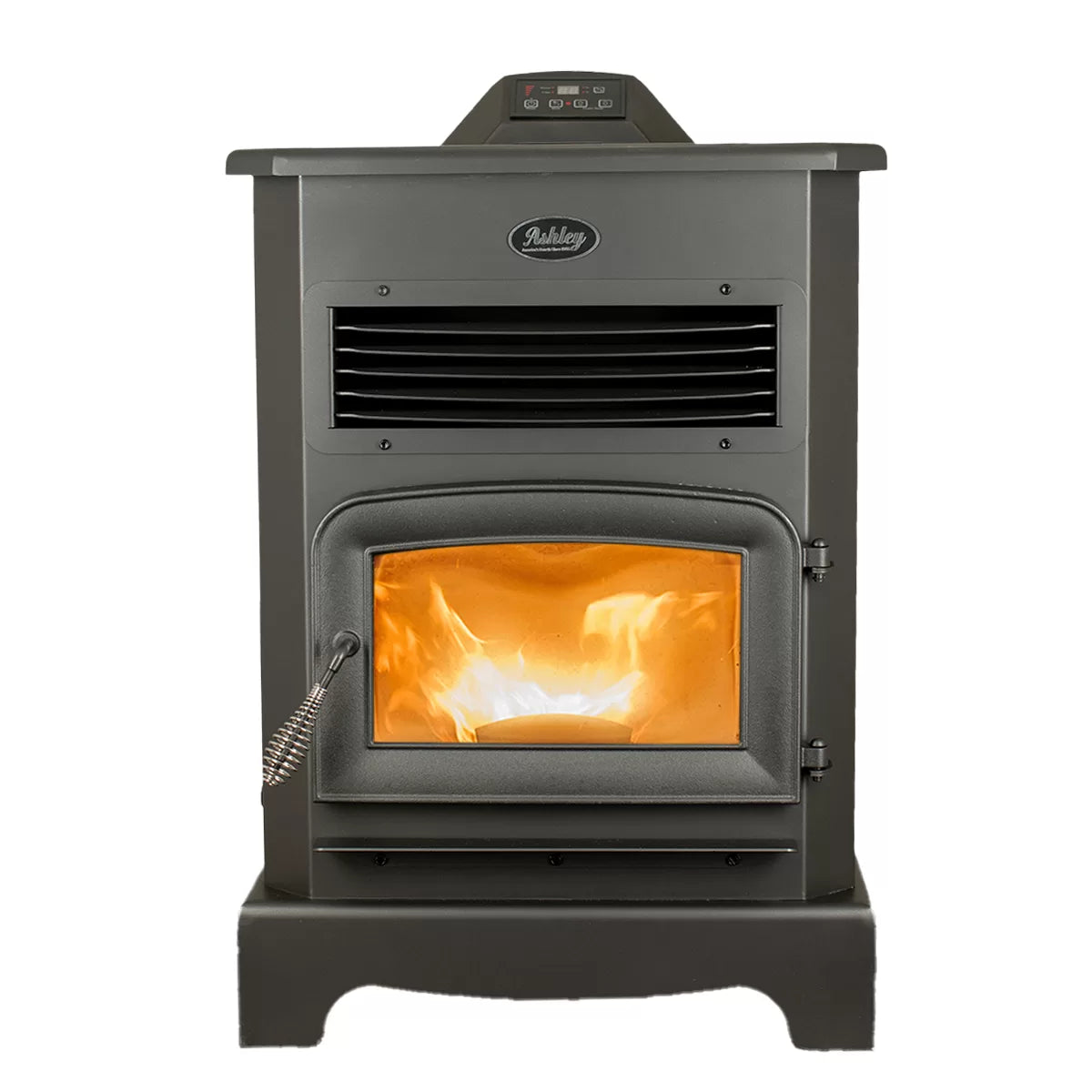

- Heavy-Duty Steel Construction: Built with a durable steel firebox and a large ceramic glass viewing window that provides a stunning flame view while standing up to years of demanding use.
- Variable Heat Output Settings: Five incremental heat range settings allow precise temperature control, with output ranging from 13,640 to 32,591 BTU/hr to match the needs of any room or weather condition.
- Approved for Mobile Home Installation: Tested and listed for residential, mobile/manufactured home, and alcove installations, with required outside air kit compatibility for safe operation in airtight spaces.
- Backed by US Stove Heritage: Built by United States Stove Company, an American hearth manufacturer with over 140 years of experience headquartered in South Pittsburg, Tennessee.
Ashley AP5622 Pellet Stove Specs
| Brand | Ashley Hearth Products (US Stove Company) |
| Model Number | AP5622 |
| Fuel Type | Premium Hardwood Pellets (PFI Standard) |
| Heating Capacity | Up to 2,500 sq. ft. |
| BTU Output (EPA Tested) | 13,640 – 32,591 BTU/hr |
| Maximum BTU Rating | Up to 50,000 BTU/hr |
| Hopper Capacity | 160 lbs. |
| Burn Time (Low Setting) | Up to 80 hours continuous |
| Efficiency | 76% (Exceeds 75%) |
| Emissions Rate | 1.5 g/hr (Particulate) |
| EPA Certification | Meets 2020 EPA Emission Standards |
| Safety Testing/Listing | ASTM E1509-12 (2017) / ULC-S627-00 |

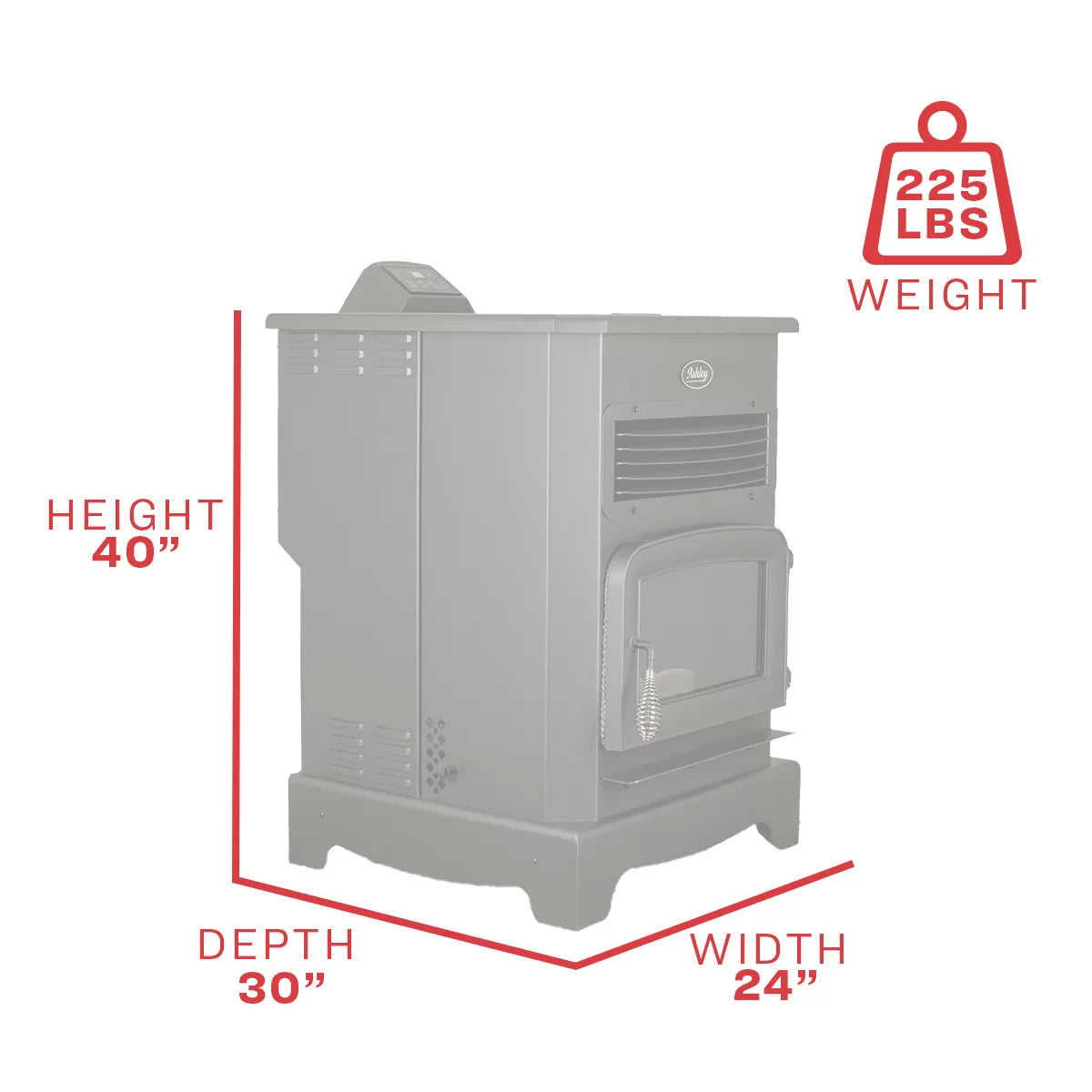

| Width | 25.5 inches |
| Depth | 25.5 inches |
| Height | 40.4 inches |
| Assembled Weight | 225 lbs. |
| Flue/Vent Size | 3" or 4" "PL" Pellet Vent Pipe (sold separately) |
| Clearance to Combustibles – Sidewall (Top Edge) | 8 inches (203 mm) |
| Clearance – Backwall to Flue | 3 inches (76.2 mm) |
| Clearance – Corner Adjacent Wall to Unit | 8 inches (203 mm) |
| Alcove Depth Maximum | 36 inches (914 mm) |
| Burner System | AURORA Diverse Airflow |
| Heat Range Settings | 5 Incremental Levels |
| Viewing Window | Ceramic Glass |
| Control Type | Top-Mounted Digital Controls + Wireless Remote |

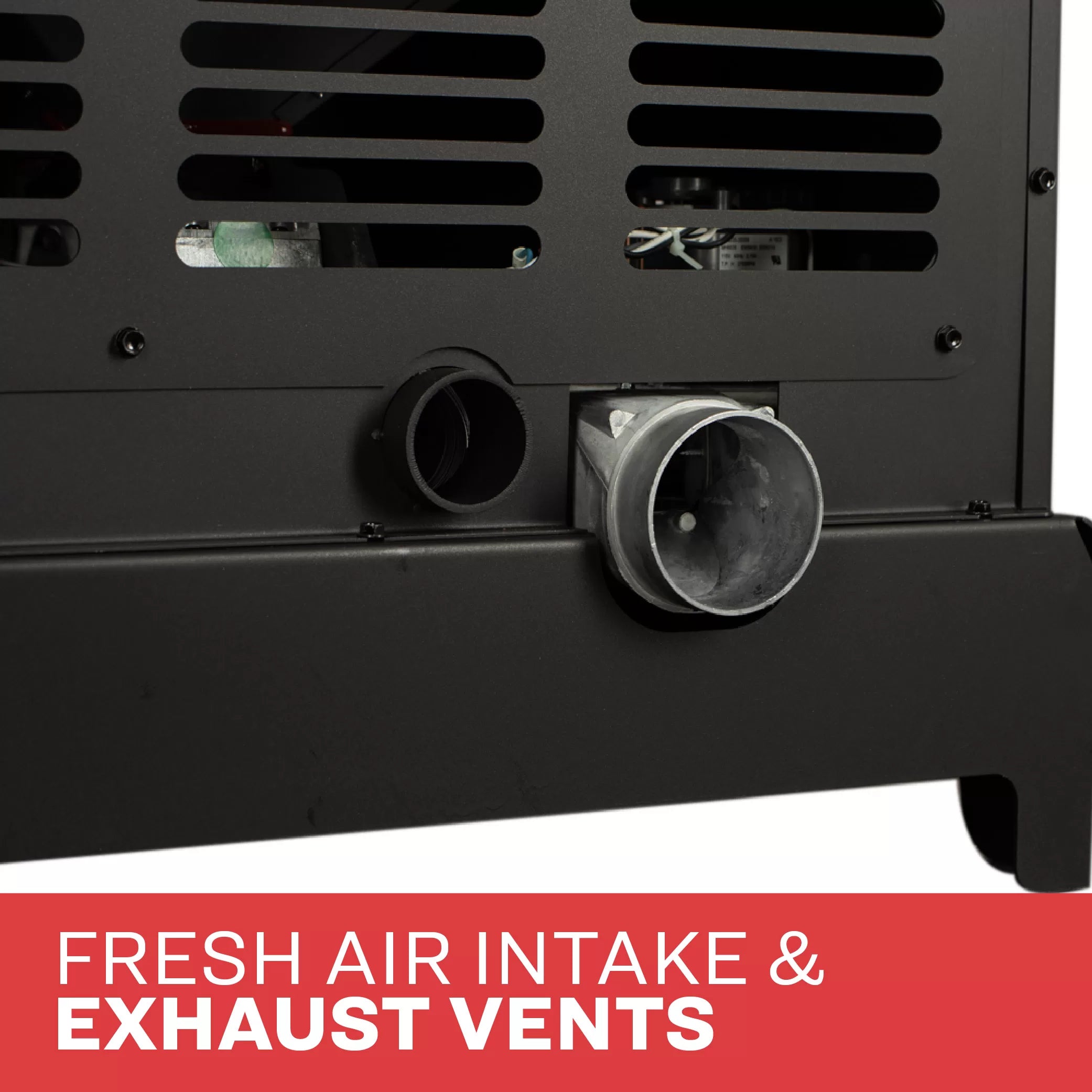

| Outside Air Kit | Optional (Mandatory for Mobile Home/Airtight Homes) |
| Installation Approved | Residential, Mobile/Transportable Home, Alcove |
| Commercial Use | Not Approved – Residential Use Only |
| Tax Credit Eligibility | Qualifies for 30% IRS Sec. 25(C) Residential Energy Tax Credit |
| Color/Finish | Black |
| Firebox Warranty | 5-Year Limited |
| Parts Warranty | 1-Year Limited (All Other Parts) |
| Electrical Parts Warranty | 1 Year |
| Country of Origin | Designed in USA (South Pittsburg, TN) |
Ashley AP5622 Pellet Stove FAQ
What size space can the Ashley AP5622 pellet stove effectively heat?
The Ashley AP5622 is engineered to heat living spaces up to 2,500 square feet, making it well-suited for medium to large homes, cabins, open-concept living areas, and supplemental heating in larger residences. Actual heating performance will vary depending on home insulation, ceiling height, climate zone, and outdoor temperatures.
How long will the AP5622 run on a single hopper fill?
With its generous 160 lb. pellet hopper—20% larger than the legacy AP130—the AP5622 can operate continuously for up to 80 hours on the lowest heat setting. This means you can typically go more than three days between refills during mild weather, and significantly longer than smaller-capacity competitors during cold snaps.
What type of fuel does the Ashley AP5622 require?
The AP5622 is designed to burn premium hardwood pellets that comply with the Pellet Fuels Institute (PFI) standard, with a minimum density of 40 lbs per cubic foot. Using high-quality, low-ash premium pellets ensures maximum efficiency, cleaner burns, and reduced maintenance over the life of the stove. Do not use chemicals, fluids, gasoline, or other volatile fuels to start the fire.
Does the Ashley AP5622 qualify for the federal biomass tax credit?
Yes. The AP5622 exceeds 75% efficiency and qualifies for the 30% IRS Sec. 25(C) Residential Energy Tax Credit, allowing eligible homeowners to claim a percentage of the stove's purchase and installation costs against their federal income taxes. We recommend consulting your tax professional to confirm eligibility for your specific situation.
Can the AP5622 be installed in a mobile or manufactured home?
Yes. The Ashley AP5622 is tested and listed for installation in residential homes, mobile/manufactured/transportable buildings, and alcove applications. For mobile home installations, the stove must be securely fastened to the floor using two 1/4" lag bolts, electrically grounded to the steel chassis, and equipped with an outside air supply ki
Ashley Hearth AP5622 Pellet Stove 170 lb Hopper 3,000 Capacity Documents:
