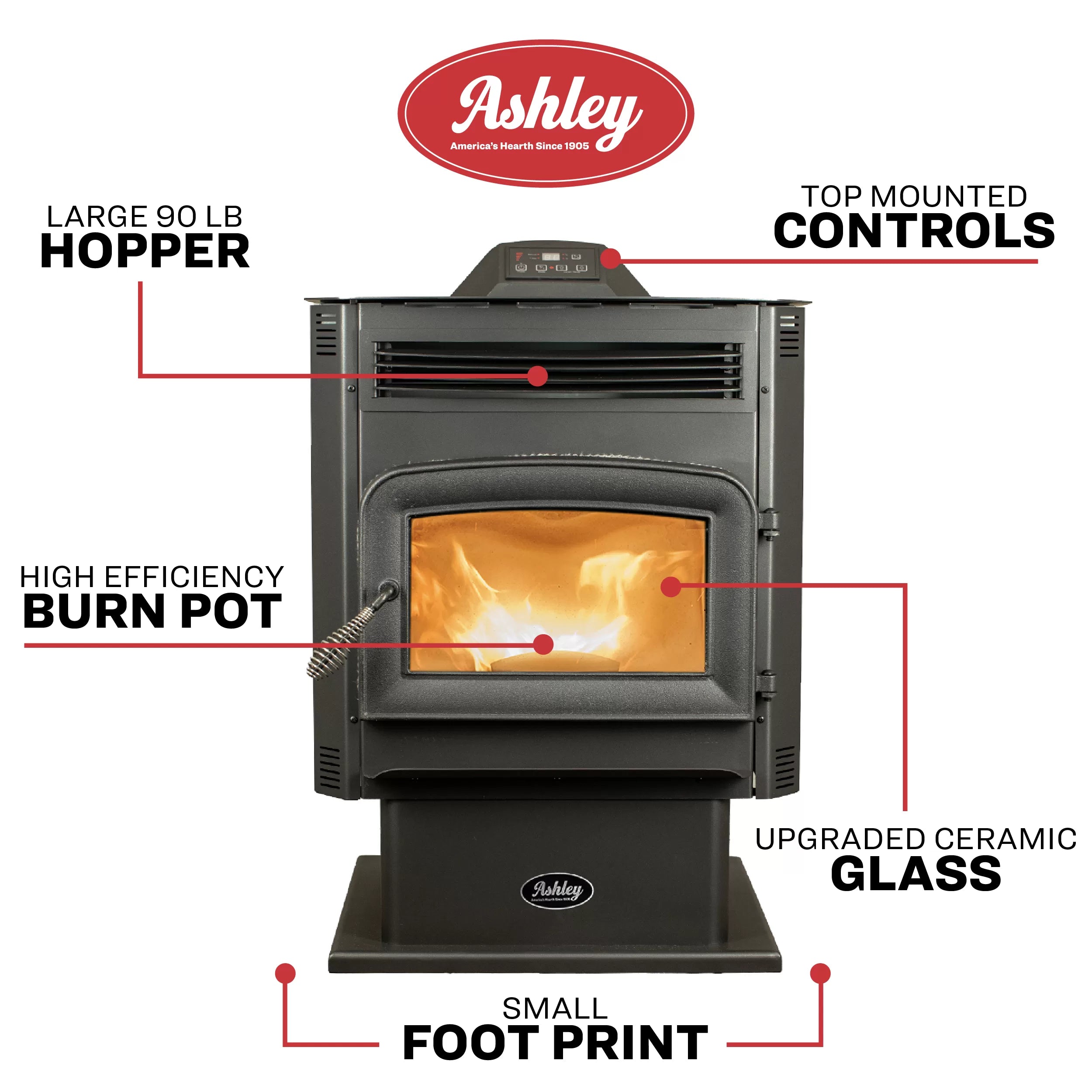

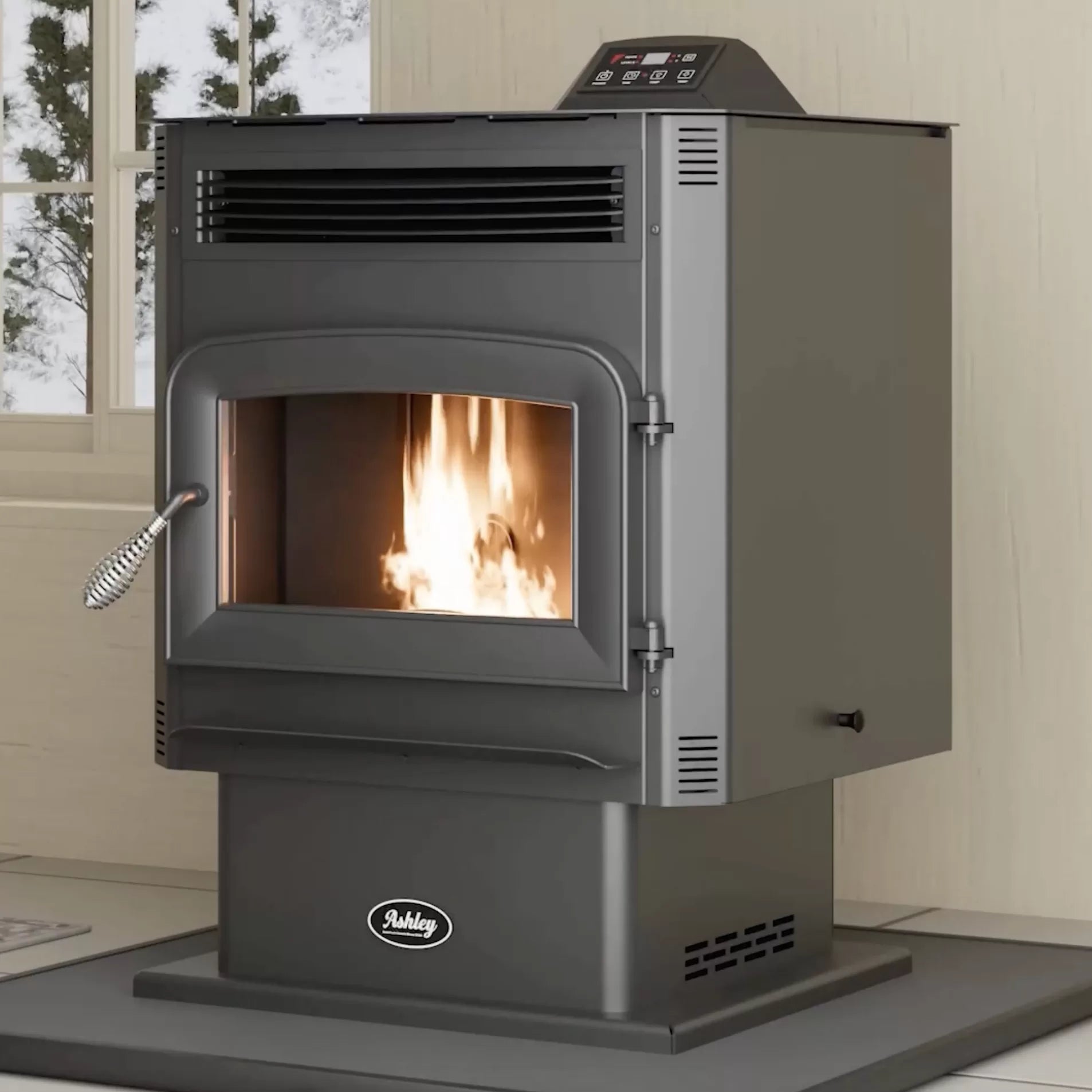

Ashley AP5617-P Pellet Stove Features
- Powerful Whole-Home Heating: Delivers up to 30,000 BTUs and heats medium-sized spaces up to 2,200 sq. ft., making it an excellent primary or supplemental heat source for the main living areas of your home.

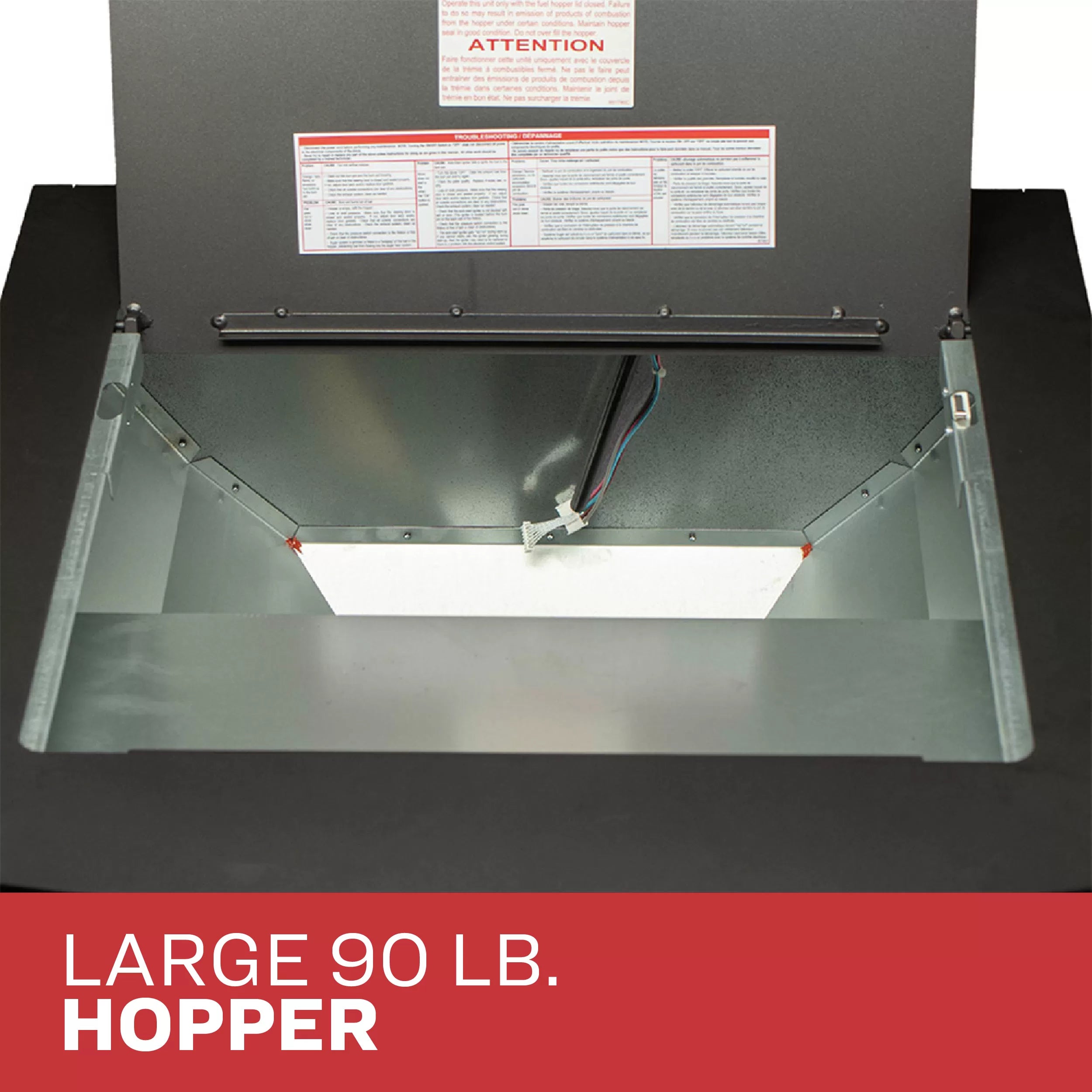

- Extra-Large 90 lb. Hopper Capacity: A 50% larger hopper than standard models holds up to 90 lbs. of premium wood pellets, allowing for up to 47 hours of continuous burn time on the lowest setting—fewer refills, more comfort.

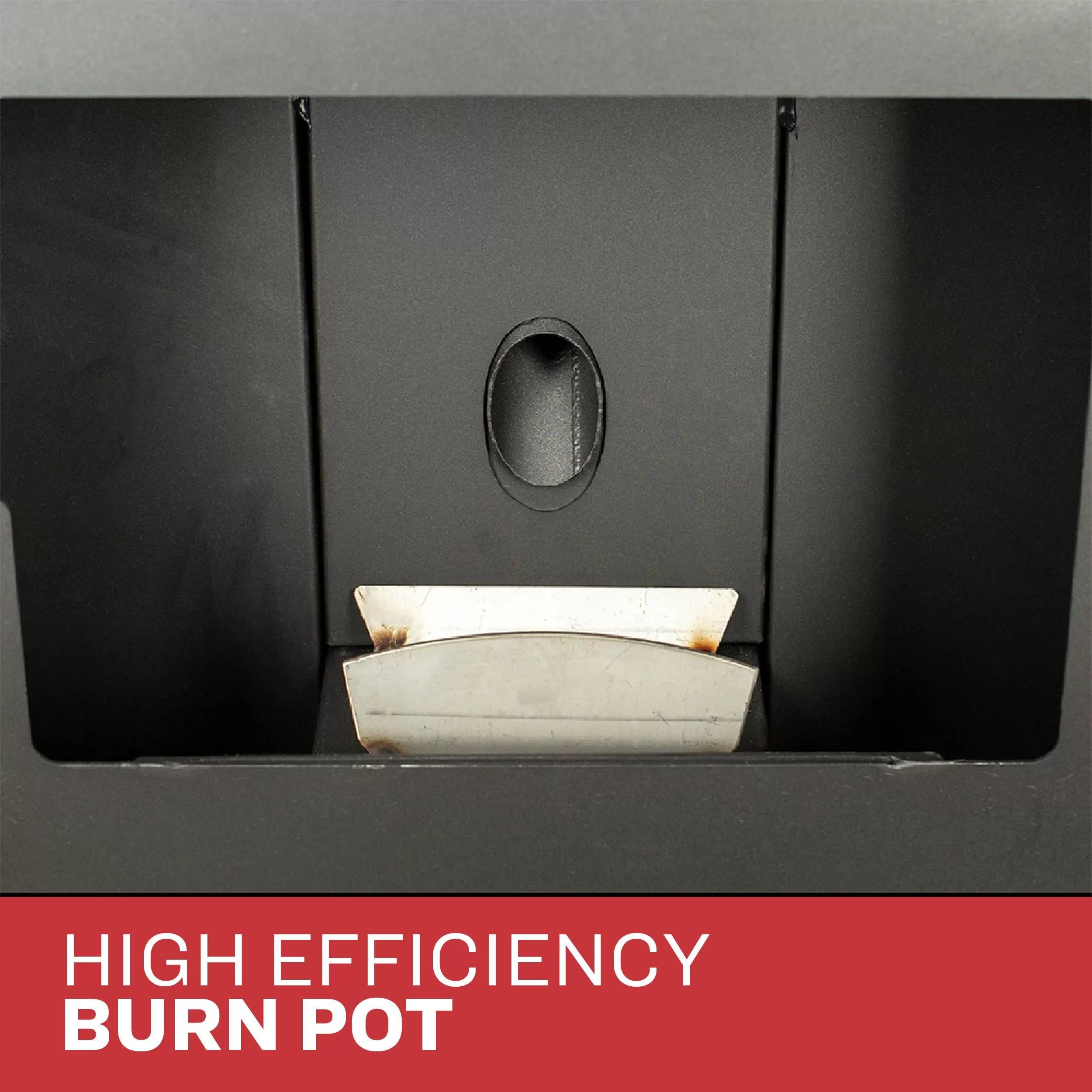

- AURORA Diverse Airflow Burner System: This advanced burner technology produces a beautiful, vibrant flame while dramatically increasing airflow and heat output for superior efficiency and visual appeal.
- EPA-Certified Clean Burning: Meets strict 2020 EPA crib wood emission limits with a low particulate emissions rate of just 1.6 g/hr (tested to ASTM E 2779), making it one of the cleanest-burning pellet stoves available.
- 77% High Efficiency Rating: Exceeds 75% efficiency and qualifies for the 30% IRS Sec. 25C Residential Energy Tax Credit, putting money back in your pocket while reducing fuel consumption.
- Convenient Wireless Remote Control: Adjust heat settings, ignition, and operation from across the room with the included IR remote—no need to leave your seat to manage your stove.
- Top-Mounted Digital Touchpad Controls: Easy-access digital controls on top of the stove make programming heat levels, timer settings, and thermostat mode intuitive and user-friendly.
- Auto-Ignition System: Push-button automatic ignition eliminates the hassle of manual lighting—simply fill the hopper, press the button, and enjoy reliable heat within minutes.
- Upgraded Ceramic Glass Window: A high-temperature ceramic glass front withstands intense heat while providing an unobstructed, panoramic view of the dancing flames inside.
- Mobile Home Approved (USA): Certified for installation in manufactured and mobile homes with the optional Fresh Air Kit (69FAK), expanding your installation options.
- Built-In Air Wash System: Keeps the ceramic glass cleaner longer by directing hot air across the viewing window, reducing maintenance and preserving the flame view.
- Carbon-Neutral Renewable Heating: Wood pellet fuel is one of the most environmentally friendly heating options on the market, producing carbon-neutral warmth from sustainably sourced biomass.
Ashley AP5617-P Pellet Stove Specs
| Brand | Ashley Hearth Products |
| Model Number | AP5617-P |
| Stove Type | Freestanding Pedestal Pellet Stove |
| Fuel Type | PFI Certified Premium Wood Pellets |
| Heating Area | Up to 2,200 sq. ft. |
| BTU Output | 11,871 – 30,884 BTU/hr (EPA tested) |
| Maximum BTU | Up to 30,000 BTUs |
| Efficiency Rating | 77% (Exceeds 75%) |
| Particulate Emissions | 1.6 g/hr (ASTM E 2779) |
| Hopper Capacity | 90 lbs. |
| Burn Time (Lowest Setting) | Up to 47 hours |
| Ignition | Automatic Push-Button Ignition |
| Controls | Top-Mounted Digital Touchpad |
| Remote Control | Yes – Wireless IR Remote Included |
| Blower | Yes |
| Air Wash System | Yes |
| Temperature Gauge | Yes |
| Glass Type | Upgraded Ceramic Glass |
| Combustion Type | Non-Catalytic |
| Vent Type | Vented (Direct Vent) |
| Vent Diameter | 3 inches |
| Vent Location | Rear |
| Pedestal Base | Included |
| Mobile Home Approved | Yes (USA) – Optional Fresh Air Kit (69FAK) Required |
| EPA Approved | Yes – Meets 2020 EPA Standards |
| ETL Listed | Yes |
| UL Listed | Yes |
| CSA Certified | Yes |
| Tax Credit Eligible | Qualifies for 30% IRS Sec. 25C Residential Energy Tax Credit |
| Product Dimensions (W × D × H) | 26" × 30" × 38" |
| Product Weight | 216 lbs. |
| Power Backup Recommendation | 1000W Pure Sine Wave Inverter (minimum) |
| Warranty | 5-Year Limited Firebox / 1-Year All Other Parts / 1-Year Electrical Parts |
| Shipping Method | LTL Freight – Ships on Pallet |
Ashley AP5617-P Pellet Stove FAQ
Can the Ashley AP5617-P be installed in a mobile home?
Yes, the AP5617-P is mobile home approved in the USA. However, mobile home installation requires the optional Fresh Air Kit (model 69FAK), which is sold separately. The fresh air kit is also recommended for newer construction homes with tight building envelopes or any installation where makeup air is limited.
What type of pellets should I use in this stove?
The manufacturer recommends using only PFI (Pellet Fuel Institute) certified premium hardwood pellets. Do not burn corn, coffee pellets, or other alternative fuels—this stove is specifically designed and tested for wood pellets only. Using non-approved fuels can damage the stove and void your warranty.
Can I connect a wall thermostat to control the stove?
Yes, but it must be a wired thermostat. The control boards on the AP5617-P do not accept wireless or smart thermostats. When operating in T-Stat mode, the stove functions as a High/Low thermostat rather than On/Off—it will continue running on the lowest setting even when the set temperature is reached, then ramp up when heat is called for.

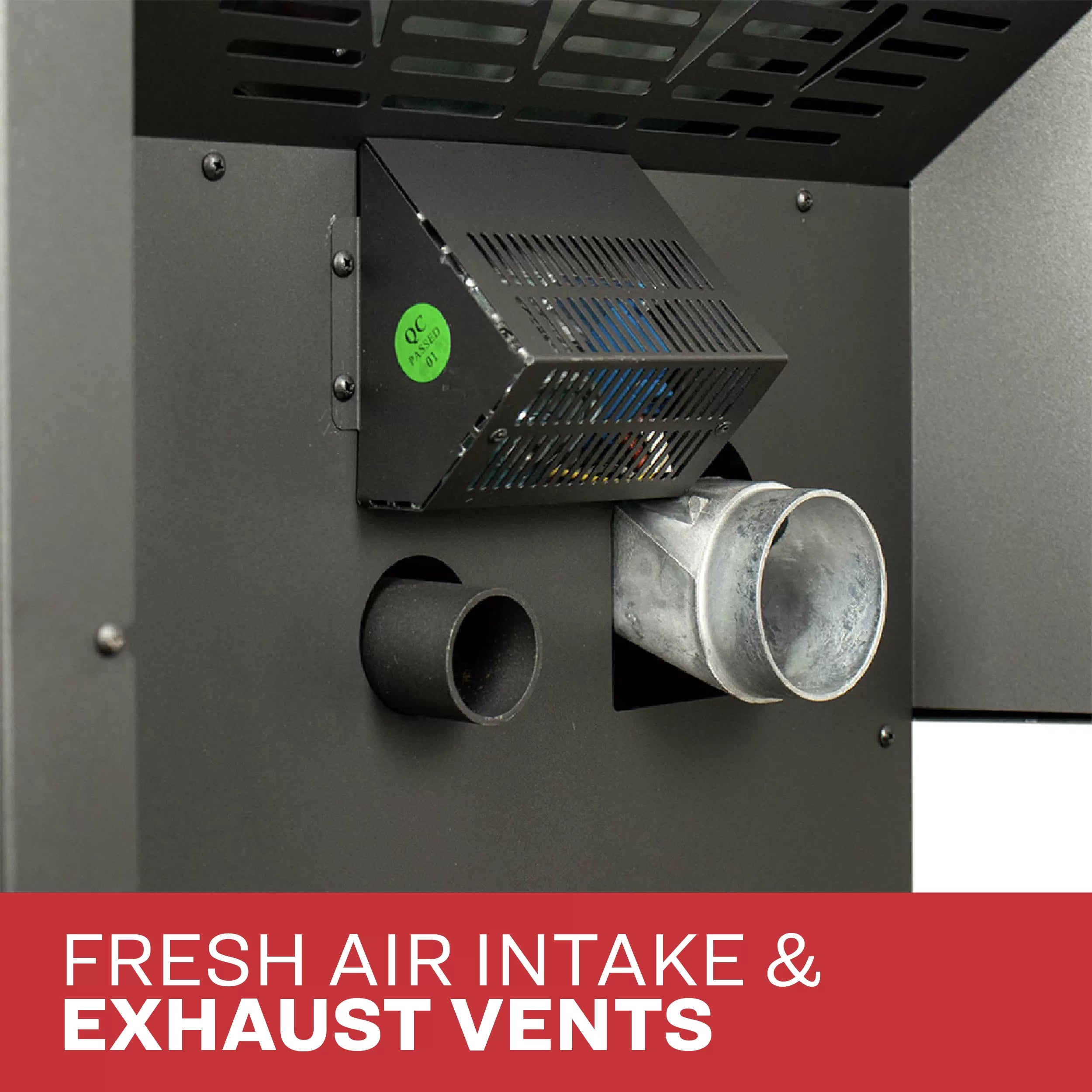

How is the AP5617-P vented?
The stove uses a 3-inch direct vent system with rear vent location. It can be vented horizontally through an exterior wall or vertically through the ceiling and roof. Refer to the owner's manual for specific clearance requirements and installation guidelines. US Stove recommends installation by an NFI Certified Installer (USA) or WETT Certified Installer (Canada).
What's the difference between the AP5617-P and the AP5617-W?
The "W" model includes Wi-Fi capabilities that allow you to control the stove remotely using the USSC mobile app. The AP5617-P (this model) comes with a wireless IR remote control that operates via an infrared sensor on the stove. Functionally, both models offer the same heating performance and features—only the connectivity method differs.
Is this stove approved for commercial use?
No, the AP5617-P is intended for residential use only and is not designed or rated for commercial applications. It is also not intended to be connected to any type of ducting and should not be used as a furnace. For commercial heating needs, US Stove offers other product lines designed for those environments.
What kind of warranty coverage does the AP5617-P include?
The Ashley AP5617-P is backed by a 5-year limited firebox warranty, plus 1-year coverage on all other parts and 1-year coverage on electrical components. We recommend registering your product with the manufacturer immediately after installation to ensure full warranty protection.
How often does the stove need to be cleaned and maintained?
For optimal performance, the burn pot should be emptied and cleaned before each ignition, and inspected daily during continuous use. The hopper should be periodically checked for sawdust buildup. Regular cleaning of the venting system, gaskets, and clean-outs is essential to prevent vacuum issues and ensure safe operation. Always allow the stove to cool completely before performing maintenance.
