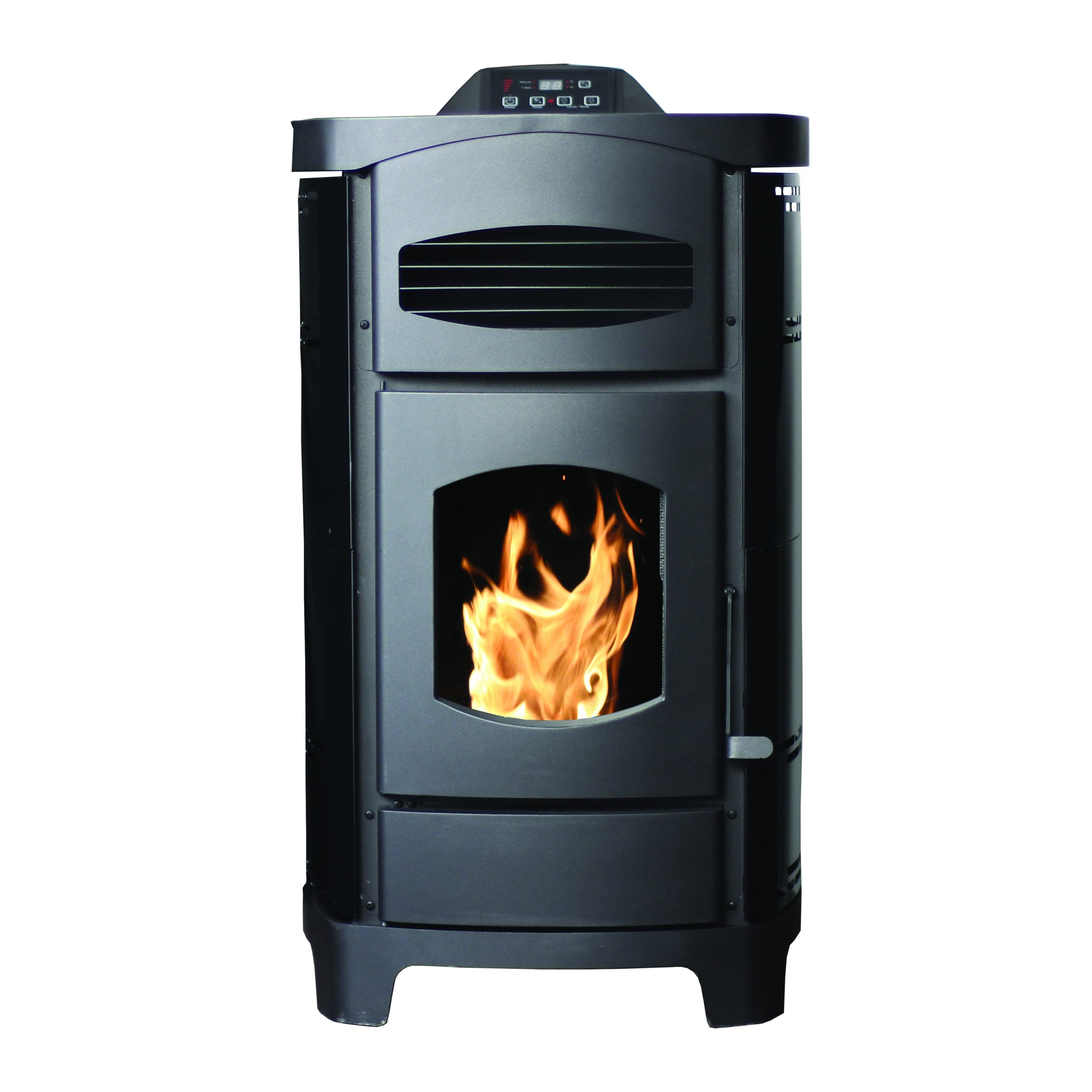

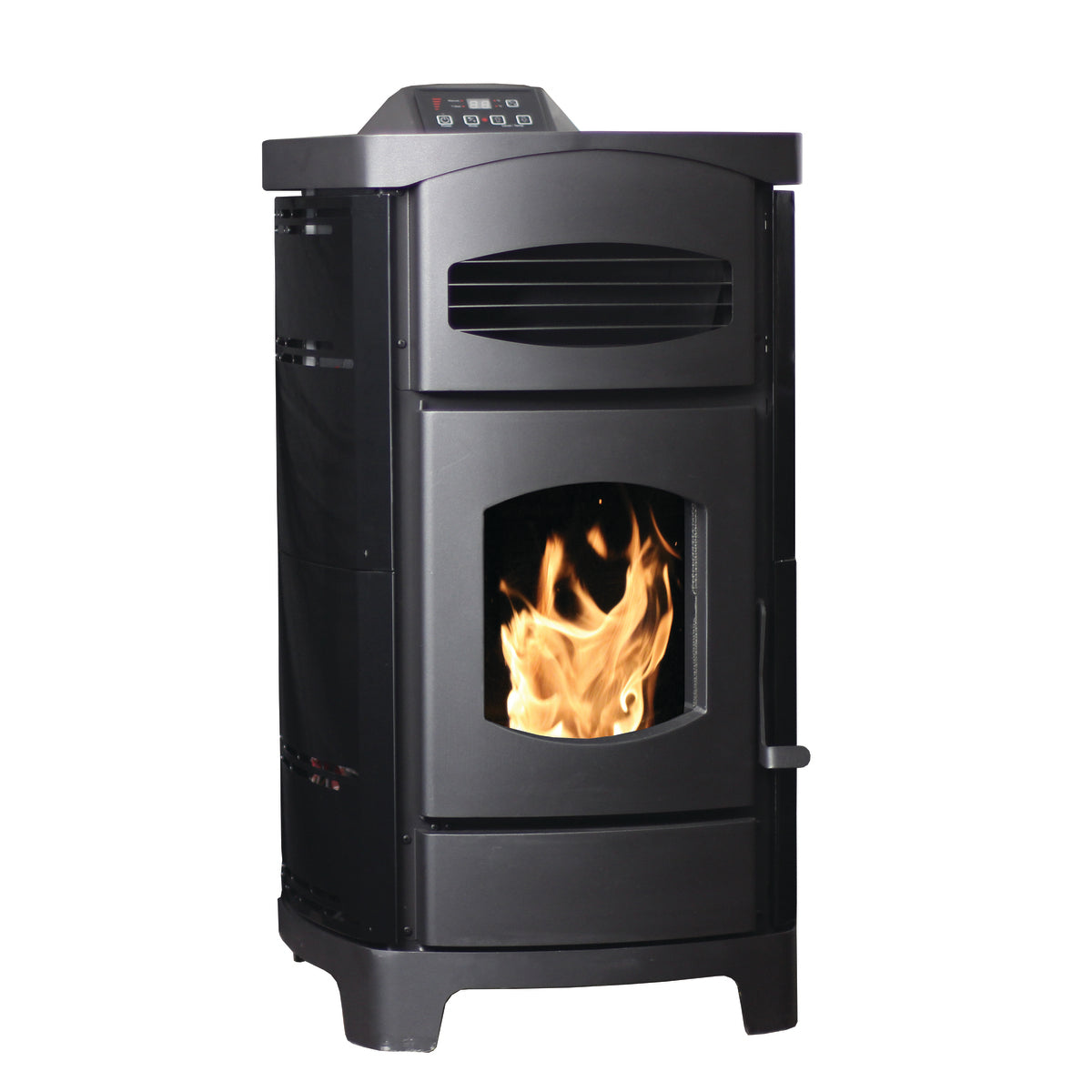

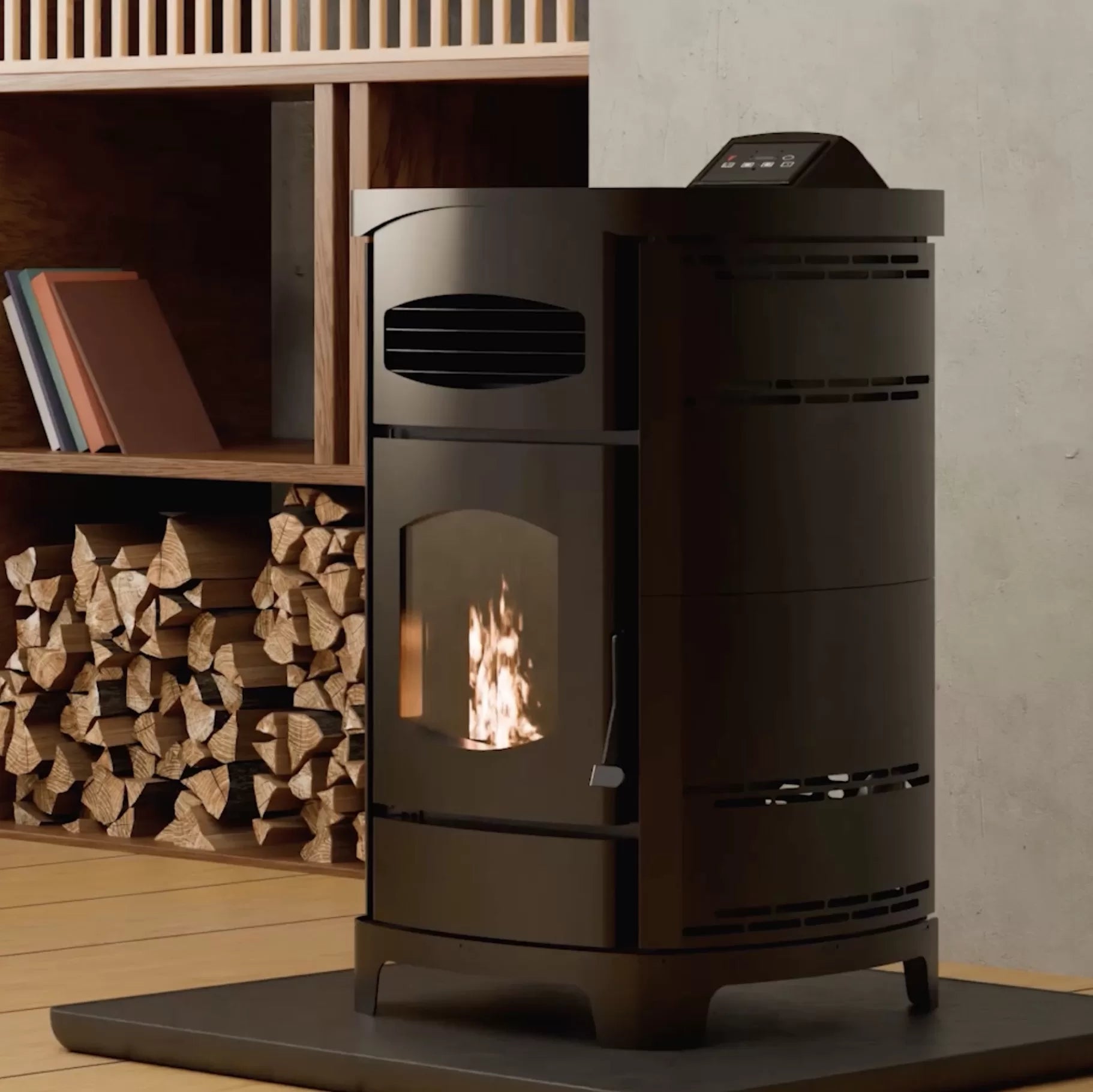

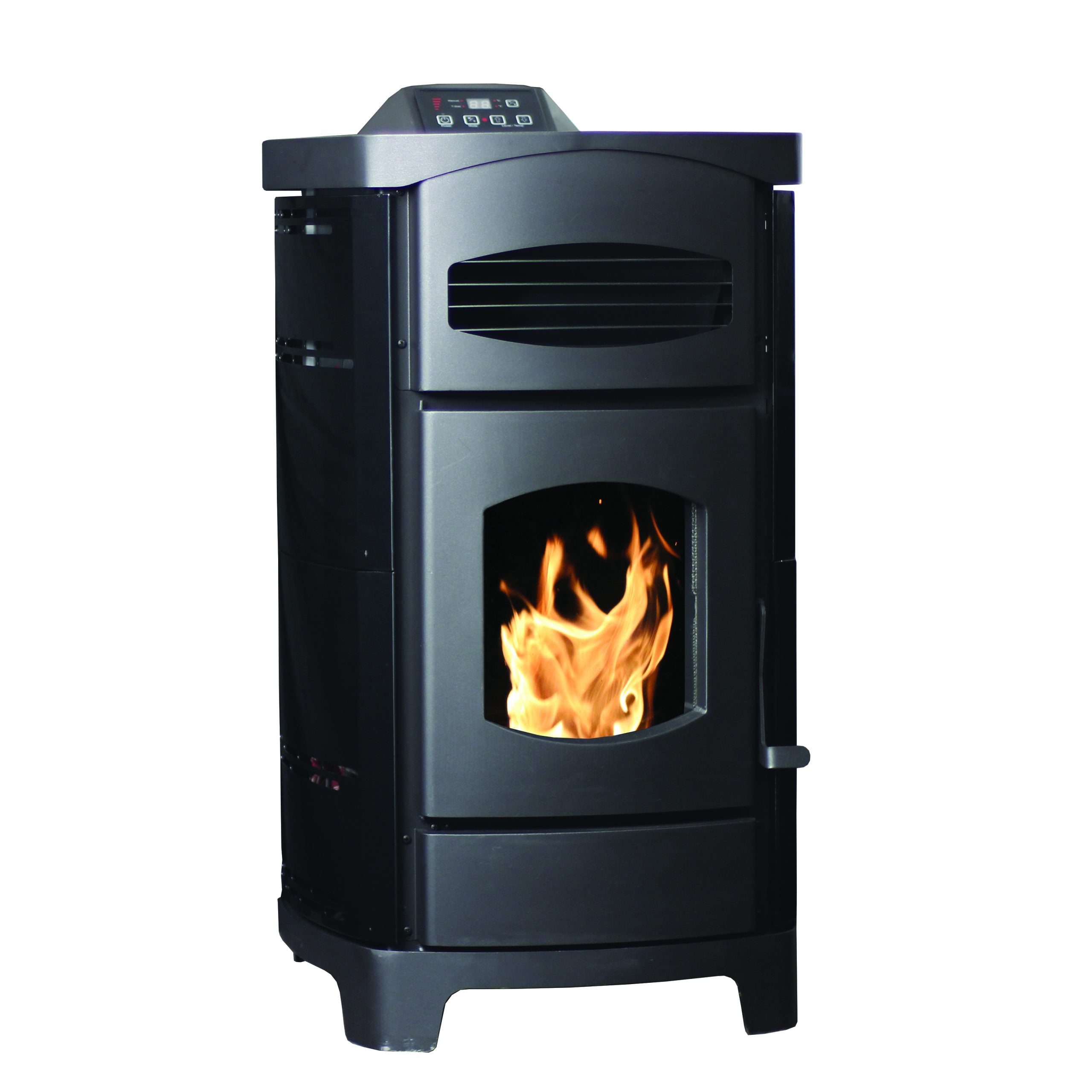

Ashley AP5780E Pellet Stove Features
- Powerful 2,200 Sq. Ft. Heating Capacity: Delivers up to 48,000 BTU of heating power, making it ideal for medium to large living spaces, open-concept homes, cabins, and shops that demand consistent, whole-room warmth all winter long.
- Slim-Line Space-Saving Design: Engineered with a compact footprint that fits into tighter spaces without sacrificing performance, allowing you to enjoy full-size pellet stove heat output even in rooms where floor space is limited.
- Generous 46 lb. Hopper Capacity: Loads up to 46 pounds of premium hardwood pellets at a time, providing up to 32 hours of continuous burn time on the lowest setting between fillings for true set-and-forget heating.
- All-Digital Control System: Top-mounted digital control panel features a clear temperature readout and intuitive button layout, giving you precise, push-button control over heat level, blower speed, and operating mode.
- Infrared Remote Control Included: Adjust temperature settings, fuel feed rates, and blower speeds from across the room without leaving your chair, adding a layer of modern convenience to traditional pellet heating.
- EPA Certified High-Efficiency Operation: Exceeds 75% efficiency and qualifies for the 30% IRS Sec. 25(C) Residential Energy Tax Credit, helping you save on installation costs while enjoying eco-friendly, low-emission heating.
- AURORA Diverse Airflow Burner System: Advanced burner technology produces a beautiful, dancing flame while dramatically increasing airflow and heat output for greater warmth per pound of pellets burned.
- Variable-Speed Convection Blower: Distributes heated air evenly throughout the room while keeping combustion air completely separate, delivering quiet, efficient, whole-room comfort.

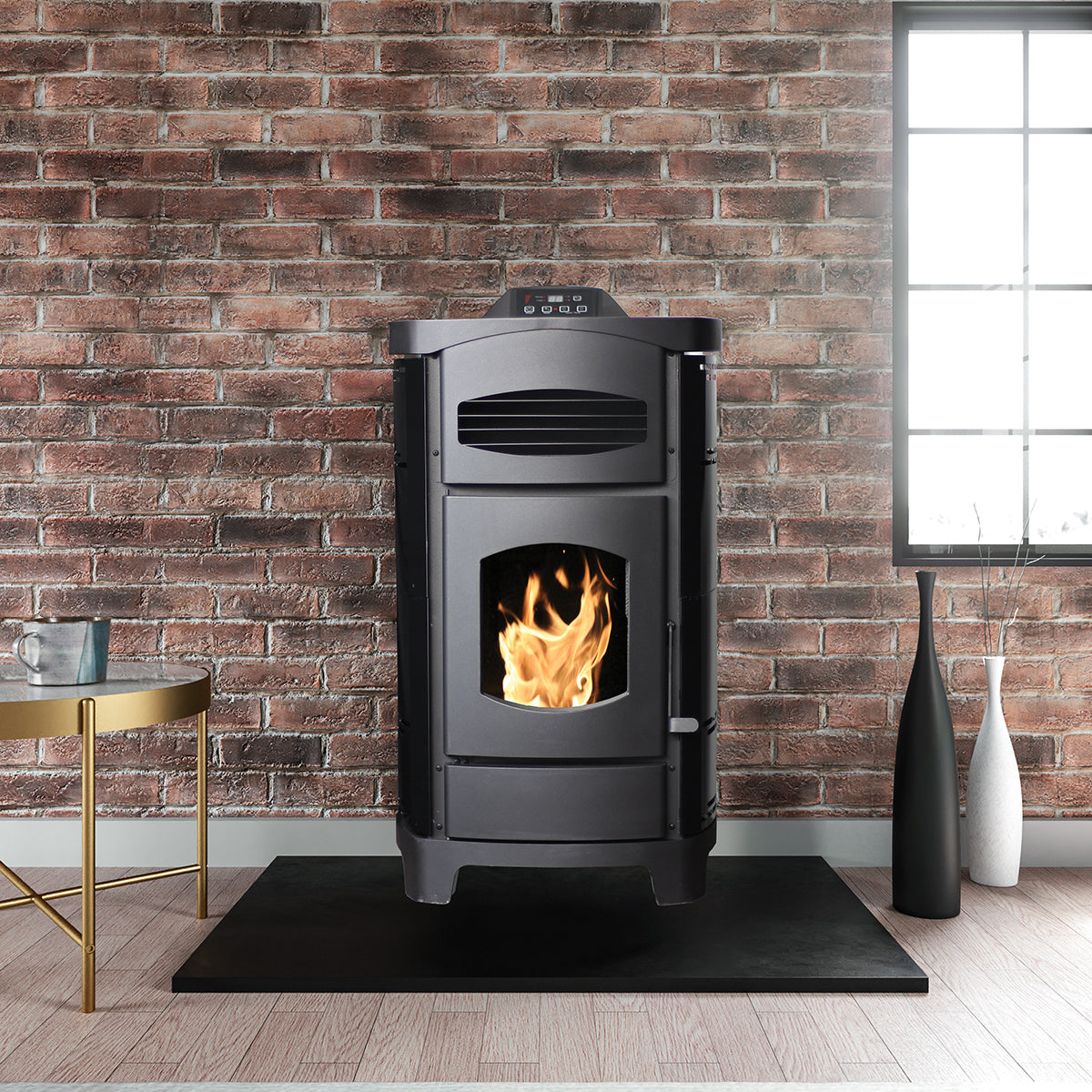

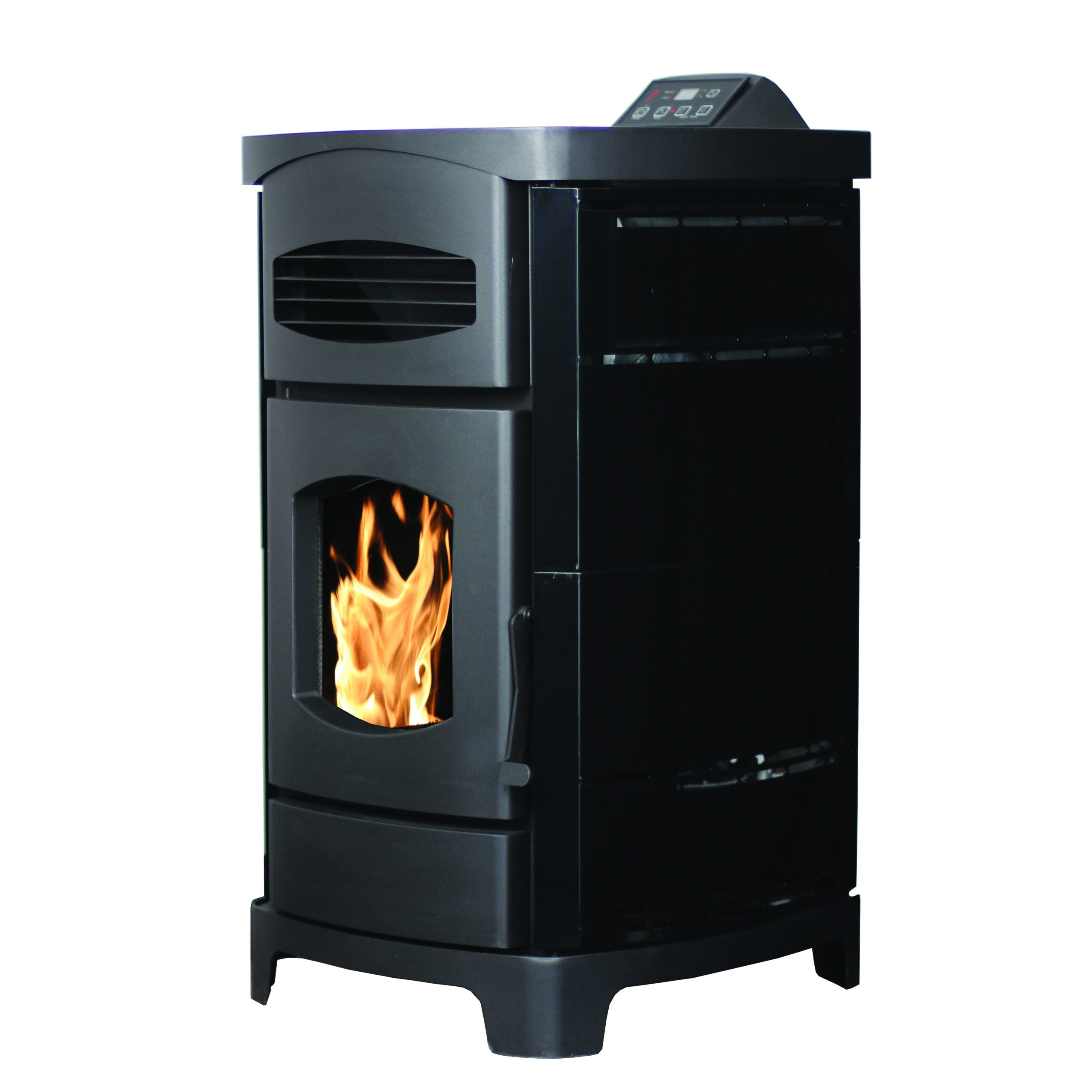

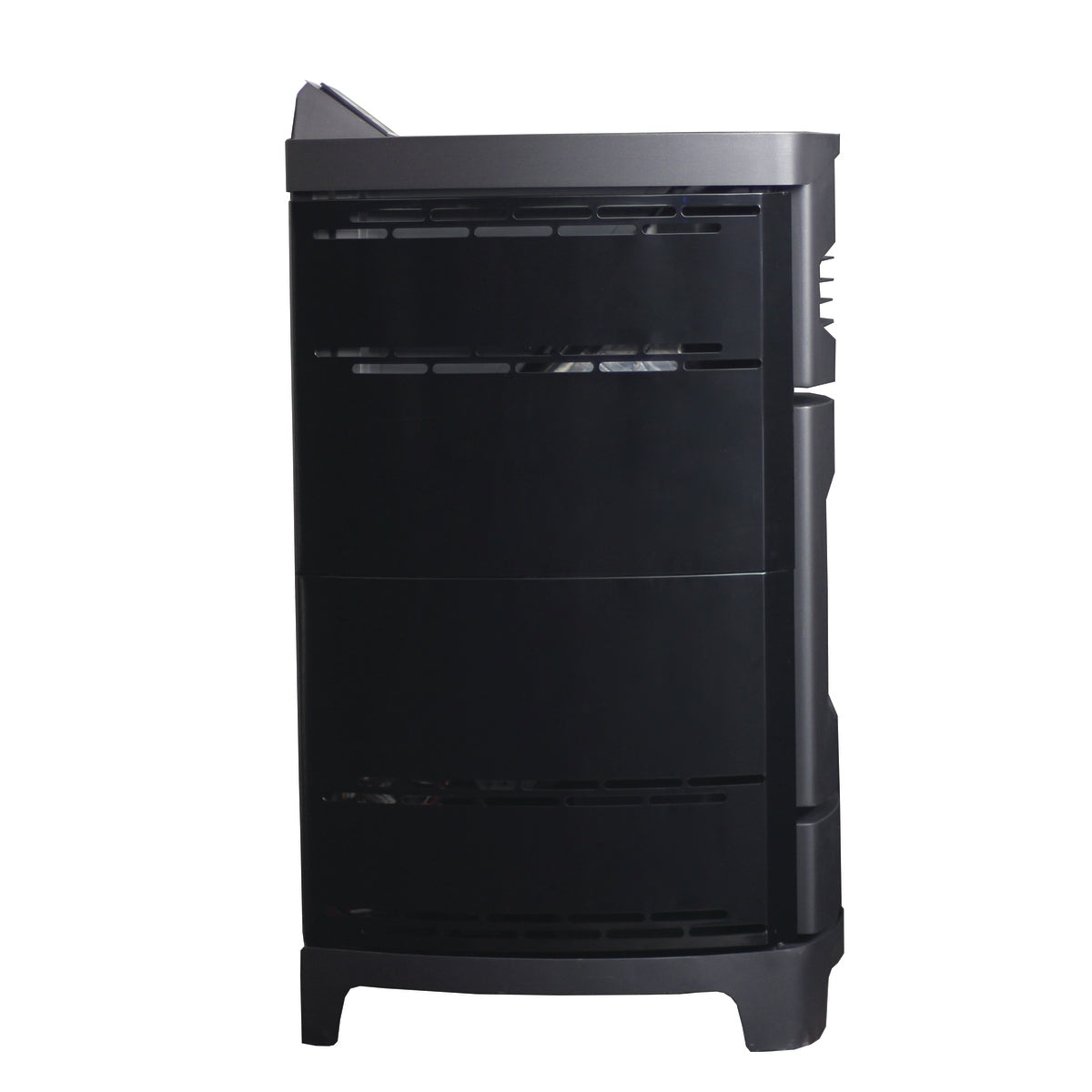

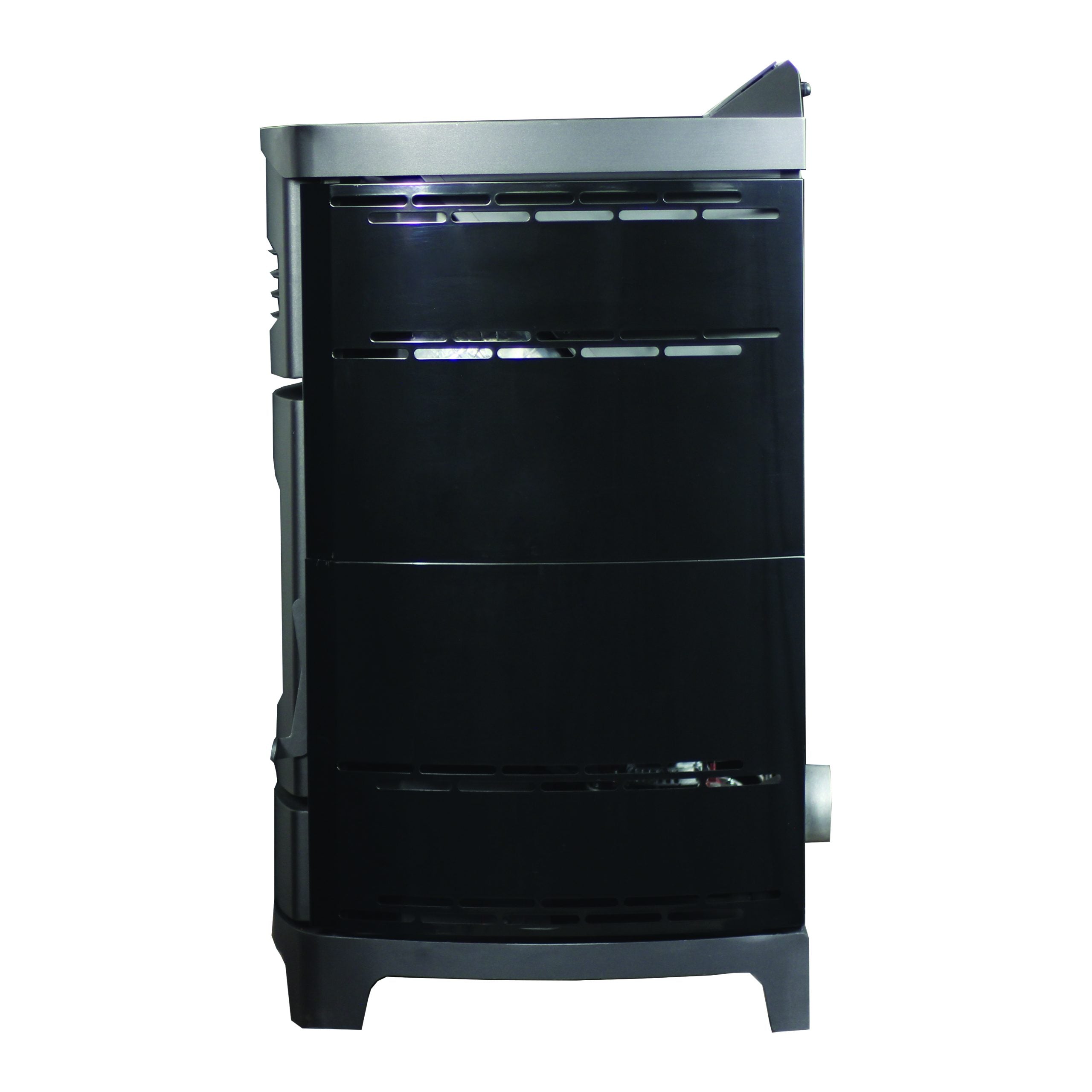

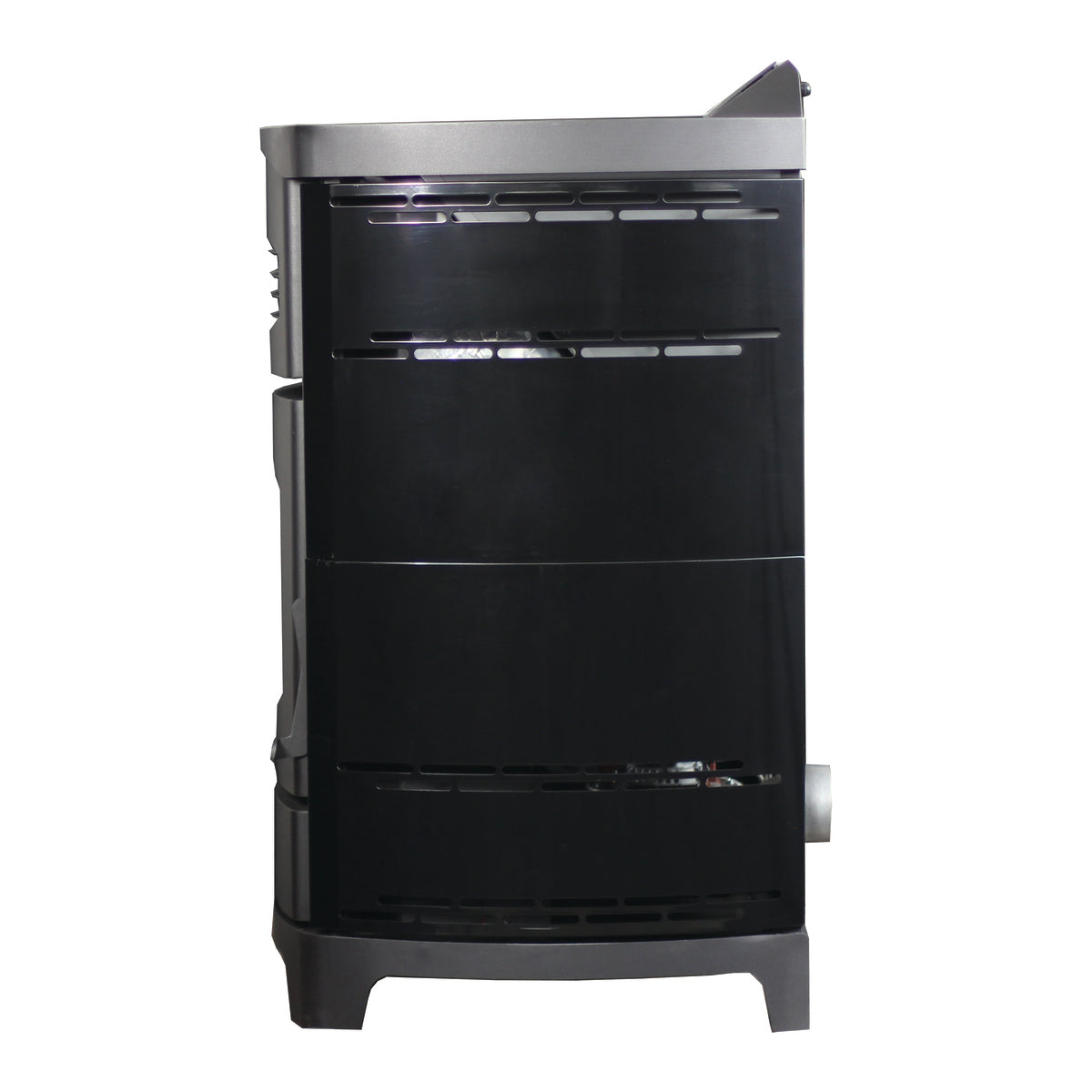

- Striking Curved Black Side Panels: Polished gloss-black curved sides paired with flat black accents transform this stove into a true showpiece, complementing both modern and traditional interiors.
- Carbon-Neutral Green Heating: Burns clean, renewable wood pellets that are considered one of the most environmentally friendly fuels available, producing minimal ash and significantly reduced emissions compared to traditional wood stoves.
- Automatic Electric Ignition: Built-in 310-watt igniter starts your fire automatically with the press of a button—no kindling, matches, or lighter fluid required.
- EPA 2020 Compliant & Tax Credit Qualified: Meets the strict 2015 EPA crib wood emission limits at just 1.3 g/hr particulate emissions, ensuring clean-burning, code-compliant operation in all 50 states.
Ashley AP5780E Pellet Stove Specs
| Model Number | AP5780E |
| Brand | Ashley Hearth Products (US Stove Company) |
| Fuel Type | Premium Hardwood Pellets (PFI Listed) |
| Heating Capacity | Up to 2,200 Sq. Ft. |
| Maximum BTU Output | 48,000 BTU/hr |
| Tested BTU Range | 8,507 – 26,386 BTU/hr |
| Efficiency | Exceeds 75% (Tested at 72% per ASTM E2779-10) |
| Particulate Emissions | 1.3 g/hr |
| EPA Certification | EPA Certified (2015 Crib Wood Standard) |
| Tax Credit Eligible | Yes – 30% IRS Sec. 25(C) Residential Energy Tax Credit |
| Hopper Capacity | 46 lbs. |
| Burn Time (Low Setting) | Up to 32 Hours |
| Fuel Burn Rate (Lowest Setting) | 1.4 lbs per hour |
| Flue Size | 3" or 4" (77mm – 102mm) |
| Height | 37.16" (944mm) |
| Width | 20.81" (529mm) |
| Depth | 22.25" (566mm) |
| Weight | 162 lbs. |
| Construction | Heavy-Duty Steel |
| Finish | Polished/Gloss Black Curved Sides with Flat Black Accents |
| Mounting Type | Freestanding |
| Ignition | Automatic Electric Igniter |
| Control System | All-Digital with Temperature Readout |
| Remote Control | Included (Infrared) |
| Burner System | AURORA Diverse Airflow Burner |
| Electrical Rating | 120 Volts AC, 60 Hz, 3 Amps |
| Operating Wattage | 125W |
| Igniter Wattage | 310W |
| Mobile Home Approved | Yes (with outside air supply) |
| Warranty | Limited Lifetime Firebox, 1-Year All Other Parts, 1-Year Electrical |
Ashley AP5780E Pellet Stove FAQ
What size area can the Ashley AP5780E pellet stove heat?
The AP5780E is rated to heat up to 2,200 square feet, making it well-suited for medium to large homes, open-concept living areas, cabins, basements, and shops. Actual heating performance can vary based on home insulation, ceiling height, climate zone, and layout, so well-insulated homes will see the best results at the upper end of that range.
Does the AP5780E qualify for the federal tax credit?
Yes. The AP5780E exceeds 75% efficiency and qualifies for the 30% IRS Sec. 25(C) Residential Energy Tax Credit (up to $2,000 annually), which can be applied to the purchase price plus installation costs. Be sure to keep your receipts and request the manufacturer's tax credit certificate, and consult your tax professional to confirm eligibility for your situation.
What type of pellets should I use in this stove?
This stove is designed to burn premium hardwood pellets that comply with Pellet Fuels Institute (PFI) standards: minimum 40 lbs density per cubic foot, 1/4" to 5/16" diameter, length no greater than 1.5", minimum 8,200 BTU/lb, moisture under 8%, ash under 1%, and salt under 300 ppm. Using PFI-listed premium pellets ensures the best burn quality, lowest ash production, and longest stove life.
How long will one hopper of pellets last?
The 46-pound hopper provides up to 32 hours of continuous burn time on the lowest heat setting, burning approximately 1.4 lbs per hour. Burn time will be shorter on higher heat settings—typically 12 to 20 hours depending on the temperature setting you select. This generous capacity means you can comfortably load the stove once a day or even less frequently during milder weather.
What venting and clearances does the AP5780E require?

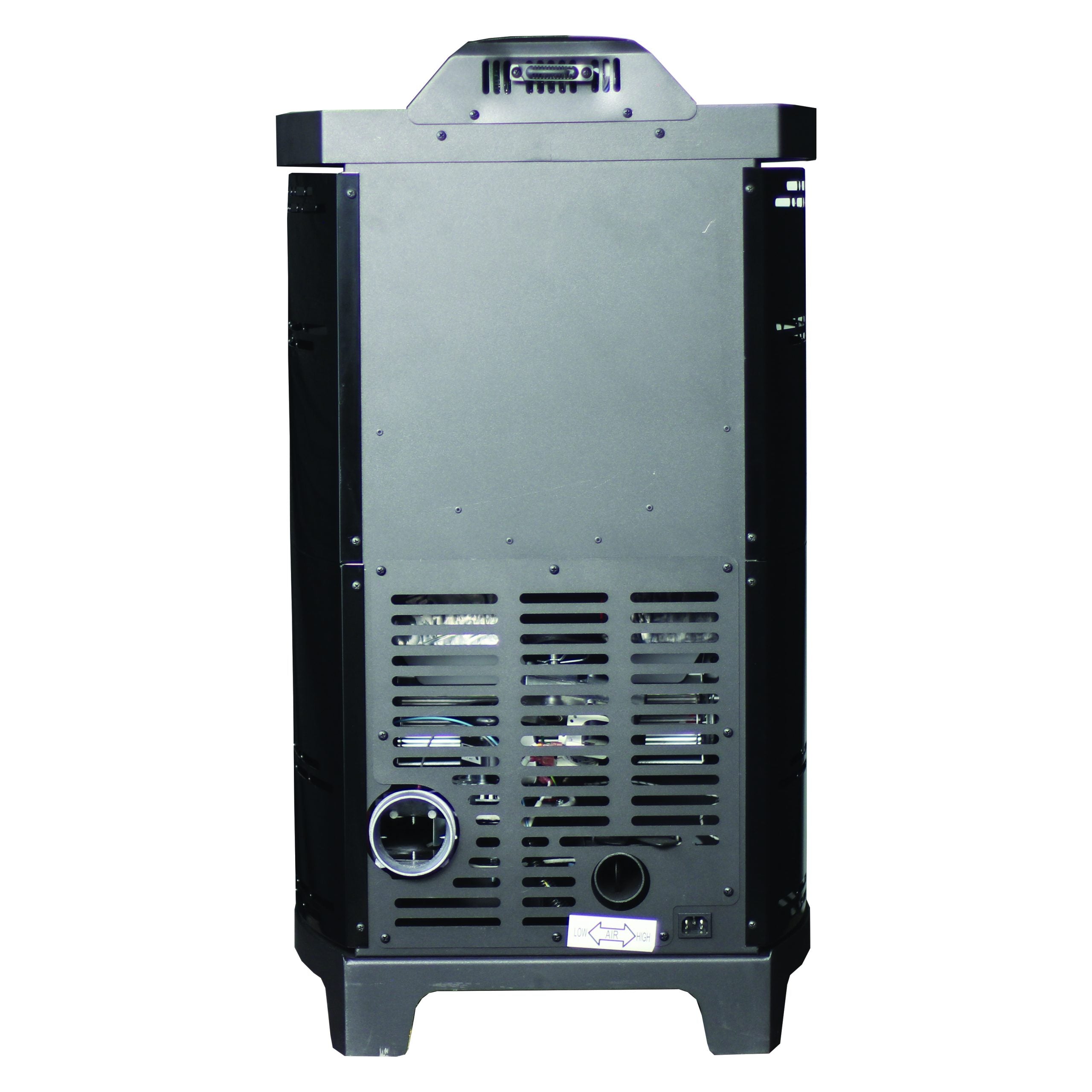

The stove uses a 3" or 4" pellet vent (77mm to 102mm) and is designed for through-the-wall horizontal venting or interior vertical venting. U.S. floor protection requires a UL1618-listed non-combustible floor protector extending 6" to the front, 6" to each side, and 1" to the rear of the unit. Canadian installations must comply with CAN/ULC standards and require 18" front, 8" side floor protection. Always follow the owner's manual and consult local codes before installation.
Can the AP5780E be installed in a mobile home?
Yes, the AP5780E is approved for mobile home installation, but an outside combustion air supply is required for mobile home applications. The stove must also be bolted to the floor and grounded to the chassis per the owner's manual. Always consult local codes and the installation manual, and consider professional installation for mobile home setups.
Does the stove require electricity to operate?
Yes. The AP5780E requires a standard 120V AC, 60 Hz, 3-amp household outlet to power the auger, combustion blower, convection blower, igniter, and digital control system. Operating wattage is approximately 125W during normal use, with the igniter drawing 310W only during startup. If you live in an area with frequent power outages, consider pairing the stove with a battery backup or generator to maintain heat during outages.
What warranty comes with the Ashley AP5780E pellet stove?
US Stove Company backs the AP5780E with a limited lifetime warranty on the firebox, a 1-year warranty on all other parts, and a 1-year warranty on electrical components. Warranty coverage requires proper installation per the owner's manual, use of approved fuels, and original-owner registration. Keep your purchase receipt and register your stove with the manufacturer to ensure full coverage.
Ashley AP5780E Pellet Stove 46 lb Hopper 2200 sq ft Documents:
