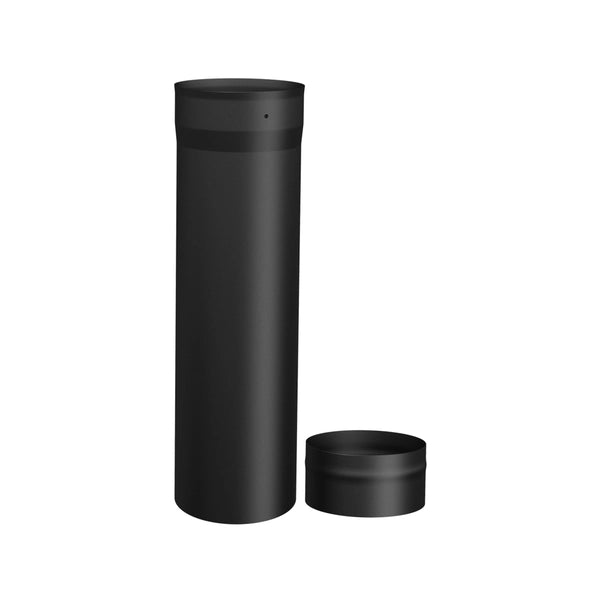

SLIP CONNECTOR SINGLE WALL BLACK PIPE - 6"Ø (4"-18") SP00070

According to NFPA 211 standards, single wall stove pipe must maintain a minimum clearance of 18 inches from combustible walls, ceilings, and other flammable materials. This clearance can be reduced to 6-9 inches if you install an approved air-cooled heat shield with proper ventilation spacing. Always consult local building codes and a qualified installer to ensure compliance.

No, single wall stove pipe including this slip connector should never be used for outdoor installations. Single wall pipe is designed for indoor use only, from the stove to a wall or ceiling penetration point. Water and ash create corrosive lye that rapidly deteriorates single wall pipe, and outdoor temperatures cause excessive creosote buildup. For outdoor installations or when passing through walls/ceilings, you must transition to Class A insulated chimney pipe.

To install, first determine the gap length you need to fill between pipe sections. Compress or extend the slip connector to the appropriate length between 4 and 18 inches. Insert one end into the existing pipe section, ensuring a secure fit, then connect the other end to the adjoining pipe. The crimped end should always point downward in vertical installations to prevent creosote leakage. Ensure all connections are tight and secure before operating your stove.

Single wall stove pipe should be inspected and cleaned regularly, ideally at the beginning and middle of each heating season. Check for creosote buildup, corrosion, or damage. Clean the interior using a stiff wire brush designed for the pipe diameter. Inspect all connections for tightness and proper alignment. Replace any sections showing rust holes, warping, or excessive deterioration. Regular maintenance prevents chimney fires and ensures efficient operation.

The heavier 22 gauge steel used in this connector is approximately 15% thicker than standard 24 gauge pipe, providing superior strength and durability. This extra thickness resists warping from high heat, maintains structural integrity longer, and is less prone to developing holes from corrosion. The thicker material also provides better support for the welded seams, resulting in a sturdier, longer-lasting connection that won't separate or fail prematurely.

While it's technically possible to cut the connector, it's not recommended as it defeats the purpose of the adjustable design and may void the warranty. The slip connector is specifically engineered to telescope between 4 and 18 inches, providing the exact length needed without cutting. If you need a shorter fixed-length section, consider purchasing a standard stove pipe section instead. Cutting may also create sharp edges and compromise the welded seam integrity.

The limited lifetime warranty covers manufacturing defects in materials and workmanship for as long as you own the product. This includes issues with the welded seams, material thickness, or premature failure under normal use conditions. The warranty does not cover damage from improper installation, lack of maintenance, use beyond rated temperature limits, or normal wear from regular use. Contact the manufacturer or retailer with proof of purchase for warranty claims.

Yes, this 6-inch slip connector follows standard industry sizing and will work with most brands of 6-inch diameter single wall black stove pipe. However, for optimal fit and safety, it's recommended to use matching components from the same manufacturer when possible. Always verify diameter compatibility before installation, and ensure all connections fit snugly without gaps. If mixing brands, inspect connections carefully for proper fit and seal.
