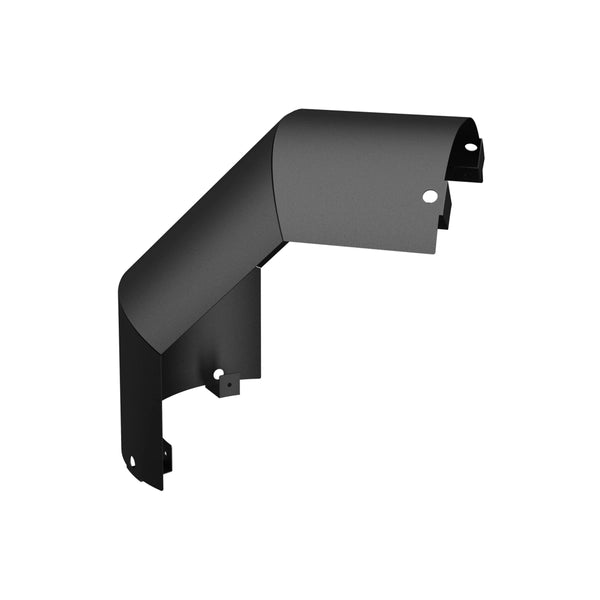

90° Elbow Shield Single Wall Stove Pipe Features
- SBIHA Approved: Meets Safety and Boiler Institute for Heating Appliances standards for safe, reliable performance in residential venting applications.
- 90° Elbow Design: Precision-engineered 90-degree angle fitting allows for flexible duct routing and optimal chimney positioning around structural obstacles.
- Single Wall Construction: Lightweight, cost-effective design suitable for standard stove venting installations where double-wall protection isn't required.
- Integrated Shield Protection: Built-in shield component protects from direct heat exposure and provides additional thermal safety for surrounding surfaces.
- 6-Inch Diameter: Standard industry sizing that accommodates most residential wood stoves, pellet stoves, and gas heating appliances.
90° Elbow Shield Single Wall Stove Pipe Specifications
| Product SKU | SP00290 |
| Diameter | 6 inches (152.4 mm) |
| Elbow Angle | 90 degrees |
| Construction Type | Single Wall Black Pipe |
| Material | Black Steel |
| Color | Black |
| Shield Type | Integrated SBIHA-Approved |
| Certifications | SBIHA Approved for Heating Appliances |
| Application | Wood stoves, pellet stoves, gas stoves, and heating appliances |
| Installation Type | Screwed or crimped connections |
| Temperature Rating | Up to 400°F continuous service |
| Warranty | Manufacturer limited lifetime warranty |
| Availability | Curbside delivery available |
90° Elbow Shield Single Wall Stove Pipe FAQ
What does SBIHA approval mean for safety?
SBIHA (Safety and Boiler Institute for Heating Appliances) approval indicates that this elbow shield has met rigorous testing and safety standards for heating appliance venting. It ensures the component will perform safely under normal operating conditions and provides heat protection for nearby surfaces and structures.
Is this 90° elbow compatible with my wood stove?
This 6-inch diameter 90° elbow is compatible with most residential wood stoves, gas stoves, and pellet stoves that use standard 6-inch venting. Check your appliance's venting requirements to confirm compatibility. We recommend consulting your stove's manual or contacting our support team to verify fit.
What is the difference between single-wall and double-wall pipe?
Single-wall pipe is lighter and more affordable, ideal for horizontal or exterior runs where additional insulation isn't critical. Double-wall pipe provides enhanced thermal protection and is typically recommended for longer interior runs or applications requiring extra safety clearance from combustibles. This single-wall design with integrated shield offers an effective balance of protection and cost.
How do I install the 90° elbow shield?
The 90° elbow connects via standard crimped or screwed connections to compatible 6-inch diameter stove pipe. Ensure all connections are secure to prevent smoke leakage. For detailed installation instructions, consult your stove manufacturer's guide or have a professional installer handle the setup to ensure code compliance and optimal performance.
Does this elbow require special maintenance?
Inspect connections periodically for dust or blockage. Clean the exterior with a dry cloth. For long-term performance, have your venting system professionally inspected annually to check for corrosion or creosote buildup. Do not use harsh chemicals on the black steel finish.
Can this be used for outdoor applications?
While the single-wall construction is suitable for many applications, outdoor use should be evaluated based on climate conditions and installation requirements. The integrated shield provides thermal protection, but extended outdoor exposure may benefit from additional protective measures. Consult with a professional installer for your specific climate and application.
What is the temperature rating for this component?
This 90° elbow shield is rated for continuous service up to 400°F. This temperature range covers typical residential wood stove, gas stove, and pellet stove operations. Do not use with appliances exceeding this temperature rating.
Is this component backed by a warranty?
Yes, this product is covered by a manufacturer limited lifetime warranty against defects in materials and workmanship under normal use conditions. Register your product for warranty coverage and refer to the warranty documentation for specific terms and exclusions.
90° ELBOW APPROVED SBIHA SHIELD SINGLE WALL BLACK PIPE - 6"Ø Manual:
