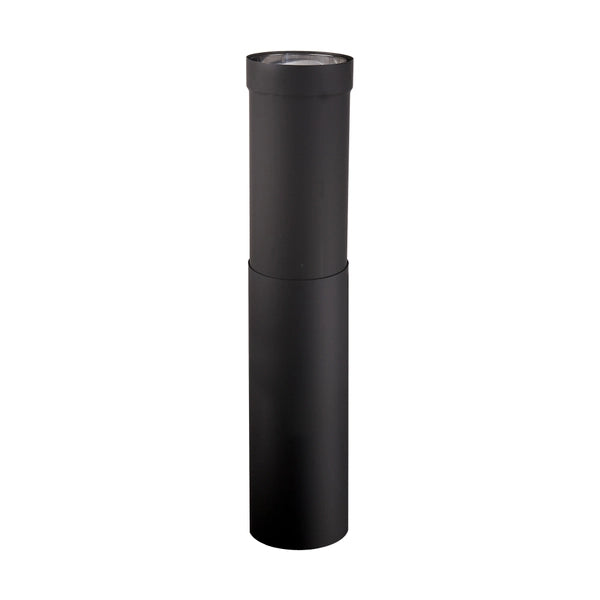

6" VORTEX DOUBLE WALL TELESCOPING SECTION (28"-50") VOD0053

This Vortex double wall telescoping section requires 6 inches of clearance to combustible side walls and 6 inches to combustible ceilings during standard installation. When assembled pipe sections have no adjustable length components, clearances to combustible walls and ceilings may be reduced to just 5 inches, providing more installation flexibility in tight spaces compared to single-wall pipe that requires 18-inch clearances.

To install the telescoping section, first measure the distance needed from your stove connection point to your desired termination point. The VOD0053 adjusts from 28 inches to 50 inches, providing 22 inches of adjustment range. Remember to allow an additional 1-3/4 inches for overlap wherever pipe sections will be joined together. The easy-to-connect design allows you to adjust the length as needed without cutting or crimping, then secure the connection following the manufacturer's installation instructions.

The Vortex VOD0053 telescoping section is designed to be compatible with Vortex venting systems and is also compatible with other major brands including Ventis, Champion, and Nexvent double wall stove pipe systems. The 6-inch inner diameter is the standard size for most residential wood stoves. Always verify compatibility with your specific appliance manufacturer's installation instructions and ensure all components are the same diameter throughout your venting system.

This Vortex double wall telescoping section has been tested and listed to comply with multiple North American safety standards including NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances), CSA B365 (Installation Code for Solid-Fuel-Burning Appliances and Equipment), UL 103 HT (Factory-Built Chimneys for Residential Type and Building Heating Appliances), and ULCS629 (Standard for Connectors for Oil-Fired Appliances). These certifications ensure code-compliant installation in both the United States and Canada.

Double wall pipe offers significant safety and performance advantages over single wall pipe. The air-insulated design reduces required clearances to combustibles from 18 inches down to just 6 inches, allowing installation in tighter spaces. The stainless steel inner wall with thermal weave technology maintains higher flue gas temperatures for stronger, more consistent draft, which improves stove efficiency and reduces creosote buildup. The cooler outer wall temperatures provide enhanced safety, and the stainless steel construction provides superior longevity compared to traditional black single-wall pipe.

Yes, double wall stove pipe like the Vortex VOD0053 is required for manufactured home installations according to HUD regulations. The reduced clearances, air-insulated design, and compliance with UL and CSA standards make it suitable for mobile and manufactured home applications. However, always consult your appliance manufacturer's installation instructions and local building codes, and ensure the complete venting system from stove to chimney cap is properly installed according to all applicable regulations for manufactured housing.

Regular maintenance of your double wall telescoping section involves annual inspection of all joints and connections to ensure they remain secure. During your routine chimney sweeping (recommended at least once per year or after every cord of wood burned), inspect the interior of the pipe for creosote buildup. The stainless steel inner wall is designed to minimize creosote formation, but any accumulation should be removed using appropriate chimney cleaning tools. Check the exterior black powder coat finish periodically and touch up any scratches or damage to maintain corrosion resistance. Never use water or chemical cleaners on the pipe exterior while it's installed.

The VOD0053 is a single telescoping pipe section that adjusts from 28 to 50 inches. For a complete installation, you will typically need additional components including an appliance connector to attach to your stove, fixed-length pipe sections as needed, elbows if routing around obstacles, a wall or ceiling support/thimble, and potentially a finishing trim collar. Self-tapping screws are typically included with installation kits. Consider purchasing a complete Vortex installation kit that includes the telescoping section along with commonly needed components for your specific installation type (to the wall or to the ceiling).
