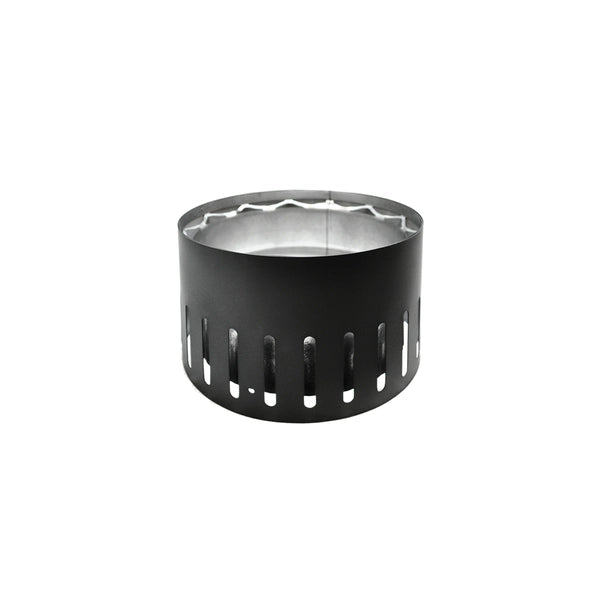

6" VORTEX VENTED STOVE ADAPTER VOD0290

A vented stove adapter (VOD0290) is specifically designed for use with double-wall stove pipe systems and includes venting channels that allow proper airflow between the inner and outer walls of the double-wall pipe. This configuration is essential for maintaining the reduced clearances and safety features of double-wall systems. A standard stove adapter (VOD0291) is a solid adapter without venting and is typically used in different installation configurations. For most double-wall Vortex installations connecting to wood stoves, the vented adapter is the recommended choice.

Installation requires drilling at least three evenly-spaced 1/8" pilot holes through both the adapter and the stove's flue collar, then securing with (3) #8 x 1/2" self-drilling screws. Ensure the adapter is properly aligned and seated flush against the flue collar before drilling. The 5.94" connection diameter is designed to fit most standard 6" wood stove flue collars. Once secured, connect your Vortex double-wall pipe sections to the adapter using the same screw fastening method at each joint.

While the VOD0290 is specifically designed for the Vortex double-wall stove pipe system, other quality double-wall connector pipe brands such as DuraVent DVL may also work with proper fitment verification. However, for optimal performance, safety, and warranty coverage, it's recommended to use this adapter exclusively with Vortex brand components. Mixing brands may affect clearances, venting performance, and code compliance. Always verify compatibility and maintain consistent brands throughout your venting system when possible.

The Vortex VOD0290 adapter complies with all major North American safety standards including NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances), CSA B365 (Installation Code for Solid-Fuel-Burning Appliances and Equipment), UL 103 HT (Factory-Built Chimneys for Residential Type and Building Heating Appliances), and ULCS629 standards. This comprehensive compliance ensures the adapter meets requirements for residential wood-burning appliance installations across the United States and Canada.

No, the VOD0290 vented stove adapter is specifically designed and certified for use with solid fuel-burning appliances including wood stoves, wood fireplaces, wood furnaces, and wood boilers that have been certified by an accredited laboratory. For pellet stove applications, Vortex offers dedicated pellet vent adapters (such as VOP0151 for 4" pellet systems) that are constructed with the appropriate materials and meet different standards (UL 641, CAN/ULC S609) required for pellet appliance venting. Never use wood stove pipe components with pellet or gas appliances.

The manufacturer's limited lifetime warranty covers the VOD0290 adapter against manufacturing defects when properly installed in residential applications with certified wood-burning appliances. The warranty applies only to the original purchaser and is non-transferable. Coverage includes replacement of defective double-wall connector pipe components. The warranty is void if the product is used in commercial applications, installed improperly, used with non-certified appliances, or subjected to conditions beyond normal residential wood-burning use. Warranty claims require proof of purchase and professional inspection if issues arise.

The exclusive thermal weave design in the stainless-steel inner wall promotes more even and efficient airflow throughout the double-wall venting system. This technology helps distribute heat more uniformly, which reduces hot spots and lowers the outer wall temperature compared to standard double-wall designs. Lower outer wall temperatures mean safer operation with reduced risk of accidental contact burns and allow for the reduced clearances to combustible materials that make double-wall systems advantageous. The thermal weave also contributes to better draft performance and more efficient exhaust gas flow.

Installation requires basic tools and materials: a power drill with 1/8" drill bit for pilot holes, (3) #8 x 1/2" self-drilling screws per connection point (typically included with pipe sections or available separately), and a screwdriver or drill with appropriate bit for fastening screws. High-temperature silicone sealant may be required for certain connections such as masonry penetrations, though it's not needed for the adapter-to-flue collar connection itself. No welding, soldering, or specialized HVAC tools are required. Most homeowners with basic DIY skills can complete the installation, though professional installation is recommended for complex venting configurations.
