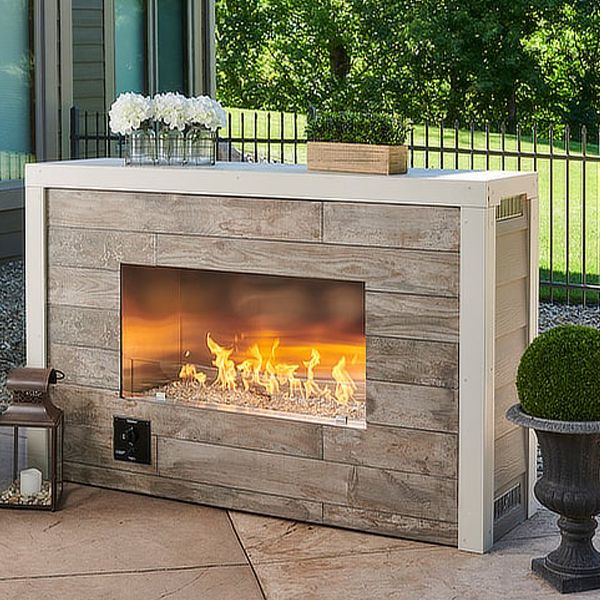

Linear Ready-to-Finish Fireplace Features

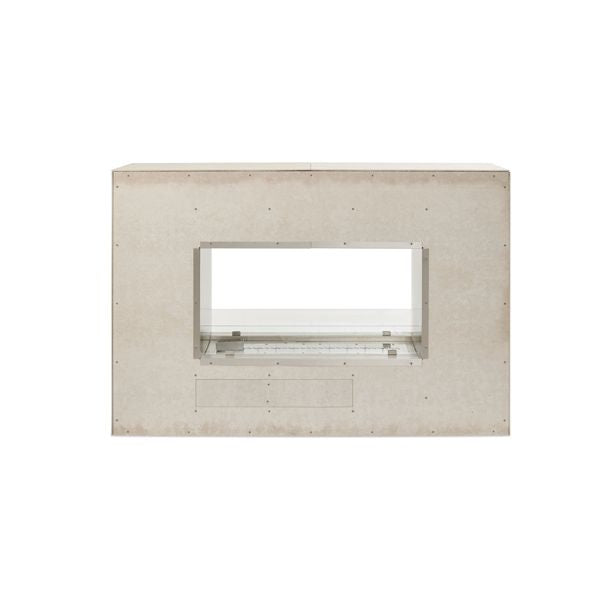

- Ready-to-Finish Design: Customize the fireplace on-site with your choice of non-combustible materials including stucco, stone, Supercast concrete, tile, and more to match your outdoor landscaping and hardscaping perfectly.

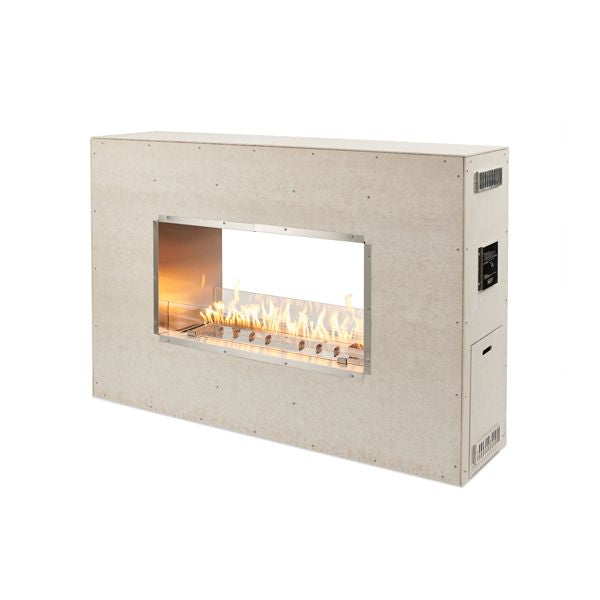

- Crystal Fire Plus Burner Technology: Includes premium BI737DSING/LP Crystal Fire Plus burner insert with Direct Spark Ignition safety system that produces brighter, taller, fuller, and more natural flames with higher BTU capacity than previous generations.
- Commercial-Grade Construction: Built with Hardiebacker fiber cement board and robust G90 marine-grade galvanized steel framing for exceptional durability and weather resistance in outdoor environments.
- Pre-Installed Components: Features pre-installed vents, control panel cut-out, and glass wind guard panels for streamlined installation and time savings during your DIY project.
- Positive Connect Gas System: Minimal gas connections needed during installation as most connections are already made at the factory, simplifying the setup process significantly.

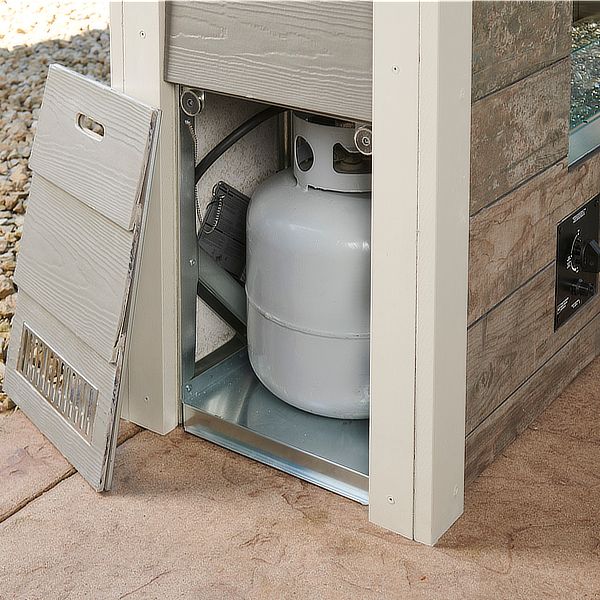

- Concealed Propane Storage: Access door conceals standard 20 lb. propane tank in base, keeping your fuel source hidden while remaining easily accessible for refills.
- Dual Fuel Capability: Can be used for both liquid propane (LP) and natural gas (NG) installations with hard-pipe installation recommended for optimal performance.
- Made in USA: Manufactured domestically in Minnesota to the highest standards with over 50 patents from The Outdoor GreatRoom Company since 1975.
Linear Ready-to-Finish Fireplace Specs
| Model Number | RLFP-40D (Direct Spark) / RLFP-40M (Manual) |
| Overall Dimensions | 72" L x 18.5" W x 48" H |
| Viewing Area | 40" W x 20" H |
| BTU Output | 80,000 BTUs (LP/NG) |
| Weight | 225 lbs |
| Burner Size | 7" x 37" |
| Burner Material | #304 Stainless Steel Pan |
| Fireplace Opening Liner | #304 Stainless Steel |
| Recommended Fire Media | 30 lbs (sold separately) |
| Natural Gas Pressure | Min 6" W.C. / Max 10.5" W.C. / Ideal 7" W.C. |
| Propane Gas Pressure | Min 8" W.C. / Max 14" W.C. / Ideal 11" W.C. |
| Clearance to Combustibles | Top: 6" / Sides: 1" / Back: 1" |
| Power Options | GFCI outlet or 2D cell battery pack |
| Propane Tank Capacity | Standard 20 lb tank (concealed) |
| Shipping | Ships in one piece, 4-6 weeks |
| Country of Origin | Made in USA with domestic and imported parts |
Linear Ready-to-Finish Fireplace FAQ
What materials can I use to finish this fireplace?
You can finish the fireplace with any non-combustible materials including stucco, natural stone, stone veneer tiles, Supercast concrete, ceramic tile, or Hardiebacker siding. The unit comes with Hardiebacker fiber cement board as a base ready to be covered with your choice of finishing material.
Is this fireplace suitable for outdoor weather conditions?
Yes, this fireplace is specifically designed for outdoor use with commercial-grade G90 marine-grade galvanized steel framing and Hardiebacker fiber cement board construction, making it highly durable and weather-resistant for year-round outdoor installation.
Does the fireplace come with everything I need to operate it?
The fireplace includes the enclosure structure, Crystal Fire Plus burner insert with Direct Spark Ignition system, pre-installed vents, and glass wind guard panels. Fire media (glass or lava rock) is sold separately and you'll need to provide your own gas connection. Recommended fire media is 30 lbs.
How difficult is the installation process?
Installation is simplified with pre-cut openings for the burner system, vents, and control panel. Most gas connections are already made at the factory through the Positive Connect system. Hard-pipe gas installation is recommended. The unit can be powered by a GFCI outlet or 2D cell battery pack for the ignition system.
Can I use this fireplace in a commercial setting?
Absolutely. This fireplace features commercial-grade construction and is perfect for both residential and commercial applications including restaurants, hotels, outdoor lounges, and public spaces.
What kind of warranty does this product have?
The Outdoor GreatRoom Company offers a limited lifetime warranty on all stainless steel burners and a three-year structural warranty on fire pit bases and enclosures.
Can I switch between propane and natural gas?
Yes, the Crystal Fire Plus burner system is designed to work with both liquid propane (LP) and natural gas (NG) installations. However, you'll need to ensure proper gas pressure settings: Natural Gas operates at 6-10.5" W.C. (ideal 7"), while Propane operates at 8-14" W.C. (ideal 11").
How much heat does this fireplace produce?
The 40-inch model produces 80,000 BTUs, providing substantial warmth for outdoor entertaining spaces. The Crystal Fire Plus burner offers higher BTU capacity than previous generations while creating beautiful, natural-looking flames.
40″ Linear Ready to Finish Fireplace Crystal Fire Plus Burner Manuals:
