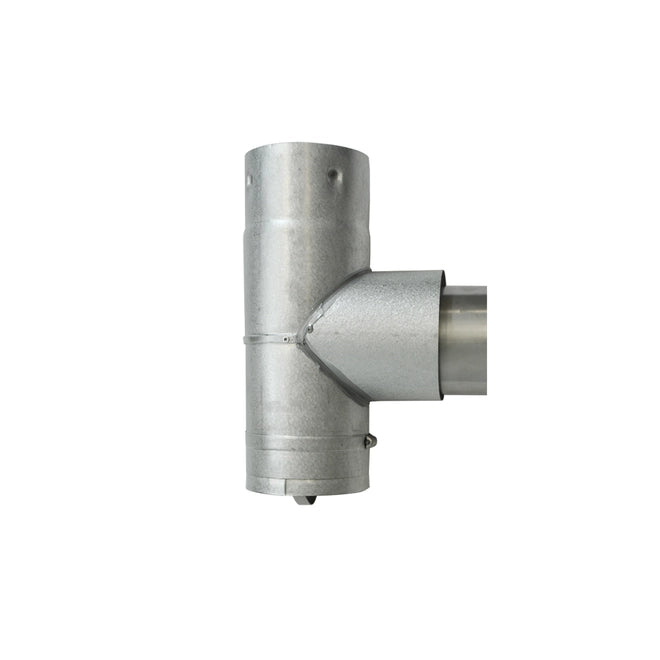

4" TO 3" PELLET STOVE TEE AND CAP ADAPTER (UNPAINTED) VOP0114

The VOP0114 features a 4-inch main body diameter with a 3-inch take-off specifically designed to connect directly to your pellet stove. This dual-diameter design allows the elbow to serve as a transition piece, connecting a standard 3-inch stove outlet to a 4-inch venting system, providing flexibility in system configuration while maintaining proper venting capacity.

No, the VOP0114 features a revolutionary gasket system that prevents leaks without requiring silicone application. This advanced gasket technology ensures a secure, leak-proof seal at all connections, making installation cleaner and more convenient while maintaining optimal venting performance and safety.

This elbow is fully compliant with all major North American safety standards including NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances), CSA B365 (Installation Code for Solid-Fuel-Burning Appliances and Equipment), UL 641 (Type L Low-Temperature Venting Systems), CAN/ULC S609, and ULC/ORD C441, ensuring code compliance and safe operation across the United States and Canada.

The VOP0114 is UL listed for 3-inch clearance to combustible materials in both the USA and Canada. This low clearance requirement makes it ideal for installations in confined spaces, though you should always verify compliance with your local building codes and consult with a licensed professional installer to ensure proper clearances for your specific installation.

The elbow angle is fixed at 90 degrees and cannot be adjusted. However, the elbow features a 360-degree swivel capability at its base, allowing you to rotate the entire elbow to precisely align with your venting path and offset obstructions as needed during installation.

Yes, this type of pellet vent system is required for venting pellet appliances installed above 4,000 feet elevation. The double-wall air-insulated design helps maintain proper draft and flue gas temperatures in high-altitude conditions where atmospheric pressure is lower and venting performance can be affected.

The VOP0114 pellet vent elbow is rated for flue gases not exceeding 570°F (298.8°C). This temperature rating is suitable for all wood pellet and corn-burning stoves, as these appliances typically produce lower flue gas temperatures compared to traditional wood-burning systems. The stainless steel inner wall maintains heat retention to ensure proper draft and prevent condensation.

Yes, the galvalume steel outer wall is paintable, allowing you to customize the appearance to match your décor or make the venting system less visible. Use only high-temperature paint rated for pellet vent applications, and ensure proper surface preparation before painting for best adhesion and durability.
