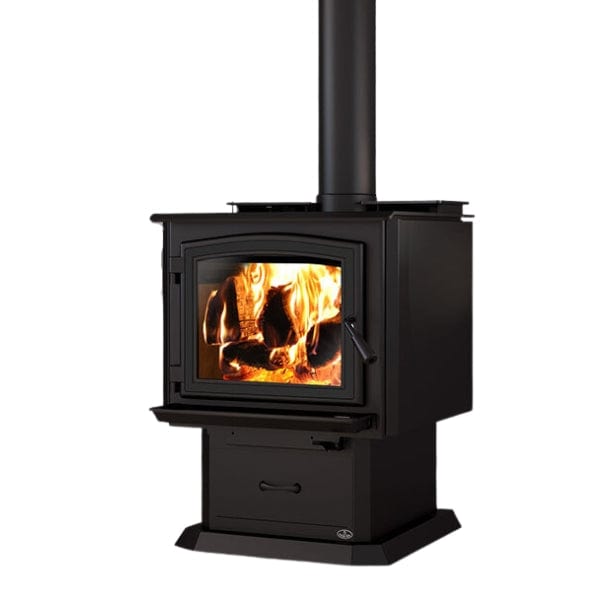

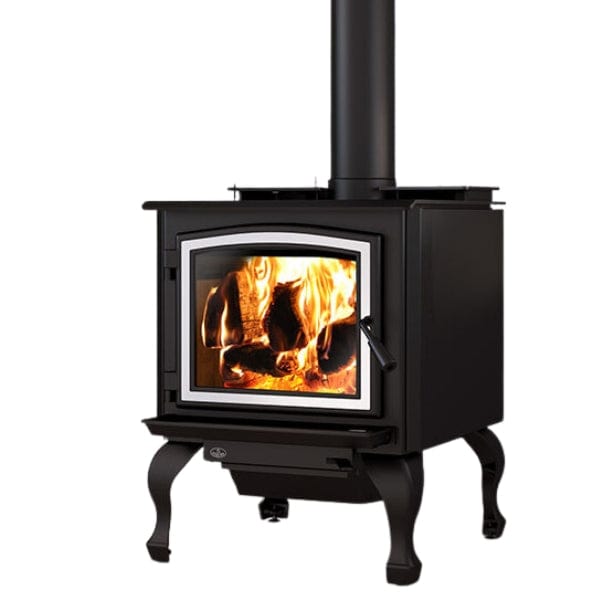

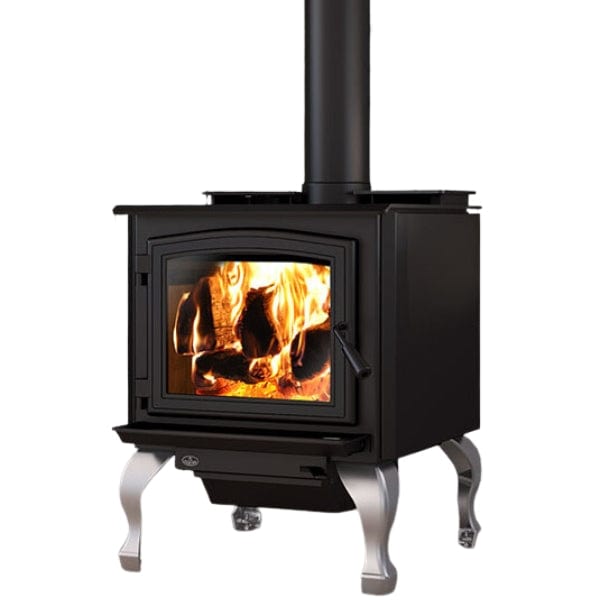

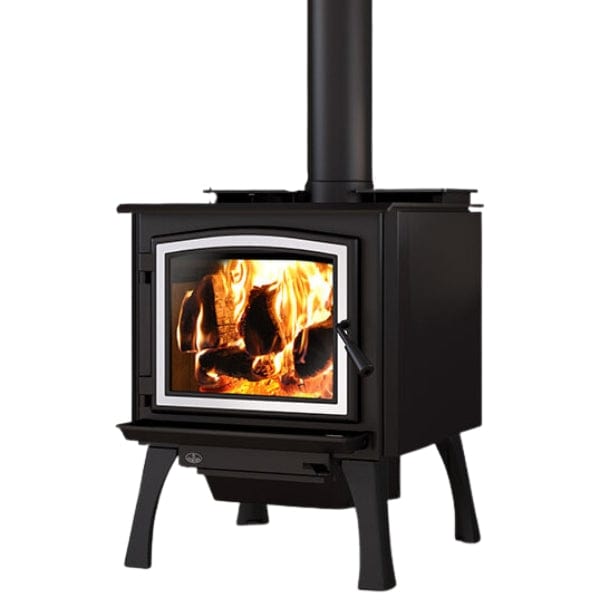

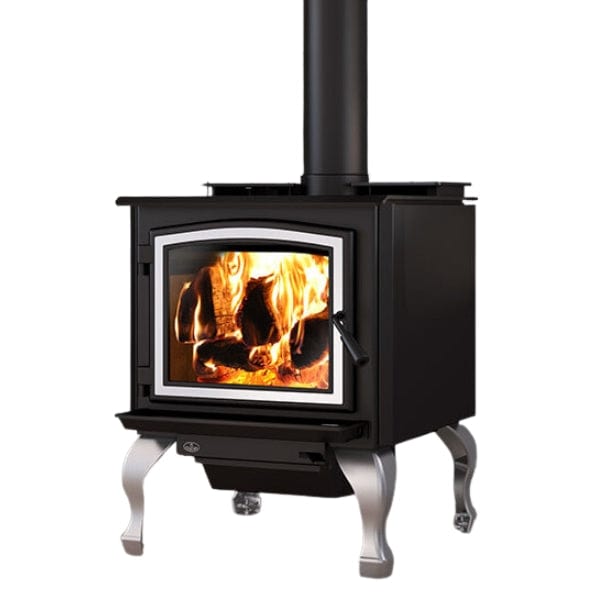

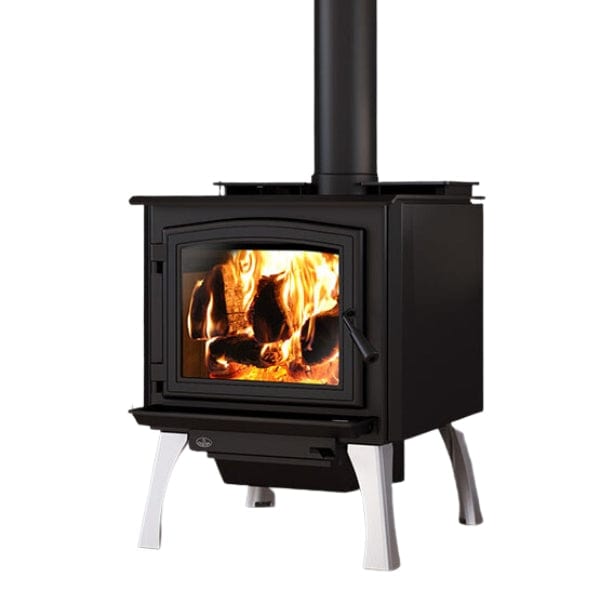

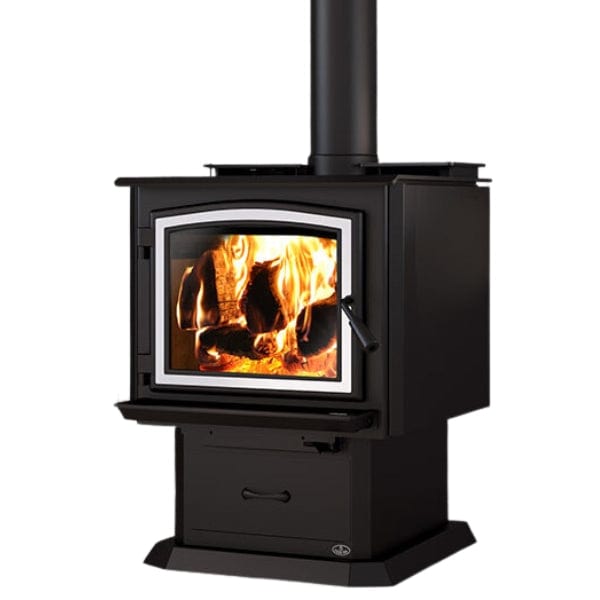

The Osburn 3300 Wood Stove – The Most Effective Eco-Friendly Heating Source.
The Osburn 3300 represents the essence of eco-friendly and efficient heating. With an emission rate of 0.95 g/h, this non-catalytic wood stove is among the cleanest on the market and represents an environmentally friendly source of energy. This north-south loading model will keep your family warm all night long, even in very cold weather, thanks to its power of 90,000 BTU/h.
The design of the heater is flawless and enhanced by a set of high-density bricks, a stainless steel heat shield added to the C-Cast baffle, a new cast iron door mold, an integrated ash drawer, a top heat deflector as well as decorative side panels.
This new-generation wood stove offers a multitude of configuration options. In addition to the traditional or straight legs and the door overlay available in black or brushed silver, you can choose a pedestal, a rigid spark arrester, a blower with thermodisc, and a glass ash lip according to your needs. Let yourself be inspired and reinvent your interior comfort!
Osburn 3300 Wood Stove Performance:
| Fuel type : | Dry cordwood (16" recommended) |
| Recommended heating area-ft² : | 900 - 2,300 |
| Overall firebox volume-ft³ : | 3.3 |
| EPA loading volume-ft³ : | 2.67 |
| Maximum burn time : | 10 h |
| Maximum heat output-dry cordwood : | 90,000 BTU/h (26.4 kW) |
| Overall heat output rate < : | 15,841 BTU/h (4.64 kW) to 57,041 BTU/h (16.72 kW) |
| Average overall efficiency (dry cordwood) : | 71.1 % (HHV) | 76.6 % (LHV) |
| Optimum overall efficiency : | 78% |
| Optimum heat transfer efficiency : | 74% |
| Average particulate emissions rate : | 0.95 g/h |
| Average CO : | 61.3 g/h |
Osburn 3300Wood Stove Clearance:
| Single wall pipe | Double wall pipe | |
| Clearance – back wall | 14 1/2" | 6" |
| Clearance - corner | 10" | 8" |
| Clearance – side wall | 12" | 12" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
Osburn 3300 Wood Stove Features:
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 525 lb (238 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 14 1/2" X 11 5/8" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 34" |
| Overall dimension (Width) | 24 1/4" |
| Overall dimension (Depth) | 30 1/2" |
| Door opening – dimension (Height) | 12" |
| Door opening - dimension (Width) | 16" |
| Firebox – dimension (Height) | 14 1/8" |
| Firebox – dimension (Width) | 19" |
| Firebox – dimension (Depth) | 21" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Legs or pedestal |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Osburn 3300 Wood Stove Owner's Manual:
