VOP0005 Pellet Vent Pipe Features
- Maximum Efficiency Design: 72-inch ultra-extended sections provide unmatched installation efficiency for tall runs, reducing total connections to absolute minimum for superior system integrity.
- Premium Double-Wall Insulation: Engineered insulation layer maintains optimal thermal performance, maximizes natural draft characteristics, and virtually eliminates interior condensation issues.
- Heavy-Duty Stainless Steel Liner: Industrial-grade construction provides exceptional resistance to acidic combustion byproducts from pellet fuel, ensuring maximum longevity and reliability.
- Commercial-Grade Installation: Ideal for multi-story applications, commercial installations, and professional retrofit projects where maximum height coverage per section is essential.
- Superior Code Certification: Exceeds all UL and NFI requirements with optimized engineering for peak thermal efficiency, superior draft characteristics, and absolute safety compliance.
VOP0005 Specifications
| Product Model | VOP0005 |
| Vent Type | Double-Wall Insulated Pellet Vent |
| Diameter | 3 inches nominal |
| Pipe Length | 72 inches per section |
| Inner Liner Material | Heavy-gauge stainless steel (304 or 316 grade) |
| Outer Casing | Premium galvanized steel or aluminum |
| Insulation Core | High-density fiberglass or mineral wool insulation |
| Maximum Temperature Rating | Up to 400°F continuous service |
| Weight per Section | Approximately 12-14 pounds |
| Connection Type | Slip-fit overlap design with hose clamp fastening |
| Compatible Appliances | EPA-certified pellet stoves, corn stoves, biomass heating systems, commercial applications |
| Warranty | 5-year manufacturer warranty |
| Certifications | UL Listed, NFI (National Fireplace Institute) certified |
VOP0005 Pellet Vent Pipe FAQ
What are the key advantages of the 72-inch VOP0005 over other section lengths?
The VOP0005's 72-inch length offers maximum efficiency for tall vertical installations by reducing total connections to a minimum. Fewer connections mean fewer potential leak points, faster installation time, superior system integrity, and lower long-term maintenance costs. Perfect for multi-story installations and commercial applications.
Are VOP0001 through VOP0005 sections fully interchangeable?
Yes, all five section lengths (24-inch VOP0001, 36-inch VOP0002, 48-inch VOP0003, 60-inch VOP0004, and 72-inch VOP0005) are fully compatible. All share the same 3-inch diameter and slip-fit connection method, allowing complete flexibility in mixing and matching sections for your specific application requirements.
How do I determine the exact number of VOP0005 sections needed?
Divide your total vertical height by 72 inches and round up. For combined vertical and horizontal runs, calculate each segment separately. Account for any elbows, tees, or other fittings that consume additional space. Always add one extra section for contingencies and to simplify future repairs or modifications.
Can the VOP0005 be used for horizontal pellet vent applications?
Yes, the VOP0005 works for horizontal runs with proper slope maintenance. Ensure at least 1/4 inch downward slope per foot of horizontal distance for proper condensation drainage. Longer horizontal sections may reduce draft efficiency, so minimize horizontal distances and verify compatibility with your specific pellet stove manufacturer specifications.
What is the correct procedure for connecting VOP0005 sections?
Slide the male end into the female end with approximately 1-2 inches of overlap. Secure with two stainless steel hose clamps positioned above and below the overlap point. Tighten both clamps with even pressure using a nut driver. Avoid over-tightening as this can crimp the pipe and compromise the seal.
What maintenance schedule should I follow for the VOP0005 pellet vent?
Perform complete inspection and cleaning annually before the heating season. Use a 3-inch pellet vent brush with flexible rods to remove creosote and combustion ash from all sections. Check all hose clamps for tightness and corrosion, replacing any that show wear. Schedule professional chimney inspection yearly for comprehensive system evaluation.
Is the VOP0005 suitable for outdoor installations in extreme climates?
Yes, the VOP0005's double-wall construction and protective outer casing provide excellent weather resistance. Install proper roof flashing and storm collar at the exit point. In extreme climates with high temperature swings, salt spray, or harsh conditions, inspect quarterly for damage and consider protective coating on the outer casing for extended longevity.
What should I do if my VOP0005 system develops condensation problems?
Interior condensation typically indicates inadequate draft, excessive horizontal sections, or improper pellet stove operation. First verify your stove operates at correct temperature. Check the entire system for blockages or obstructions. Ensure adequate vertical rise is present. If condensation persists, consult a certified chimney professional to diagnose and correct underlying draft issues.

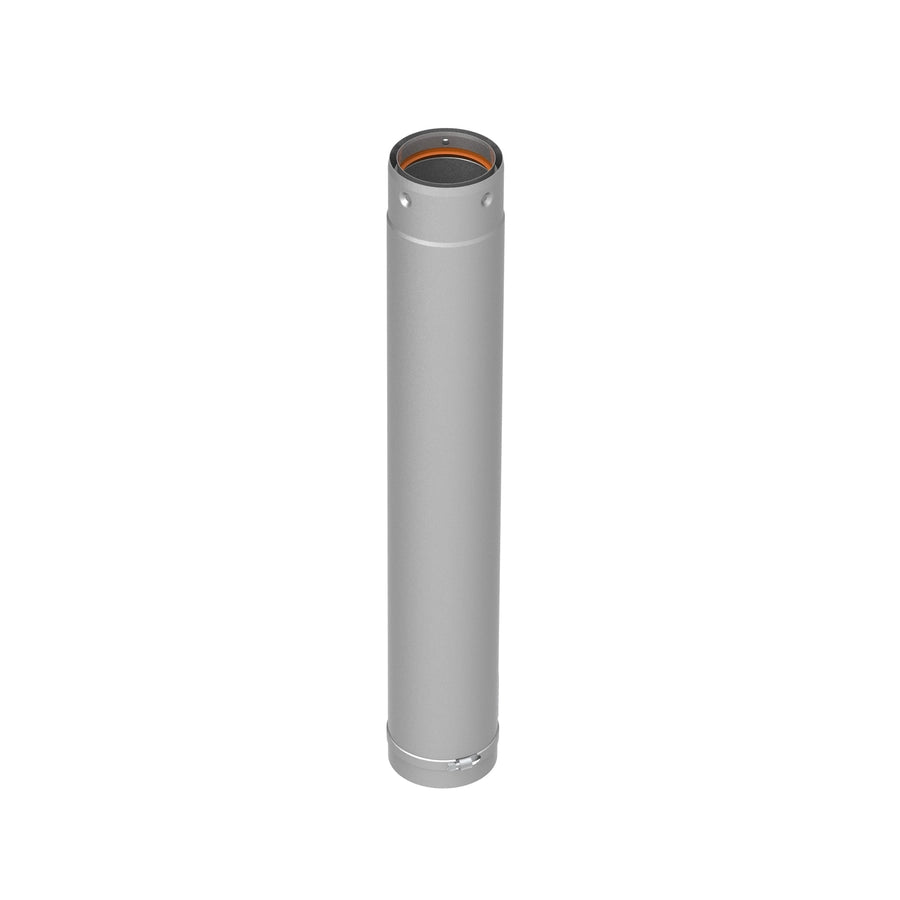

3" X 18"L PELLET PIPE Manual:
