VOP0110 Pellet Vent 90 Degree Elbow Features
- Professional Dual-Wall Construction: Features corrosion-resistant stainless steel inner wall and durable galvalume steel outer wall for superior longevity and reliable performance in demanding pellet stove applications.
- Advanced Gasket Technology: Revolutionary gasket system creates leak-proof seals without requiring silicone sealant, simplifying installation while ensuring airtight connections throughout the venting system.
- Precision Laser-Welded Seams: Smooth-weld technology produces virtually invisible seams for a professional, clean appearance and enhanced structural integrity that prevents gas leakage.
- 360-Degree Swivel Base: Elbow swivels freely at the base for easy alignment and positioning to reach exit points, providing maximum installation flexibility while maintaining the fixed 90-degree angle.
- Precision-Formed Connection Points: Engineered with precision-formed ends for superior fit and finish, ensuring secure, properly aligned connections that install easily and maintain system integrity.
- Obstruction Offset Capability: Ideal for offsetting obstructions and changing vent direction from vertical to horizontal or horizontal to vertical, enabling flexible routing around structural elements.
- Multi-Fuel Compatibility: Designed for pellet stoves burning wood pellets, corn, and other approved biofuels with continuous use temperature rating up to 570°F for versatile heating applications.
- Comprehensive Safety Certifications: Complies with NFPA 211, CSA B365, UL 641, CAN/ULC S609 and ULC/ORD C441 standards for safe, code-compliant installations in residential and commercial settings.
VOP0110 Pellet Vent 90 Degree Elbow Specs
| Model Number | VOP0110 |
| Product Type | 90 Degree Fixed Elbow |
| Angle Configuration | 90 Degrees (Fixed, Not Adjustable) |
| Inner Wall Material | Corrosion-Resistant Stainless Steel |
| Outer Wall Material | Galvalume Steel |
| Construction Type | Double-Wall Air-Insulated |
| Welding Technology | Laser-Welded Smooth Seams |
| Gasket System | Revolutionary Leak-Proof Design |
| Swivel Feature | 360-Degree Rotation at Base |
| Primary Function | Direction Change and Obstruction Offset |
| Fuel Compatibility | Wood Pellets, Corn, Biofuels |
| Maximum Temperature Rating | 570°F Continuous Use |
| Clearance to Combustibles (USA/Canada) | 1 inch |
| Safety Certifications | NFPA 211, CSA B365, UL 641, CAN/ULC S609, ULC/ORD C441 |
VOP0110 Pellet Vent 90 Degree Elbow FAQ
What is the VOP0110 pellet vent elbow used for?
The VOP0110 90-degree elbow is used to change the direction of your pellet vent system from vertical to horizontal or horizontal to vertical. It's ideal for offsetting obstructions and routing the vent path around structural elements to reach the proper exit point or chimney connection. The elbow features a 360-degree swivel at the base for easy alignment while maintaining the fixed 90-degree angle.
Can the angle of the VOP0110 elbow be adjusted?
No, the VOP0110 is a fixed 90-degree elbow and the angle cannot be adjusted. However, the male end swivels 360 degrees at the base, allowing you to position the elbow in the proper direction to reach your exit point while maintaining the 90-degree offset. This swivel feature provides installation flexibility without compromising the structural integrity of the fixed angle.
What clearance to combustibles is required for the VOP0110 elbow?
The VOP0110 requires only 1 inch of clearance (air space) from the vent elbow to combustible materials in both the United States and Canada. This minimal clearance requirement allows for flexible installation in confined spaces while maintaining proper fire safety standards. Always maintain this clearance and follow local building codes for safe installation.
Does the VOP0110 require silicone sealant for installation?
No, the VOP0110 features a revolutionary gasket system that creates leak-proof seals without requiring the use of silicone sealant. This advanced gasket design simplifies installation and ensures airtight connections. The precision-formed ends and smooth-weld technology work together to provide secure, maintenance-free joints throughout your venting system.
What types of heating appliances is the VOP0110 compatible with?
The VOP0110 is designed for stoves and inserts that burn wood pellets, corn, and other approved biofuels. It's rated for continuous use with flue gas temperatures up to 570°F. The elbow is compatible with pellet stoves, corn stoves, and multi-fuel appliances that are approved for use with pellet venting systems meeting UL 641 standards.
What safety certifications does the VOP0110 pellet vent elbow have?
The VOP0110 complies with comprehensive safety standards including NFPA 211, CSA B365, UL 641, CAN/ULC S609, and ULC/ORD C441. These certifications ensure the elbow meets rigorous requirements for safe installation and operation in both the United States and Canada for residential and commercial pellet venting applications.
What is the construction quality of the VOP0110 elbow?
The VOP0110 features professional-grade double-wall construction with a corrosion-resistant stainless steel inner wall and galvalume steel outer wall. It utilizes smooth-weld laser technology for virtually invisible seams and precision-formed connection points for superior fit and finish. The air-insulated design provides superior performance and reliability for long-term use.
How do I determine the proper positioning for multiple elbows?
When using multiple elbows in your pellet vent system, position them to create the most direct path possible while avoiding long horizontal runs and excessive offsets. The 360-degree swivel feature allows proper alignment between elbows. Consult your appliance manufacturer's installation instructions for maximum offset limits, minimum vertical rise requirements, and total horizontal run restrictions. Always use proper support and bracing, and have your venting system inspected by local authorities.

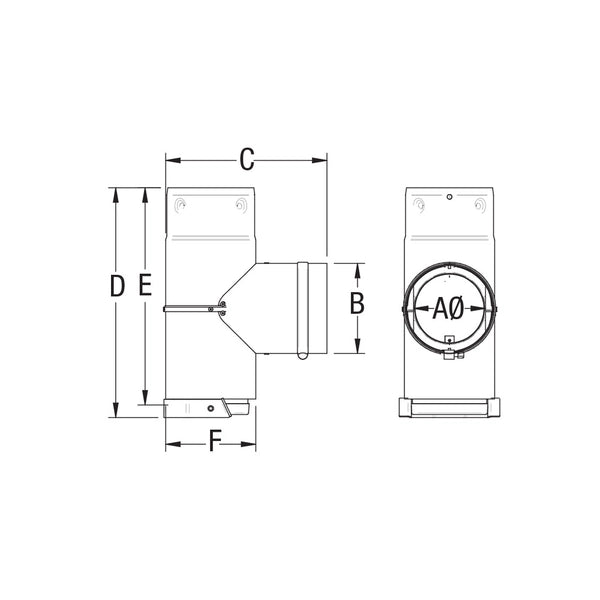

3" PELLET TEE WITH CAP (UNPAINTED) Manual:
