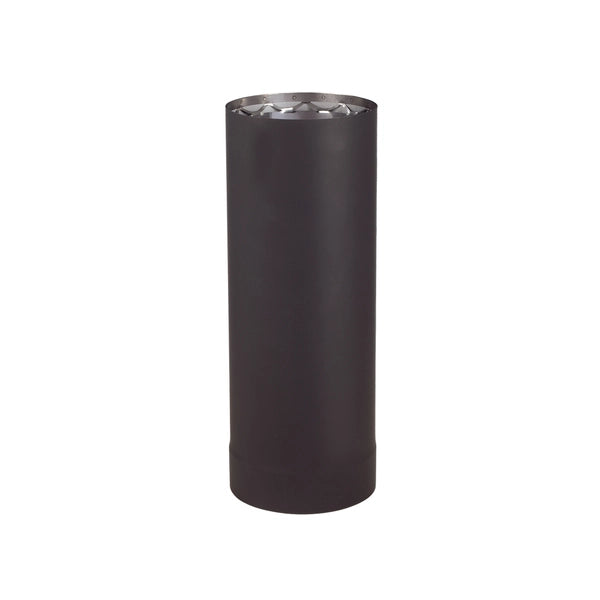

6" X 6"L VORTEX DOUBLE WALL BLACK PIPE VOD0001

The VOD0001 double wall stove pipe requires only 6 inches of clearance to combustible walls and 8 inches of clearance to ceilings, including cathedral ceilings. This is significantly reduced from the 18-inch clearance required for single-wall stove pipe, allowing for more flexible installation options in tighter spaces while maintaining all necessary safety standards.

No, double wall stove pipe should not be cut as it will compromise the proper connection to adjoining pieces and void safety certifications. The predrilled hole system and laser-welded construction require the pipe to remain at its manufactured length. If you need length adjustment, use adjustable or telescoping sections specifically designed for double wall stove pipe systems.

Yes, this double wall stove pipe is specifically approved and required for manufactured home installations. It meets all necessary safety certifications including ULC S629, which is the standard for manufactured housing. The reduced clearance design and enhanced safety features make it ideal for the closer quarters typically found in manufactured homes.

The exclusive thermal weave design in the stainless steel inner wall promotes even airflow throughout the air-insulated space between the inner and outer walls. This creates more efficient heat distribution, results in lower outer wall temperatures for enhanced safety, and helps maintain high flue gas temperatures for a stronger, more consistent draft that improves your wood stove's overall performance.

The VOD0001 double wall stove pipe fully complies with NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances), CSA B365 (Installation Code for Solid-Fuel-Burning Appliances and Equipment), UL 103 HT (Factory-Built Chimneys for Residential Type and Building Heating Appliances), and ULC S629 (Standard for 650°C Factory-Built Chimneys). It is UL Listed to 2100°F for safe high-temperature operation.

The stainless steel inner wall of the double wall design heats up faster and maintains higher temperatures longer than single-wall pipe. These sustained high temperatures prevent the flue gases from cooling too quickly, which significantly reduces the condensation and formation of creosote deposits. This results in cleaner burning, safer operation, reduced maintenance needs, and extended chimney life.

Installation is straightforward thanks to the predrilled hole system and included connection screws that make assembly quick and secure. The laser-welded construction eliminates the need for cutting or crimping, which saves time and ensures proper fit. Each section connects securely with a 1-inch overlap that maintains structural integrity and prevents leaks throughout the venting system.

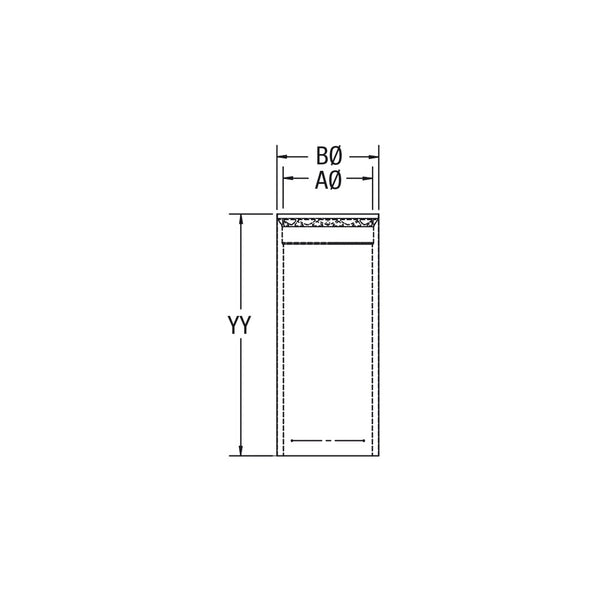

The VOD0001 has a 6-inch inner diameter and a 7-inch outer diameter, making the outer diameter 1 inch larger than the inner diameter. The space between the two walls is air-insulated and features the thermal weave technology. When planning your installation, remember to account for the 7-inch outer diameter plus the required 6-inch clearance to walls for proper spacing.
