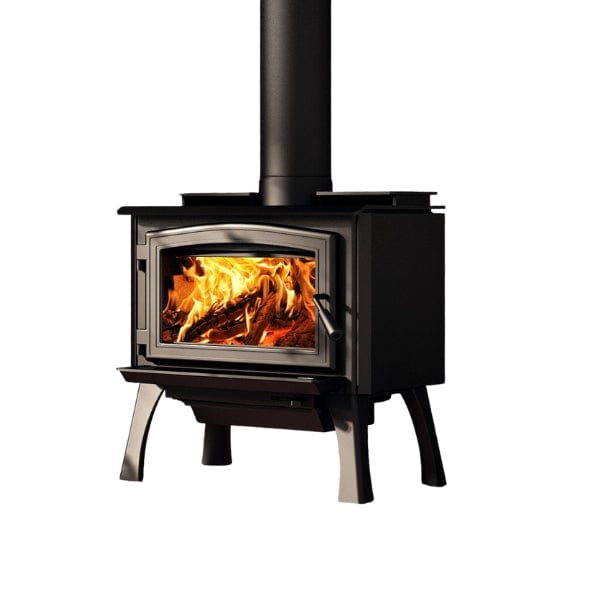

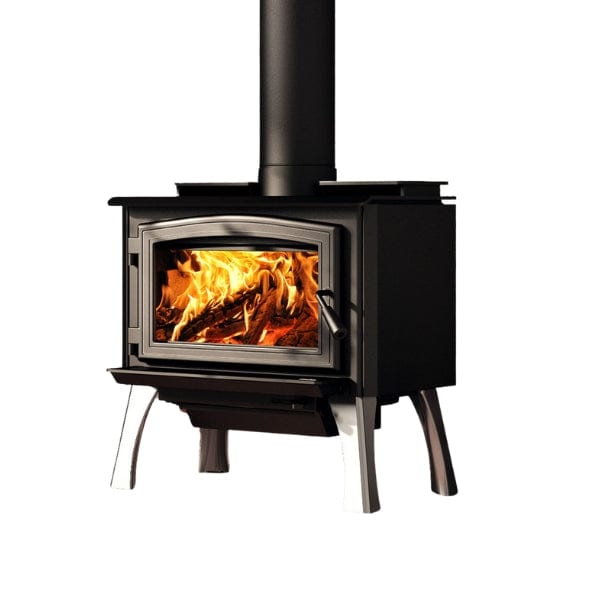

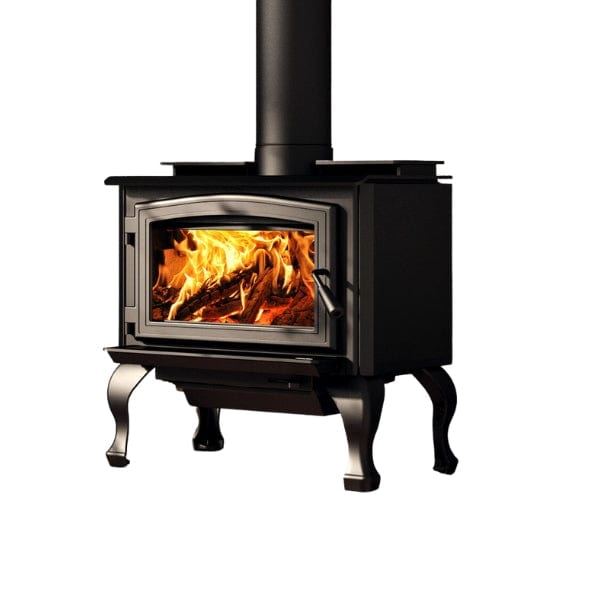

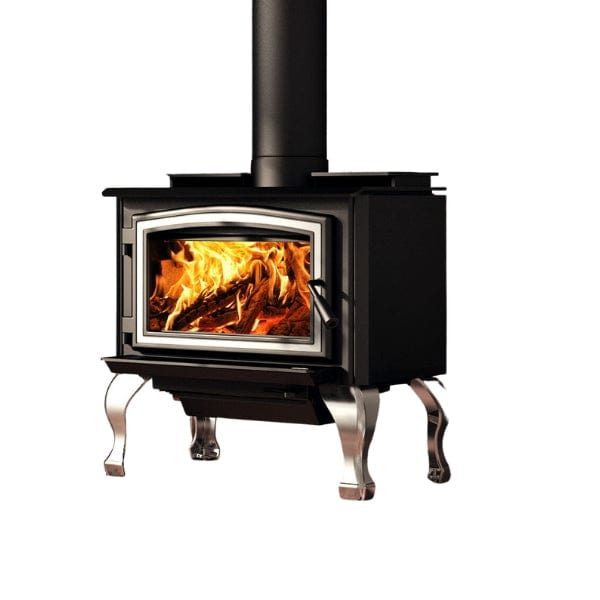

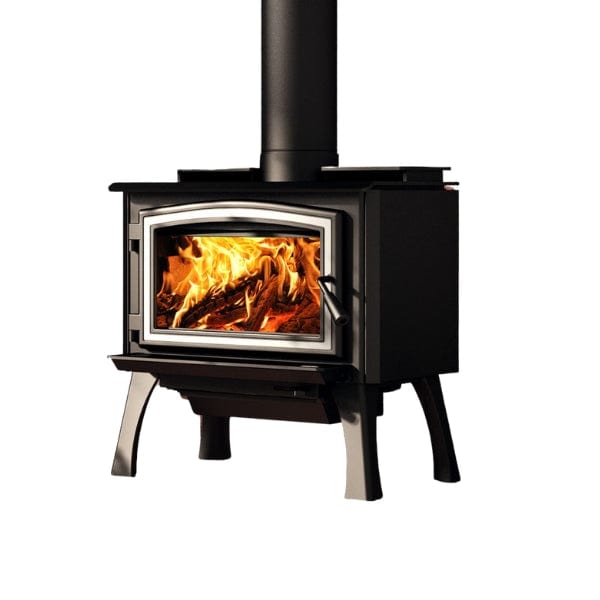

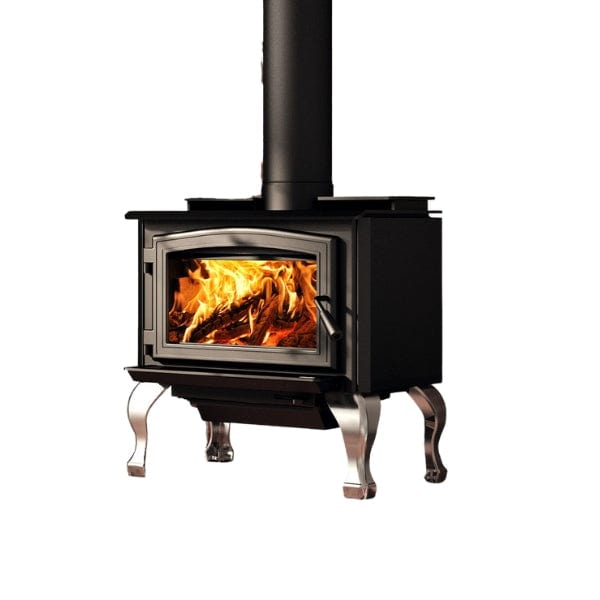

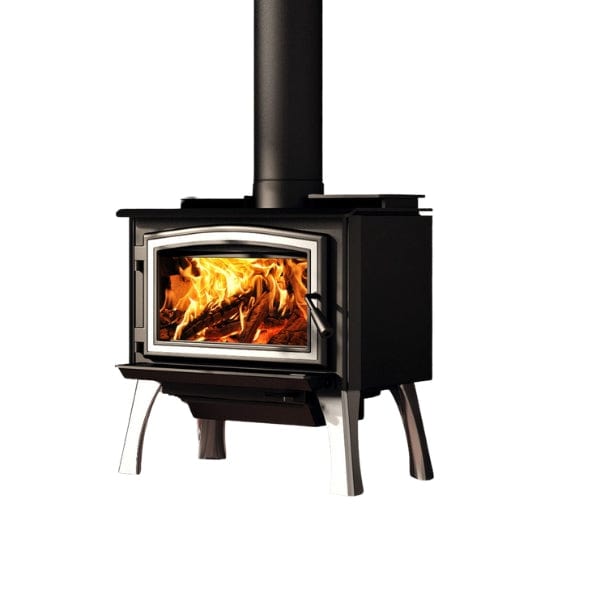

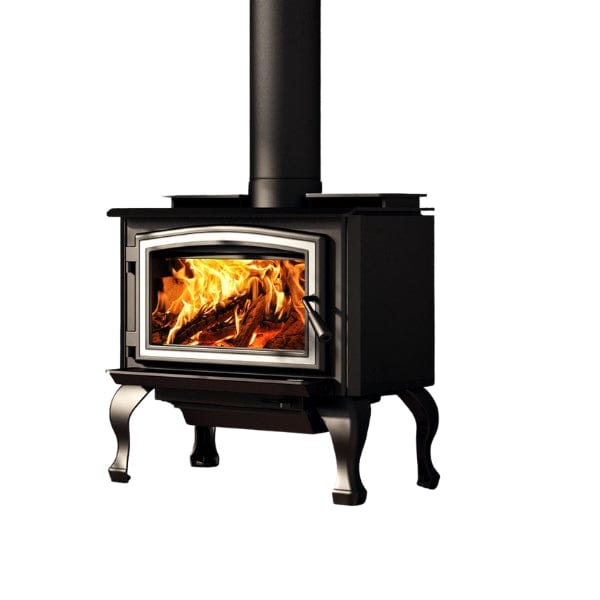

Osburn 1700 Wood Stove OB01700

by Osburn

$2,249.00
Door Overlay
Legs

Notify me when back in stock

Osburn 1700 Wood Stove: Heating The Way You Want-For Less

Designed to meet the needs of smaller spaces, the Osburn 1700 combines robustness and elegance to allow you to enjoy your heating experience with confidence. This unit is equipped with high-density bricks, a stainless steel heat shield added to the C-Cast firestop, a cast iron door, a built-in ash pan, a top heat deflector that redirects heat to the front of the unit, and side panels to reduce its clearances.

Choose your favorite version by customizing the unit to suit your style: refined door overlays, new leg designs, glass ash lip; significant innovations for the most seasoned experts. Exceeding air quality regulations with emissions as low as 1.26 g/h, the Osburn 1700's efficiency will save you time and money.

    Osburn 1700 Wood Stove Performance:

    Fuel type : Dry cordwood (16" recommended)
    Recommended heating area-ft² : 500 - 1,800
    Overall firebox volume-ft³ : 1.9
    EPA loading volume-ft³ : 1.44
    Maximum burn time : 6 h
    Maximum heat output-dry cordwood :  65,000 BTU/h (19 kW)
    Overall heat output rate < :  15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
    Average overall efficiency (dry cordwood) : 70 % (HHV) | 75 % (LHV)
    Optimum overall efficiency : 78%
    Optimum heat transfer efficiency : 74%
    Average particulate emissions rate : 1.26 g/h
    Average CO : 58 g/h

    Osburn 1700Wood Stove Clearance:

    Side Single wall pipe Double wall pipe
    Clearance – back wall 13" 6"
    Clearance - corner 12" 6"
    Clearance – side wall 10" 10"

    Clearance – top

    84" 84"

    Clearance – minimum floor protection in front of the appliance

    16"



    Register your warranty.

    Osburn 1700 Wood Stove Features:

    Combustion technology Non-catalytic
    High-efficiency certified appliance Yes, EPA 2020 approved
    Maximum log length 18"
    Log positioning Loading over width
    Chimney diameter 6"
    Flue outlet diameter 6"
    Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
    Minimum chimney height (feet) 15'
    Baffle type C-Cast or equivalent
    Approved for an alcove installation Yes
    Approved for a mobile home installation Yes, with fresh air intake
    Shipping Weight 331 lb (150 kg)
    Door type Single, glass with cast iron frame
    Glass type Ceramic glass
    Glass surface – dimensions (Width X Height) 15 3/4" x 9 3/8"
    Glass air-wash system Yes
    Overall dimension (Height) 30 3/8"
    Overall dimension (Width) 24 7/8"
    Overall dimension (Depth) 23 1/4"
    Door opening – dimension (Height) 8 3/4"
    Door opening - dimension (Width) 17 1/4"
    Firebox – dimension (Height) 11 7/8"
    Firebox – dimension (Width) 19 5/8"
    Firebox – dimension (Depth) 13 1/2"
    Firebox lined with refractory bricks for better heat distribution Yes
    Stainless-steel secondary-air system improving gas combustion Yes

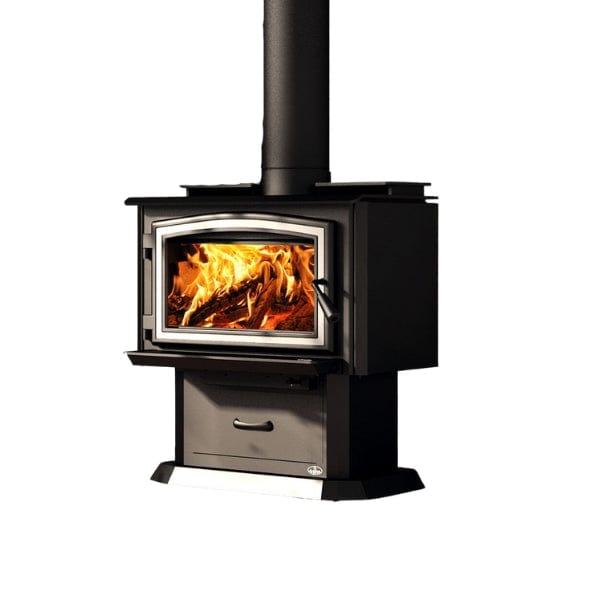

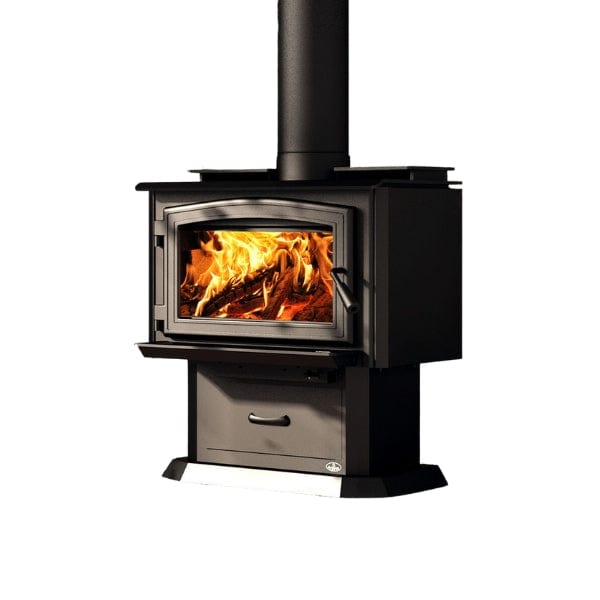

    Model Legs or pedestal
    Steel thickness – body 3/16"
    Steel thickness – top 5/16"
    USA standard (emissions) EPA
    Canadian Standard (emissions) CSA B415.1-10
    USA standard (safety) UL 1482, UL 737
    Canadian standard (safety) ULC S627
    Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
    Warranty Limited lifetime

    Osburn 1700  Wood Stove Owner's Manual:

    Osburn 1700 Wood Stove Owner's Manual
