Osburn Inspire - A Contemporary Stove That Will Surely Endure Trends

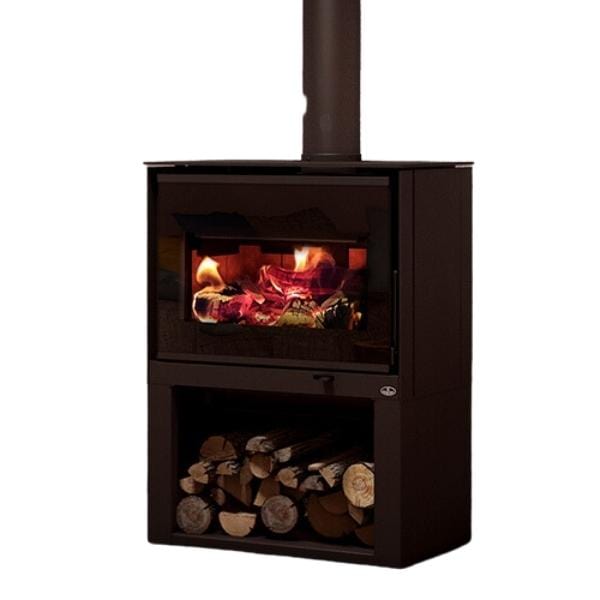

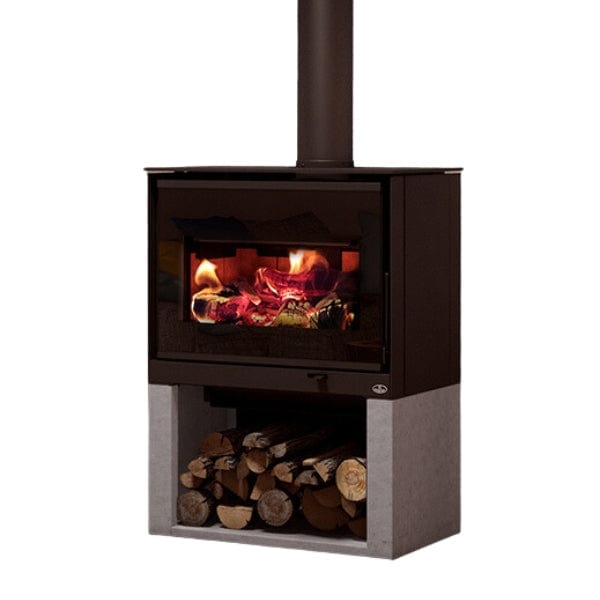

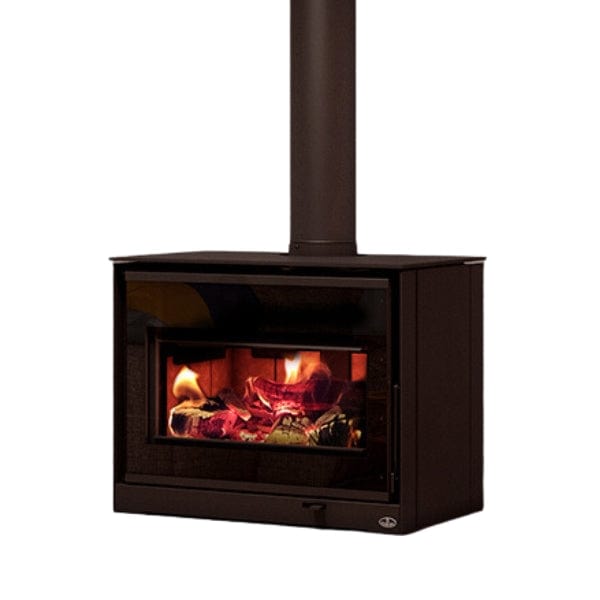

Are you interested in getting off the beaten path? The Inspire offers a style that will surely withstand variable trends with these pure lines of balanced proportions, allowing the brand Osburn to easily compare to European-style products. This more contemporary look is available on steel base, soapstone or even a minimalist base for those who prefer to place the unit directly on a non-combustible podium. Equipped with a 2.3 cubic feet firebox and an outside air intake, this unit will meet the requirements of domestic energy standards, not to mention that a mobile home installation is permitted.
The Inspire largely meets EPA requirements with emissions as low as 1.54 g/h and complies with the most stringent North American requirements. A guarantee of quality, reliability, and durability, once again Osburn clearly demonstrates its firm commitment to the environment to the delight of wood heating fans.
When you purchase a Osburn Inspire 2000, you qualify to receive a federal tax credit of up to 26% of the cost installation AND equipment. Read more about it here.
Osburn Inspire 2000 Wood Stove Features:
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 537 lb (244 kg) |
| Door type | Single, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 20 1/4" X 9 1/2" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 35 5/8" |
| Overall dimension (Width) | 27 7/8" |
| Overall dimension (Depth) | 24 1/4" |
| Door opening – dimension (Height) | 8 3/8" |
| Door opening - dimension (Width) | 20" |
| Firebox – dimension (Height) | 11 3/4" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16 3/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Pedestal |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| Easy-to-access ash drawer | Yes |
| USA standard (emissions) | EPA Method 28 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Osburn Inspire 2000 Wood Stove Performance:
| Fuel type : | Dry cordwood (16" recommended) |
| Recommended heating area-ft² : | 500 - 2,100 |
| Overall firebox volume-ft³ : | 2.4 |
| EPA loading volume-ft³ : | 2.02 |
| Maximum burn time : | 8 h |
| Maximum heat output-dry cordwood : | 75,000 BTU/h (22.0 kW) |
| Overall heat output rate < : | 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW) |
| Average overall efficiency (dry cordwood) : | 69% (HHV) | 74 % (LHV) |
| Optimum overall efficiency : | 77% |
| Optimum heat transfer efficiency : | 75% |
| Average particulate emissions rate : | 1.54 g/h |
| Average CO : | 89.4 g/h |
Osburn Inspire 2000 Wood Stove Clearance:
| Single wall pipe | Double wall pipe | |
| Clearance – back wall | 11" | 6" |
| Clearance - corner | 10" | 7" |
| Clearance – side wall | 16" | 16" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
Osburn Inspire 2000 Wood Stove Owner's Manual:
Osburn Inspire 2000 Wood Stove Dimensions:
Osburn Inspire 2000 Wood Stove - Minimalist Base Kit Install Instructions:
Osburn Inspire 2000 Wood Stove - Steel Base Kit Install Instructions:
Osburn Inspire 2000 Wood Stove - Soapstone Base Kit Install Instructions:
